The machine requires an AC voltage of 220V ± 22V and has a power consumption of 4kW.
The kV range of the Multifunctional Digital X-Ray Machine is from 40 to 110 kV.
The machine has a maximum mA range of 36 to 60 mA.
The exposure time ranges from 0.04 seconds to 3.2 seconds.
The Multifunctional Digital X-Ray Machine uses a Toshiba X-Ray tube.
The main unit weighs 19 kg and has dimensions of 290 mm x 265 mm x 230 mm.
The pixel pitch of the wire flat panel detector is 139 microns.
The machine comes with acquisition software designed for use with the wire flat panel detector.

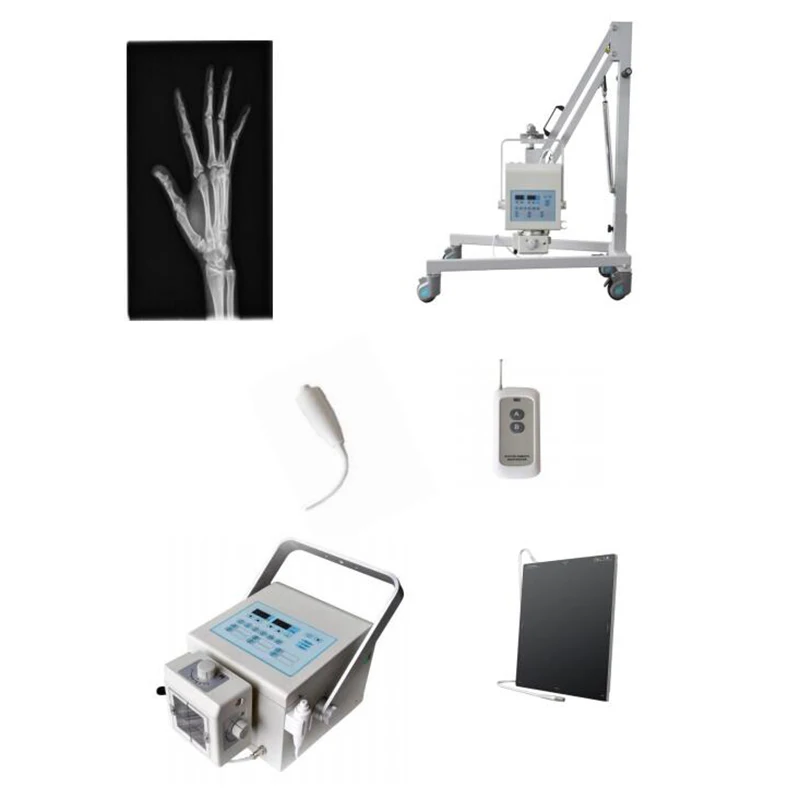

Yes, the Multifunctional Digital X-Ray Machine can be operated using a remote control.
The inherent filtration of the X-Ray tube is 1 mm of aluminum at 75 kV.
Yes, the exposure can be controlled via a touch screen, which is an optional feature.
The limit resolution is 3.6 pixels with a total resolution of 3072 x 3072 pixels.
The X-Ray machine uses an LED light source.

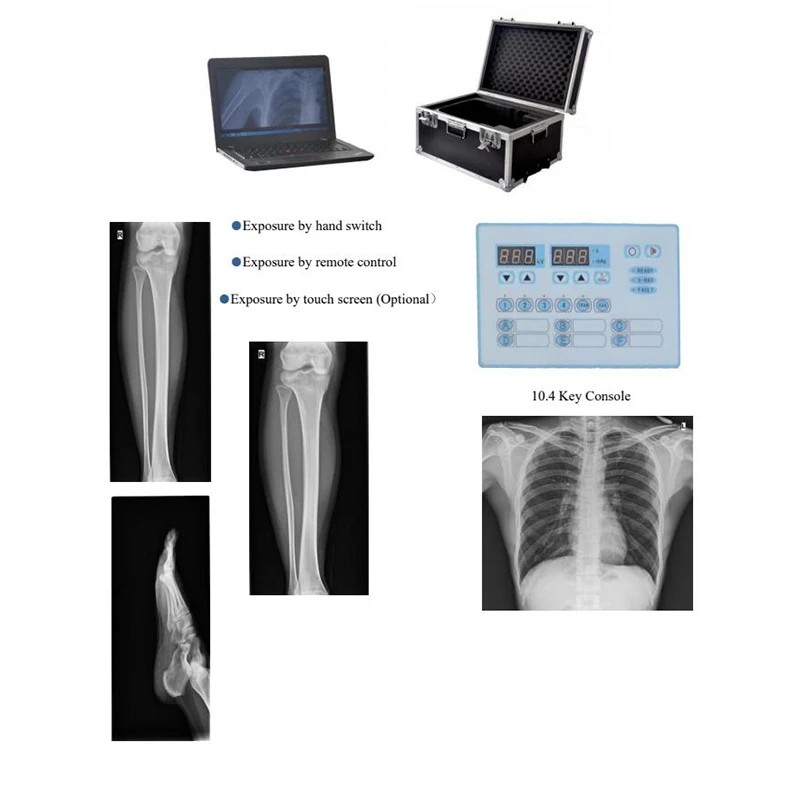

Exposure can be initiated by a hand switch, remote control, or an optional touch screen.
The working frequency of the Multifunctional Digital X-Ray Machine is greater than or equal to 40 kHz.
