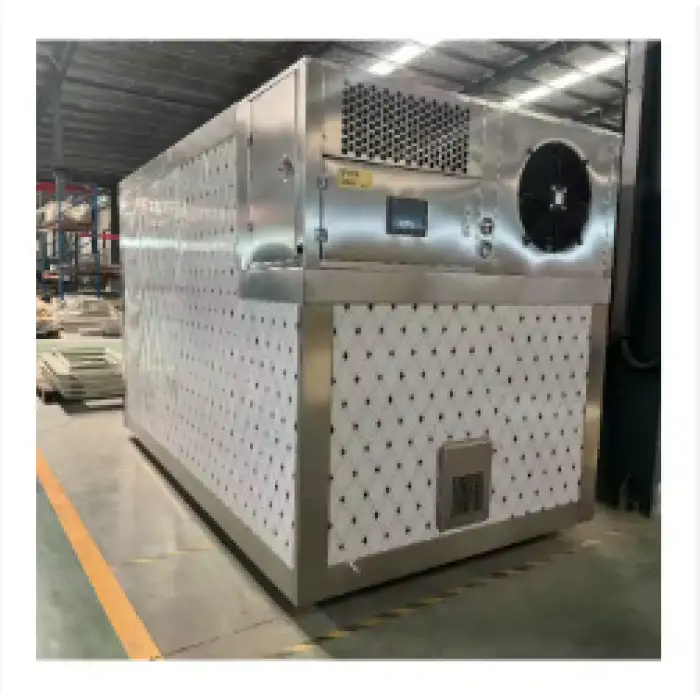

The Commercial Heat Pump Dryer Room is the ultimate solution for drying fruits, vegetables, instant noodles, and other products. This all-in-one machine combines the functions of a dryer, evaporator, compressor, and heat exchanger to efficiently remove moisture and preserve the quality of your products. With its advanced technology and reliable performance, this dryer room is a must-have for any commercial setting.
| Item Name: | Drying room all-in-one machine |
| PUR Panel: | 10mm |
| Unit Type: | 3P, 3P, 5P |
| Drying temperature range: | 30-75℃ |
| Ambient temperature range: | -48℃ |
| Power type: | 220V 50HZ, 380V 3N 50HZ |
| Compressor type: | High temperature fully enclosed scroll compressor |
| Number of compressors: | 1, 1, 1 |
| Refrigerant: | R134A |
| Rated heating capacity: | 10.2kW, 10.2kW, 17.1kW |
| Rated input power: | 4.3kW, 4.3kW, 6.4kW |
| Rated current: | 21.6A, 10.9A, 14.4A |
| Electric heating power: | 6kW, 6kW, 12kW |
| Maximum input power: | 10.8kW, 10.8kW, 19.1kW |
| Input current: | 54.1A, 21.4A, 36.6A |
| Circulation fan power: | 1.5kW, 1.5kW, 1.5kW |
| Rated air volume: | 12000m³/h, 12000m³/h, 12000m³/h |
| Dehumidification fan power: | 0.25kW, 0.25kW, 0.25kW |
| Fresh air volume: | 2000m³/h, 2000m³/h, 2000m³/h |
| Moisture displacement: | 15kg/h, 15kg/h, 20kg/h |
| Size: | 2700×1450×2210mm, 2700×1450×2210mm, 3400×1850×2210mm |
| Weight: | 720KG, 720KG, 890KG |
Efficient heat pump technology for energy-saving operation
All-in-one machine for easy and convenient use
High temperature fully enclosed
