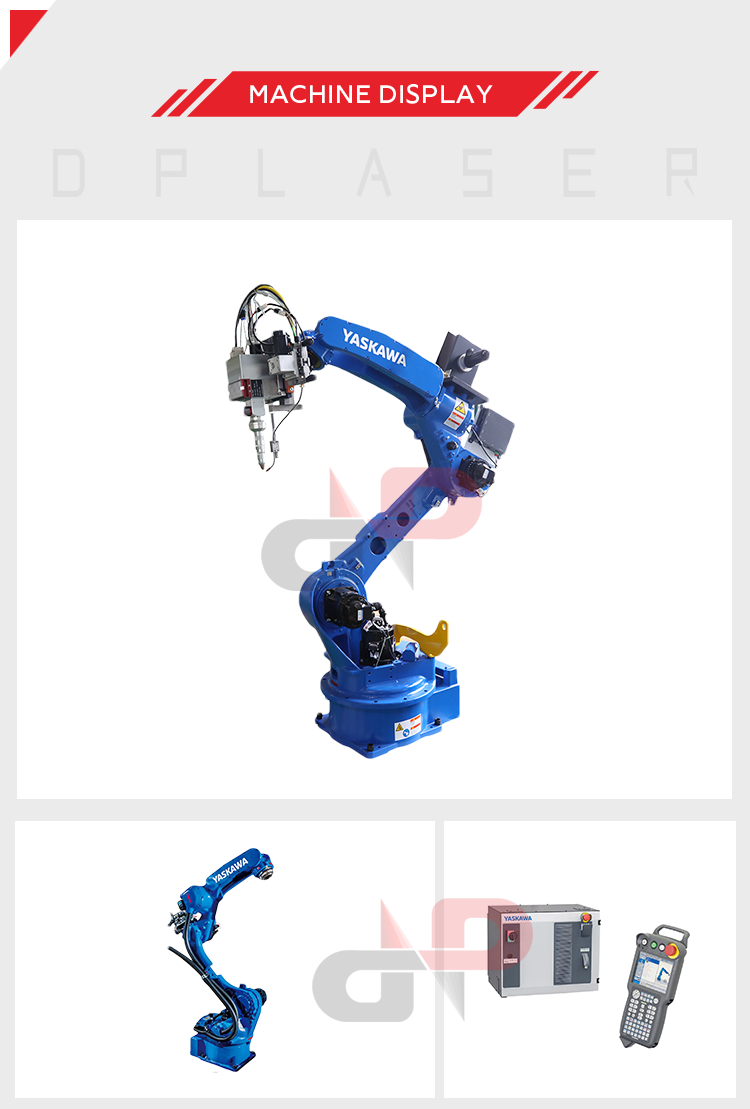

Yaskawa 6 Axis Robot Arm Stainless Steel Automatic Fiber Laser Welding Machine
- Section : Machinery
- Category : Welding Equipment
- SKU : 1600551997332
6-Axis Robot Arm Stainless Steel Automatic Fiber Laser Welding Machine
This Yaskawa 6-Axis Robot Arm Stainless Steel Automatic Fiber Laser Welding Machine is designed for high-precision, efficient laser welding of stainless steel and other materials. It combines advanced robotic automation with powerful fiber laser technology to achieve high-quality welds with ease.
Key Features:
Laser Power: 1000W to 6000W, offering flexibility for various welding applications.
Laser Source Options: Choose from top-tier laser sources, including Raycus, IPG, nLIGHT, or Max.
Laser Head Options: Compatible with Raytool, WSX, or OSPRI laser heads for precision control.
Robot Arm: Available with ABB, KUKA, Yaskawa, or Fanuc robotic arms for enhanced flexibility and reliability.
Laser Wavelength: 1070nm for efficient laser absorption and precise welding.
6-Axis: Allows for flexible movement and the ability to reach complex angles, improving the versatility of the welding machine.
Customization: Fixture customization is available to suit your specific product requirements.
Operate Mode: Offers both Continuity and Modulate modes to accommodate different welding processes.
Water Chiller: Hanli water chiller included for optimal cooling during the welding process.
Spot Adjusting Range: Adjustable from 0.1mm to 3mm for fine-tuning the laser spot size to your project needs.
Repeating Precision: ±0.01mm for high accuracy in repetitive welding tasks.
Voltage: Operates at 380V/3-Phase/50Hz with 40A/60A options.
This laser welding machine integrates cutting-edge robotic automation with high-performance fiber laser welding, making it ideal for industries requiring precision welding, such as automotive, electronics, and aerospace. Whether you're working with stainless steel or other materials, this system provides consistent, high-quality results with minimal operator intervention.
| Laser Power | 1000W-6000W |
| Laser Source | Raycus/IPG/nLIGHT/Max Optional |
| Laser Head | Raytool/WSX/OSPRI Optional |
| Robot Arm | ABB/KUKA/Yaskawa/Fanuc |
| Laser Wavelength | 1070nm |
| Axis | 6 Axis |
| Fixture | Support Customization |
| Operate Mode | Continuation/Modulate |
| Water Chiller | Hanli |
| Spot Adjusting Range | 0.1-3mm |
| Repeating Precision | ±0.01mm |
| Voltage | 380V/3-Phase/50Hz/40A/60A |
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What materials can the Yaskawa 6 Axis Robot Arm Laser Welding Machine weld?
The machine is primarily designed for welding stainless steel, but it can also be used with other materials depending on the laser settings and configurations.
2. What is the range of laser power available for this machine?
The Yaskawa 6 Axis Robot Arm Laser Welding Machine offers a laser power range from 1000W to 6000W, allowing flexibility for various welding applications.
3. Can I choose different laser sources for this machine?
Yes, you can choose from top-tier laser sources including Raycus, IPG, nLIGHT, or Max, depending on your specific needs.
4. What robotic arms are compatible with this laser welding machine?
The machine is compatible with ABB, KUKA, Yaskawa, or Fanuc robotic arms, providing enhanced flexibility and reliability.
5. What is the laser wavelength used in this welding machine?
The machine operates at a laser wavelength of 1070nm, which is optimized for efficient laser absorption and precise welding.
6. How does the 6-axis feature benefit the welding process?
The 6-axis capability allows for flexible movement and the ability to reach complex angles, improving the versatility and effectiveness of the welding process.
7. Is customization available for fixtures?
Yes, fixture customization is available to meet your specific product requirements, enhancing the machine's adaptability.
8. What are the operating modes available for this machine?
The machine offers both Continuity and Modulate modes to accommodate different welding processes depending on your needs.
9. Does the machine include a cooling system?
Yes, the Yaskawa 6 Axis Robot Arm Laser Welding Machine comes with a Hanli water chiller to ensure optimal cooling during the welding process.
10. What is the spot adjusting range for the laser?
The spot adjusting range is adjustable from 0.1mm to 3mm, allowing for fine-tuning of the laser spot size to suit your project needs.
11. What is the repeating precision of this welding machine?
The machine has a repeating precision of ±0.01mm, ensuring high accuracy in repetitive welding tasks.
12. What are the voltage and power requirements for this machine?
The machine operates at 380V/3-Phase/50Hz with options for 40A or 60A power supply.
13. In which industries is this laser welding machine commonly used?
This laser welding machine is ideal for industries requiring precision welding, such as automotive, electronics, and aerospace.
14. How does robotic automation enhance the welding process?
Robotic automation increases efficiency and consistency in the welding process while reducing the need for operator intervention, leading to higher quality results.
15. What advantages does fiber laser technology provide?
Fiber laser technology provides high-quality welds with greater energy efficiency and lower operational costs compared to traditional laser welding methods.
