The VMC855 High Precision CNC Vertical Machining Center is designed to boost productivity for complex parts. This powerful machine offers high accuracy and safety, making it ideal for various machining tasks. With its user-friendly operations and competitive pricing, th...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.

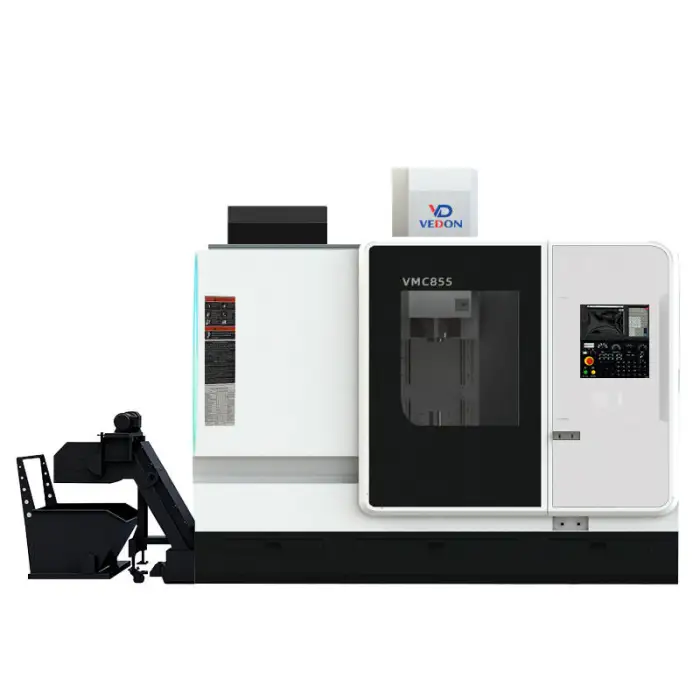

The VMC855 High Precision CNC Vertical Machining Center is designed to boost productivity for complex parts. This powerful machine offers high accuracy and safety, making it ideal for various machining tasks. With its user-friendly operations and competitive pricing, the VMC855 is perfect for businesses looking to enhance their manufacturing capabilities.
| Attribute | Details |
|---|---|
| CNC Control System | FANUC/Siemens/Mitsubishi/SYNTEC/GSK/KND |
| Dimension (L*W*H) | 2700*2230*2560 mm |
| Max. Table Load | 500 kg |
| Min. Time of Tool Change | 2.33 s |
| No. of Spindles | Single |
| Positioning Accuracy | ±0.004 mm |
| Range of Spindle Speed | 1 - 10000 RPM |
| Repeatability (X/Y/Z) | ±0.003 mm |
| Spindle Taper | BT40 |
| Table Size | 1000 x 550 mm |
| Table Travel (X) | 800 mm |
| Table Travel (Y) | 550 mm |
| Table Travel (Z) | 550 mm |
| Tool Magazine Capacity | 24 |
| Voltage | 380 V |
| Weight | 5.5 t |
| Warranty | 1 Year |
| Item | Unit | VMC855 | VMC1160 | VMC1270 | VMC1370 |
| Capacity | |||||
| X axis travel | mm | 800 | 1100 | 1200 | 1300 |
| Y axis travel | mm | 550 | 600 | 700 | 700 |
| Z axis travel | mm | 550 | 600 | 600 | 700 |
| Spindle nose to worktable | mm | 120-670 | 120-720 | 150-800 | 110-810 |
| Spindle center to column | mm | 550 | 650 | 710 | 750 |
| Leadscrew/Guideway size | |||||
| Leadscrew diameter | mm | 40 | 40 | 40 | 45 |
| Linear guideway width | mm | 35/45/45 | 45/45/45 | 45/55/45 | 45/45/45 |
| Worktable size | |||||
| Worktable Length | mm | 1000 | 1200 | 1300 | 1400 |
| Worktable width | mm | 550 | 600 | 700 | 700 |
| T slot qty-width*distance | mm | 5-18*90 | 5-18*100 | 7-18*100 | 5-18*110 |
| Max loading capacity | kg | 500 | 800 | 1000 | 1200 |
| Spindle | |||||
| Spindle speed | rpm | 10000/Belt | 10000/Belt | 10000/Belt | 8000/Belt |
| Spindle motor power | kw | 11/15 | 11/15 | 11/15 | 15/18.5 |
| Spindle torque | Nm | 52.5 | 52.5 | 70 | 95.6 |
| Spindle taper | BT40 | BT40 | BT40 | BT40 | |
| Feeding system | |||||
| Fast moving speed (X/Y/Z) | m/min | 36/36/36 | 36/36/30 | 36/36/24 | 30/30/24 |
| Cutting speed | mm/min | 1-10000 | 1-10000 | 1-10000 | 1-10000 |
| Feed motor power | kw | 2.0/2.0/3.0 | 3/3/3 | 3/3/3 | 4.5/4.5/4.5 |
| X/Y/Z Axsis motor torque | Nm | 12/12/22 | 22/22/22 | 22/22/22 | 37/37/37 |
| Tool Magazine | |||||
| Capacity | pcs | Disc/24 | Disc/24 | Disc/24 | Disc/24 |
| Max tool diameter | mm | 120 | 120 | 120 | 120 |
| Max tool weight | kg | 8 | 8 | 8 | 300 |
| Max tool length | 300 | 300 | 300 | 8 | |
| Tool change time (TT) | mm | 2.33 | 2.33 | 2.33 | 2.33 |
| Accuracy | |||||
| Positioning accuracy | mm | ±0.004/300mm | ±0.004/300mm | ±0.004/300mm | ±0.004/300mm |
| Repeat accuracy | mm | ±0.003/300mm | ±0.003/300mm | ±0.003/300mm | ±0.003/300mm |
| CNC Control System | FANUC/Siemens/Mitsubishi/SYNTEC/GSK/KND |
|---|---|
| Dimension (L*W*H) | 2700*2230*2560 mm |
| Max. Table Load | 500 kg |
| Min. Time of Tool Change | 2.33 s |
| No. of Spindles | Single |
| Positioning Accuracy | ±0.004 mm |
| Range of Spindle Speed | 1 - 10000 RPM |
| Repeatability (X/Y/Z) | ±0.003 mm |
| Spindle Taper | BT40 |
| Table Size | 1000 x 550 mm |
| Table Travel (X) | 800 mm |
| Table Travel (Y) | 550 mm |
| Table Travel (Z) | 550 mm |
| Tool Magazine Capacity | 24 |
| Voltage | 380 V |
| Weight | 5.5 t |
| Warranty | 1 Year |
The VMC855 is suitable for various machining tasks including manufacturing complex automotive parts, producing intricate aerospace components, machining precision parts for electronics, creating custom prototypes, and fabricating parts for medical devices.
The maximum table load capacity of the VMC855 is 500 kg.
The VMC855 has a positioning accuracy of ±0.004 mm.
The spindle speed of the VMC855 can reach up to 10,000 RPM.
The minimum time for tool change on the VMC855 is 2.33 seconds.
The dimensions of the VMC855 are 2700 mm (L) x 2230 mm (W) x 2560 mm (H).
The VMC855 operates at a voltage of 380 V.
The weight of the VMC855 is 5.5 tons.
The VMC855 comes with a warranty period of 1 year.
The VMC855 is compatible with FANUC, Siemens, Mitsubishi, SYNTEC, GSK, and KNDD CNC control systems.

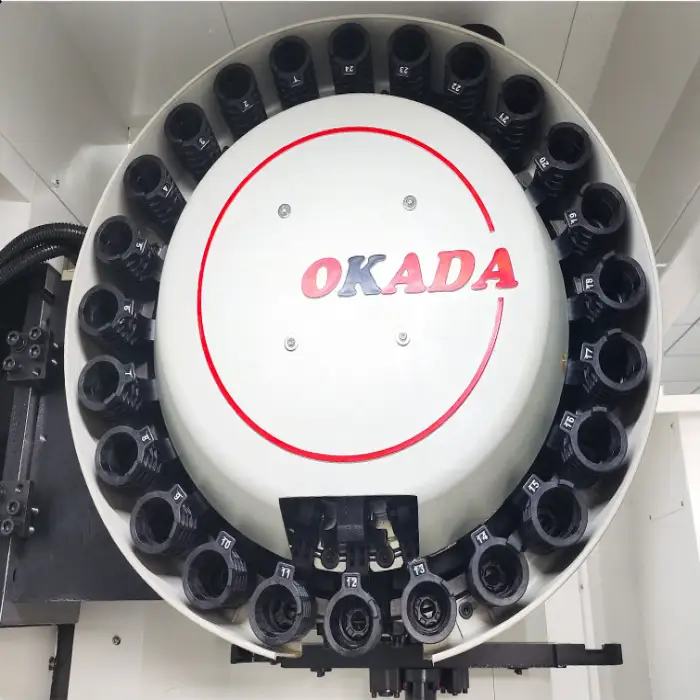

The tool magazine of the VMC855 can hold up to 24 tools.
The repeatability accuracy of the VMC855 is ±0.003 mm for the X, Y, and Z axes.
Yes, the VMC855 is ideal for small batch production due to its high precision and quick tool change capabilities.
The VMC855 features automatic operations that simplify the machining process, making it easier for operators to use.
Yes, the VMC855 is excellent for creating custom prototypes across various industries.
