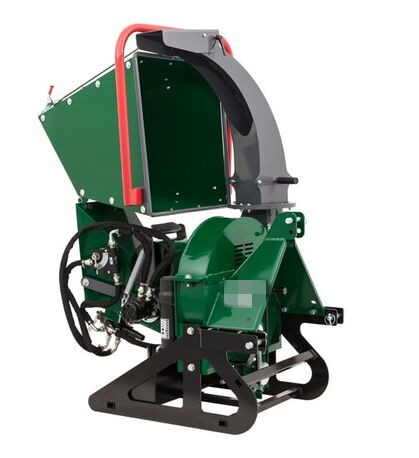

PTO 88 Wood Chipper Machine

Specification

Capacity
The WC88 operates on tractors with 35-100+ HP. It utilizes a large 23” x 27” (59 cm x 69 cm) infeed hopper opening that tapers
down to an 8” x 8” (20 cm x 20 cm) opening where the 8.25” (21cm) diameter hydraulically driven infeed roller grabs the branches
and feeds them through the chipper. Branches as small as ¼” (6mm) diameter and as large as 8” (20cm) diameter can be fed through
the WC88. To chip full 8” (20cm) diameter logs, tractors with over 60 HP are required.

Hydraulic Infeed System

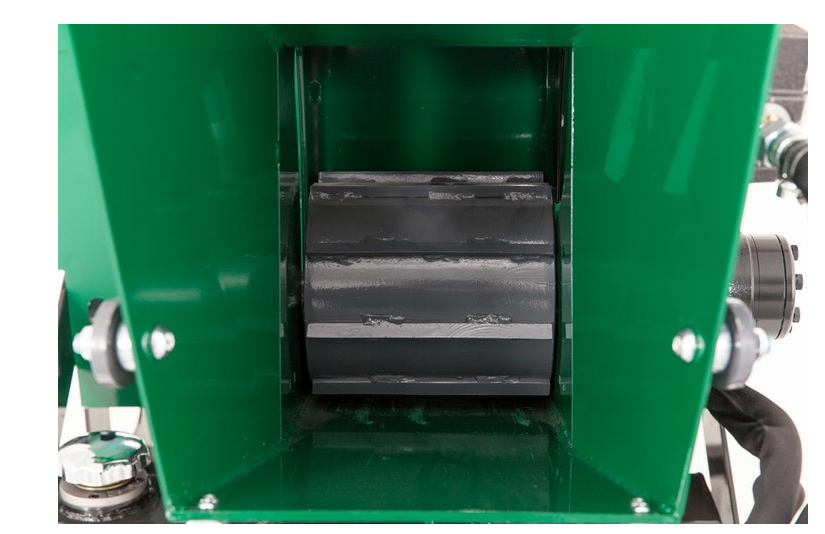

Branches are pulled into the WC88 via the large 8.25” (21cm) diameter infeed roller. The roller is hydraulically driven via the chippers self contained hydraulic system. The roller is adjustable in direction and speed making it easy to feed branches of all shapes and sizes. The hydraulic pump is direct drive from the lower shaft, meaning there is no need to worry about wearing or loose drive belts. The roller down pressure may be adjusted via the two large springs ensuring it grabs branches and easily pulls them in, eliminating the need for manual feeding.

Infeed Opening

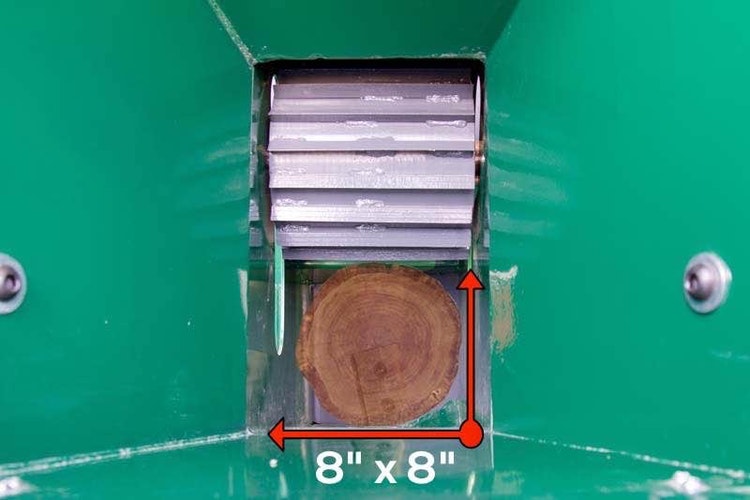

The opening in the flywheel housing is a large 8” x 8” (20cm x 20cm) square making it quite easy to accept branches with several limbs. This reduces the need to trim your branches down before feeding them into the chipper.

Flywheel

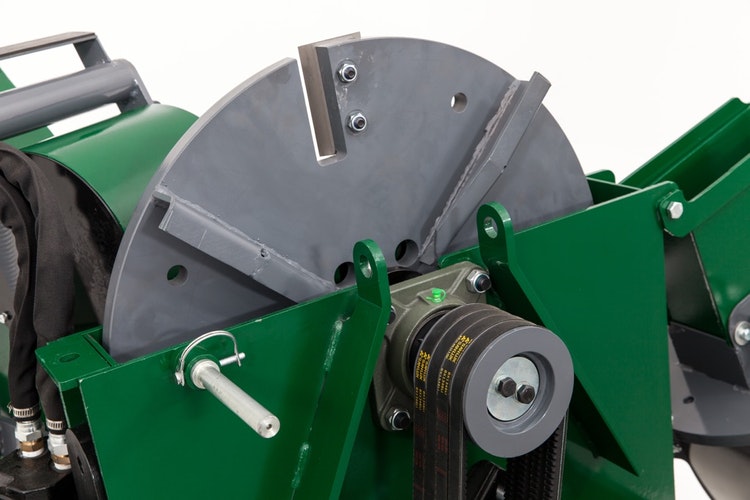

The dynamically balanced 24” (61cm) diameter, 1” (25mm) thick solid steel flywheel runs on a 2” (50mm) diameter shaft and is supported by 2 industrial and greaseable flanged bearings. It features four CNC machined pockets to hold the reversible blades.The flywheel features four large fan blade paddles that spin at over 1,100 RPM ensuring maximum airflow.

Chipper Blades
The WC88 chipper utilizes four high quality hardened steel reversible chipper blades. These blades are 90 degrees apart and are offset from one another. They can be flipped to take advantage of having two cutting edges on one blade. Each blade is held onto the flywheel with two countersunk M10 bolts and locking nuts. Changing blades can be made very quickly thanks to the clamshell flywheel housing design. Simply undo one bolt and the upper flywheel housing rotates open, providing full access to the flywheel and chipper blades.

Discharge Chute

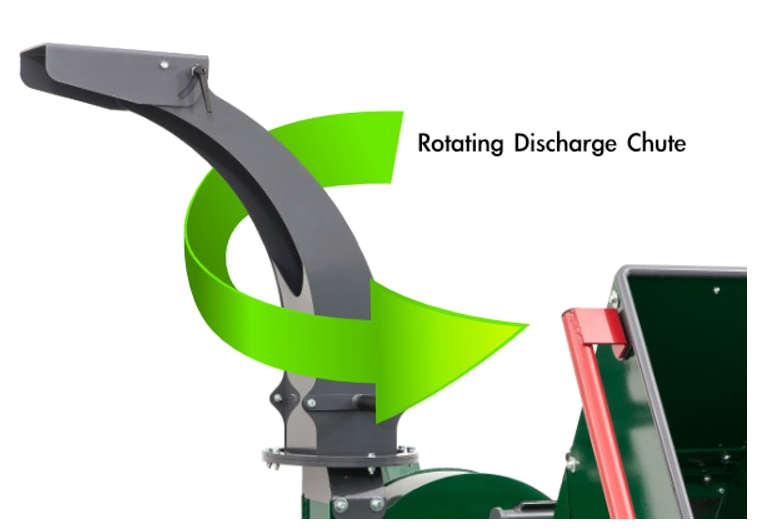

The discharge chute was designed to rotate 360 degrees by simply rotating it with the two handles to the desired angle. This makes it possible to direct the wood chips in any direction regardless of the location of the chipper. The end of the chute stands at
73” (1.9m) off of the ground, making it quite easy to direct the wood chips into the back of a truck or trailer if desired.
Located at the end of the discharge chute is a rotating deflector, which allows further control of the location of the wood chips.
Simply point it straight for maximum distance or angled down to deflect the chips directly down to the ground or into a trailer.
