The Animal Feed Pellet Making Machine uses a template, and the pressure roller is made of high-quality alloy steel after special treatment. The main shaft and the flat mold drive the pressure roller to rotate under the action of friction. The pressure roller and the template produce high temperature to mature the starch, and the protein is denatured and solidified. Under the pressure of the pressure roller The pellets are discharged from the die hole, and the pellets are sent out of the machine through the throwing plate. The length of pellets can be controlled by adjusting the angle of the cutting knife. This machine is mainly suitable for processing various livestock, poultry and aquatic pellet feeds by professional households in small and medium-scale breeding. Farming costs. It can be used to raise rabbits, chickens, ducks, geese, fish, pigs, aquatic products, etc.The flat die pellet mill works on vertical principle. The raw material is put into the hopper from above, and then it drops down into the pelletizing area. The die is stationery while rollers are rotating. When falling into this area, materials will naturally be compressed into pellet between rollers and die through the die holes.

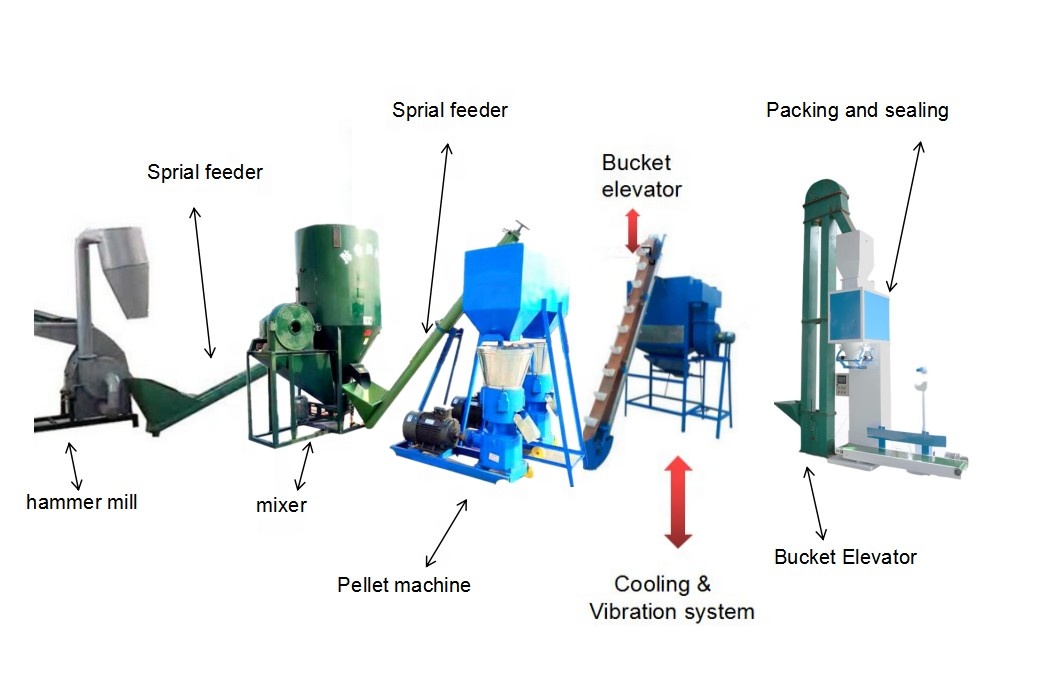

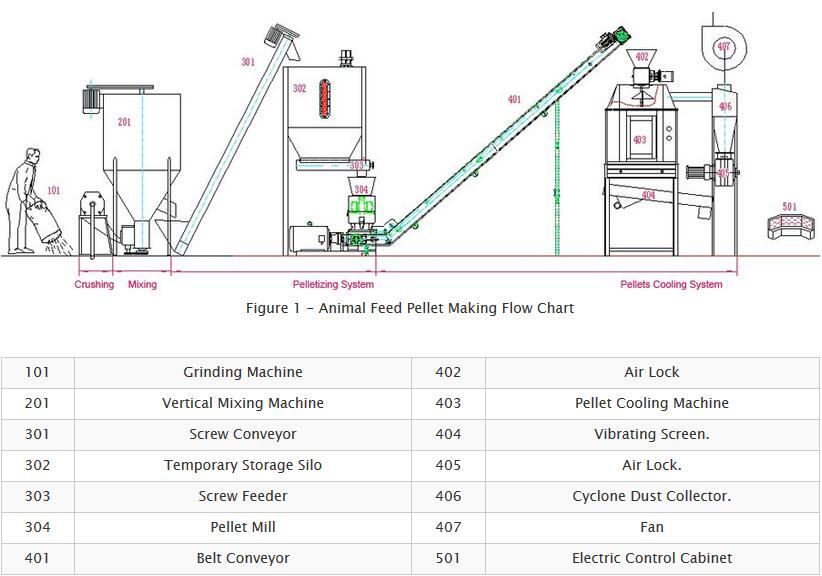

Process of poultry animal feed pellet line
Raw Material → Feed Grinding → Feed Mixing → Feed Pelletizing → Feed Cooling → Pellet Packing
Detailed Images
Crusher Machine

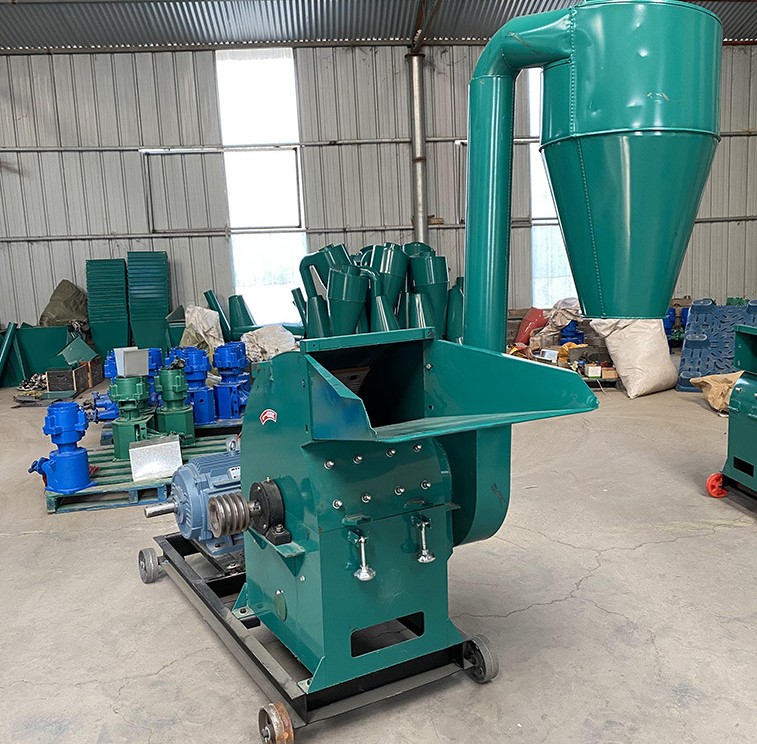

Hammer mill machine
Multi-function hammer mill is suitable for many kinds of raw material, such as the straw, power-feed, grass. The principle is that the raw material will be beat by the high rotating hammer until to the power. The powder send out through the screen.

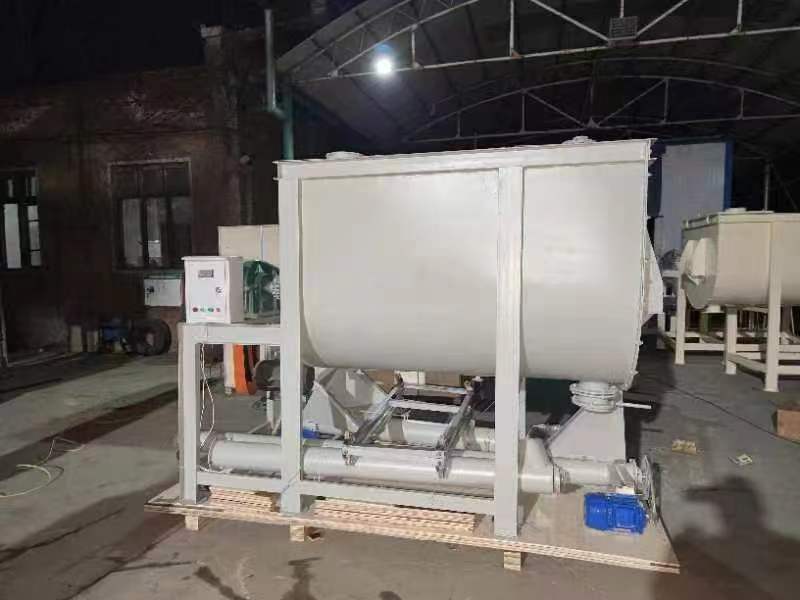

U type feed mixer machine
U type feed mixer machine
The U type Horizontal screw mixed machine put in a horizontal position, mixer with high effiency good quality, unloading quickly, less remain, adapt to the wide range, so far it is the most commonly used mixer.
Feed Pellet Machine
Feed Pellet Machine
Flat die pellet machine are the simplest design of animal feed pelletizer, this kind of manure pellet machine had been originally applied mainly in the animal feed market.
Flat die pellet equipment works on a vertical design, using gravity as the main force for feeding the material through the machine.
Cooling and sieve machine.
Cooling and sieve machine
Low energy Consumption and easy operation Low power consumption, easy operation. The cooling time is adjusted by changing distance of level indicator

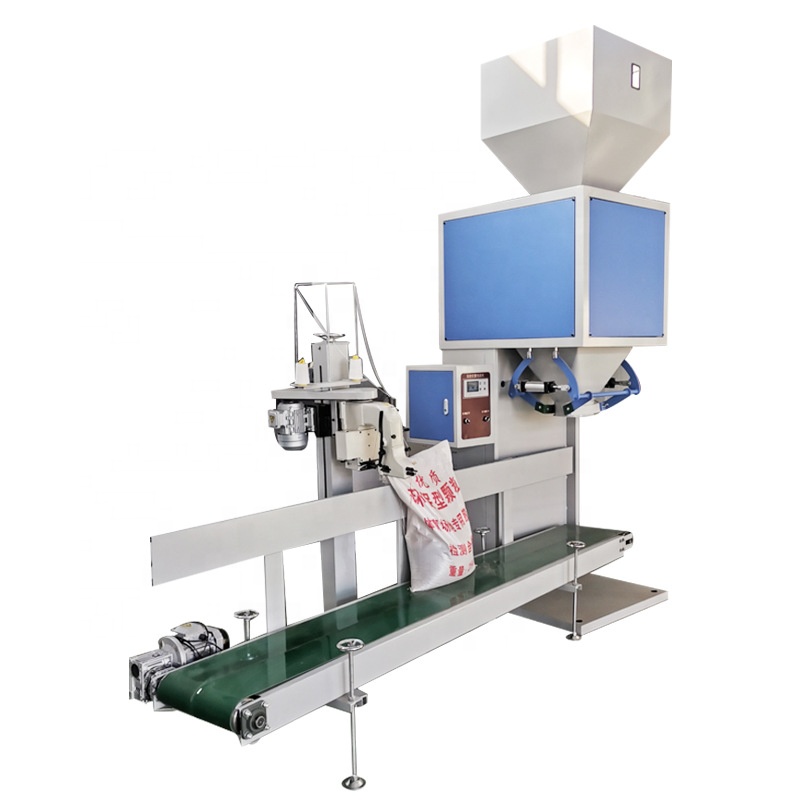

Pellet Packing Machine
Packing finished pellet into bags.
New controller with high precision, working stable, can display the total weight, number of package, easy operation. Having the function of automatic control parameters setting, automatic drop revising, over-weight warning and auto-diagnosis. Wide packing range, high precision, it can match well with conveyor and sewing machine.
Best Selling
Our Home Use Feed Processing Machine can work on crushed corn, bean, bean pulps, straw, grass, chaff etc into feed pellets for rabbits, pigeon, layer chicken, duck, broiler, pig and so on.
You can make 2-8 mm diameter animal feed pellets. Such as 2-4mm diameter chick feed pellets and pig feed pellets.2-5mm rabbit feed pellet, 4-8mm cattle or sheep feed pellets. he length of feed pellets can be adjusted. Details of sawdust pellet machine wood pellet making machine price (1) The speed of our sawdust pellet machine wood pellet making machine price : The motor speed is fixed, all of the particles machine motor speed is 1400RPM. Our pellet machine's speed is 200-300RPM, inside the machine with a complex reducer, which can change the E-motor speed and the main shaft speed. (2) Fuel consumption of our sawdust pellet machine wood pellet making machine price Diesel engine pellet machine's fuel consumption: For 8Hp, it is 1.23L/H.For 15Hp, it is 2.31L/H.For 22Hp, it is 3.36L/H. For 35HP, it is 5.39L/H. 7.5HP gasoline guzzling about 1.2L / Hour. (3) Wheel of our sawdust pellet machine wood pellet making machine price : Motor-driven particle machine not with wheels, diesel particulate gasoline powered machines with wheels. (4) Transmission of our sawdust pellet machine wood pellet making machine price Motor is shaft drive. Diesel shaft drive. (5) Package of our sawdust pellet machine wood pellet making machine price (6) Spare parts and lubrication of our sawdust pellet machine wood pellet making machine price The machines' spare parts case takes a Grease gun, used to add lubricating oil pressure roller and spindle bearings, where oil use Lithium-based lubricants: GB7324-94. (7) Emergency stop switch of our sawdust pellet machine wood pellet making machine price If you need, we can add the emergency stop switch for you. (8) 260,300,360 ,400 is three pressure rollers. At the time of installation, the gap between the pressure roller and the matrix (Die) needs adjusted 0 ~ 0.5mm. (The thickness of a sheet of A4 paper is about 0.1mm) smaller the gap, the material will be sooner, butthe disc and the pressure roller loss is also faster. (9) Star-delta starter of our sawdust pellet machine wood pellet making machine price It is main used to protect the motor. (10)pellet's length of our sawdust pellet machine wood pellet making machine price The pellet isn't fixed, it is 2-5cm.But you can adjust the spout's screw to change the position of the blade, it could also conteol the pellet's length.
