B21, China Town Mall, Midrand

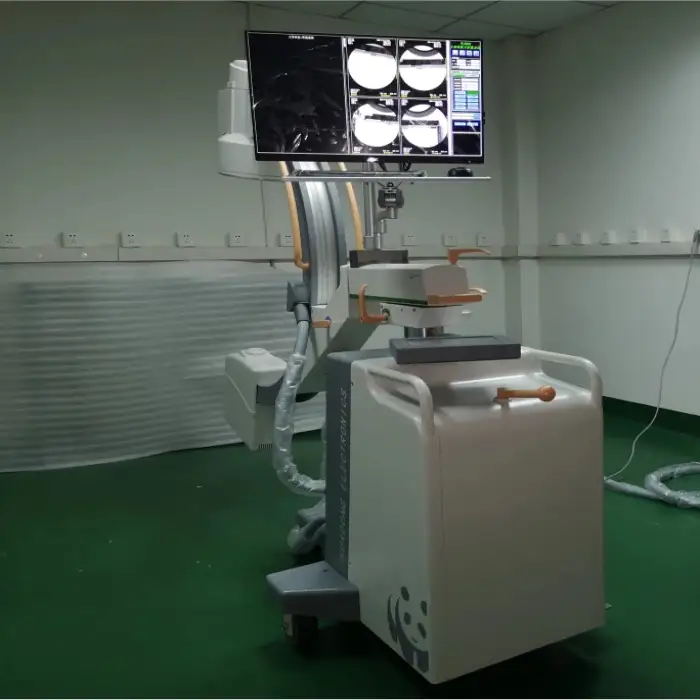

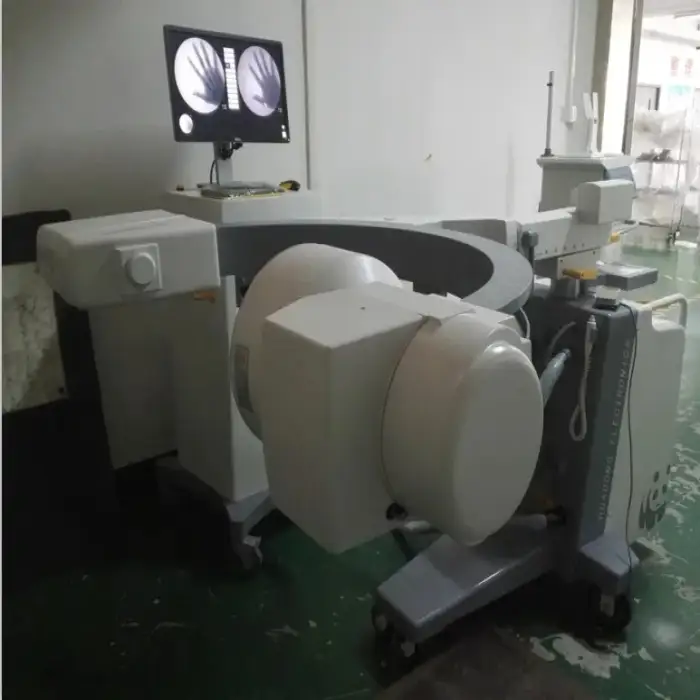

the new lauch Mobile Digital C-arm/ Digital C-arm / electric C-arm / updated electronic C-arm/ electronic C-arm/ C-arm with high definition LCD monitor/ C-arm with HF&HV generator/ C-arm with 10.4LCD can be rotated 180/ C-arm with large free space 800mm in arc/ C-arm with original Korean liner slide rail / C-arm with Omron Relay / 5KW C-arm with Omron Relay / 5KW C-arm with import parts
1,15'' LCD high definition display
2,Large free space in arc: the space can reach 800mm
3.with ISO
| HF generator | 110kV,3.5kW ,40kHz |
|
Fluoroscopy mode |
Fluoroscopy mode40~110kV 0.5~5mA
(KV manual and automatic); Pulsd fluoroscopy 40~110kv 0,5-5mA Boost fluoroscopy 40~110kV 5~10mA; Photography 40~110kV 1~250mAs |
|
X ray tube |
Dual-focus fixed anode:0.6mm/1.5mm
|
| Image intensifier | Three fields of vision 9, 6, 4.5 French Thales Brand |
| CCD camera | CCD camera, Japanese Watt Brand, 360° rotation |
|
Image system |
Recursive Noise Reduction
Frame freezing Multi frame image storage Image conversing and rotating Screen display with image comparison
|
| Mechanical motion specifications | Verticaltravel:0-400mm Horizontaltravel:0~200mm Rotation about horizontal axis:±180° |
|
C-arm dimension |
Distance of focal spot to image generator(SID):1000mm
Depth in arm≥650mm Mobile stand :1800mm*800mm*1850mm Image system: 750mm*530mm*1680mm |
|
Standard configuration |
High resolution CCD camera:1set
x-ray generator:1set 9” image intensifier:1set Digital Noise reduction system 14” High resolution monitor :2sets Mobile stand :1 set
|
| * With HF & HV generator,inverter,and High quality image intensifier, the x ray generator can work stably.It also reduces the damage for the doctors caused by radiation. |
| * 10.4"LCD friendly interface control board: easy operation and can be rotated to 180°(L90°,R90°) Compared with ordinary key board, our LCD display is not easy to be oxidized Besides, the trouble will be displayed in Chinese, which will improve the efficiency of fault diagnosis. |
| * Pulse and boost fluoroscope provides all kinds of size of patients with clear diagnosis. |
| * With a steering handle, it can adjust the direction quickly when moving.And parallel movement function is also available. |
| * Equipped with unique block line wheels, it can avoid accident when the machine moves |
| * Large free space in arc: the space can reach 800mm,which is convenient for operation. |
| * 9"/6"/4.5" three fields of vision:it facilitates diagnosis of partial enlargement. |
| * CCD camera with rotation function:range of camera rotation:360°. |
| * Original Korean linear slide rail can make the the movement of the machine flexibly. |
| * Applied with Omron Relay, the noise can be reduced and the life time of the equipment can be increased. |
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 28 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the maximum vertical travel of the Mobile Mini C-Arm System?
The maximum vertical travel of the Mobile Mini C-Arm System is 400mm.
2. What is the weight capacity of the C-arm?
The product specifications do not explicitly mention a weight capacity, but it is designed for various patient sizes using pulse and boost fluoroscopy.
3. How does the image intensifier work in this C-arm system?
The C-arm is equipped with a 9-inch image intensifier from the French Thales brand, which enhances the quality of images for better diagnostics.
4. What type of monitor is included with the Mobile Mini C-Arm System?
The system includes a high-definition 15-inch LCD monitor for clear image display.
5. Can the C-arm be easily moved around during procedures?
Yes, the Mobile Mini C-Arm System features a steering handle for quick direction adjustments and has unique block line wheels to prevent accidents during movement.
6. What is the range of fluoroscopy modes available?
The C-arm offers various fluoroscopy modes ranging from 40 to 110kV and 0.5 to 5mA, with options for manual and automatic settings.
7. Is there a noise reduction feature in the Mobile Mini C-Arm System?
Yes, the system includes a digital noise reduction system to enhance image clarity.
8. What are the dimensions of the Mobile Mini C-Arm?
The mobile stand dimensions are 1800mm x 800mm x 1850mm, and the image system measures 750mm x 530mm x 1680mm.
9. How does the CCD camera enhance image quality?
The CCD camera, from the Japanese Watt brand, features a 360° rotation capability, allowing for versatile imaging angles and improved diagnosis.
10. What safety features does the C-arm have to protect doctors from radiation?
The Mobile Mini C-Arm System is equipped with an HF and HV generator that works stably, reducing radiation exposure risks for doctors.
11. Can the LCD control board be adjusted for easier operation?
Yes, the 10.4-inch LCD control board can be rotated 180°, allowing for easy access and operation from different angles.
12. What materials are used in the construction of the C-arm?
The system includes high-quality components such as the original Korean linear slide rail and Omron Relay for durability and performance reliability.
13. What is the maximum arc space available in the C-arm?
The C-arm provides a large free space in the arc that can reach up to 800mm, facilitating easier operation during procedures.
14. What types of patients can be accommodated with this C-arm?
The Mobile Mini C-Arm System is versatile and can accommodate various patient sizes, ensuring clear diagnostics through its advanced fluoroscopy modes.
15. What kind of maintenance is required for the Mobile Mini C-Arm System?
Regular maintenance includes checking the calibration of the x-ray generator and ensuring the functionality of the imaging system for optimal performance.
