Overview
Carfitment and part number
| OEM No. | Ref. |
|---|---|
| Other | - |
| Car Fitment | Model | Year | Engine |
|---|---|---|---|
| Other | Other | Other | Other |
Click the image below to start online customization for the design you want.
√ Plug and Play
√ safety and longevity
√ Origainal quality product
√ Express and flash shipping
√ 100% tested and balanced
√ TUV-verified
√ Multiple heat treatments
√ With bronze bushings for the floating pistons
√ 100% checked by X-rays, ultrasonic waves and Magnaflux
√ Designed and manufactured with the help of state-of-the-art CNC machines.
√ All large and small connecting rod eyes are manufactured by SUNNEN honing machine
√ Shot blasted for long life and function, even in stressful situations
√ Precise alignment of the blind bore bearing hole to avoid shifting
Specification
| Engine Application | for Peugeot for Citroen Saxo 106 GTI S16 TU5J4 for Peugeot 306 RS S16 for Citroen 2.0L 16V XU10J4RS Turbo | |

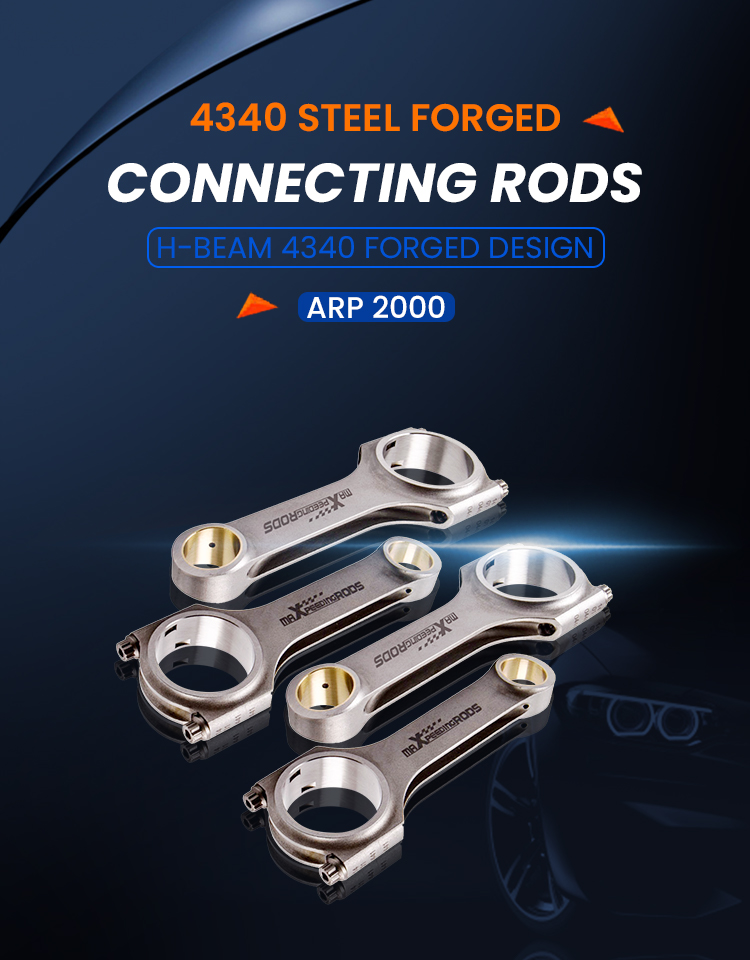

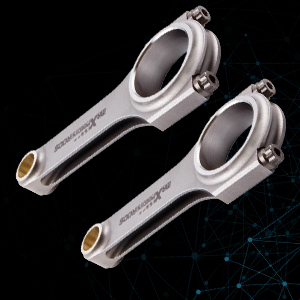

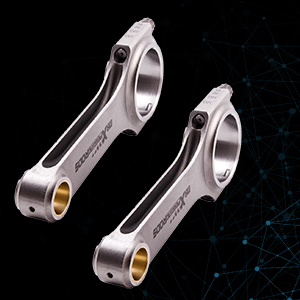

| This deal includes | 4 x steel connecting rod H-Shaft format | |
| 1 x set of ARP 2000 bolts | ||
| Dimensions info | ||
| Center to center length | 158mm | |
| Big end diameter | 53.7mm | |
| Small end diameter | 20mm | |
| Big end width | 24.15mm | |
| Small end width | 19.5mm | |
| Rods details | ||
| TüV Certification Con Rods Bolts: Authentic 5/16 "ARP 2000 bolts included (note: Extra cost to upgrade to ARP L19 bolts) Material: Quality forged 4340 steel chrome molybdenum steel for racing car Tolerance weight: Balanced up to +/- 1 gram each set Piston Bolt Bore: + -4 / 1000mm Power: 600hp ~ 800hp per set Fastening Strength (PSI): 220,000 / 230,000 psi Torque: 48ft ≈ 65 Nm Top speed: 9000rpm | Forged 4340 aircraft chrome moly quality steel | |
| Important note | Upgrade to ARP L19 screws up to 220,000 / 230,000 or 260,000 / 270,000 PSI Professional installation is highly recommended, no manual is included. If you have questions or needs, please contact us | |
Product Description
