Carfitment and part number
| OEM No. | Ref. |
|---|---|
| XU10 XU10J4 | - |
| Car Fitment | Model | Year | Engine |
|---|---|---|---|
| Other | Other | Other | Other |
TüV Certification Con Rods
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800hp per set
Strength of the fastening (PSI): 220.000/230.000 PSI
Torque: 48ft ≈ 65 NM
Top speed: 9000rpm
Material：Forged 4340 aircraft chrome moly quality steel
Quantity：4 Pieces as showing in picture
Bolts：Including ARP 2000 bolts (Note：Extra cost for upgrading to ARP L19 bolts)
Bolts size：Genuine ARP 2000 3/8" bolts
Tolerance：Balanced to +/- 1 gram in set
Warranty：2 years warranty.
Specification

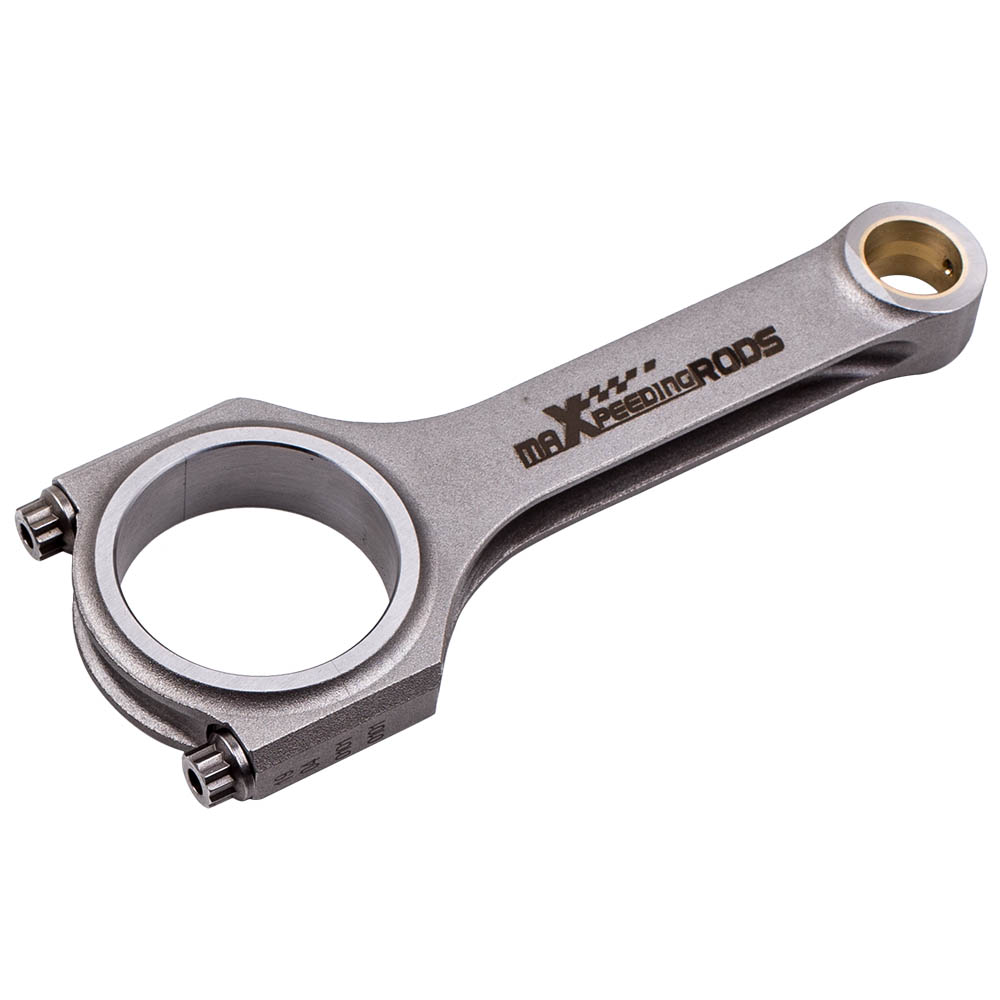

| for Peugeot 306 2.0L S16 XU10 XU10J4 152mm connecting rods | ||||||
| Fit for | for Peugeot 306 2.0L S16 XU10 XU10J4 152mm | |||||
| Type | H-Beam Connecting Rod | |||||
| Quantity | Set of 4 Pieces with 8 ARP 2000 bolts | |||||
| Weight Tolerance | Balanced to +/- 1 gram in set | |||||
| Bolts | Including Genuine 3/8" ARP 2000 bolts | |||||
| Note | Extra cost for upgrading to ARP L19 bolts | |||||
| Warranty | 2 years warranty. | |||||
| HP Rating | Around 600-800HP | |||||
| Dimensions | ||||||
| Center to center length | 152mm | |||||
| Big end diameter | 53.7mm | |||||
| Small end diameter | 22mm | |||||
| Big end width | xx | |||||
| Small end width | xx | |||||
