Product Description

JNTECH 2200w AC/DC solar pump system 3 hp domestic solar pump system

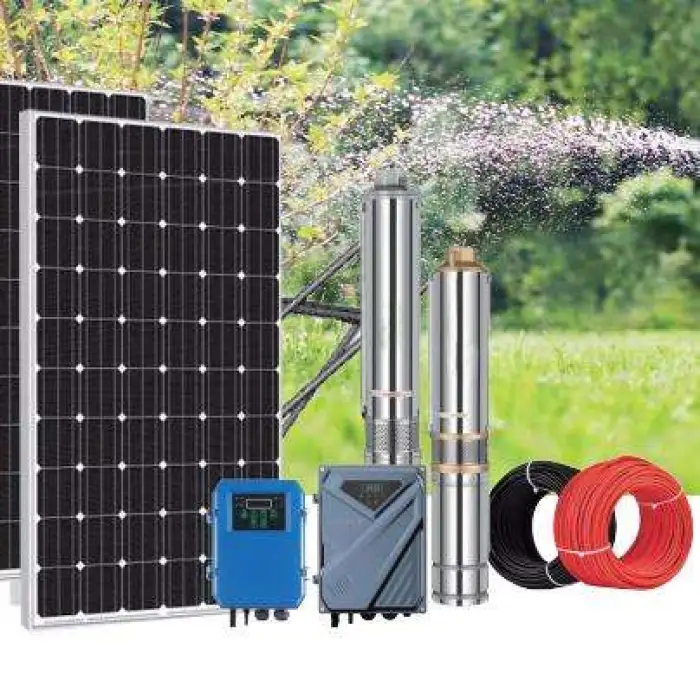

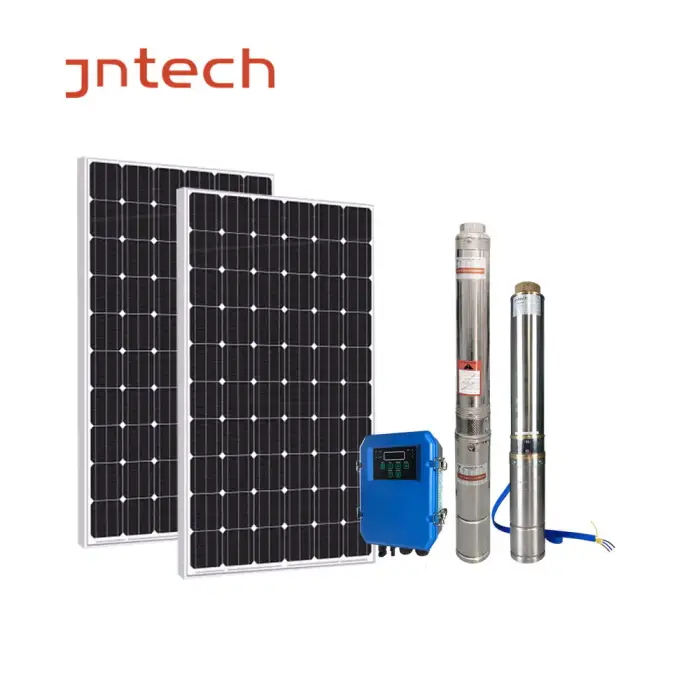

Jntech solar pump system consists solar panels, MPPT solar pump inverter, AC pump, and water storage device. Jntech solar pump system covers any AC pumps from 370w to 132kw, mainly application for agricultural irrigation, village water supply, desert control, animal drinks, water treatment and so on.

Main Equipment Details

Solar Panel
PV Module TypePoly Crystalline
PV Module NumberRSM72-6-330P
Max. Power at STC (Pmax)330 W
Short Circuit Current（IscοΌ‰9.25A
Open Circuit Voltage（VocοΌ‰38.1V
Max. Power Current (Impp)8.7A
Max. Power Voltage（VmppοΌ‰38.1V
Module Efficiency17.1%
Power Tolerence0 ~ + 3W
STC: 1000W/m2 irridiance, 25℃ cell temperature, AM=1.5

Solar Mounting Structure

The modules support structure is mild steel, hot dipped galvanized. It is of adequate strength and appropriate design, which can withstand load of modulesand high wind velocities up to 150 km/h. All nuts and bolts are made of very good quality and are corrosion resistant. Structure is easy replacement of any module. Fabricated can be grouted,rooftop, carpackingstyle.



Water Lvel Sensor

Mechanically activated device for dry run protection. The switch can be used to detect the water level within a well. When water level in well dropped below the level of the well probe, the  inverter will stop to protect. It is also used for overflow protection, once water in tank reaches the highest level which water level sensor set, the  will stop to save energy and water. Jntech solar pump inverter also have automatically dry protection without sensor, 95% projects use automatically dry protection.

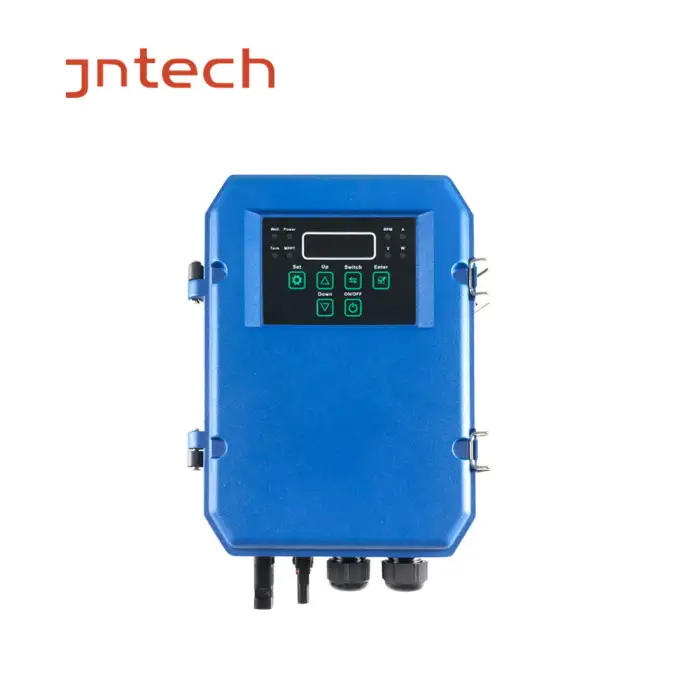

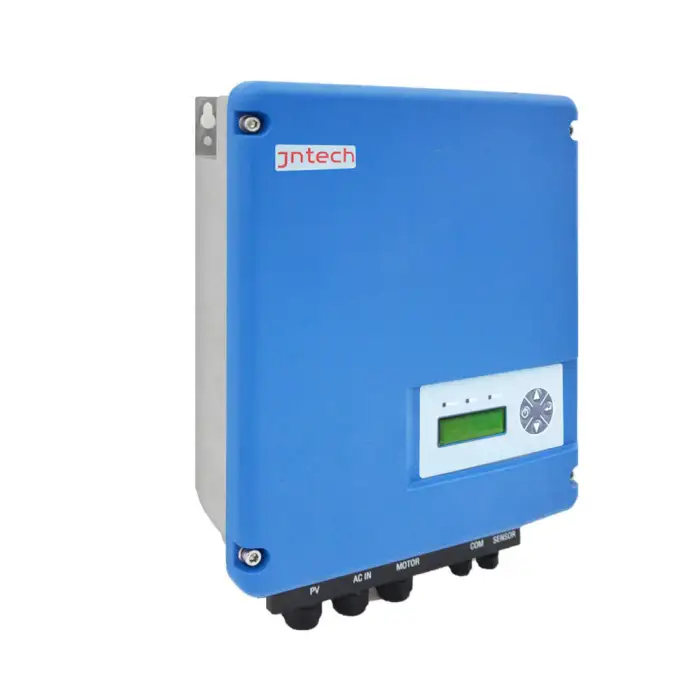

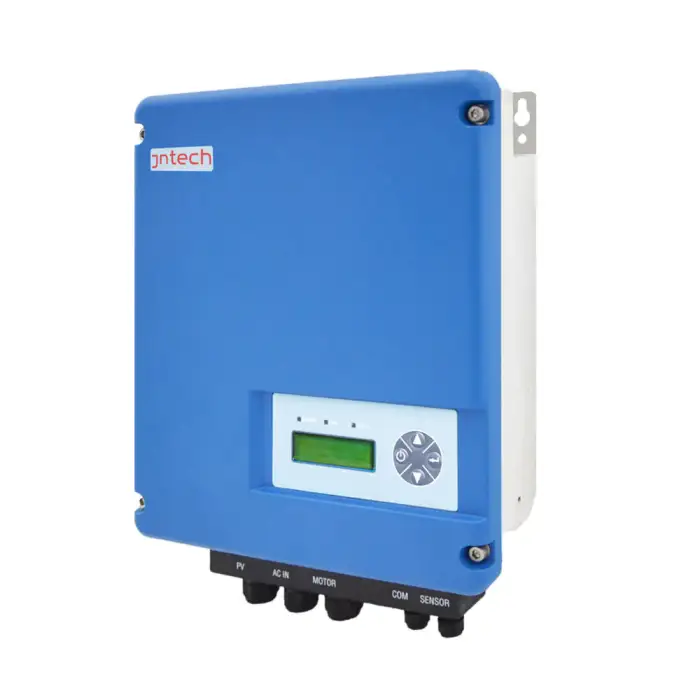

Solar Pump Inverter
Power Capacity750W
Max. Input DC voltage400Vdc
MPPT voltage105-400Vdc
Max. MPTT efficiency99%
Output frequency range0-50/60Hz
Protection degreeIP65
CertificateTUV, CE
Environment temperature-25℃-+60℃
GPRS remote controlOptional



Automatic start and shut off according to solar intensity. No need manual operation once started.

Soft start controlling in rush current, to avoid motor burning.

IP65 design for outdoor application. Against raining, dust.

No need derate the power capacity for pump matching. The matching power with pump is 1:1.

Protection:

Dry protection to protect motoroverflow protectionshort circuit protectionreverse polarity protectionunder-voltage, weak sunshine, over-current, over-load, shortage-phase output Protection. Password can be set before going into parameters setting interface, in case non-professional wrong operation; Any 3phase 380V AC pump with good quality can be replaced in future maintenance.



PV Cable

Item:PV1-F 1Γ—4mm2Nominal cross-sectional area of conductor: 4mm2Conductor size: 56/0.3Conductor DC resistance: 5.09Ξ©/kmMax. Permit Voltage 1000VDCMaximum operating current 8AEnvironment: -40℃~+120℃

AC Cable

Model: JHS WaterproofNo. of cores: 4 coresRated power-frequency voltage: 300/500VNo. of cores*sectional area: 3*35mm2+1*6mmInsulation thickness(mm) 1.0+1.0Sheath thickness(mm) 2.0admissible operating temperature of the conductor:-20~+65℃
