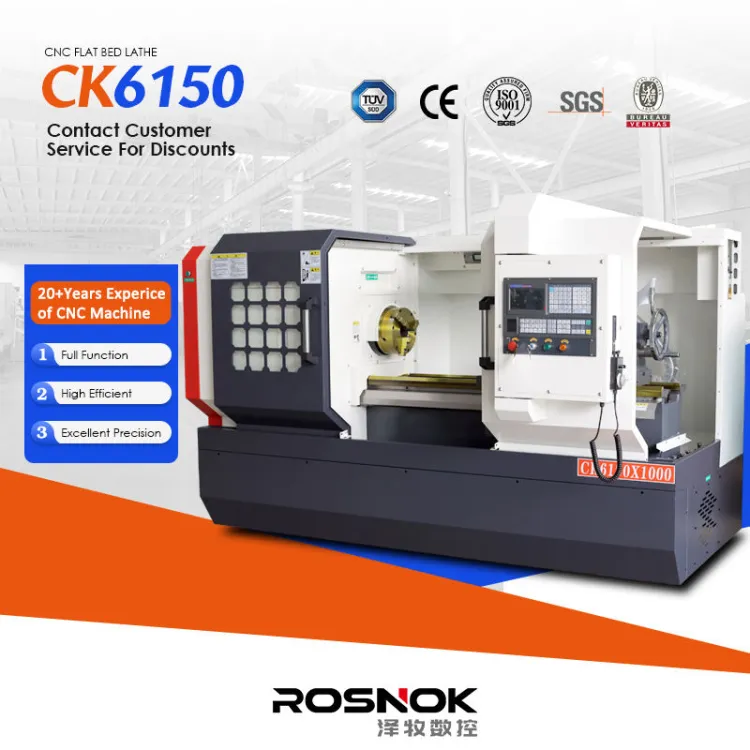

High Precision CK6150 Automatic Fanuc Horizontal Flat Bed Metal Turning Work CNC Lathes Machine
The High Precision CK6150 Automatic Fanuc Horizontal Flat Bed Metal Turning Work CNC Lathes Machine is a strong and smart tool for metal shops. It helps you make round metal parts with very high accuracy. This machine is built to last and is easy to use, even for people who are new to CNC lathes. You can trust it to do precise work every time, which saves you time and material.
This CNC lathe uses a flat bed design for stable cutting. It works with well-known control systems like Siemens, FANUC, and GSK. You can choose different lengths for the workpiece, from 1000 mm up to 3000 mm. The machine is also very safe, so you can work with peace of mind. Whether you need simple parts or complex ones, this lathe is a great choice.
Specifications
| Attribute | Details |
|---|---|
| Type | Horizontal Flat Bed |
| Max. Length of Workpiece (mm) | 1000, 1500, 2000, 3000 |
| Positioning Accuracy (mm) | ±0.01 |
| Repeatability (X/Y/Z) (mm) | ±0.005 |
| Number of Axes | 2 |
| CNC Control System | Siemens, FANUC, GSK |
| Number of Spindles | Single |
| Tool Post Stations | 4, 6, 8 |
| Machining Capacity | Medium Duty |
| Max. Weight of Workpiece (kg) | 500 |
| Travel (X Axis) (mm) | 330 |
| Travel (Z Axis) (mm) | 850 |
| Width of Bed (mm) | 400 |
| Dimensions (L*W*H) (mm) | 2800 x 1800 x 1800 |
| Brand Name | Rosnok |
| Model Number | CK6150 |
| Weight (kg) | 2500 |
| Range of Spindle Speed (RPM) | 65 - 1600 |
| Cutting Torque | 500 |
| Spindle Bore (mm) | 82 |
| Voltage | Custom |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Warranty | 1 Year |
