Heavy Duty Flat Bed Automatic Cnc Pipe Threading Lathe Machine QK1313 Big Hole Lathe for Pipes

0 Customer Reviews

Asset finance available

Do you want funding for this equipment?

Afrimart can connect you with trusted funding partners who specialise in asset finance for businesses like yours. Compare options and apply in minutes — final approval is subject to provider review.

Check funding options Secure & no obligation

Add To Wishlist Share to Social

Section : Machinery
SKU : 1600695926552

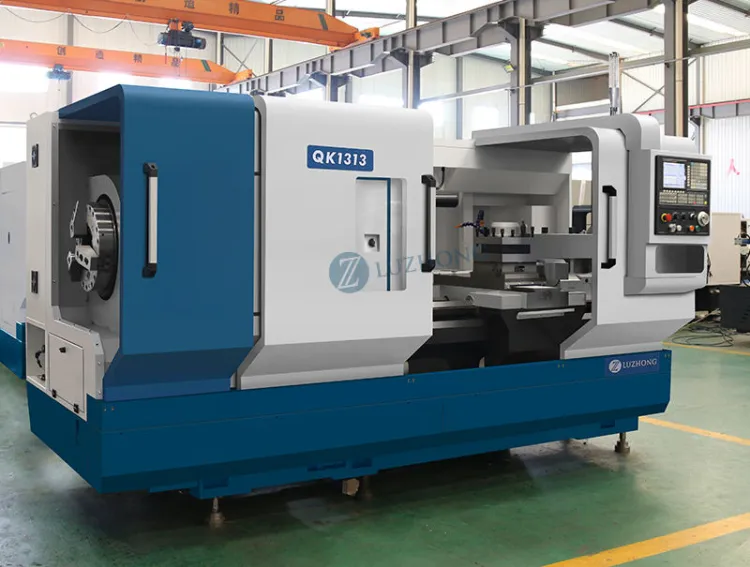

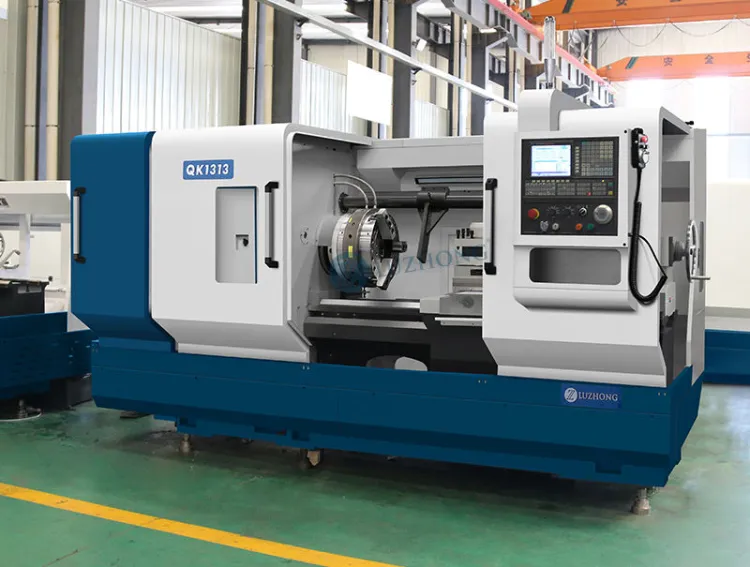

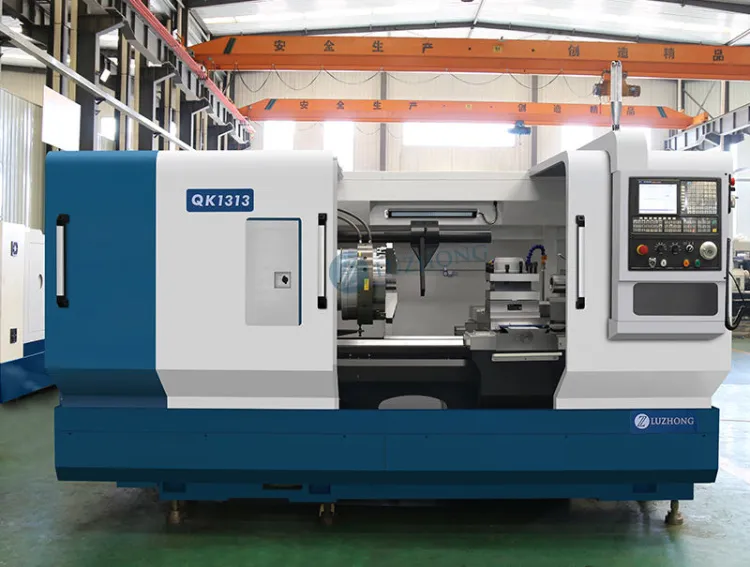

Heavy Duty Flat Bed Automatic CNC Pipe Threading Lathe Machine QK1313 Big Hole Lathe for Pipes

The Heavy Duty Flat Bed Automatic CNC Pipe Threading Lathe Machine QK1313 is a powerful tool for metal work. It is made to cut and thread pipes with very high accuracy. This machine uses a computer control system, called GSK, to do the work automatically. You do not need to turn handles by hand. The QK1313 is strong, precise, and built for tough jobs. It helps you make perfect threads on pipes every time. This lathe machine is a great choice for workshops that need reliable and fast pipe threading.

This CNC pipe threading lathe machine is simple to use. It has a big hole in the spindle to hold large pipes. The machine works fast and keeps parts very accurate. The QK1313 is a heavy-duty machine that can work for many hours. It is made to handle medium-duty work with ease. You will find that this machine helps you finish jobs quickly and correctly.

Specifications

Attribute	Details
Type	Horizontal
Max. Length of Workpiece	1000 mm
Positioning Accuracy	±0.001 mm
Repeatability (X/Y/Z)	±0.004 mm
Number of Axes	2
CNC Control System	GSK
Number of Spindles	Single
Tool Post Stations	4
Machining Capacity	Medium Duty
Voltage	220V
Machinery Test Report	Provided
Video Outgoing-Inspection	Provided
Key Selling Points	Automatic
Max. Weight of Workpiece	0 kg
Travel (X Axis)	320 mm
Travel (Z Axis)	850 mm
Width of Bed	600 mm
Dimension (LWH)	330018001850 mm
Weight	4500 kg
Range of Spindle Speed	0 - 8000 r.p.m
Cutting Torque	0
Max. Swing Over Bed	630 mm
Spindle Speed	750
Precision	High Precision Machine
