Full Automatic Dielectric Oil Lab Testing Equipment Breakdown Voltage Analyzer Transformer Oil BDV Tester

The VS-9501B Transformer Insulation Oil BDV Tester is an advanced, fully automatic dielectric oil testing machine designed to evaluate the breakdown voltage (BDV) of transformer oils and other dielectric fluids. With precise control over voltage raising speed and comprehensive testing capabilities, this oil BDV tester provides reliable results that are critical for ensuring the safety and efficiency of electrical transformers and other high-voltage equipment. Ideal for use in power plants, electrical utilities, and laboratories, this tester meets international standards, including IEC and ISO certifications.

Key Features

• Wide Test Range: The VS-9501B offers a test range from 0 to 80 kV or 100 kV, making it suitable for a variety of dielectric oils used in different types of transformers and electrical equipment.
• Voltage Raising Speed: With an adjustable voltage raising speed of 2.0 ~ 3.5 kV/s, the tester allows for precise control over the rate of voltage application, ensuring accurate results for both low and high voltage tests.
• Booster Capacity: The tester is equipped with a 1.5 kVA booster, providing ample power for consistent testing of dielectric oils.
• Electrode Gap: The standard 2.5 mm electrode gap ensures consistent results and complies with industry standards for dielectric testing.
• Multiple Sample Options: This tester supports testing with single-cup, triple-cup, and six-cup configurations, allowing for flexibility in testing different volumes and types of oil samples.
• Compact and Portable Design: With dimensions of 500 x 360 x 420 mm and a weight of 22 kg, the VS-9501B is compact and portable, making it easy to move between testing areas or store when not in use.
• Certifications: The tester is certified for compliance with CE, EMC, LVD, ISO, and IEC standards, ensuring it meets the highest international quality and safety requirements.

Applications

The VS-9501B Transformer Insulation Oil BDV Tester is essential for:

• Transformer Oil Testing: For determining the insulation quality of transformer oils used in power transmission and distribution systems.
• Routine Maintenance: Ensures that the dielectric strength of transformer oils is within safe operational limits, reducing the risk of transformer failures.
• Quality Control: Used in manufacturing and quality assurance processes to verify the quality of transformer oils and dielectric fluids.
• Research and Development: Ideal for laboratories researching new dielectric fluids or studying the performance of oils under different conditions.
•

Conclusion

The VS-9501B Transformer Insulation Oil BDV Tester is a high-performance, fully automatic testing machine designed for accurate and reliable breakdown voltage testing of dielectric oils. Its adjustable voltage raising speed, wide testing range, and multiple sample configurations make it a versatile solution for transformer maintenance, quality control, and R&D. Built to meet international standards, the VS-9501B is an essential tool for ensuring the reliability and safety of electrical equipment.

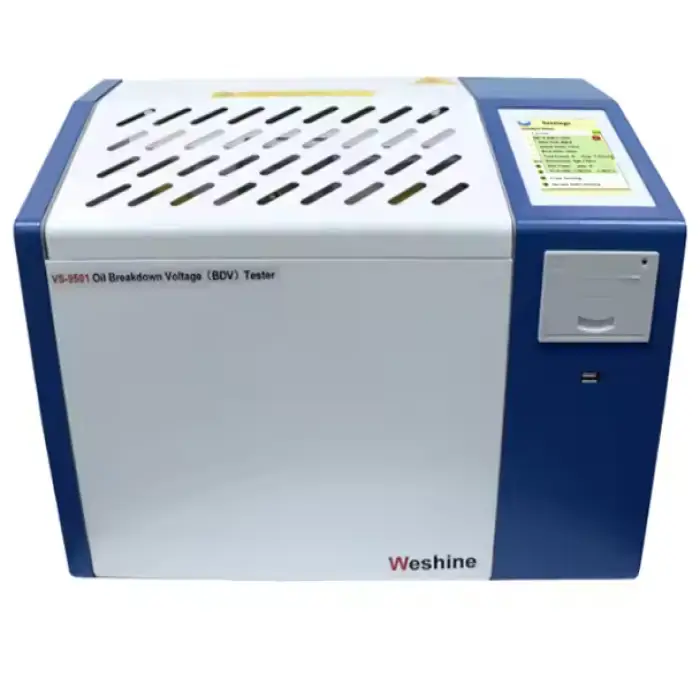

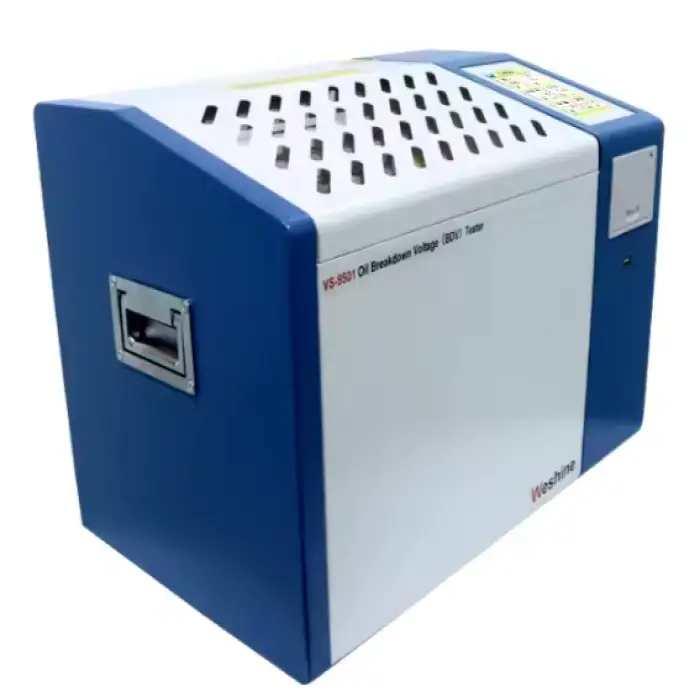

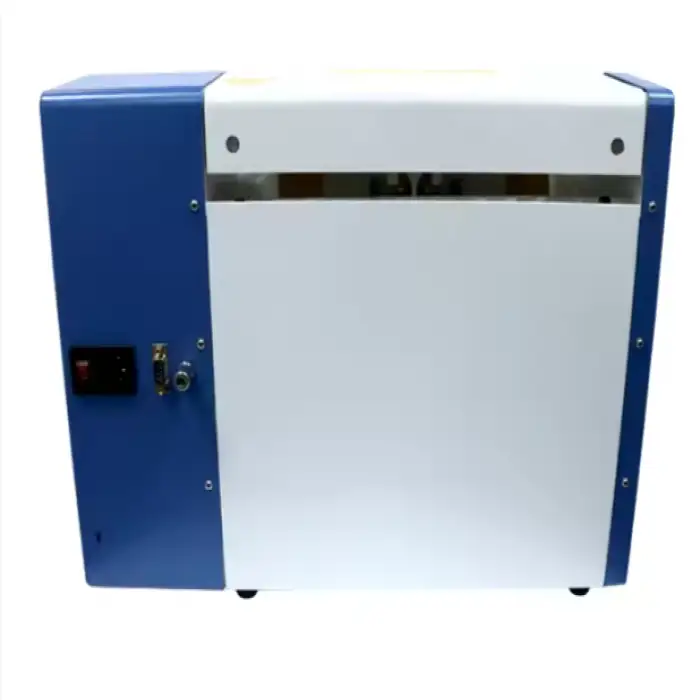

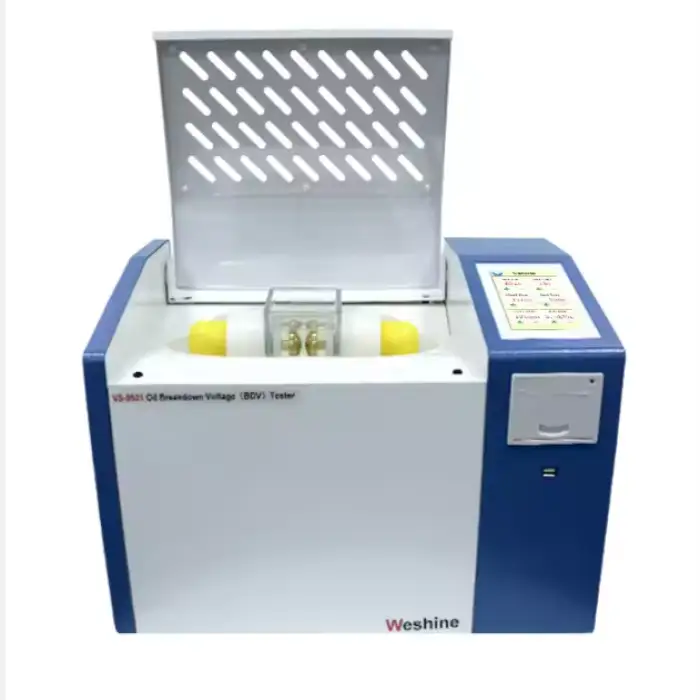

Product Info Gallery
