Overview
Carfitment and part number
| OEM No. | Ref. |
|---|---|
| S50B32 conrods | - |
| Car Fitment | Model | Year | Engine |
|---|---|---|---|
| Other | Other | Other | Other |
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-2{margin-bottom:0}#detail_decorate_root .magic-3{position:relative;width:100%}#detail_decorate_root .magic-4{width:750px}#detail_decorate_root .magic-5{width:446px}#detail_decorate_root .magic-6{overflow:hidden;width:446px;height:223px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-7{margin-top:0;margin-left:0;width:446px;height:223px}#detail_decorate_root .magic-8{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-9{width:750px;border-collapse:collapse}#detail_decorate_root .magic-10{min-height:28px;padding:5px 10px;width:721px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-11{text-align:center}#detail_decorate_root .magic-12{font-family:inherit;font-size:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-13{display:none}#detail_decorate_root .magic-14{min-height:28px;padding:5px 10px;width:443px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:28px;padding:5px 10px;width:50px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:28px;padding:5px 10px;width:0;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:28px;padding:5px 10px;width:259px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-18{min-height:28px;padding:5px 10px;width:441px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-19{overflow:hidden;width:750px;height:1060.4166666666667px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-20{margin-top:0;margin-left:0;width:750px;height:1060.4166666666667px}#detail_decorate_root .magic-21{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-22{vertical-align:top}#detail_decorate_root .magic-23{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-24{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-25{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-26{padding:0;margin:0;white-space:pre-wrap;font-size:14px}
Product Description
Specification
TüV Certification Con Rods
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800hp per set
Strength of the fastening (PSI): 220.000/230.000 PSI
Torque: 48ft ≈ 65 NM
Top speed: 9000rpm
Specification

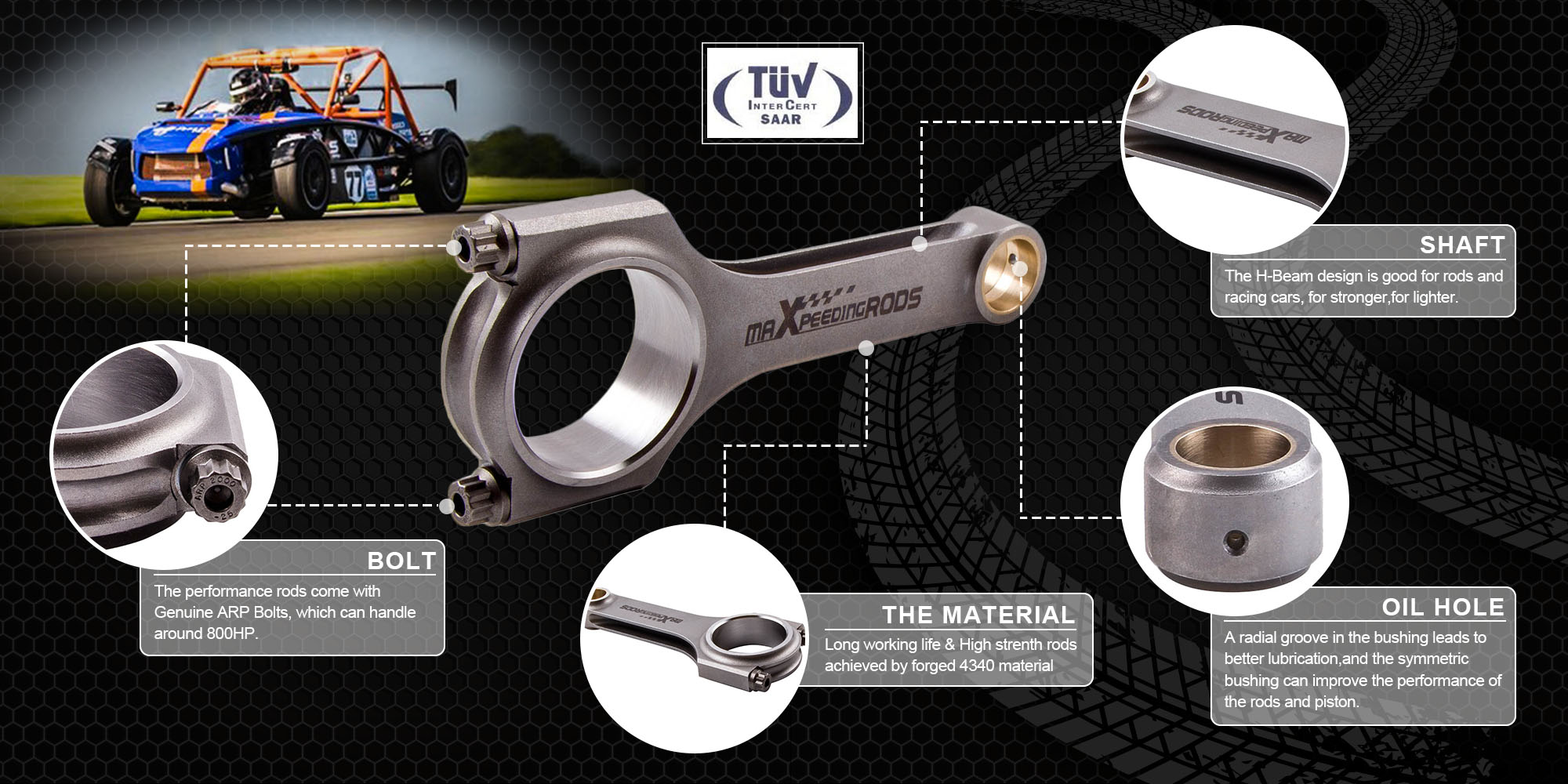

| For BMW M3 E36 E46 S50 S50B32 6 cyl European model 4340 Forged Steel H-Beam Connecting Rod | ||||||
| Fit for | BMW M3 E46 S50 // E36 S50B32 European model | |||||
| Specification | Fully shot peened Supplied with aluminum-bronze wrist pin bushings and ARP 2000 bolts (rated to 220,000psi tensile strength!) Our Rods are rated for 800+BHP and 9000RPM These rods are quality rods with TUV Certification. NOT bad steel manufactured rods like by other sellers!! | |||||
| Material | Forged 4340 aircraft chrome moly quality steel | |||||
| Quantity | 6 Pieces as showing in picture | |||||
| Bolts | Including Genuine 3/8" ARP 2000 bolts | |||||
| Weight tolerance | Balanced to +/- 1 gram in set | |||||
| Note | Extra cost for upgrading to ARP L19 bolts | |||||
| Warranty | 2 years warranty. | |||||
| Dimensions | ||||||
| Center to center length | 139mm | |||||
| Big end diameter | 53mm | |||||
| Small end diameter | 21mm | |||||
| Big end width | 22mm | |||||
| Small end width | 22mm | |||||
