Feed Pellet Making Machine (210) with 4mm and 8mm Grinding Disc

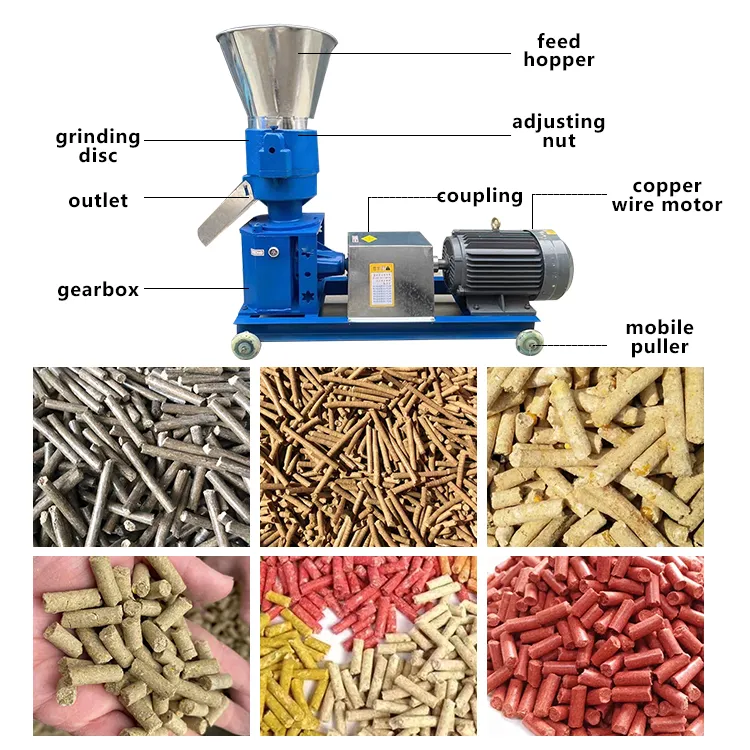

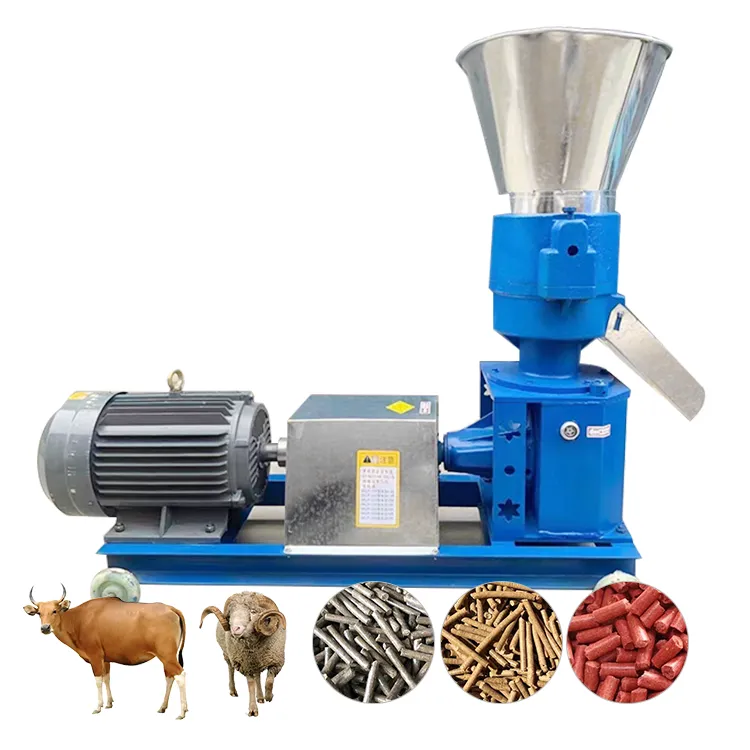

It's a pellet press machine in the JU series (model JU-210) designed to make animal feed pellets. This unit includes interchangeable 4mm and 8mm grinding/pelletizing discs for producing small and medium pellet diameters.

Model JU-210 weighs about 170 kg, has a motor power of 7.5 kW, typical voltage 380 V, recommended water addition 8%, and an output capacity of approximately 300–400 kg per hour.

The series includes JU-150, JU-160, JU-180, JU-210, JU-230, JU-260, and JU-300. Capacity increases with model size: roughly 80–100 kg/h (JU-150) up to 900–1200 kg/h (JU-300), with intermediate steps shown in the product parameters.

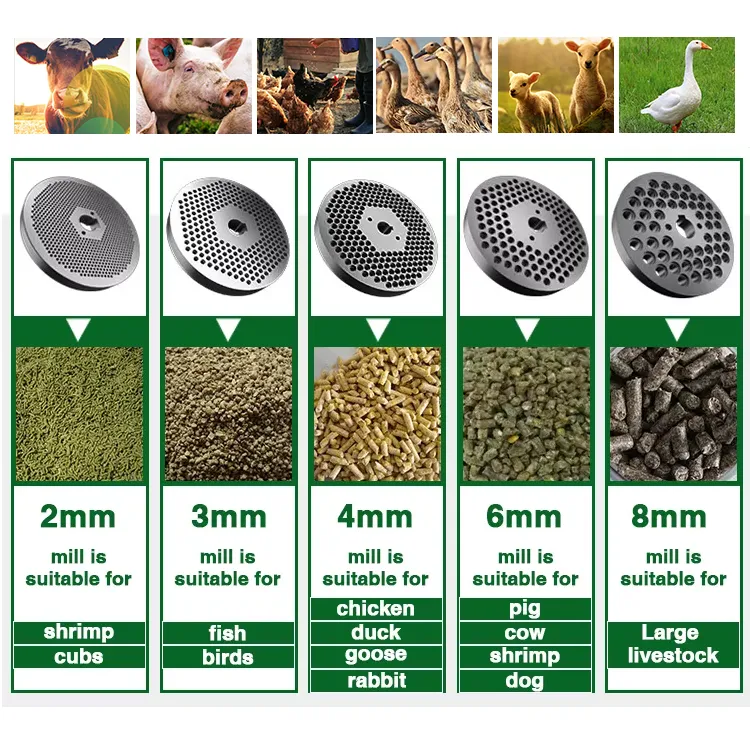

Using the supplied grinding/pelletizing discs you can produce pellets of approximately 4 mm and 8 mm diameter. Discs may be swapped to change pellet size.

Common materials include crushed grains (corn, wheat, barley), soybean meal, grass and alfalfa powder, feed premixes, and other similar dry feed ingredients. Materials should be properly milled and blended before pelleting.

The product parameters indicate an 8% water addition is recommended. Aim for material moisture appropriate for pelleting—typically adjust with about 8% added water or as advised after testing your specific formulation.

JU-210 requires a 7.5 kW motor and is typically supplied for 380 V (three-phase). Other models may support 220 V/380 V options (e.g., JU-160). Confirm with the supplier for your local electrical configuration.

Turn off and isolate power, open the pelletizing chamber according to the manual, remove the current disc and replace it with the desired-sized disc. Ensure proper alignment and secure fasteners before restarting. Refer to the supplied manual for detailed steps and safety precautions.

Regular maintenance includes daily cleaning of the chamber and dies, lubrication of bearings and moving parts per the manual, checking belt tension and motor mounts, and inspecting dies/discs for wear. Replace worn dies/discs as needed. Follow the manufacturer's maintenance schedule for intervals.

Basic installation (placement, electrical connection, and initial adjustment) can usually be handled by your local technician. Some suppliers offer installation assistance or a setup guide—confirm with the vendor for onsite service or remote support options.

Standard safety measures include emergency stop, proper guarding of moving parts, overload protection on the motor, and grounding of electrical components. Always isolate power before maintenance and follow the operator manual and local safety regulations.

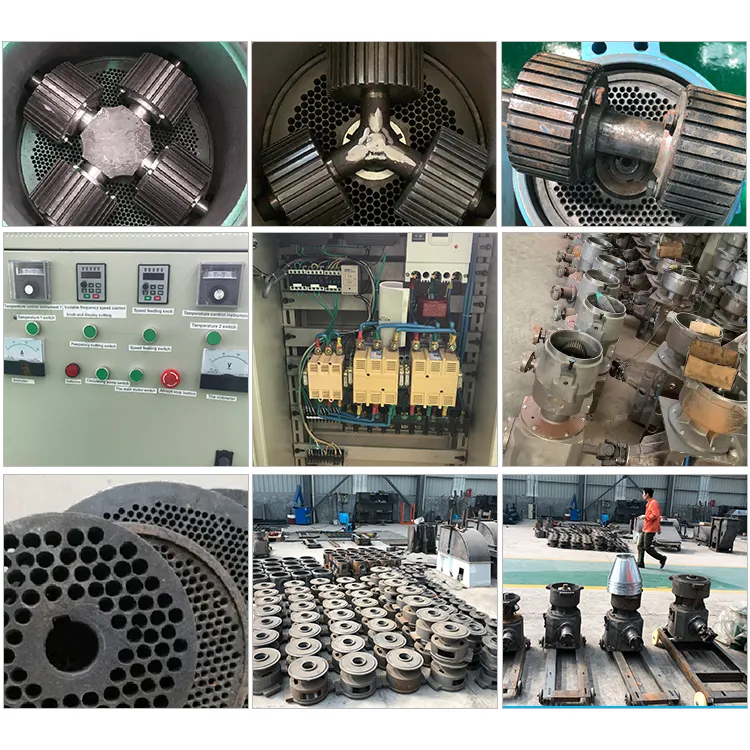

Common spares include dies/discs (4mm and 8mm), rollers, bearings, belts, gaskets, and drive components. Keeping at least one spare die/disc and basic wear parts reduces downtime.

Pellet machines produce moderate operational noise typical of mechanical presses and motors. Use in a ventilated, dry area on a stable foundation and follow recommended feed particle size and moisture levels for best results.

'sldb' appears to be a model/code suffix used by the manufacturer or supplier. For clarification and available custom options (different voltages, additional die sizes, feed hoppers, or conveyor attachments), contact the supplier or manufacturer directly.
