Electronic Products Machinery SMT Production Line Pick and Place Machine NeoDen 10
Products Description

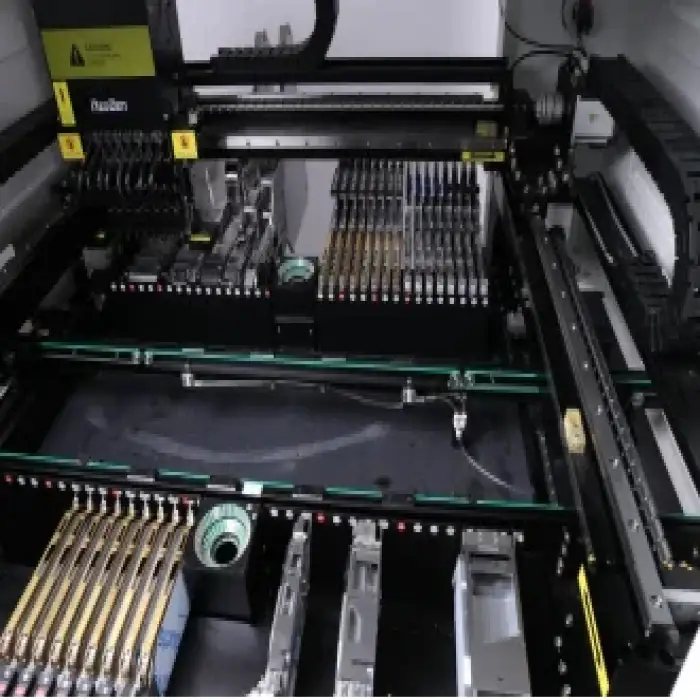

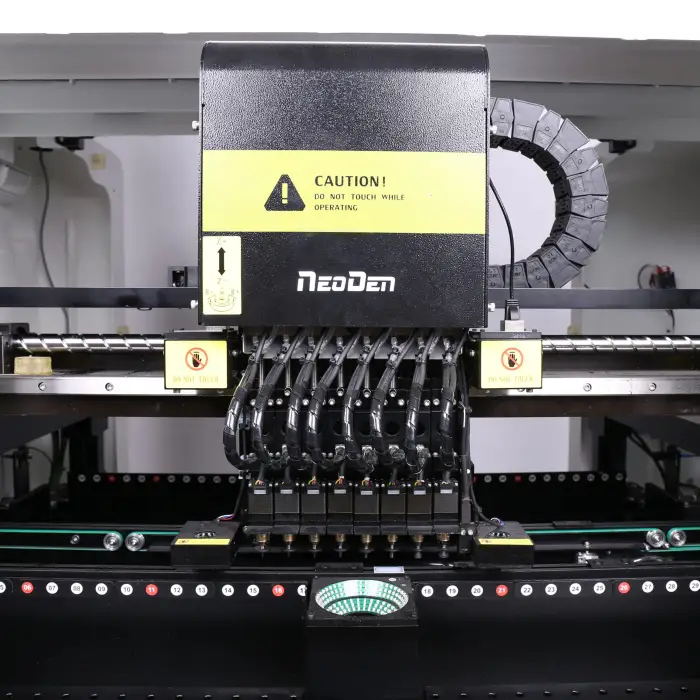

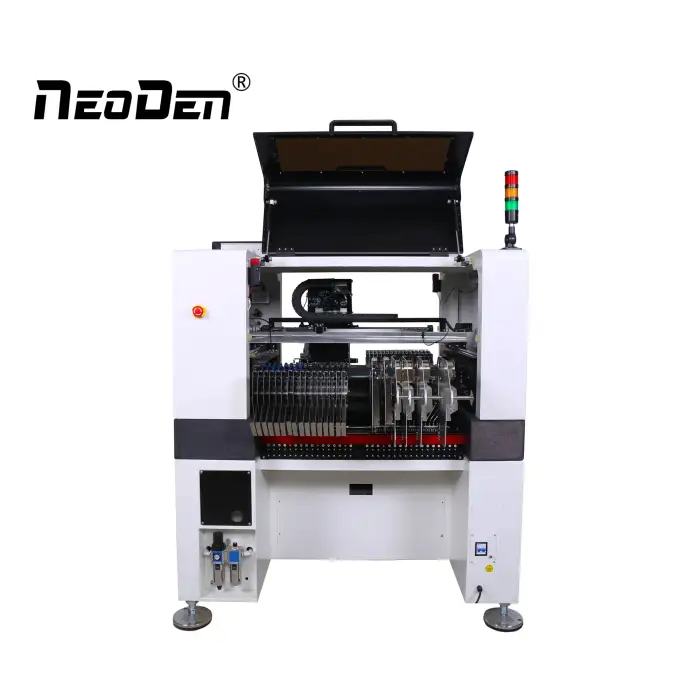

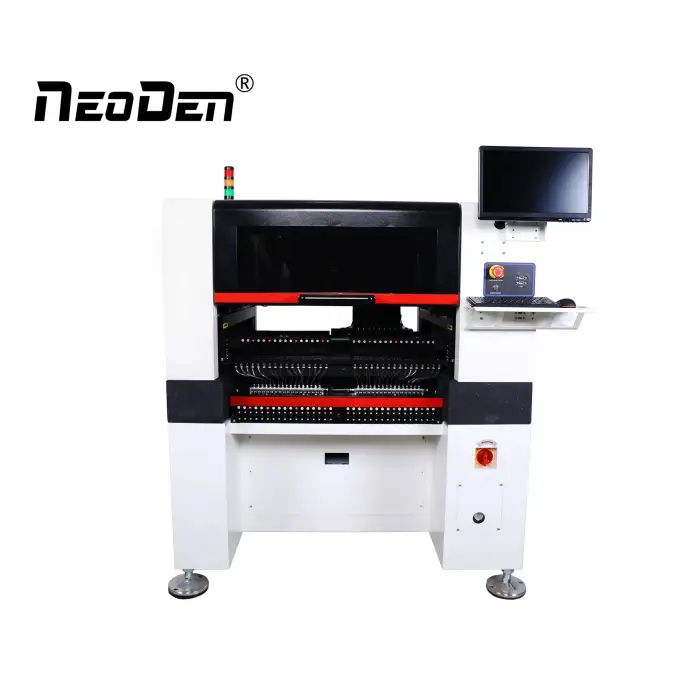

NeoDen10 is a ball screw pick and place machine with 8 simultaneous pick-up heads, max 66 tape reel feeder capacity, max 18000CPH placement rate, which is suitable for scale PCB/LED assembly production in SMT line with fast speed and high accuracy.
It supports both electric feeder and pneumatic feeder.
The cost of electric feeder is higher, but for component which needs high accuracy, such as 0201, you need to select electric feeder.
The cost of pneumatic feeder is lower, you can select it for normal assembly work.
The feeder size: 8mm/ 12mm/ 16mm/ 24mm/ 32mm/ 44mm/ 56mm.
Applicable components: 0201, 0402, 0603, 0805, 1206, 1210, SOP, SSOP, SOC, QFP, QFN, BGA, 3538, 4148 diode, 3535 ball shape LED, 5050 etc.
Application industry: household appliances industry, auto electronics industry, power industry, LED industry, security,
instruments and meters industry, communication industry, intelligent control industry, internet industry of things and military industry, etc.
Specification
| Model | NeoDen10 | |||
| Nozzle Qty | 8 nozzles | |||
| Reel Tape Feeder Qty(Max) | 66 (Electric / Pneumatic) | |||
| IC Tray Feeder Qty | 20 | |||
| Placement Area | 500mm*300mm(1500mm*300mm optional) | |||
| MAX Mounting Height | 16mm | |||
| Mark camera recognition system | 2 Groups (left and right) / US ON sensors | |||
| Flying camera recognition system | 2 Groups (front and rear) / US ON sensors | |||
| Operation System | Patented SMT Mouting Operation System V1.0 | |||
| XY Motion feedback control | right-left/left-right SPM/IBG magnetic linear encoder | |||
| XY Drive motor | servo motor | |||
| Repeat Position Accuracy | 0.01mm | |||
| Maximum Mounting Speed | 18000CPH | |||
| Average Mounting Speed | 13000CPH | |||
| X/Y Drive Type | WON Linear Guide / THK Grinding screw C5 - 2040 | |||
| Compressed Air | >0.6Mpa ,Max. flow rate 37L/min | |||
| Voltage | AC110V/220V，50HZ/60HZ | |||
| Net Weight | 1100KGS | |||
| Machine Dimension | L1300mm*W1100mm*H1375mm |
Features
Highlights
Placement Effect
| NeoDen10 | is a ball screw pick and place machine with 8 simultaneous pick-up heads, max 66 tape reel feeder capacity, max 18000CPH placement rate, which is suitable for scale PCB/LED assembly production in SMT line with fast speed and high accuracy. |
|---|---|
| The feeder size | 8mm/ 12mm/ 16mm/ 24mm/ 32mm/ 44mm/ 56mm. |
| Applicable components | 0201, 0402, 0603, 0805, 1206, 1210, SOP, SSOP, SOC, QFP, QFN, BGA, 3538, 4148 diode, 3535 ball shape LED, 5050 etc. |
| Application industry | household appliances industry, auto electronics industry, power industry, LED industry, security, |
The NeoDen 10 has a maximum placement speed of 18,000 components per hour (CPH).
The NeoDen 10 is equipped with 8 simultaneous pick-up heads.
The NeoDen 10 supports both electric feeders and pneumatic feeders.
The NeoDen 10 can accommodate up to 66 tape reel feeders.
The repeat position accuracy of the NeoDen 10 is 0.01mm.
The maximum mounting height for components on the NeoDen 10 is 16mm.
The NeoDen 10 can mount various components including 0201, 0402, 0603, 0805, 1206, SOP, SSOP, SOC, QFP, QFN, BGA, and more.
The NeoDen 10 is applicable in various industries, including household appliances, auto electronics, power, LED, security, instruments and meters, communication, intelligent control, IoT, and military.
The average mounting speed of the NeoDen 10 is approximately 13,000 CPH.
The NeoDen 10 operates at AC 110V/220V with a frequency of 50HZ/60HZ.
The net weight of the NeoDen 10 is 1100 kilograms.
The placement area of the NeoDen 10 is 500mm x 300mm, with an optional size of 1500mm x 300mm.
Yes, the NeoDen 10 features a mark camera recognition system with 2 groups (left and right) and a flying camera recognition system with 2 groups (front and rear).
The NeoDen 10 utilizes a patented SMT Mounting Operation System V1.0.
The NeoDen 10 uses servo motors for XY drive.
