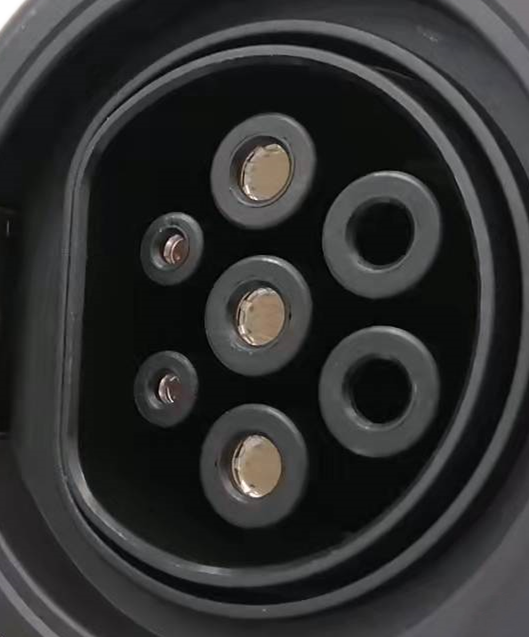

Enclosure IP Rating :IP65/ EV Socket IP Rating: IP54
Protection
I
Electrical Protection
Over Current Protection
Residual Current Protection
Ground Protection
Surge Protection
Over/Under Voltage Protection
Over Temperature
Working Temperature
-20℃~50℃
Working Humidity
3%~95%
Working Altitude
<2000m
Cooling Mode
Natural
Material
ABS+PC
Display
Three Colors LED/OLED
Installation Mode
Wall Mount /Column Mount
Features
Over current, Under voltage, Residual current, Surge protection, Leakage protection, Over temperature, etc.
Certification
CE UKCA (Dekra)
Standard
EN IEC 61851,EN 62196

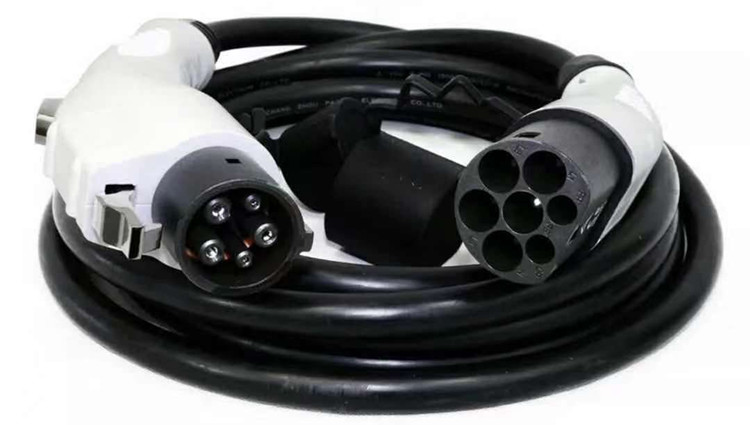

EXTRA OPTIONAL-5M CABLE
No.
Status
Blue
Green
Red
1
Power Off
OFF
OFF
OFF
2
Test
Flashing
Flashing
Flashing
3
Standby
ON
OFF
OFF
4
Waiting Chargiing
Flashing
OFF
OFF
5
Charging
OFF
On
OFF
6
Completed
OFF
Flashing
OFF
7
Over Temperature
OFF
OFF
ON
8
Leakage
OFF
OFF
Three fast flashes, one slow flash
9
Over Current
OFF
OFF
Two fast flashes, one slow flash
10
Ground Error
OFF
OFF
Seven fast flashes, one slow flash
11
Power Supply Over Voltage
OFF
OFF
Four fast flashes, one slow flash
12
Power Supply Undervoltage
OFF
OFF
Three fast flashes, two slow flashes
13
Adhesion
OFF
OFF
Six fast flashes, two slow flashes
14
Short Circuit
OFF
OFF
Five fast flashes, two slow flashes
15
Other Faults
OFF
OFF
One fast flashes, two slow flashes
