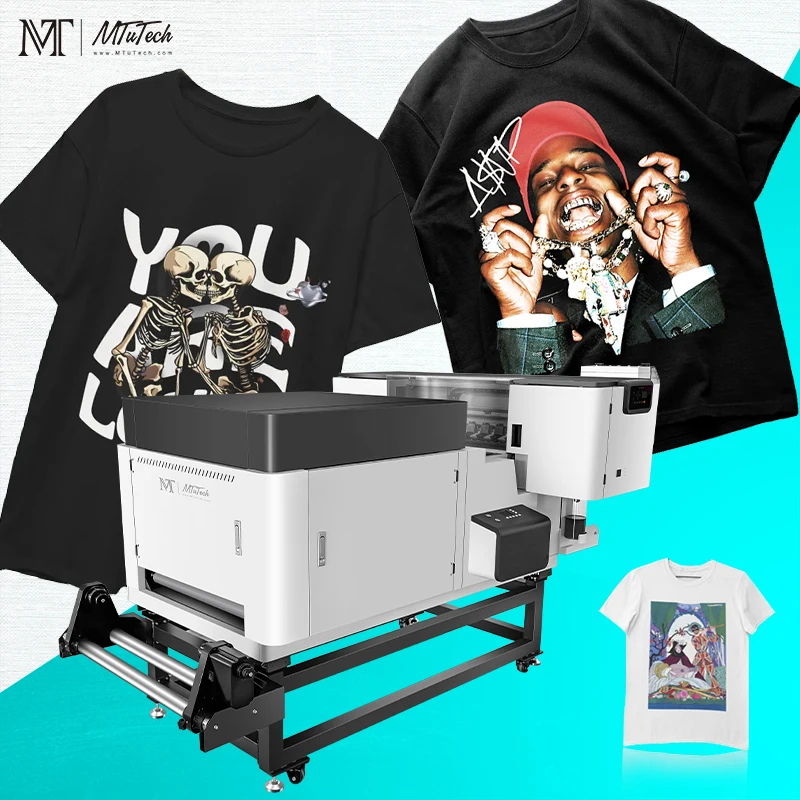

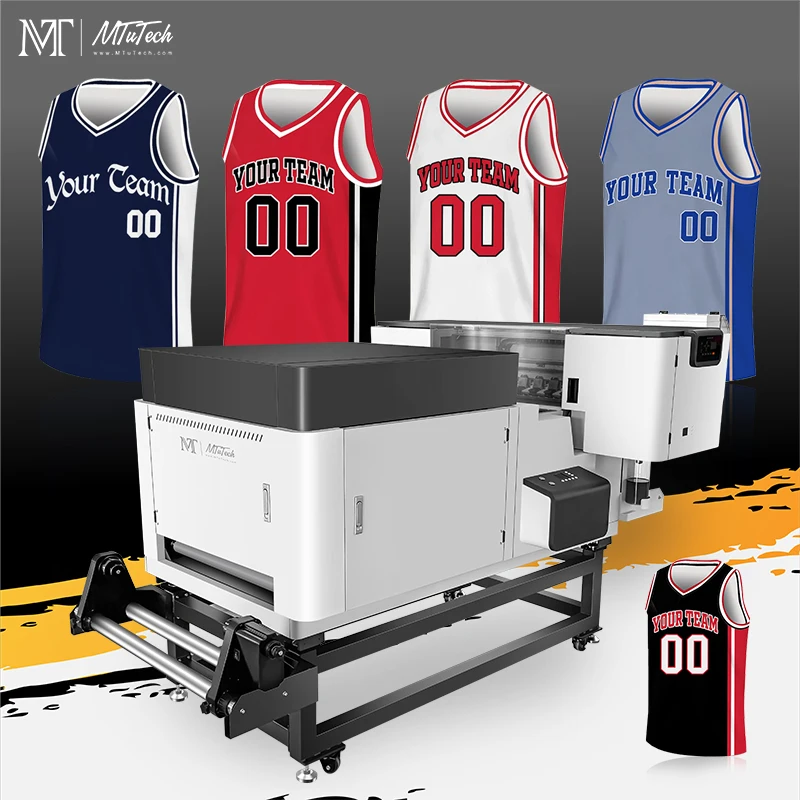

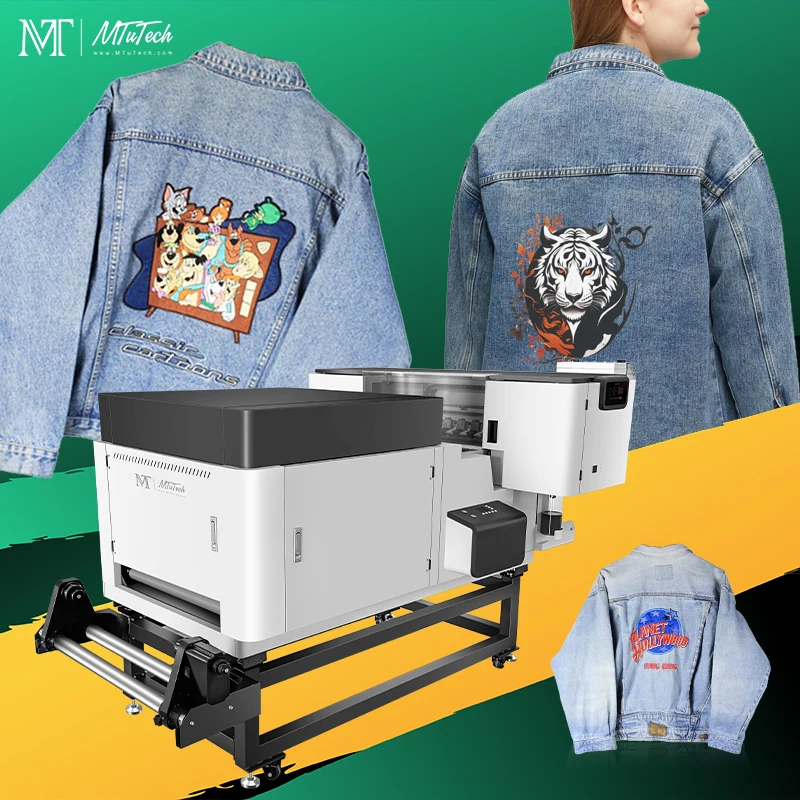

DTF Printer T Shirt Printing Machine With Different Heat Press Solution

The package includes the 60cm (600mm) DTF printer with dual Epson i3200 (model 13200A1) printheads, integrated powder shaker with automatic powder recycling, built-in smoke removal system, PhotoPRINT RIP software, and basic starter consumables (pigment inks, test transfer film and adhesive powder). Check the seller listing for exact accessory list and optional extras.

Maximum print width is 60 cm (600 mm). It supports common outputs equivalent to A2/A3/A4 and print dimensions such as 400 mm and 600 mm. Optical resolution up to 720 × 1200 dpi depending on RIP settings.

This DTF solution works on cotton, polyester, poly-cotton blends, nylon and many other textiles. Typical applications include T‑shirts, hoodies, tote bags, sports uniforms and custom apparel.

Basic workflow: 1) Print full‑color design onto PET transfer film using pigment inks; 2) Pass wet prints through the powder shaker to apply adhesive powder; 3) Cure/dry the powder (hot air oven/curing unit) so it melts and bonds to the ink; 4) Transfer the image from film to fabric using a heat press; 5) Peel the film (hot or cold depending on film/instructions) and finish.

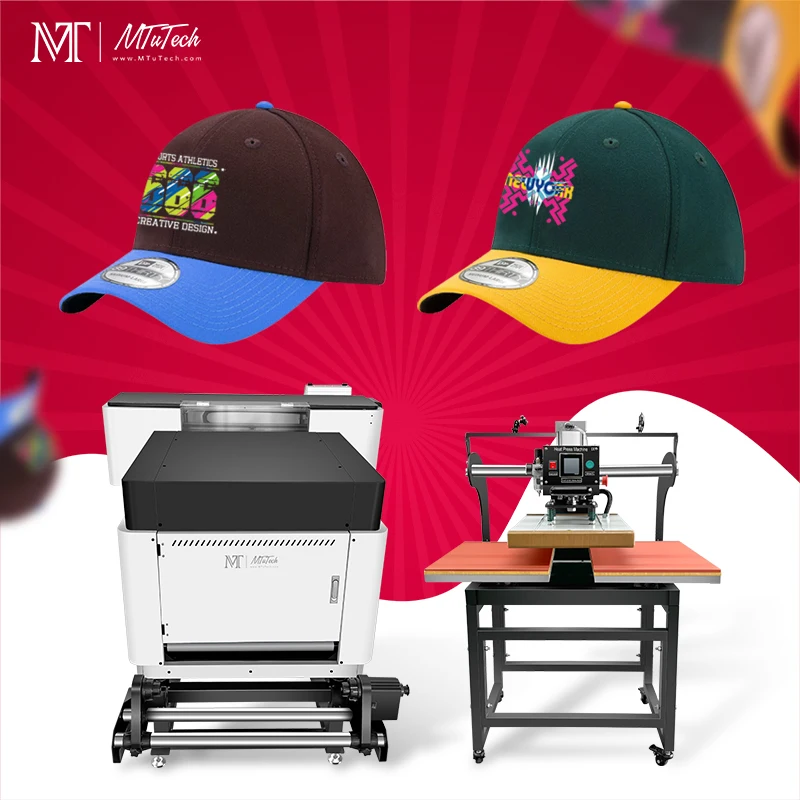

Portable clamshell, swing‑away and roller heat presses all work — choose one that handles your garment sizes and provides even pressure. Typical starting settings: 160–170°C (320–338°F) for 8–20 seconds at medium pressure. Hot vs cold peel depends on film and powder; start with manufacturer recommendations and run tests to optimize time, temperature and pressure for your substrate.

Consumables include DTF pigment inks (CMYK + white where applicable), PET transfer film, adhesive powder, and cleaning solutions/spare parts (maintenance cartridges, capping station items). Use inks and powders specified or recommended by your supplier for best results; third‑party options exist but may affect warranty and color consistency.

After powder application, excess adhesive powder is collected and filtered/recycled back into the shaker hopper automatically, reducing waste. Periodic maintenance is required: clean filters, check sieves, empty non‑recyclable residues and inspect moving parts. Frequency depends on production volume — typically weekly to monthly checks.

The built‑in smoke removal extracts fumes and particulate generated during curing and powder handling to reduce odors and improve air quality. It helps but is not a substitute for proper shop ventilation. Install in a well‑ventilated area and follow local regulations for fume extraction.

PhotoPRINT RIP is included for layout, color management, ink limiting and queue control. It supports standard image formats like TIFF, PNG, PSD and PDF. Use ICC profiles and test charts in the RIP to achieve accurate color matching for your materials.

Properly applied DTF prints are highly durable with good wash fastness. Recommended aftercare: allow 24 hours cure time before washing, wash inside‑out in cold water with mild detergent, avoid bleach and high‑heat drying when possible. Conduct wash tests to confirm durability for your specific inks and fabrics.

Routine maintenance includes daily or regular nozzle checks and head cleanings, keeping ink lines primed, cleaning the capping station and wiper, and periodic replacement of maintenance parts. Follow the manufacturer's maintenance schedule and use recommended cleaning fluids to extend printhead life.

For banding: run nozzle checks, perform head alignments and clean heads, check media advance and tension. For color mismatch: confirm RIP color profiles/ICC, check ink levels and mixing, run nozzle checks, and print test charts to adjust color curves. If issues persist, contact support or the supplier.

Printer dimensions are approximately 2305 mm × 1092 mm × 1101 mm (L×W×H) and it weighs about 330 kg. Allocate additional workspace around the machine for media handling, curing equipment and maintenance access; ensure floor load capacity and easy access for installation.

Warranty, installation and training vary by seller/distributor. Many suppliers offer on‑site setup, operator training and a warranty period — confirm these services and their terms with your vendor before purchase.

This 60cm dual‑head DTF system is ideal for small to medium garment decorators, print shops and on‑demand apparel businesses that need high‑quality, full‑color transfers. Production capacity depends on RIP settings, curing workflow and operator efficiency — the dual heads increase throughput for commercial runs but large industrial volumes may require wider roll‑to‑roll systems.
