Disposable Foil Aluminum Box Making Machine For Food Takeway Container
- Section : Machinery
- Category : Paper Production Machinery
- SKU : 1600150136802
| Type | BJ-DG500B |
| Production capacity | 60—95 pcs per min |
| Maximum paper feeder size | 350*350mm |
| Max Paper Convey length | 400mm |
| Suitable Material | 100-400g/m2 (PE Coated paper) |
| Total Power | 8KW |
| Total Weight | 1300KGS |
| Overall dimension L X W X H | 2700*1350*2000mm |
| Working Air Source | Air pressure 0.6-0.8Mpa (Need to buy compressor |
| Working gas consumption | 1—1.5m³/min |
Main Electrical Parts
| Motor | Main motor | (FAMOUS BRAND OF CHINA) |
Electric elements | Frequency converter | Gtake |
| All other electrical parts | CHINT | |
| PLC | Delta ，taiwan | |
| Touch screen | Ykhmi | |
| Sensors | Autonics,korea | |
| Pneumatic | Switch | meanwell，taiwan |
| Cylinder | （CHINA） | |
| Main solenoid valve | （CHINA） | |
| Bearing | Other bearings | （CHINA） |
Products Description

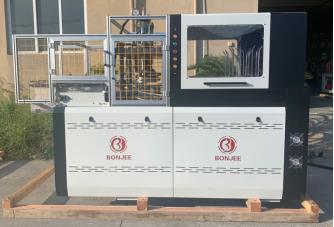

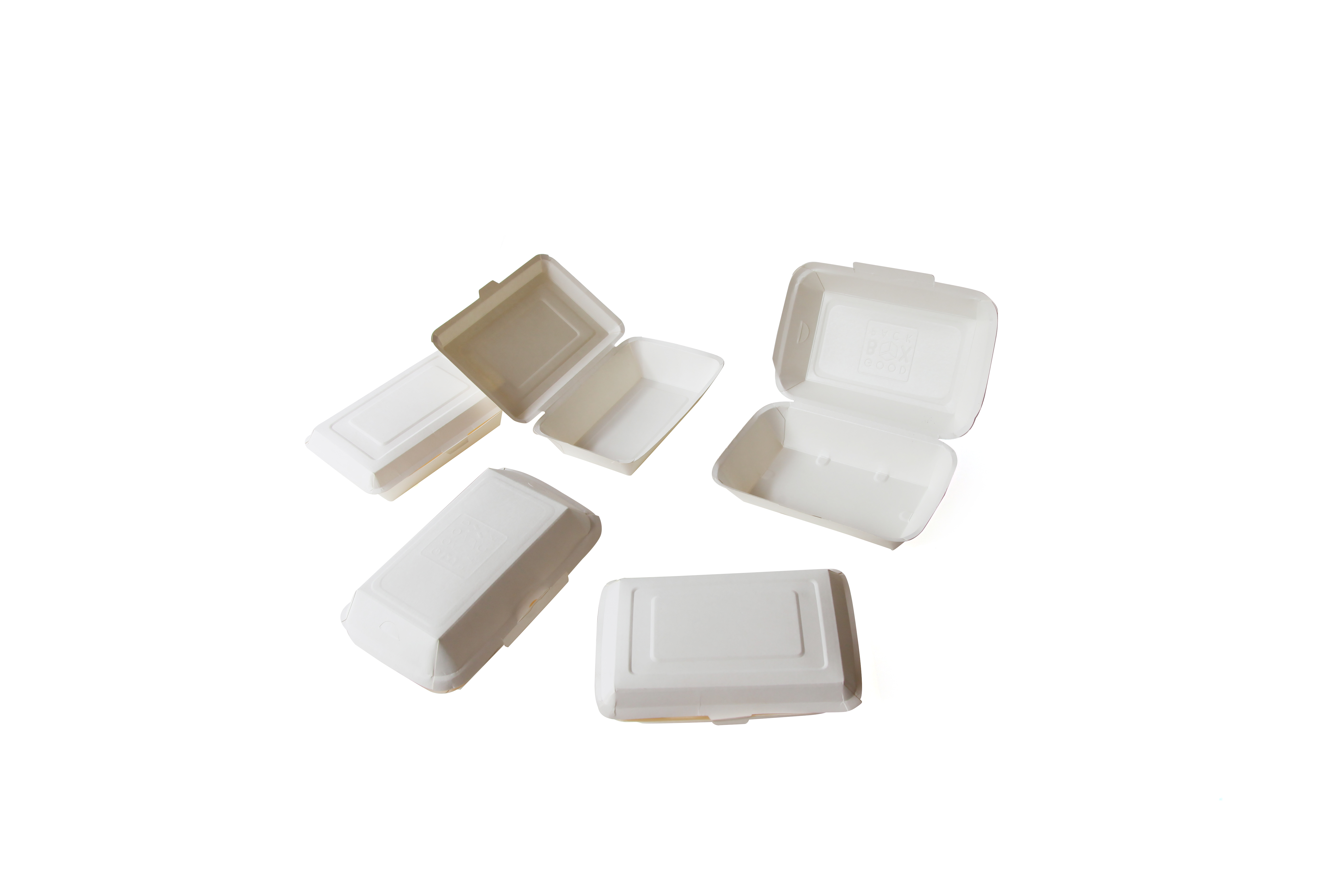

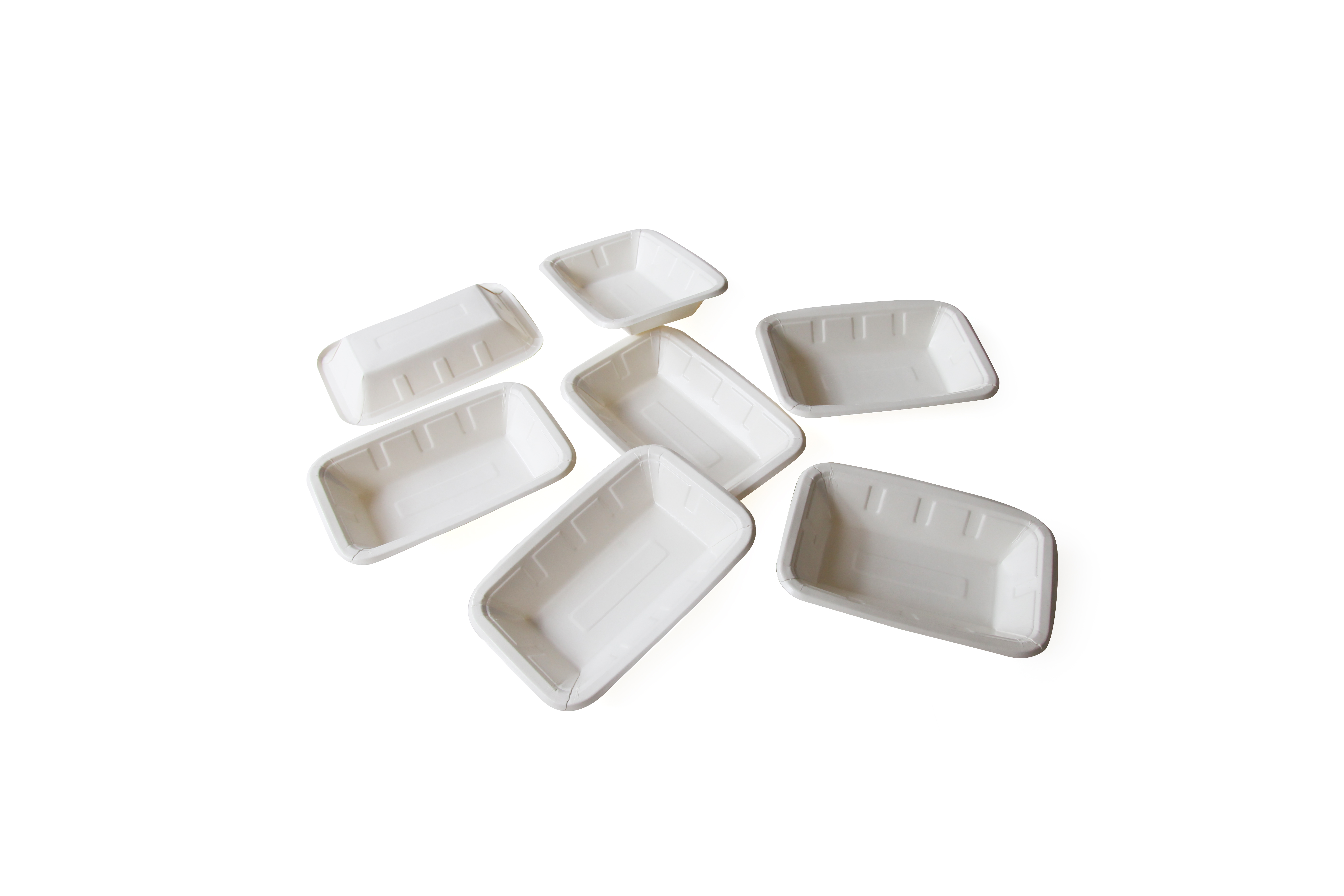

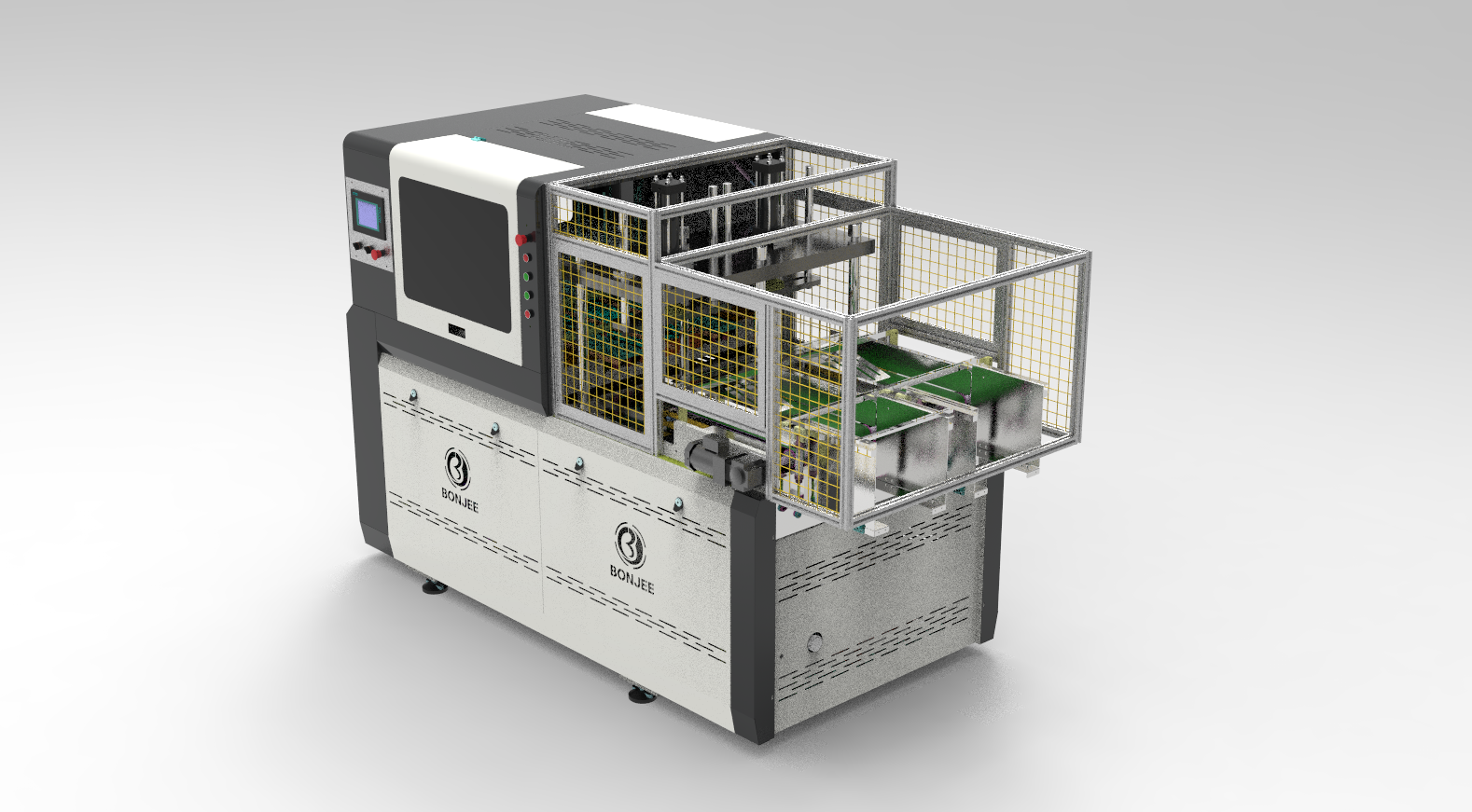

BJ-DG500B Full Automatic Paper Box Forming Machine Is An Ideal Equipment For Making Single/Double Pe Coated Paper Boxes . It Has Speed Faster ,Operation Easier Etc Advantages . This Machine Adopts Automatic Paper Feeding , Heating (With Hot Air Device), Paper Former(Sealing Box 4 Corners), Automatic Counting & Collection , Microcomputer Controller Etc Making Process , And Fit For Making Disposable Simple 4 Corners Paper Lunch Box /Tray With Deep <=4cm.
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the production capacity of this machine?
The BJ-DG500B produces approximately 60–95 pieces per minute. Actual output depends on box size, material, and operator settings.
2. What materials and paper weights are compatible?
The machine is designed for PE‑coated paper with a grammage of 100–400 g/m². For aluminum‑foil laminated or other specialty substrates, please consult the supplier to confirm compatibility.
3. What maximum blank size and forming depth can it handle?
Maximum paper feeder size is 350 × 350 mm and maximum paper convey length is 400 mm. It is suitable for making boxes/trays with a depth up to 4 cm; finished dimensions depend on the forming die used.
4. What are the machine's power and electrical requirements?
Total power consumption is 8 kW. Confirm required voltage and phase with the supplier (commonly 380 V, 3‑phase). The machine uses a frequency converter and PLC for control.
5. Does the machine require an air compressor?
Yes. Working air pressure should be 0.6–0.8 MPa and air consumption is approximately 1–1.5 m³/min. You will need to supply a suitable compressor.
6. What are the machine dimensions and weight for planning installation?
Overall dimensions are 2700 × 1350 × 2000 mm (L × W × H) and the total weight is about 1300 kg. Ensure adequate floor space and lifting equipment for installation.
7. What typical changeover time is required to switch box sizes?
Changeover requires replacing or adjusting the forming die/mold. Changeover time depends on box complexity and operator skill, typically ranging from 20 to 60 minutes.
8. What automation and control features does the machine have?
The BJ‑DG500B includes automatic paper feeding, hot‑air heating, box forming (4‑corner sealing), automatic counting and collection, microcomputer (PLC) control, frequency converter speed control, and a touch screen interface.
9. Which major electrical and pneumatic components are used?
Major components include a Chinese brand main motor, Gtake frequency converter, CHINT electrical parts, Delta PLC (Taiwan), Ykhmi touch screen, Autonics sensors (Korea), and Taiwan/Chinese pneumatic components.
10. How many operators are needed to run the machine?
Typically 1 operator can run the machine for automated feeding and collection. Depending on production scale and packaging requirements, an additional helper may be useful for continuous operation.
11. What routine maintenance is recommended?
Daily: clean debris, check sensors and safety guards, inspect belts and moving parts. Weekly: lubricate bearings and joints as specified in the manual. Monthly: inspect heating elements, pneumatics, and electrical connections. Replace worn consumables (belts, seals, cutters, heating elements, dies) as needed.
12. What safety precautions should be observed?
Ensure the machine is properly grounded, emergency stop switches are functional, operators are trained, and PPE (gloves/eye protection) is used when servicing. Disconnect power and air before maintenance.
13. Are replacement parts and molds available?
Yes. Standard electrical and pneumatic parts are available (many from listed brands). Custom forming dies/molds can be supplied or manufactured; contact the supplier for lead times and pricing.
14. Is training, installation, and warranty provided?
Services vary by supplier. Many sellers offer on‑site or remote commissioning and operator training, plus a warranty period for main components. Confirm specifics (warranty length, training format, and installation fees) with your vendor.
15. How is the machine packaged and shipped?
Due to its weight (~1300 kg) and size, the machine is typically crated for sea or land transport. Shipping methods, packaging details, and export documentation should be arranged with the supplier and freight forwarder.
