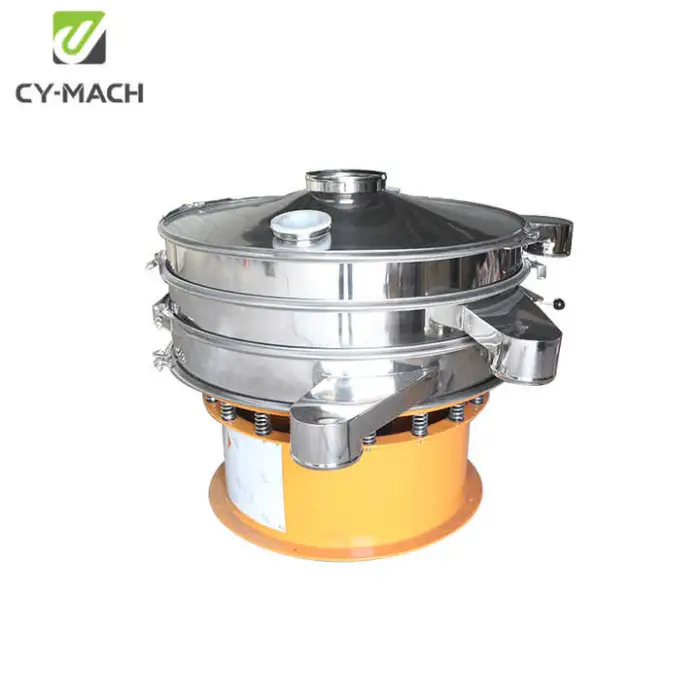

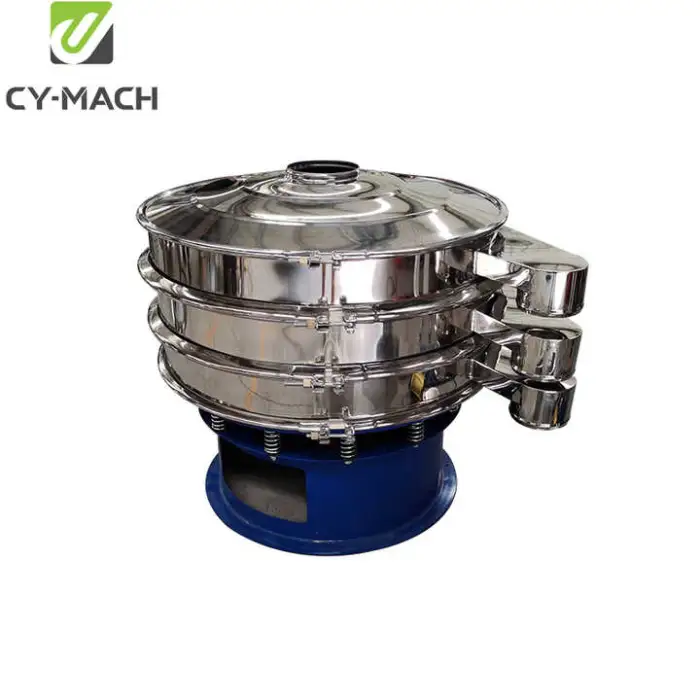

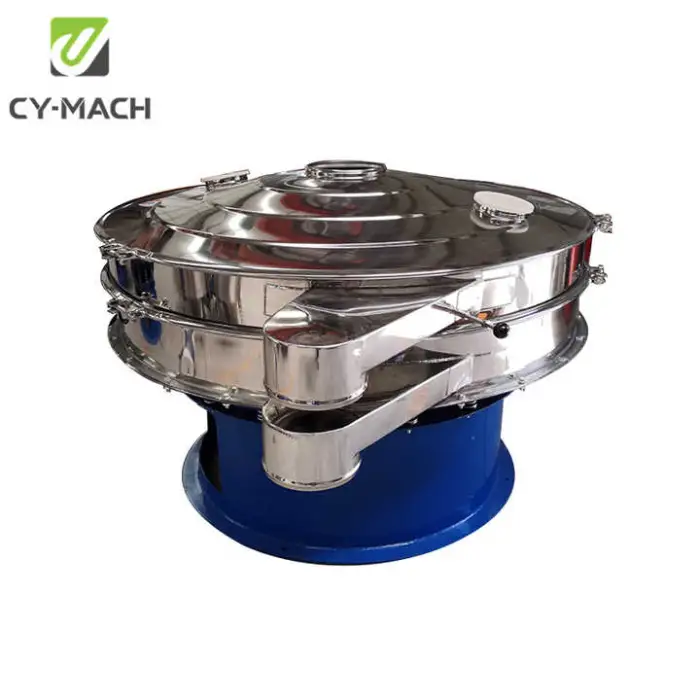

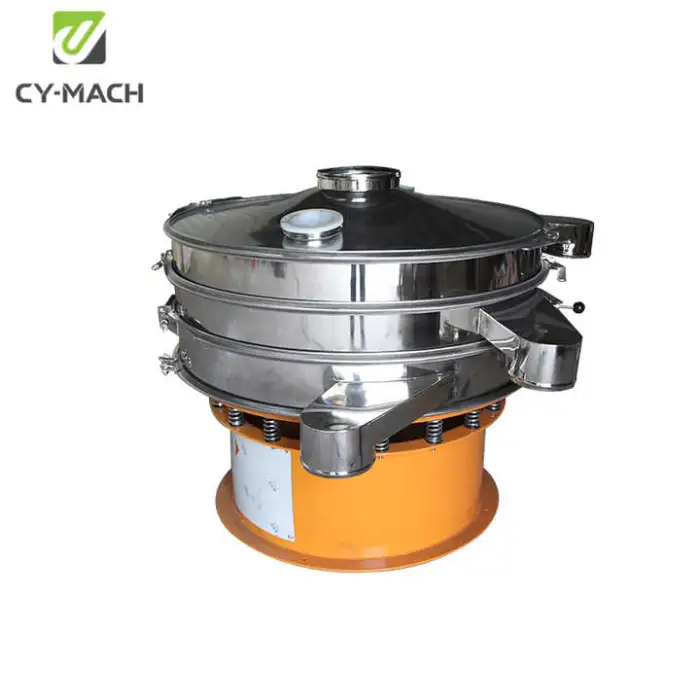

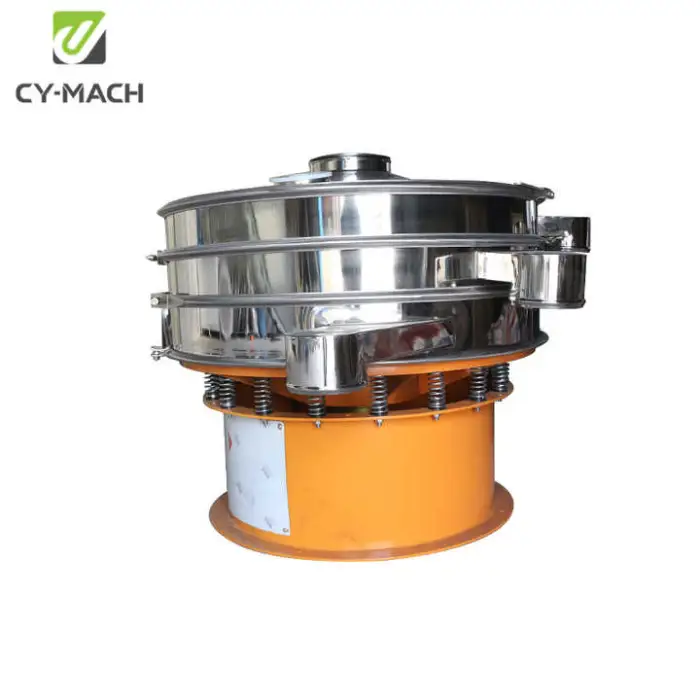

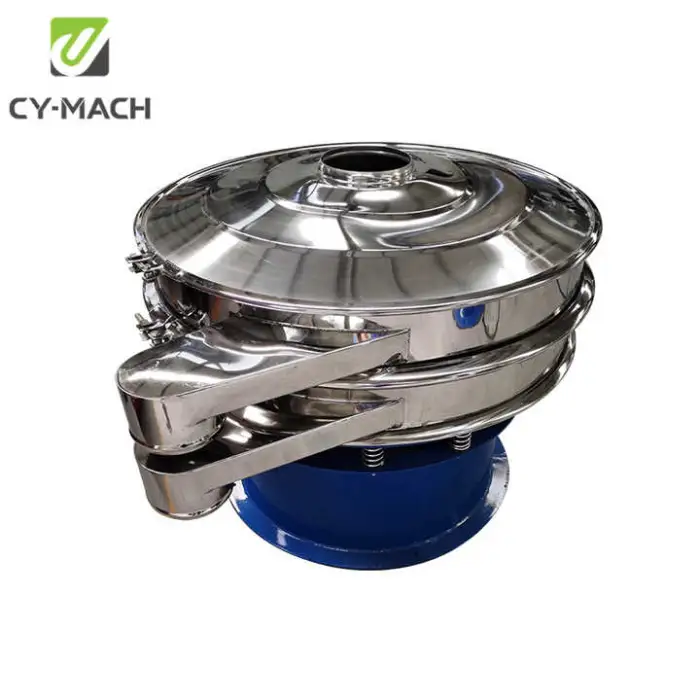

CY-MACH Stainless Steel Multi Stage Sieve Three-dimensional Vibrating Screen Plastic Pellet

A circular, three-dimensional vibrating screen made of stainless steel for screening, separation, sorting and sieving materials such as plastic pellets and food ingredients. It supports 1–4 layers, 2–200 mesh sizes and is available with several cleaning options.

Constructed from stainless steel 304 or 316L with mirror polishing. The materials and finish are suitable for food processing; for specific regulatory certifications (e.g., FDA, CE, GMP) please request documentation from the supplier.

Typical applications include food processing (removing impurities), plastic pellet screening and quality control, pharmaceutical material separation and chemical industry particle sorting.

Mesh sizes range from 2 to 200 mesh, and the machine can be configured with 1 to 4 layers to achieve different separation/grading requirements.

Available cleaning options include bouncing ball anti-blocking, brush cleaning and ultrasonic cleaning systems. Options can be selected depending on the material and process needs.

Equipped with a vertical vibrating motor as the core component. Standard voltage is 380V, and other voltages can be supplied per client requirements. Exact motor power depends on configuration—please consult the supplier with your details.

Standard external dimension is 700 × 700 × 600 mm. Single gross weight is 150 kg. Single package size is approximately 70 × 70 × 65 cm.

Throughput depends heavily on material properties, mesh size, number of layers and feed rate. Provide sample material, desired particle size and required capacity so the supplier can estimate or perform a test.

Yes. The MOQ is 1 set.

Yes. Customizable options include voltage, number of layers, mesh size, cleaning system type, material grade (304/316L) and surface treatment. Contact the supplier with your requirements for a quote.

A video outgoing inspection is provided. A formal machinery test report is not listed—contact the supplier to request test options or sample trials.

Install on a stable, level surface and secure properly. Regular maintenance includes checking and tightening fasteners, inspecting springs and motor bearings, cleaning mesh and cleaning system components (balls/brushes/ultrasonic transducers) and replacing worn sieves as needed.

Yes. It is designed for screening plastic pellets for quality control and impurity removal. For very small or irregular pellets, confirm mesh selection and cleaning method with the supplier.

Typical spare parts include vibrating motors, mesh screens, bouncing balls, brushes and ultrasonic components. Contact the supplier for availability, lead times and details on after-sales service or warranty terms.

As a vibrating machine, proper mounting and isolation are important to minimize transmitted vibration and noise. Operators should follow safety procedures, use protective equipment as needed, and ensure guards are in place. For site-specific noise/vibration requirements, consult the supplier for recommended mounting or dampening options.
