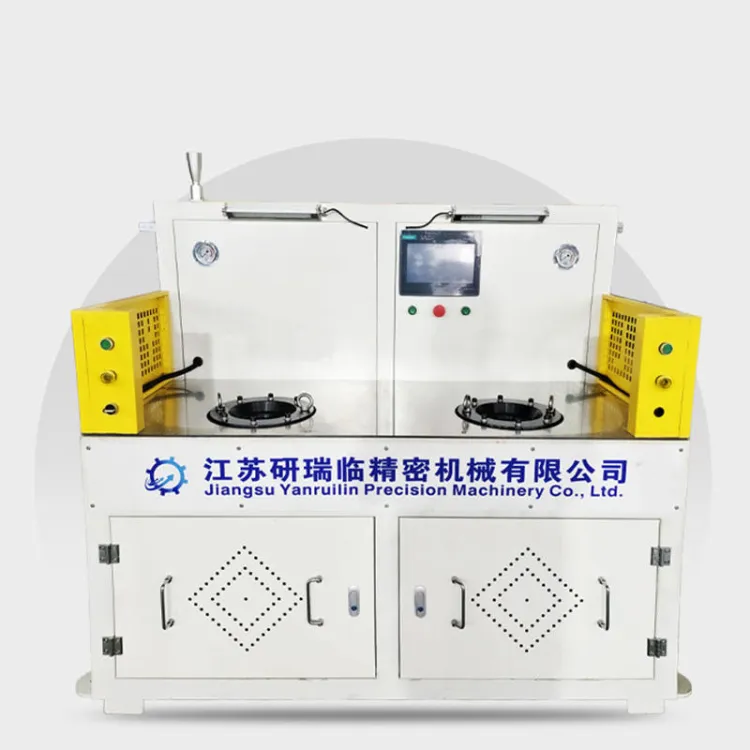

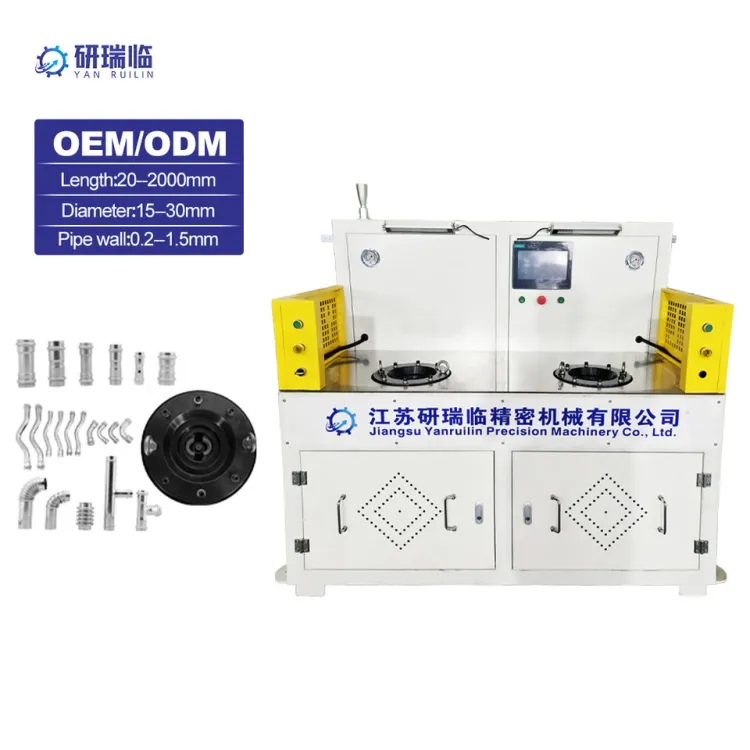

Custom High-Accuracy Stainless Steel Aluminum Automatic Pipe End Forming & Grooving Machine with 25MPA Pressure

The Custom High-Accuracy Stainless Steel Aluminum Automatic Pipe End Forming & Grooving Machine is a powerful tool for shaping pipe ends. It works with many metals like carbon steel, stainless steel, aluminum, and alloy. This machine is automatic and uses a PLC and pump for smooth operation. It gives you high accuracy every time. The 25MPA pressure gauge helps you control the job. This machine is built for heavy work and lasts a long time.

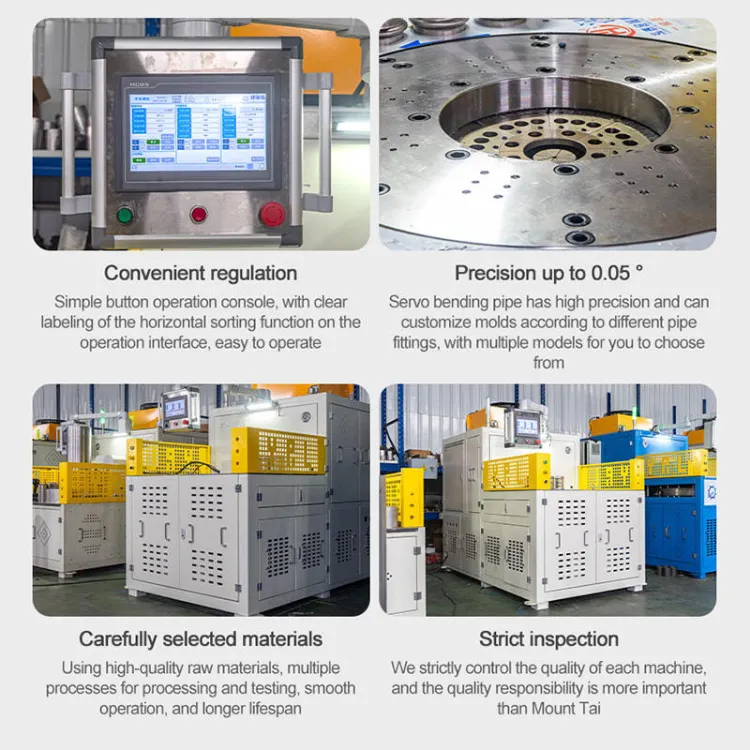

This pipe end forming machine is easy to use. It has a 10-inch touch screen. You can set the cycle time from 0.2 to 1.5 seconds. The machine can handle pipes up to 2000mm long. It can shrink pipe ends up to 30mm in diameter. The motor is 2KW, and total power is 6KW. It weighs 2000kg, so it is very stable. You get a 1-year warranty and free replacement parts.

Specifications

Attribute	Details
Product Name	30-pipe End Forming Machine
Brand Name	Yan Rui Lin
Automation	Automatic
Core Components	PLC, Pump
Raw Material	Pipe
Key Selling Points	High-Accuracy
Max. Shrinking Capacity (Diameter)	30 mm
Max. Shrinking Capacity (Thickness)	1.5 mm
Max. Tube Contracting Length	2000 mm
Tube Contracting Cycle	0.2 - 1.5 seconds
Motor	2KW
Power	6 kW
Weight	2000 kg
Pressure Gauge	25MPA
Cylinder Bore	80*Stroke 30
Cylinder Diameter	80*100
Touch Screen	10 Inch
Valve Block	Non-standard customization
Material / Metal Processed	Carbon Steel, Stainless Steel, Aluminum, Alloy
Extra Services	End Forming
Machinery Test Report	Provided
Video Outgoing-Inspection	Provided
Warranty	1 Year
