Common Rail Diesel Engine Trainer Automotive Training Equipment Vocational Education Training Equipment
- Section : Electrical & Tools
- Category : Tools & Hardware
- SKU : 1600068600937

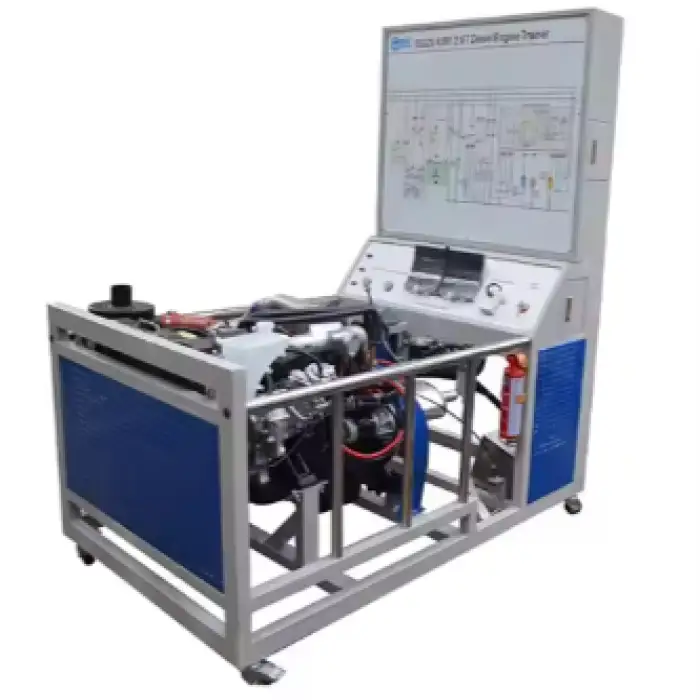

Common Rail Diesel Engine Trainer Automotive Training Equipment
The Common Rail Diesel Engine Trainer is an essential tool for vocational education. It helps students understand the basic principles and structures of the Isuzu 4JB1 diesel engine. This training equipment simulates engine operation, making learning fun and interactive.
Specifications
| Attribute | Details |
|---|---|
| Model Number | GTA-1002A |
| Dimension | 1500x1000x1800mm |
| Working Temperature | -40℃~50℃ |
| Fuel Tank Capacity | 10L |
| Coolant | Glycol |
Key Features
- Simulates normal engine operations like starting, idling, and acceleration.
- Includes a fault simulation system to mimic real engine failures.
- Equipped with a voltmeter to show real-time sensor and actuator changes.
- Training panel features color circuit schematics for easy understanding.
- Test terminals for measuring electrical signals with multimeters or oscilloscopes.
- Includes safety devices and shields for safe operation.
- Optional intelligent fault setting module available.
Applications
- Vocational education and training programs.
- Hands-on learning for automotive engineering students.
- Demonstration of engine operation in educational settings.
- Basic maintenance training for aspiring mechanics.
- Understanding diesel engine components and systems.
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the Common Rail Diesel Engine Trainer (GTA-1002A)?
The GTA-1002A is a vocational education training unit that simulates the operation and systems of an Isuzu 4JB1 common rail diesel engine to teach basic principles, component structure, diagnostics and maintenance.
2. What are the physical specifications of the trainer?
Overall dimensions are 1500 x 1000 x 1800 mm. The unit includes a 10 L fuel tank and uses glycol as the coolant. It is designed for classroom or workshop installation.
3. What operating temperature range does the equipment support?
The trainer is rated to operate in ambient temperatures from -40°C to 50°C.
4. Which engine does the trainer simulate?
The trainer models the Isuzu 4JB1 diesel engine and recreates its basic structure and system behaviors for educational use.
5. What engine behaviors and functions can students observe?
The unit simulates normal operations including starting, idling and acceleration, and allows observation of sensor and actuator responses in real time.
6. How does the fault simulation system work?
The built-in fault simulation system can introduce common engine failures via switches or an optional intelligent fault setting module, enabling students to practice diagnosis and repair procedures.
7. What instrumentation is included for measurement and observation?
The trainer includes an on-board voltmeter to display real-time sensor and actuator signals, color-coded circuit schematics on the training panel, and test terminals for use with external multimeters or oscilloscopes.
8. Is an intelligent fault setting module included or optional?
The intelligent fault setting module is an optional add-on. The base unit includes manual fault simulation controls.
9. What safety features are built into the trainer?
The trainer is equipped with safety devices and shields to protect users during demonstrations and experiments. Users should also follow workshop safety procedures and wear appropriate PPE.
10. What are the primary learning objectives when using this equipment?
Students will learn diesel engine component identification, common rail system basics, diagnostic procedures using electrical measurements, interpretation of circuit schematics, and basic maintenance practices.
11. Can I use my multimeter or oscilloscope with the trainer?
Yes. The trainer provides test terminals designed for connection to standard multimeters and oscilloscopes to measure electrical signals and waveform behavior.
12. What maintenance does the trainer itself require?
Routine maintenance includes checking and refilling the 10 L fuel tank and glycol coolant as needed, visual inspection of wiring and shields, cleaning the training panel, and following the manufacturer’s service schedule in the manual.
13. How should the trainer be installed and moved?
Install it on a flat, stable workshop floor with adequate ventilation. Refer to the product manual for electrical and mounting requirements. For transport, follow supplier guidance—use appropriate lifting equipment or multiple people to avoid damage or injury.
14. Is the trainer suitable for vocational education and hands-on mechanic training?
Yes. It is specifically designed for vocational and collegiate automotive programs to provide hands-on learning, demonstrations, and practical diagnostics and maintenance exercises.
15. Who do I contact for warranty, spare parts or technical support?
Contact the equipment supplier or manufacturer listed on your purchase documentation for warranty details, spare parts ordering and technical support. Check the included manual for service and support contact information.
