CNC Electrical Hydraulic Press Brake
Select a product option to continue.
Asset Finance Available
Check Funding Options
Explore funding with Afrimart's partners. Subject to provider approval.
Book a consultation
Product Description

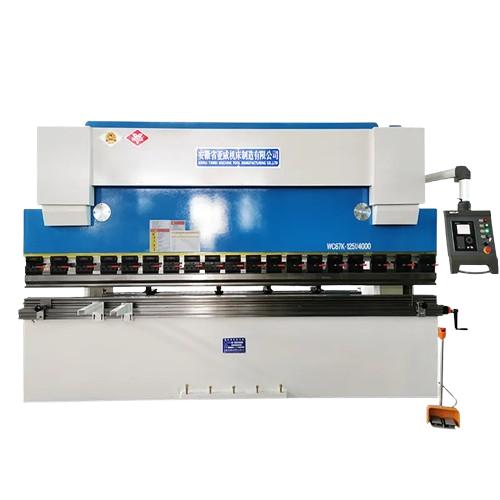

CNC Electrical Hydraulic Press Brake
The machine is made under technology from Europe. Full steel structure, stress released through vibration by adopting Germany technology. Main frame is designed and Finite Element Analyzed under ANSYS/UG software. Advanced technology with high quality, ensure efficient production and less maintenance. Accurate and effective synchronized balancing system ensure high precision. Adopted worldwide famous electrical parts, oil pump, and seals got a reliable hydraulic system. Ram stroke is adjustable and control by CNC. Bending angle controlled by CNC get accurate precision. Shift point for approach and working speed is adjustable to improve the efficiency of productivity. Simple and compact electrical system is convenience for maintenance. Relief valve protect the oil pump and hydraulic system when over-loading. Manual adjustable pressure gauge for accurate bending force
Key Features:
Energy saving rate over 50%. Take 110 ton press brake as example, customer can save energy cost.
With strong over-load capacity of servo motor, machine can get faster bending & returning speed with the same pump and valves.
Adopt no overflow technology, which can achieve better oil temperature control.
Domestic servo motor, customer can recover the cost in 1-2 years.
Standard Configuration:
Moveable front supporting arm with height adjustable.

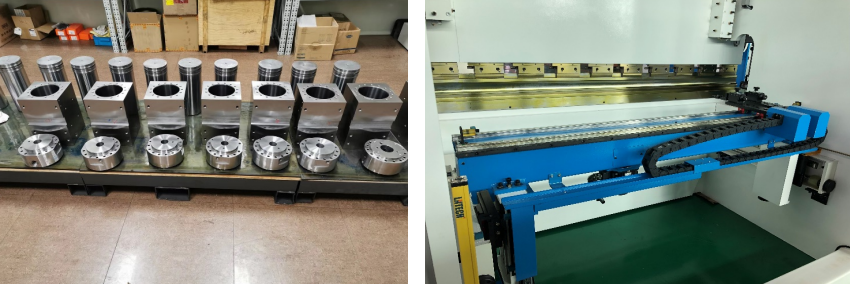

High quality top punch and bottom die by heat treatment for long life.
Adjustable top punch clamping system.
Two back gauge fingers with micro adjustment.
Crowning compensation system ensure the sheet bending accuracy.
DELEM DA-53T CNC Control:
"Hot-key” touch navigation
10.1" high resolution colour TFT
Up to 4 axes (Y1,Y2 + 2 aux. axes)
Crowning control
Tool / material / product library
USB, Peripheral interfacing
Servo and frequency inverter control
Advanced Y-axis control algorithms for closed-loop as well as open-loop valves
Tool library 30 punches / 60 dies.
Specifications
| Attribute | Details |
|---|---|
| Model | YWS 125T/3200 |
| Pressing Force | 1250KN |
| Bending width | 3200MM |
| Distance between uprights | 2700MM |
| Throat depth | 400MM |
| Cylinder stroke | 210MM |
| Max. Open Height | 450MM |
| CNC Axes | 4+1 (Y1 Y2 X R W) |
| Bending accuracy | ±0.2 °/ meter |
| Approaching speed | 200MM/S |
| Working speed | 10MM/S |
| Return speed | 150MM/S |
| X Axis distance | 600MM |
| X Axis speed | 400MM/S |
| Oil tank Capacity | 220L |
| Main power | 10.8KW |
| Dimension (L*W*H) | 3300*1650*2520MM |
| Weight | 8800KG |
Accuracy of machine
| Attribute | Details |
|---|---|
| Bending accuracy | ±0.2°/per meter |
| Y axis repeatability | ±0.01mm |
| X axis repeatability | ±0.02mm |
| Workpiece straightness | ±0.2mm/ per meter |
| Maximum hydraulic pressure | 270bar |
Key parts imported from worldwide
| Attribute | Details |
|---|---|
| DA-53T CNC Control | DELEM from Holland |

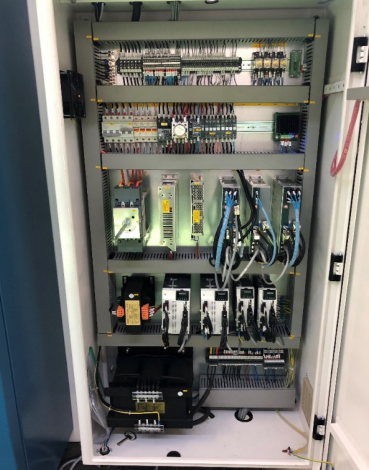

| Electrical components | SCHNEIDER from France |
| Servo Motor | ESTUN ED3L |
| Servo driver | ESTUN ED3L |

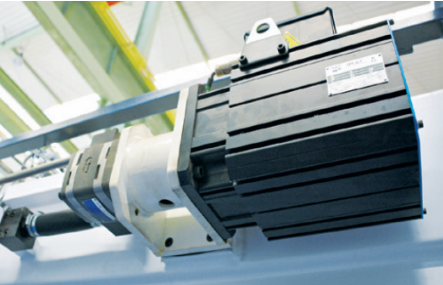

| Main motor | ESTUN PRONET servo motor |
| Hydraulic Valve | Rexroth or HAWE from Germany |
| Servo Valve | Rexroth or HAWE from Germany |
| Oil filter | HYDAC from Germany |
| Hydraulic Seals | NOK from Japan |
| Hydraulic Piping and joints | EMB or PARKER from USA |
| Oil pump | HAWE from Germany |
| Linear scale | GIVI from Italy |
| Ball screw | HIWIN from Taiwan |
| Linear guide way | HIWIN from Taiwan |
| Crowing | Motorized villagetable deflection compensation system |
| Foot Switch with Emergency | KACON from South Korea |
Product Info Gallery
Frequently Asked Questions
What is the maximum pressing force of the CNC Electrical Hydraulic Press Brake?
The maximum pressing force is 1250 KN.
What is the bending width capacity of this press brake?
The bending width capacity is 3200 MM.
How does the CNC control system enhance precision?
The CNC control system allows for precise adjustments in bending angles, ram stroke, and speed, ensuring high accuracy in production.
What type of materials can be processed with this machine?
This machine can process a variety of materials, typically metals, suitable for bending applications.
What is the energy-saving capability of this machine?
The CNC Electrical Hydraulic Press Brake offers an energy-saving rate of over 50%, making it cost-effective over time.
How is the hydraulic system protected from overload?
The hydraulic system is equipped with a relief valve that protects the oil pump and hydraulic system in case of overload.
What is the weight of the CNC Electrical Hydraulic Press Brake?
The machine weighs 8800 KG.
What features ensure the longevity of the top punch and bottom die?
The top punch and bottom die are made of high-quality materials and are treated with heat for extended life.
What is the maximum hydraulic pressure the machine can handle?
The maximum hydraulic pressure is 270 bar.
Can the bending angle be controlled manually?
The bending angle is primarily controlled by CNC for precision; however, manual adjustments can be made as necessary.
What is the accuracy of the bending process?
The bending accuracy is ±0.2° per meter, ensuring high precision in the bending process.
What kind of maintenance does the electrical system require?
The simple and compact electrical system is designed for easy maintenance, requiring periodic checks and maintenance as per operational use.
How is the machine's approach and working speed adjustable?
The shift point for approach and working speed can be adjusted to optimize productivity and efficiency.
What type of CNC control does the machine use?
The machine uses the DELEM DA-53T CNC Control, which features a touch navigation interface and supports up to 4 axes.
Is there a warranty or service available for this machine?
Warranty and service options vary by manufacturer and should be confirmed with the supplier or seller.
Technical Specifications
No approved technical specifications are available yet. Please refer to the product description or contact our team.
Related Products
Latest Order Arrivals
Discover our latest orders
12 Heads Embroidery Machine
Toilet Paper Machine Machine
Order Collection
Cross Border Clients
Order cros border countries Collected
Industrial Machine Cllection
Agriculture Processing Machines
Ready for collection
Water Pump Equipment
Packaging Machine and accessories
Fabrics Manufacturing Equipment
Mining Equipments
Food Processing Machine
Batch of Orders
Batch of Orders
Latest Orders Labelled
wheel alignment machines
new arrivals
Pre Orders Offloading
Latest Arrivals
Latest Arrivals
Latest Arrivals
Loading
Toilet paper making machine
Toilet paper making machine
Toilet paper Rewinding Machine
latest arrivals
offloading
order success
order collection
order offloading
collected
Recently Viewed Products
