Classic All-in-One Touch Screen POS System Cash Register

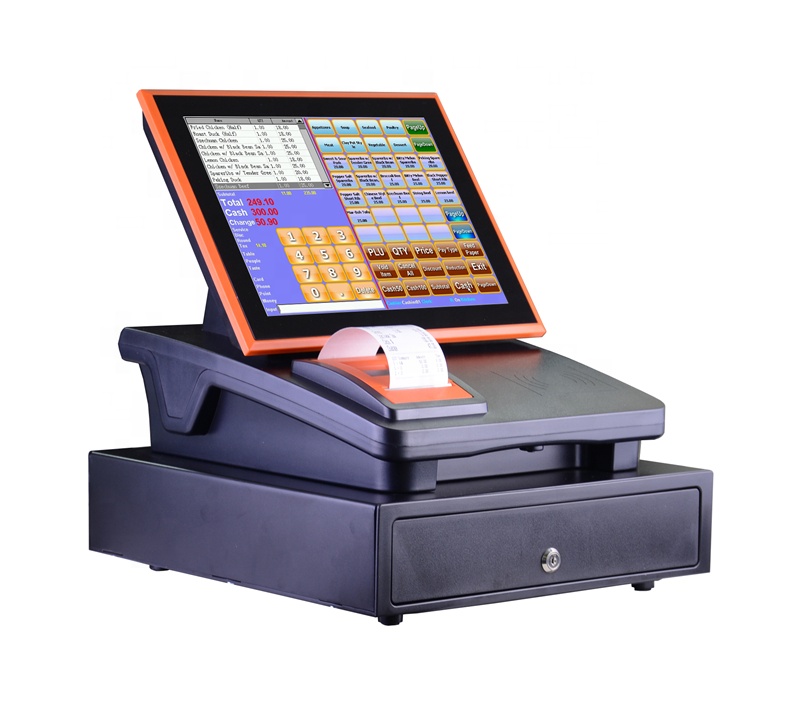

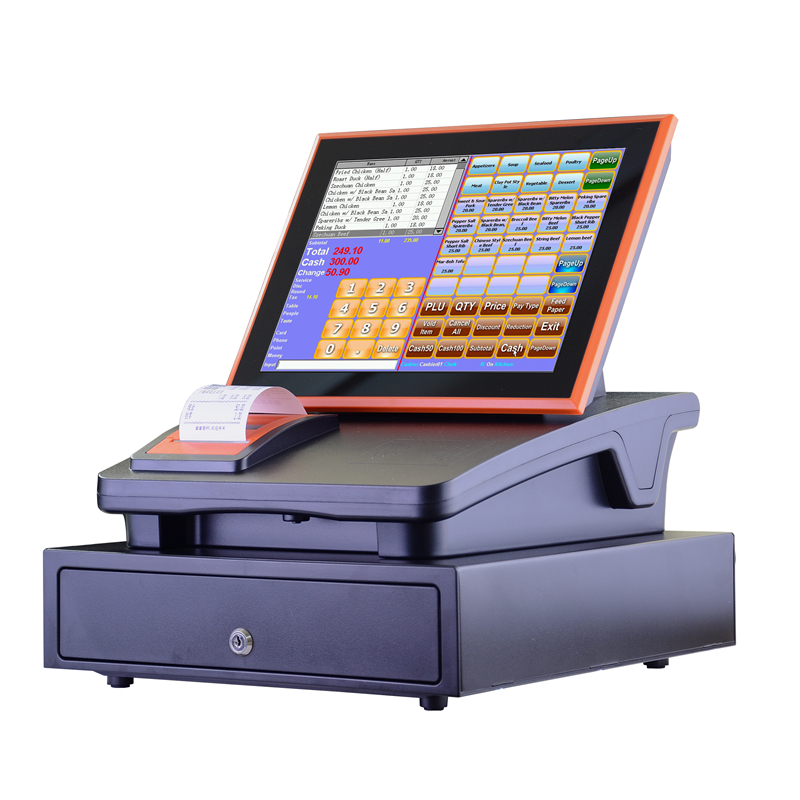

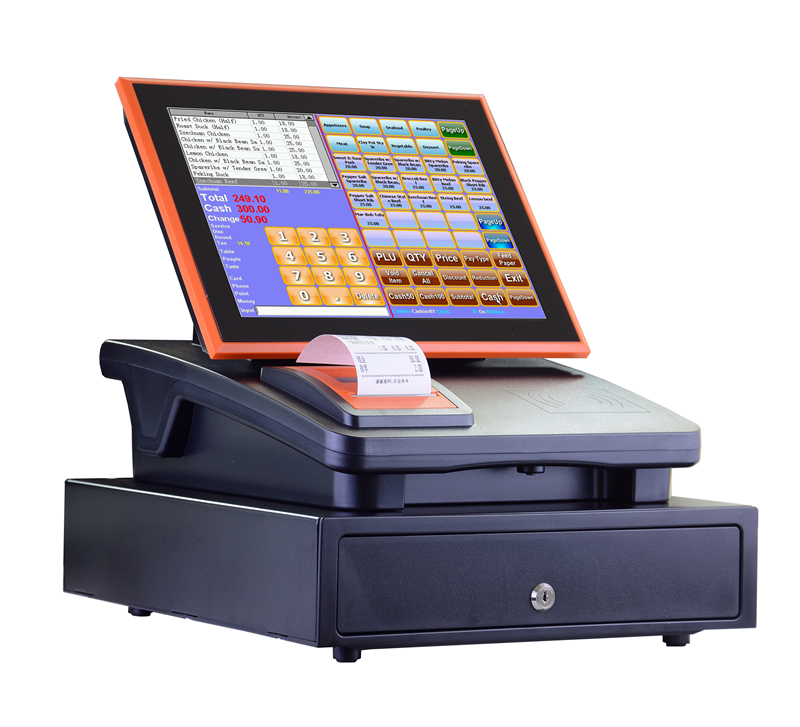

It features a 12.1" TFT 800×600 display with an ELO 5 resistive touch panel, A5 ARM CPU, 2GB or 4GB flash memory options, an embedded LED 8N customer display, built-in 58mm thermal printer (8‑point), an embedded cash drawer (12V magnetic plug, 5 coin / 4 note slots, 3 locks), and an industrial‑grade POS mainboard. Dimensions: 37×33.5×36 cm; gross weight ~7.5 kg.

The unit runs an ARM‑based Linux system and ships with embedded POS software that is the seller's independent intellectual property, providing functions like sales, inventory, membership, cashiering, returns, and dine‑in/takeaway management.

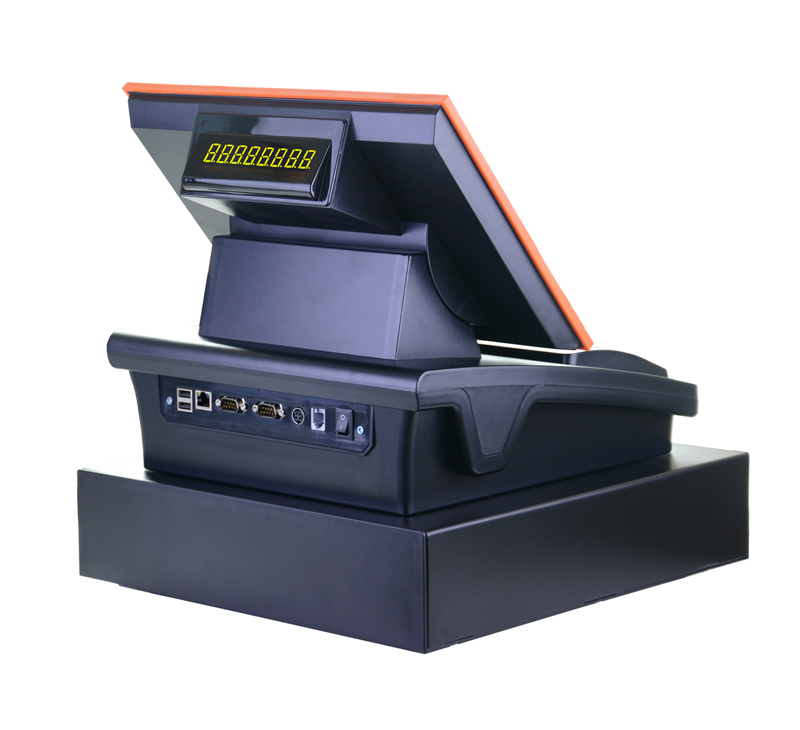

External I/O includes 1 PS/2 port (keyboard), 1 USB port, 1 LAN port, 2 serial COM ports (COM1, COM2), and 1 cash drawer port. Optional accessories supported: kitchen printers (58mm via LAN or serial), barcode scanners (1D/2D), label printers, external customer displays, external cash drawers (RJ11), electronic scales, and magnetic card readers.

Yes—the system includes a built‑in 58mm thermal receipt printer (8‑point style). You can also choose to add an 80mm printer or other generic printers as an option for wider receipts.

The POS supports local area networking and remote networking. Multiple terminals can be connected to the same network, and it can be configured with multiple kitchen printers and real‑time communication between devices.

An embedded cash drawer is included. It uses a 12V magnetic lock, contains 5 coin slots and 4 note slots, has 3 locks for added security, and you can add an external RJ11 cash drawer if required.

The POS is available in Black, White, and Red to match different business aesthetics.

The AC adapter input is 100–240 VAC, 1.0A, 47–63 Hz. The adapter output is DC 12V / 3.3A and the system nominal power consumption is around 15W.

The product comes with a 1‑year warranty. For software updates, peripheral compatibility, repairs, and advanced troubleshooting, contact the vendor or authorized reseller for support and warranty service details.

It is designed for small to medium retail and food & beverage businesses such as convenience stores, boutiques, cafes, bakeries, quick service restaurants, bars, delis, salons, hardware shops, and other similar environments.

Yes—the embedded POS software includes business administration features such as inventory management, sales reporting, membership/customer card management, cashier and salesperson accounts, promotions/packaging, and order types (dine‑in/takeaway).

Common POS peripherals (barcode scanners, kitchen printers, scales, card readers) listed as optional accessories are supported. For third‑party software integration, compatibility depends on the software; contact the vendor with specific integration requirements.

Maintain the touch screen by cleaning with a soft, slightly damp microfiber cloth and gentle, non‑abrasive cleaners. Use correct gauge thermal paper (58mm or 80mm if fitted) for the printer and avoid exposing paper to heat or moisture. Keep the cash drawer free of debris and check the magnetic lock and lock cylinders periodically. For detailed maintenance procedures follow the vendor’s manual.

Unit dimensions are approximately 37 × 33.5 × 36 cm. Package size is about 41.5 × 42 × 39 cm and gross weight is around 7.5 kg—allow for extra space for cable routing and any attached peripherals.

The device uses embedded POS software on a Linux platform. Language availability and software updates depend on the vendor/reseller—check with them for supported languages, customizations, and how to obtain software updates or feature enhancements.
