CE Marked Double Turret CNC Lathe Double Heads Simultaneous CNC Lathe HX-5080-30 CNC Machine Lathe for Tube and Shaft
Asset finance available
Do you want funding for this equipment?
Afrimart can connect you with trusted funding partners who specialise in asset finance for businesses like yours. Compare options and apply in minutes — final approval is subject to provider review.
Check funding options
Secure & no obligation
- Section : Machinery
- Category : Lathe
- SKU : 1601890719543
CE Marked Double Turret CNC Lathe Double Heads Simultaneous CNC Lathe HX-5080-30 CNC Machine Lathe for Tube and Shaft
The CE Marked Double Turret CNC Lathe HX-5080-30 is a powerful machine for making tubes and shafts. It works with two heads at the same time. This saves you time and boosts your work speed. This lathe is built to be accurate and strong. It helps you make parts quickly and with great precision. The HX-5080-30 is a smart choice for any workshop that needs reliable performance.

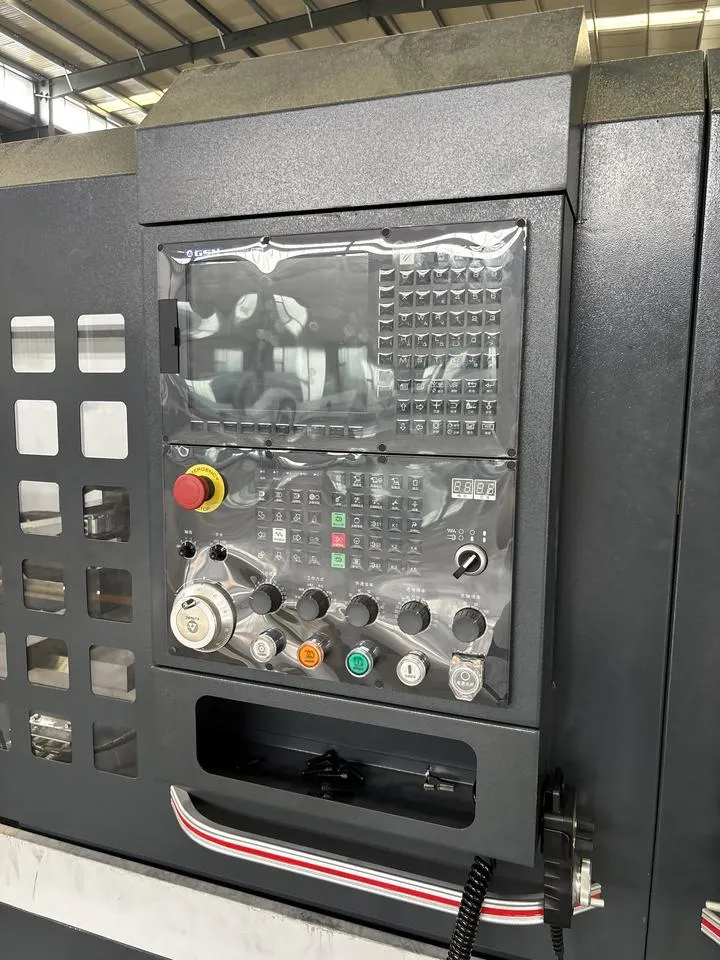

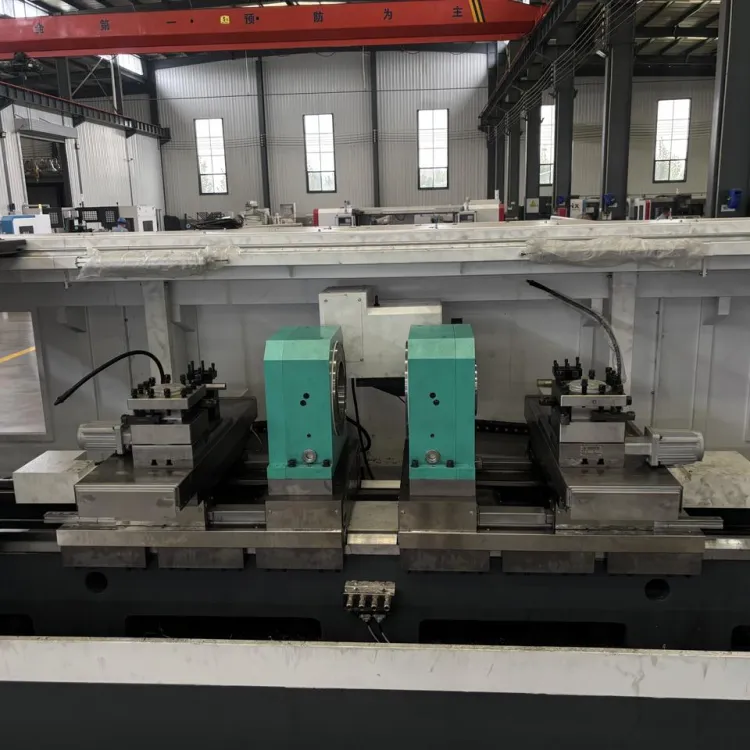

This CNC lathe is easy to control. It uses the GSK system. You can set it to work automatically. The machine is built to handle medium-duty jobs. It can hold workpieces up to 300 kg. It has a long travel range for both X and Z axes. This gives you more room to work on different part sizes. The twin spindles and four tool posts allow for complex tasks. You can finish parts without moving them to another machine.
Specifications
| Attribute | Details |
|---|---|
| Type | Horizontal |
| Max. Length of Workpiece (mm) | 800 |
| Positioning Accuracy (mm) | ±0.005 |
| Repeatability (X/Y/Z) (mm) | ±0.003 |
| Number of Axes | 5 |
| CNC Control System | GSK |
| Number of Spindles | Twin |
| Tool Post Stations | 4 |
| Machining Capacity | Medium Duty |
| Max. Weight of Workpiece (kg) | 300 |
| Travel (X Axis) (mm) | 500 |
| Travel (Z Axis) (mm) | 400 |
| Width of Bed (mm) | 500 |
| Weight (kg) | 2700 |
| Spindle Control Mode | Inverter |
| Spindle Clamping Method | Pneumatic (Can be changed to hydraulic) |
| Spindle Drive | Direct connection |
| Air Pump Air Pressure (MPa) | 0.65 |
| Battery Capacity (KVA) | 8 |
| Number of Control Axes | 2-4 |
| Number of Linkage Axes | 2-4 |
| Control Path | 1 |
| Certification | ISO |
| Machinery Test Report | Provided | Product Info Gallery
