CE Glass Tempering Vertical Tube Furnace For Making Quenching Test And Temperature Measurement
- Section : Medical Supplies
- Category : Testing Instrument
- SKU : 1600135421304

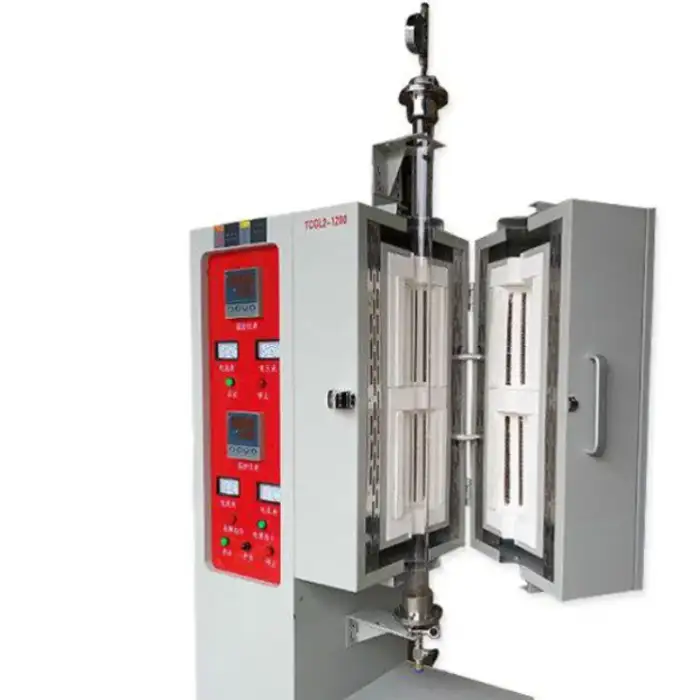

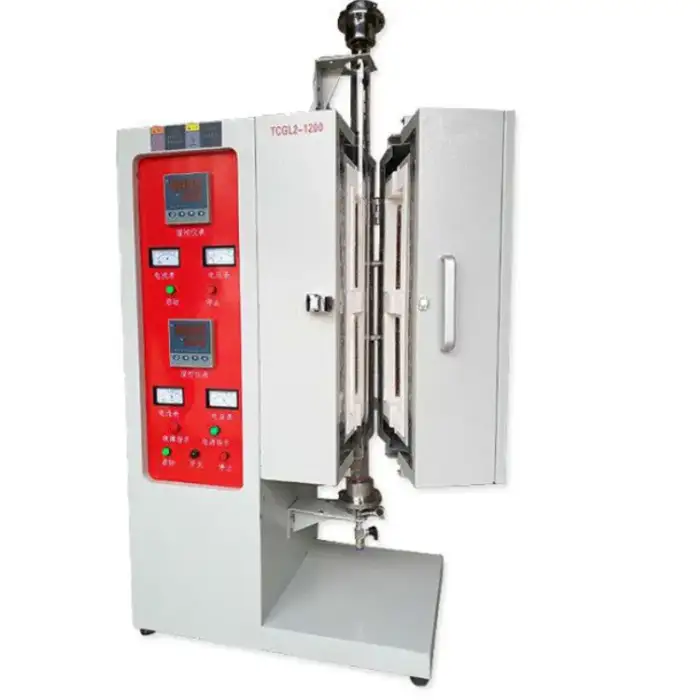

Glass Tempering Vertical Tube Furnace - XY-1200VFT Model for Quenching Tests
The Glass Tempering Vertical Tube Furnace (XY-1200VFT model) is designed for high-precision heat treatment applications, specifically for making quenching tests. This furnace provides controlled heating with programmable temperature settings, making it ideal for laboratories and production environments that require accurate temperature control and reliable performance.
Key Features:
Max Temperature: The furnace can reach a maximum temperature of 1200°C, making it suitable for a variety of glass tempering and heat treatment processes.
Working Temperature: Designed to operate at a working temperature of up to 1100°C, it ensures precise control during various high-temperature tests and procedures.
High Purity Quartz Tube: The furnace features a high purity quartz tube (Dia 60*300mm) that ensures high thermal stability and excellent performance during heating cycles.
Programmable Temperature Control: The XY-1200VFT model offers 30 programmable temperature control segments, allowing for precise temperature adjustments and tailored heating cycles to meet specific testing requirements.
Heating Element: The furnace uses a resistance wire heating element that ensures consistent, reliable, and efficient heating for accurate test results.
Heating Rate: With a heating rate of 0-20°C/min, this furnace provides flexible heating capabilities, allowing for gradual or rapid heating depending on your specific process needs.
Voltage: The furnace operates on a standard 220V/50HZ electrical supply, making it compatible with most laboratory setups and industrial applications.
Customizable Support: The XY-1200VFT model offers OEM support, allowing you to customize the furnace to meet your unique requirements and specifications.
Durable and Reliable: Built to last with high-quality materials, this furnace is designed for consistent and long-lasting performance in demanding environments.
Warranty: The furnace comes with a one-year warranty, ensuring that you receive reliable support and service.
In conclusion, the Glass Tempering Vertical Tube Furnace XY-1200VFT model is a reliable and precise solution for heat treatment and quenching tests. With its high-temperature capabilities, programmable temperature control, and high purity quartz tube, it provides accurate results and efficient operation. Whether in a laboratory or industrial setting, this furnace is an essential tool for ensuring the quality and consistency of glass tempering processes.
Product Info Gallery
Technology parameter
Product application: Widely used in enterprises and institutions scientific research and small batch production, as well as colleges and universities involved in scientific research and teaching of ceramics, metallurgy, electronics, glass, chemical, machinery, refractory materials, new material development, special materials, building materials in the field.
The detail specifications of high temperature lab electric furnace
| Max.temperature | 1200C |
| Working temperature | 0-1100C |
| Tube diameter | 60mm or as your requirement |
| Tube heating length | 300mm |
| Tube material | High quality 99% quartz tube |
| Heat element | Resistance wire |
| voltage and frequency | 220v 50Hz/60Hz |
| Heating rate | 0-20C/min |
| Temperature accuracy | ±1°C |
| Thermocouple | K type |
| Temperature control | Adopt international advanced temperature controller, with 30-50 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty. |
| Max.vacuum | -0.1Mpa |
| Inlet gas/Atmosphere | It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc |
| Gas control | The air inlet can be set up 1 or more air intakes, each air inlet is provided with a needle valve, connected with a vacuum gauge. The air outlet is connected with one air outlet, and all holes are equipped with needle valves. Equipped with a vacuum pump. |
| Vacuum system | Use Stainless steel vacuum flange with vacuum gauge,valve;Easy to unload, double seal |
| Appearance design | The electric furnace adopts humanized design, beautiful and easy to operate, and the outer layer of paint is sprayed with high temperature baking technology. High temperature resistance, oxidation resistance, acid and alkali resistance. Color selection is aging resistant tone, will not cause the appearance color fade due to a long time of use. |
| Furnace shell structure | Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury. |
| Temperature control security | The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe. |
| Furnace Chamber material | Adopt the most advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, cold and heat resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace. |
| Furnace chamber design | Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace. |
| Sandard accessories | Vacuum pump 1pc, Crucible tongs 1pc, Thermal gloves 1 pair,User manual 1 pc,other small tools for assembly furnace |
| Other temperature options | 1200C,1400C,1700C,1800C |
| Furnace standard Tube size | Tube diameter:40mm,60mm,80mm,100mm or other OEM size;
Heating zone length:200mm,350mm,440mm or other OEM size. |
| Waranty | One year |
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the maximum temperature the XY-1200VFT furnace can reach?
The XY-1200VFT furnace can reach a maximum temperature of 1200°C.
2. What is the working temperature range of the furnace?
The working temperature of the furnace is designed to operate up to 1100°C.
3. What type of tube is used in this furnace?
The furnace features a high purity quartz tube with a diameter of 60mm and a heating length of 300mm.
4. How many programmable temperature control segments does the furnace offer?
The XY-1200VFT model offers 30 programmable temperature control segments for tailored heating cycles.
5. What is the heating rate of the furnace?
The furnace has a heating rate of 0-20°C/min, allowing for flexible heating capabilities.
6. What is the power supply requirement for the furnace?
The furnace operates on a standard 220V/50HZ electrical supply.
7. Does the furnace come with any warranty?
Yes, the furnace comes with a one-year warranty for reliable support and service.
8. Can the furnace be customized for specific requirements?
Yes, the XY-1200VFT model offers OEM support for customization to meet unique requirements.
9. What safety features does the furnace include?
The furnace includes double circuit protection, ultra-high temperature protection, overcurrent protection, and other safety features for stable and reliable operation.
10. What materials can be used in the furnace?
The furnace can be filled with various protective or destructive gases, including inert gases, mixed gases, nitrogen, and oxygen.
11. Is the furnace suitable for laboratory use?
Yes, the XY-1200VFT model is ideal for laboratories and production environments requiring accurate temperature control.
12. What is the accuracy of temperature control in the furnace?
The furnace offers a temperature accuracy of ±1°C.
13. What type of heating element does the furnace use?
The furnace utilizes a resistance wire heating element for consistent and efficient heating.
14. What accessories are included with the furnace?
Included accessories are a vacuum pump, crucible tongs, thermal gloves, a user manual, and other small tools for assembly.
15. What industries or applications is the furnace suitable for?
The furnace is widely used in scientific research, small batch production, and various fields including ceramics, metallurgy, electronics, and glass.
