Automatic Label Applicator Machine Adhesive Sticker Flat Labeling Machine

Model GST-113-T. Dimensions: L 1015 mm × W 620 mm × H 920 mm. Weight: 70 kg.

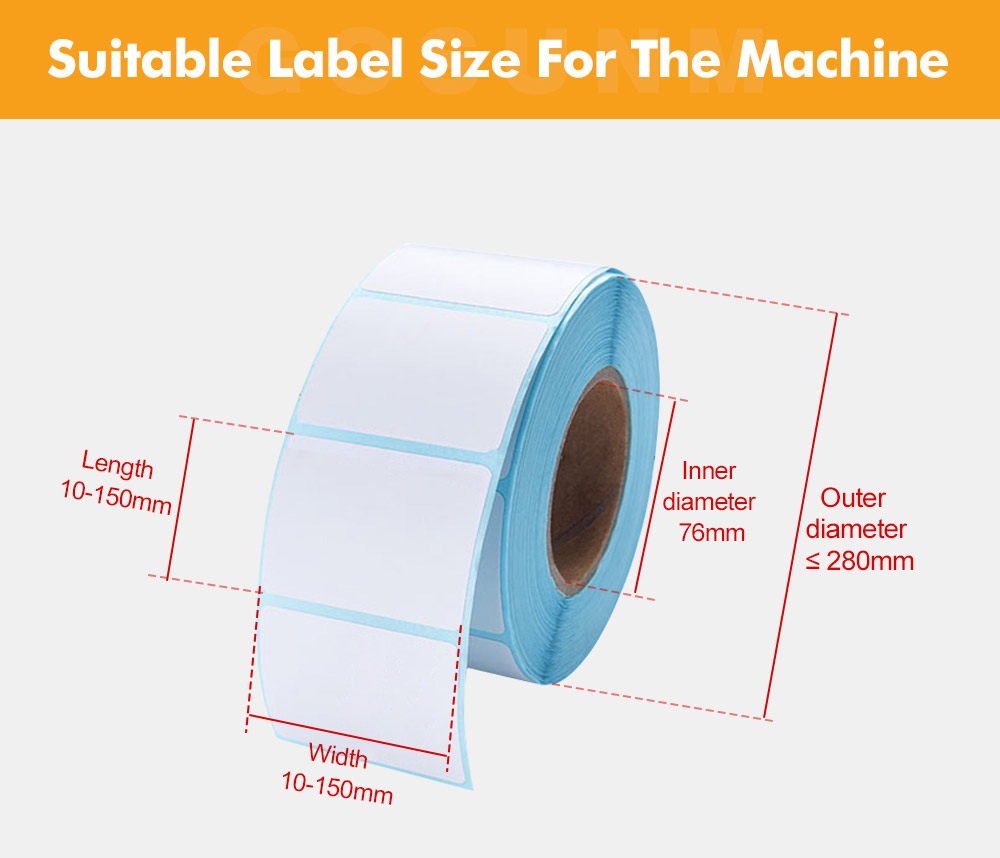

Applicable label length: 10–150 mm. Applicable label width: 10–150 mm.

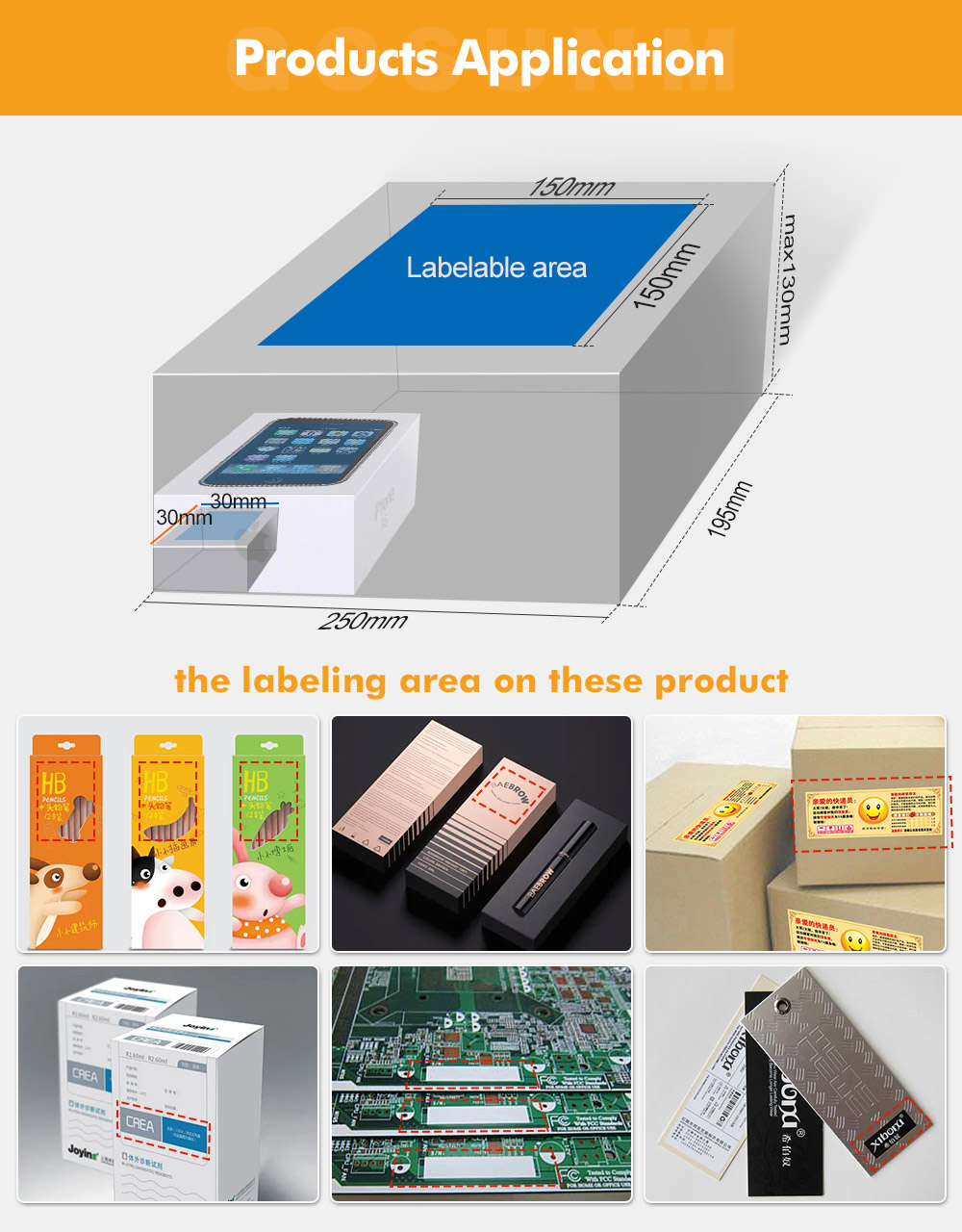

Applicable product size: Length 30–250 mm, Width 30–195 mm.

Labeling speed: approximately 1000–1500 labels per hour (actual speed depends on label size, product shape and operator settings). Labeling accuracy: ±1 mm.

Voltage options: 220 V or 380 V at 50 Hz. Choose the version that matches your local power supply; consult your supplier for configuration.

Yes — it has a lightweight, humanized design small enough to sit on a desk compared with larger automatic labeling machines. At 70 kg it is movable but may require two people or a trolley to relocate safely.

Designed for self-adhesive sticker labels (paper and common film labels such as PET/PP). Ensure the label adhesive is appropriate for your product surface for best adhesion.

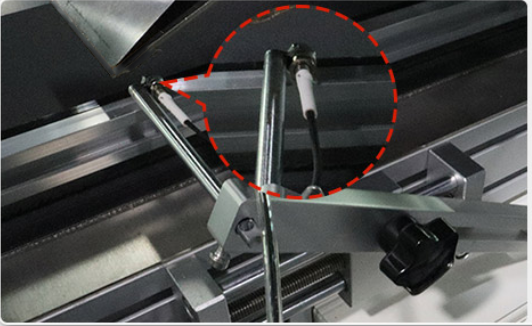

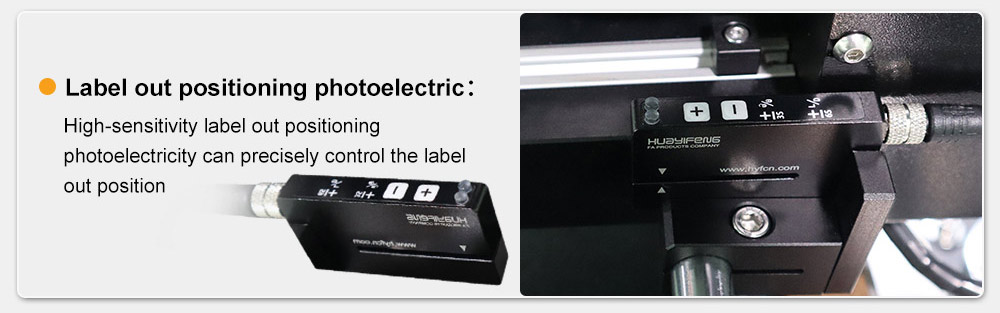

It uses an adjustable high-sensitivity photoelectric sensor for detection and positioning, allowing reliable labeling of different product materials and colors.

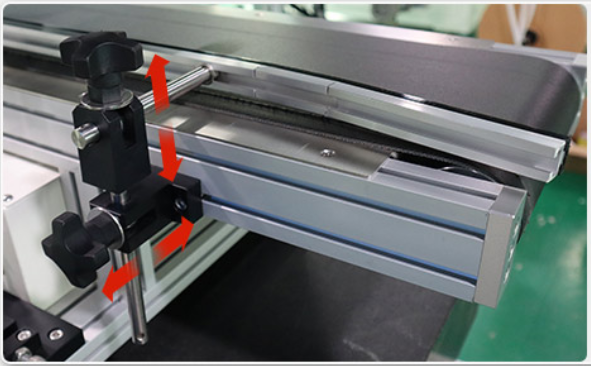

The protective fence height and width are adjustable to secure products and prevent shifting or falling during labeling. Adjust the fence to fit your product dimensions, and fine-tune the photoelectric sensor sensitivity as needed.

This is a flat labeling machine primarily designed for flat surfaces. Slightly uneven or mildly curved surfaces might work in some cases, but for regular cylindrical/round products a rotary or bottle-specific labeling machine is recommended.

The machine includes an adjustable protective fence to stabilize products during labeling. Follow the operator manual for all safety procedures and verify presence/operation of any emergency stops or guards provided by the supplier.

Regularly clean label path, sensor and rollers to remove dust/adhesive residue. Inspect and clean the photoelectric sensor, check belts and moving parts for wear, and lubricate bearings or guide rails as recommended in the manual. Replace worn consumables promptly.

Setup is straightforward; many users can have the machine running in under an hour. Basic operator training to adjust fences, photoelectric settings and load labels is usually provided by the supplier or covered in the user manual.

Contact your equipment supplier or the manufacturer for spare parts, authorized service and warranty details. They can supply common spare parts (rollers, sensors, belts) and offer technical support or field service if required.
