Performance features
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.
Performance features
•FQL450S is fully automatic L bar sealer which is widely used in mass production packaging line with high efficiency.•With movable type punching device, you can switch the punching position and control the pinholes number.•Sealing knife uses the special steel knife with Daikin Teflon which is anti-stick coating & anti-high temperature. So the sealing will not have cracking, coking and smoking with zero pollution.•Using digital temperature controller which built-in PID function. Sealing blade temperature is extremely sensitive and accurate which can be set arbitrarily.•Imported photoelectric sensor, positioning accuracy, fast response.•Adopt Panasonic PLC programmable controller and WEINVIEW 7-inch man machine interface, simple operation.• Manual adjustment film-guide system and feeding conveyor platform make the machine suitable for different width and height items.•Equipped with automatic scrap recycling mechanism, built-in film broken alarm function.•The sealing blade itself is also quipped with automatic protection function which effectively prevent from accidental cutting.•Automatic mode and manual mode can be switched at any time which convenient to replace the shrink film.•The entire machine realizes unmanned operation with the production line connecting.•Apply to daily necessities, food, cosmetics, pharmaceutical, hardware and other industries shrinking packaging.•BS4522N shrink tunnel adopts the design of internal double recycling air fan, so that the hot air in the tunnel is even, constant temperature.•The machine uses stainless steel finned heating tube which has a long service life and high heating efficiency. •Chain bar conveying , using hollow steel covered with durable imported silicone tube, each bar can rotate freely.•Suitable for POF, PVC, PP, PET heat shrinkable film.
Technical Parameter
L bar sealer
| Model | FQL-450S |
| Power supply | 220V 1/3ph 50/60Hz |
| Power | 1.8KW |
| Packing Size | (L+H)＜550mm (W+H)＜400mm (H)＜130mm |
| Sealing Size | (L)550×(W)450mm |
| Table height | 800mm |
| Packaging speed | 15～30pcs/min（Determined by product size） |
| Air source | 6kg/cm2 |
| Shrink film | POF fold film |
| Shrink film size | (W)≤530mm；(D)≤250mm；(weight)≤35KG |
| Sealing form | L type full closed |
| Overall dimension | (L)1800×(W)800×(H)1480mm |
| Package size | (L)1850×(W)900×(H)1630mm |
| G./N. weight | 380/350KG |
Heat shrink tunnel
| Model | BS4522N |
| Power supply | 380V 3ph 50/60 Hz |
| Power | 12KW |
| Table height | 780+50mm |
| Conveyor load | 30KG |
| Conveyor speed | 1-15m/min |
| Tunnel size(L×W×H) | 1500×450×220mm |
| Overall dimension(L×W×H) | 1910×700×1320mm |
| Package size(L×W×H) | 1960×800×1470mm |
| G./N. weight | 290/250Kg |
Detailed Images
Application Range
Applies to software, food, cosmetics, printing, pharmaceutical, flooring, ceramic, beverages, hardwareother industries large quantities of shrink wrap.
| Packing Size | (L+H)＜550mm (W+H)＜400mm (H)＜130mm |
|---|---|
| Sealing Size | (L)550×(W)450mm |
| Packaging speed | 15～30pcs/min（Determined by product size） |
| Air source | 6kg/cm2 |
| Shrink film | POF fold film |
| Shrink film size | (W)≤530mm；(D)≤250mm；(weight)≤35KG |
| Sealing form | L type full closed |
| Overall dimension | (L)1800×(W)800×(H)1480mm |
| Package size | (L)1850×(W)900×(H)1630mm |
| Conveyor load | 30KG |
| Conveyor speed | 1-15m/min |
| Tunnel size(L×W×H) | 1500×450×220mm |
| Overall dimension(L×W×H) | 1910×700×1320mm |
| Package size(L×W×H) | 1960×800×1470mm |

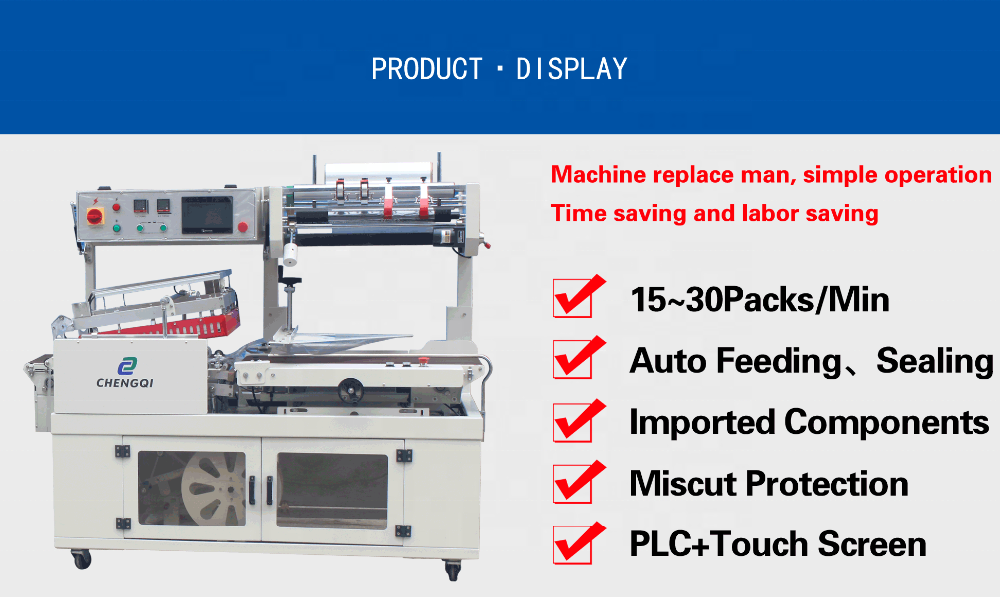

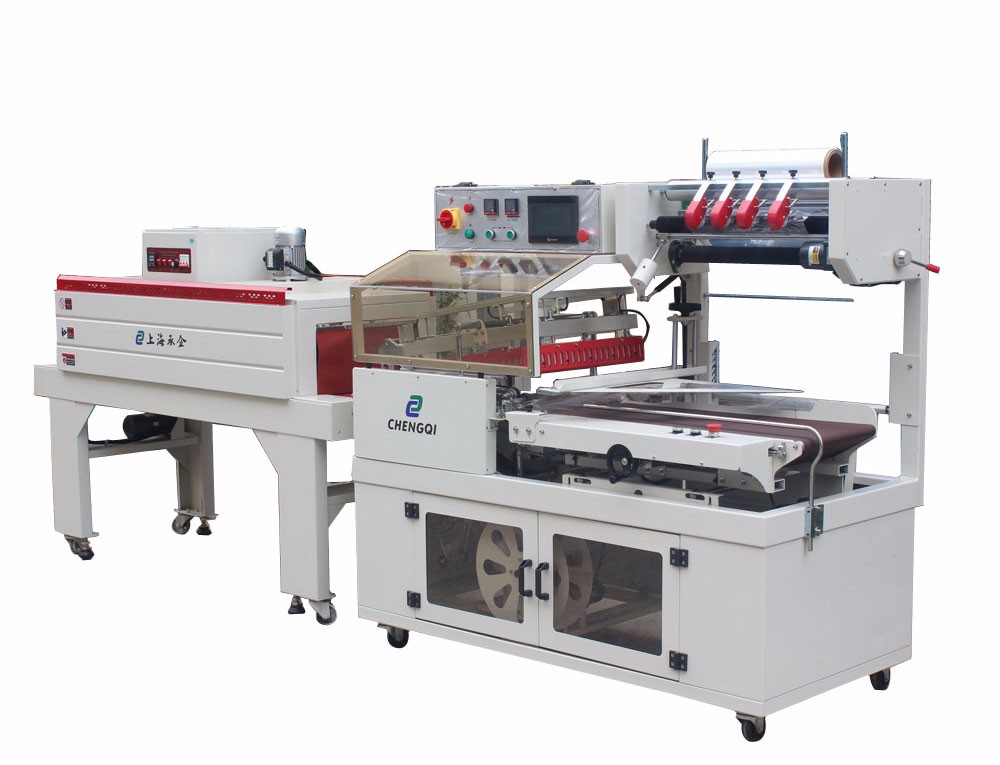

The model is FQL-450SP Automatic L Type Sealing & Shrink Wrapping Machine. It automatically seals products with an L-bar sealer and then shrinks the film in a tunnel for high-efficiency, mass-production packaging.
Sealer: 220V 1/3ph 50/60Hz, 1.8 kW. Packing size limits: (L+H)<550 mm, (W+H)<400 mm, H<130 mm. Sealing size: 550×450 mm. Packaging speed: 15–30 pcs/min (depends on product size).
Tunnel model BS4522N: 380V 3ph 50/60Hz, 12 kW. Tunnel size 1500×450×220 mm. Conveyor speed 1–15 m/min, conveyor load 30 kg. Overall tunnel dims: 1910×700×1320 mm.
Suitable for POF (preferred fold film), PVC, PP and PET heat-shrinkable films. Max film width ≤ 530 mm, max film diameter (D) ≤ 250 mm, max roll weight ≤ 35 kg.

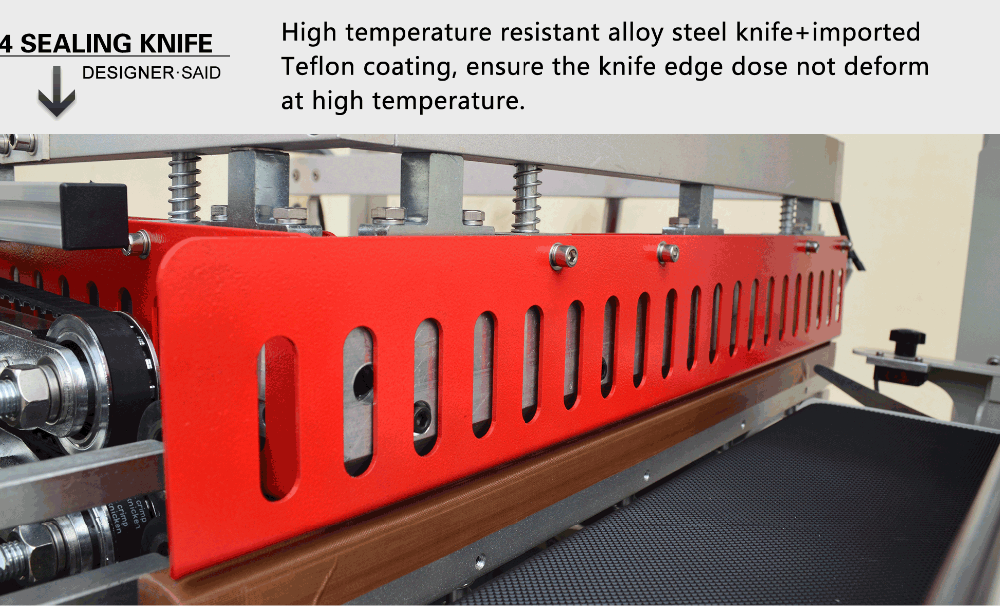

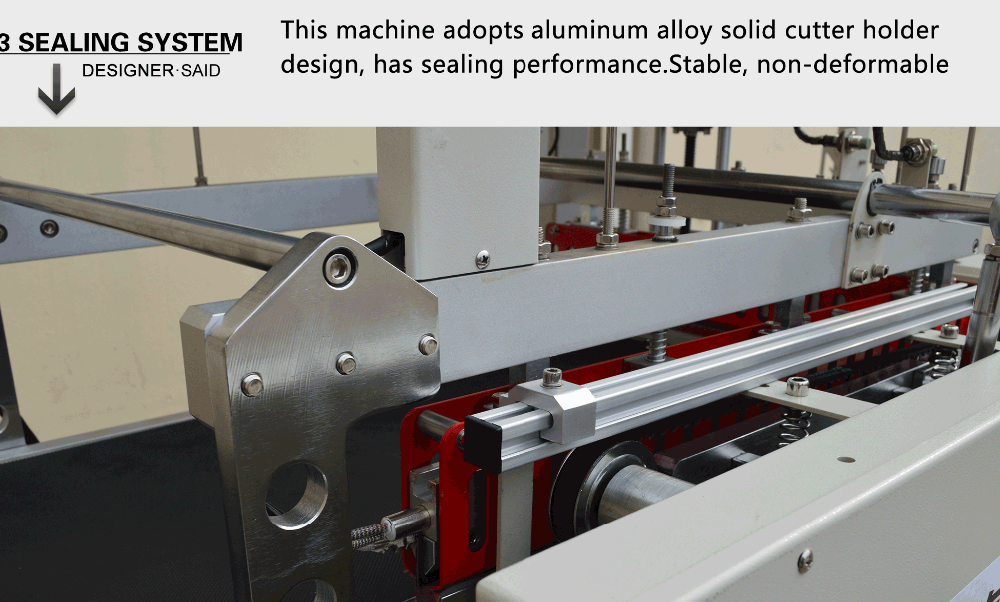

Sealing blade temperature is controlled by a digital temperature controller with built-in PID for precise, responsive temperature control. The sealing knife uses special steel with Daikin Teflon coating to prevent sticking and high-temperature damage.

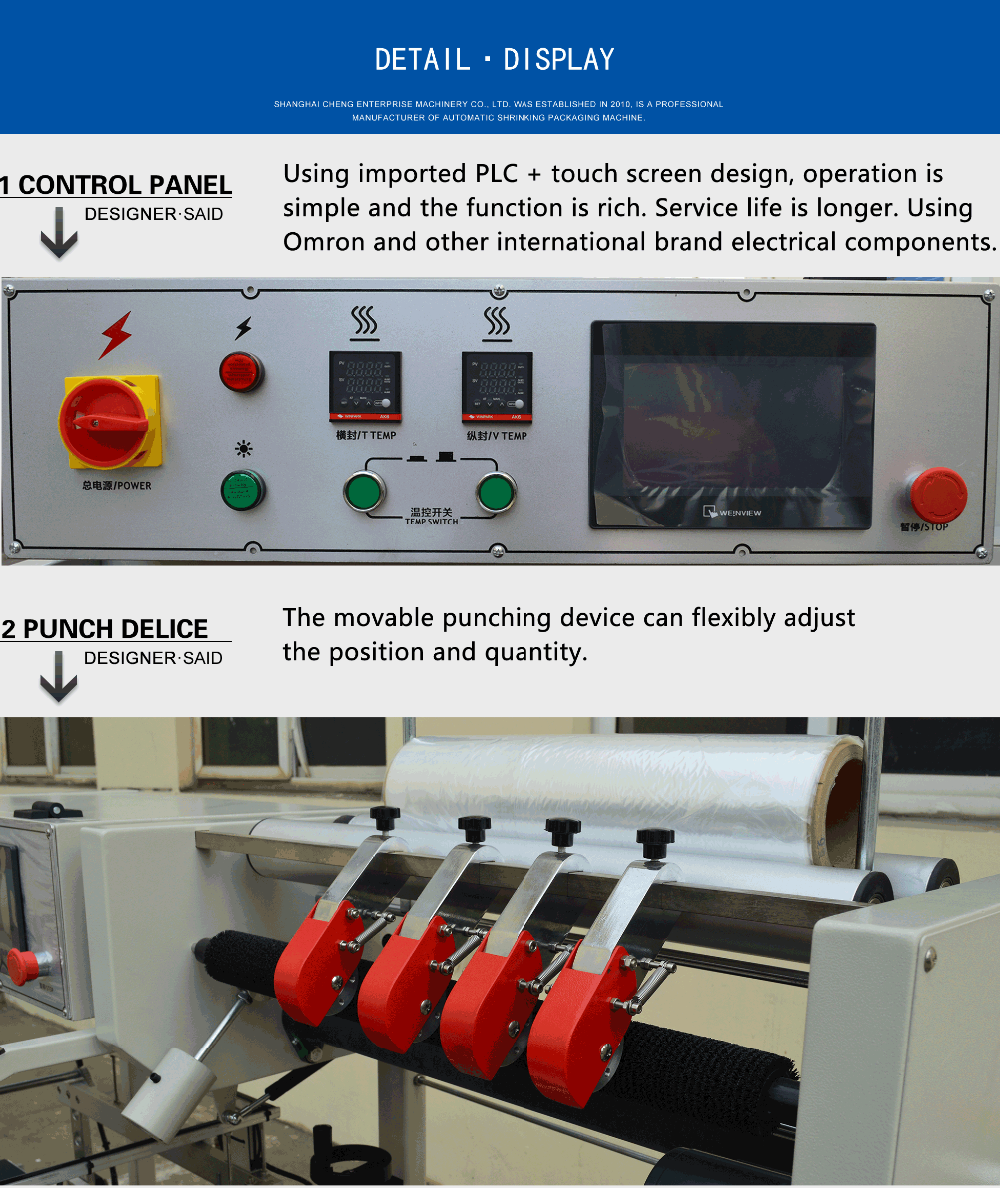

Yes. The machine supports unmanned operation and can be connected to a production line. It uses Panasonic PLC control and a WEINVIEW 7-inch HMI for easy integration and operation.
Features include automatic sealing blade protection to prevent accidental cutting, built-in film break alarm, and automatic scrap-recycling mechanism. Photoelectric sensors provide accurate positioning and fast response. Please confirm local safety requirements and optional safety guards with the supplier.

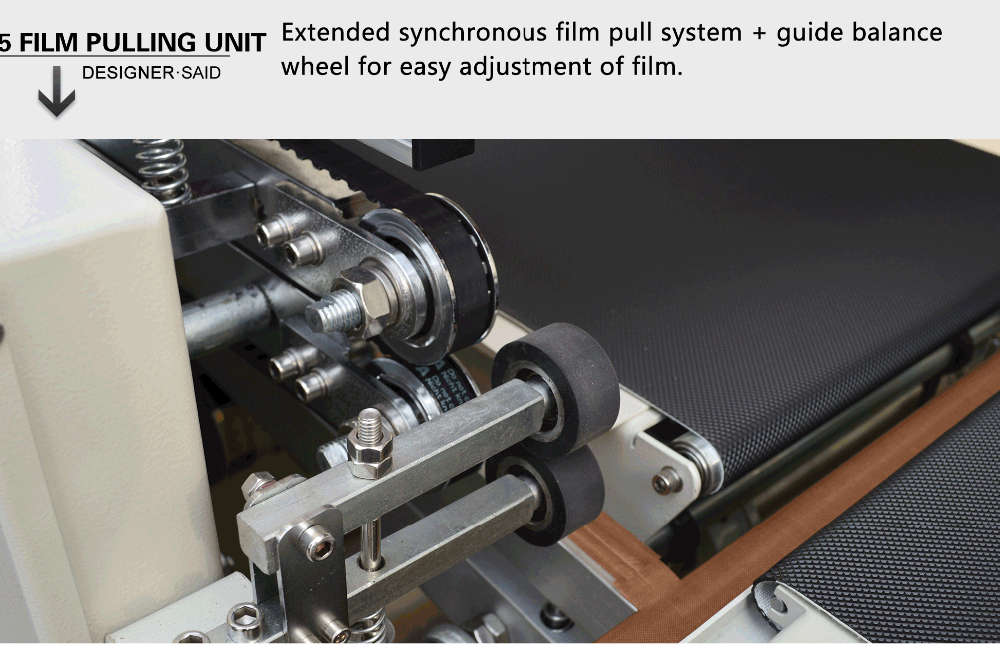

The machine has a manual adjustment film-guide system and an adjustable feeding conveyor platform. The movable-type punching device lets you change punching position and pinhole count. Automatic and manual modes can be switched for film changes.
Regularly clean the Teflon-coated sealing knife, check and tighten mechanical fasteners, inspect the silicone-covered chain bars for wear, verify heater tubes and fans in the tunnel, clean photoelectric sensors, and keep the control panel free of dust. Follow supplier-recommended schedules for lubrication and spare-part replacement.
Common issues: 1) Poor or uneven shrink — adjust tunnel temperature, conveyor speed, or check tunnel fans/heating tubes. 2) Weak or incomplete seals — check PID temperature settings, sealing pressure, knife condition, and film type. 3) Film jams or misfeeds — inspect film guide, photoelectric sensor alignment, and feeding conveyor. If problems persist, contact technical support.

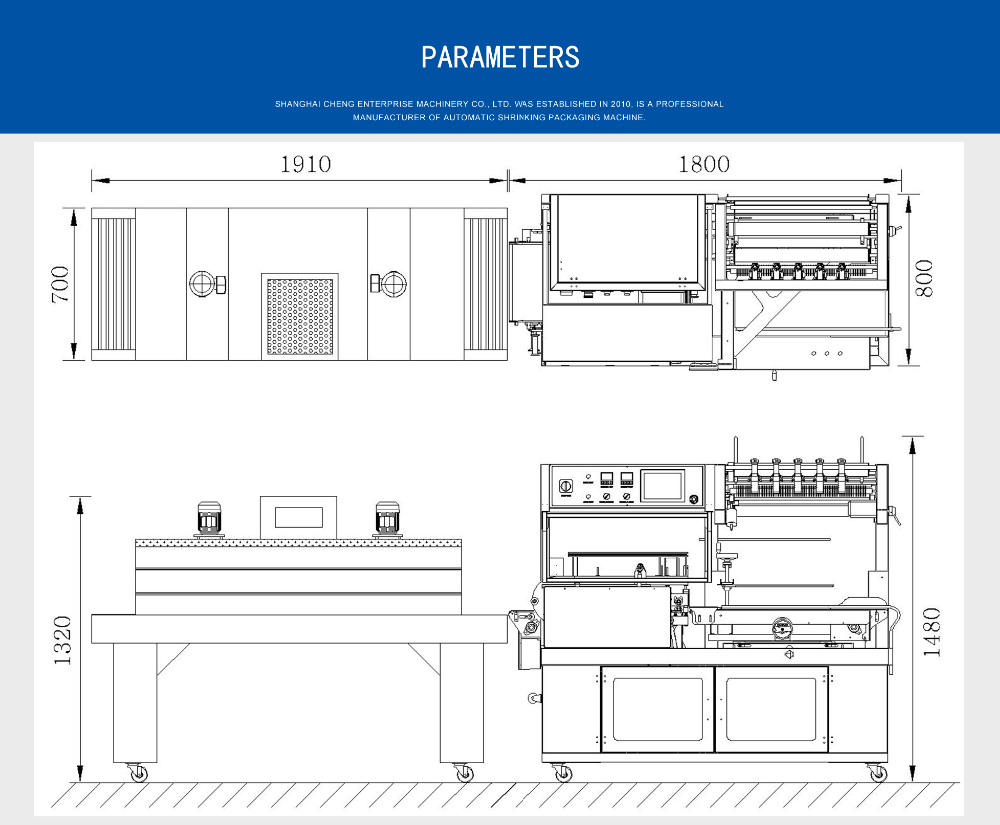

Sealer overall dimension: 1800×800×1480 mm. Package size for transport: 1850×900×1630 mm. Gross/Net weight: 380/350 kg. Shrink tunnel overall: 1910×700×1320 mm; package size: 1960×800×1470 mm; gross/net weight: 290/250 kg.
Power: Sealer 220V (1/3ph) 50/60Hz; Tunnel 380V 3ph 50/60Hz. Air source: compressed air at approx. 6 kg/cm². Provide suitable floor space, proper grounding/earthing, and stable power supply. Verify local electrical and safety codes before installation.
Common consumables/spares include sealing knives (Teflon-coated), heating tubes, silicone-coated chain bar covers, sensors, and electrical components. Contact the supplier for recommended spare kits and lead times.
Warranty and training terms are not specified in the product description—contact the supplier or vendor to confirm warranty length, scope, onsite commissioning, and operator training options.
Designed for high-volume applications across food, cosmetics, pharmaceuticals, hardware, printing, beverages, flooring, ceramics and general consumer goods where shrink-wrapped presentation and protection are required.
