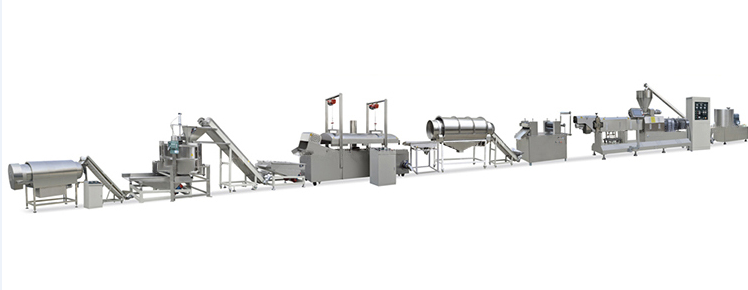

Triangle Chips / Doritos / Tortilla Production Line
Overview:
The production line is designed for creating a variety of chips and snacks such as triangle chips, Doritos, and tortilla chips. It involves multiple stages of processing using advanced equipment for efficient production, ensuring high quality and consistent output.
Production Process Flow:
Raw Material:
Corn
Basic Recipe:
Corn grits, sugar, coco, cheese, and water
Processing Flow:
Mixer → Screw Conveyor → Double-screw Extruder → Shaping Machine → Separate Drum → Material Distributor → Fryer → De-oil Machine → Flavoring Line
Equipment Involved:
Mixer, Screw Elevator, Rotary Head Extruder, Separate Drum, Distributor, Continuous Fryer or Basket Fryer, Vibrator, Elevator, De-oil Machine, Flavoring Machine
Final Products:
Triangle Chips, Doritos, Tortilla
Machine Material:
Stainless steel 304 or as per customer’s request
Product Parameters:
Model
DZ-65
DZ-85
DZ-100
Voltage
380V/50Hz (customizable)
380V/50Hz (customizable)
380V/50Hz (customizable)
Installed Power
80kw
95kw
130kw
Power Consumption
60kw
70kw
97kw
Capacity
200-250kg/h
300-400kg/h
700-1200kg/h
Length
26m
33m
33.5m
Detailed Equipment Description:

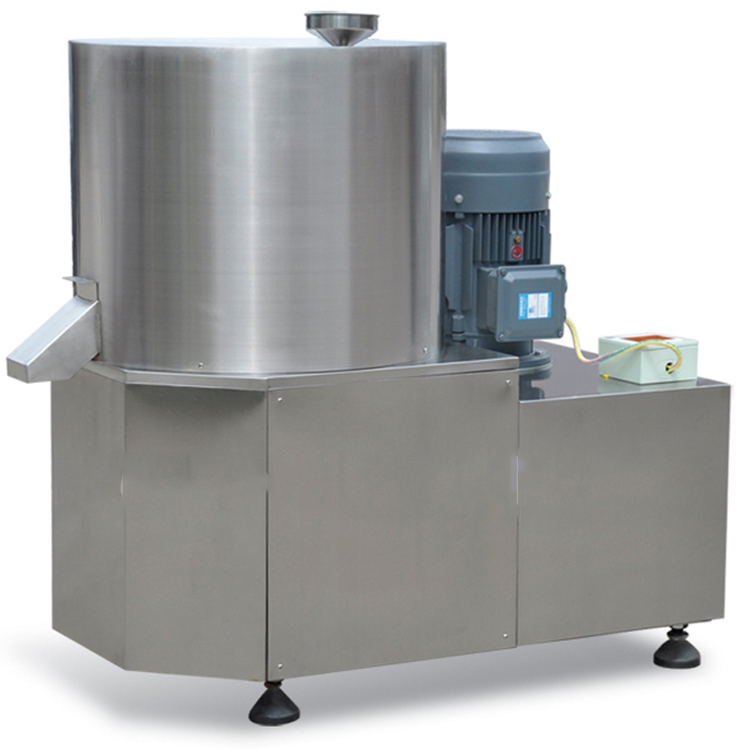

Mixer
Capacity: 150kg/batch
Power: 7.5kw
Function: Mixes various raw materials.
Principle: Motor drives the stirring cage, automatic water adding device, and pneumatic discharge valve.

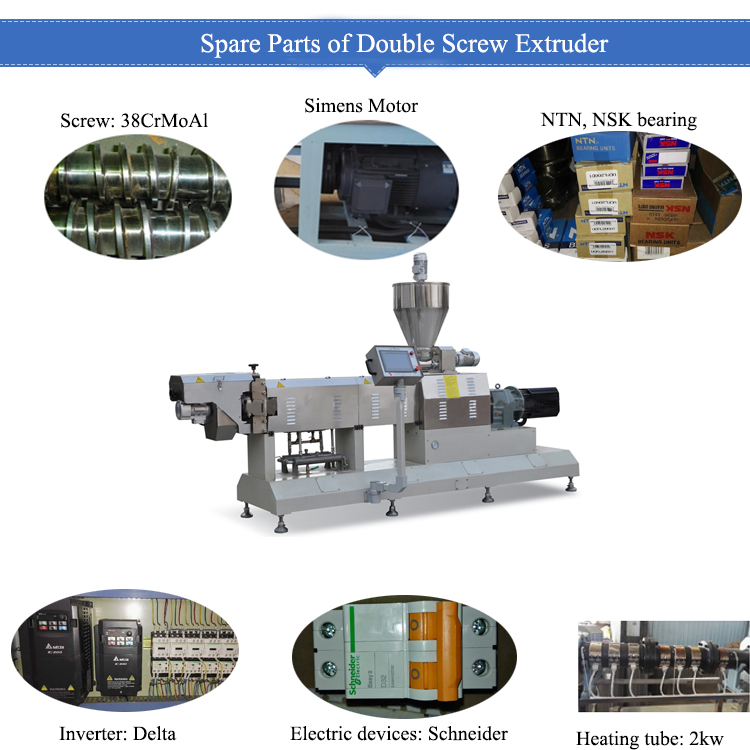

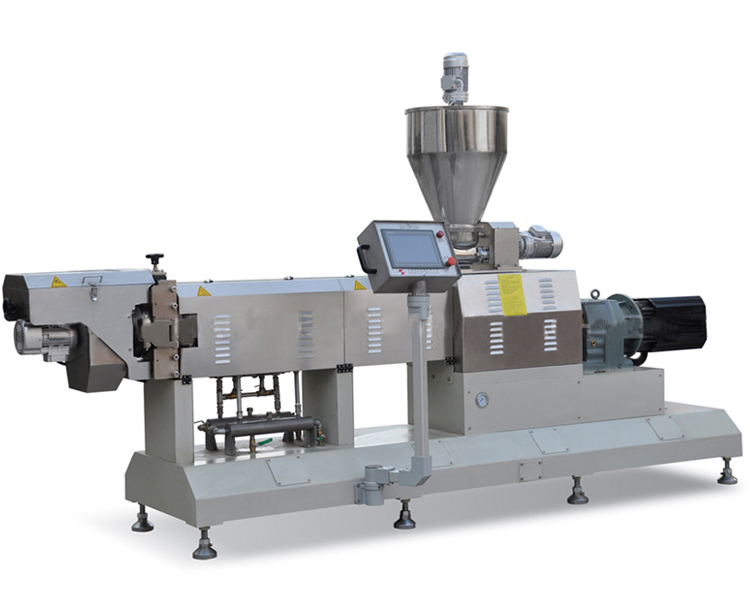

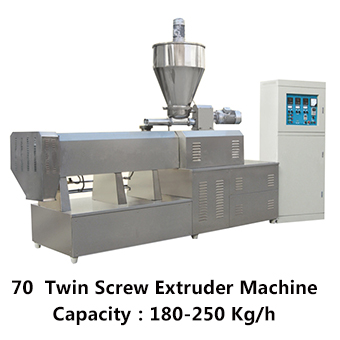

Double Screw Extruder
Capacity: 180-250kg/h
Power: 45kw
Function: Raw material is cured and puffed, creating different shapes of puffed snacks with mold changes.
Principle: Includes feeding system, extruding system, cutting system, heating system, main motor, and controlling system.

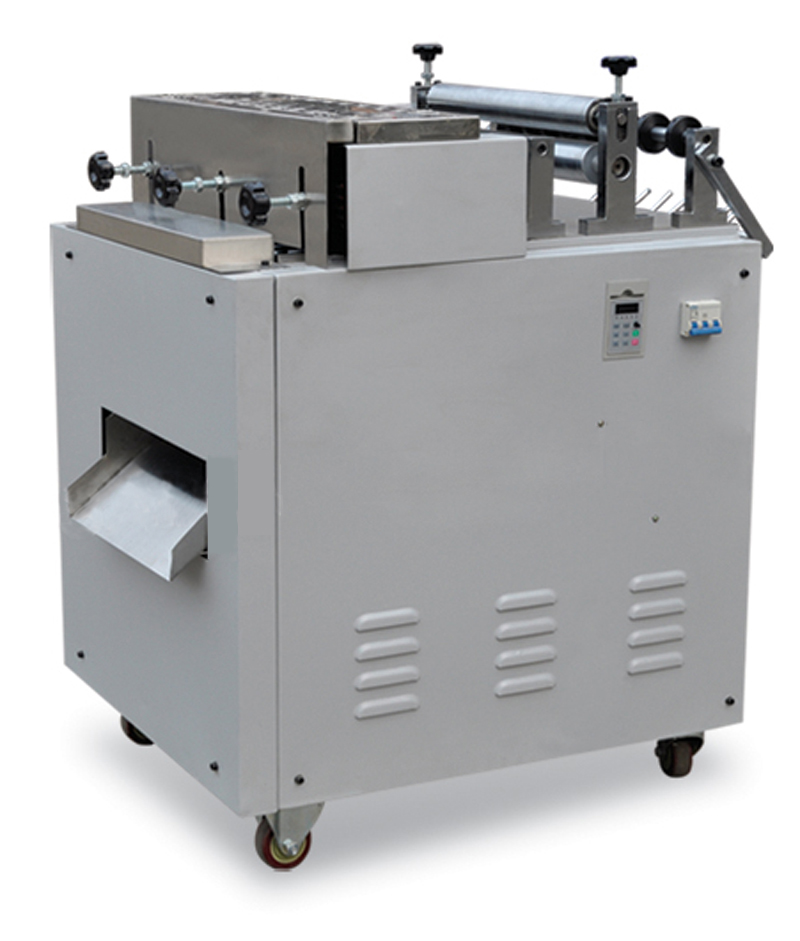

Shaper Machine
Function: Changes rollers to produce various chip shapes based on customer requirements.

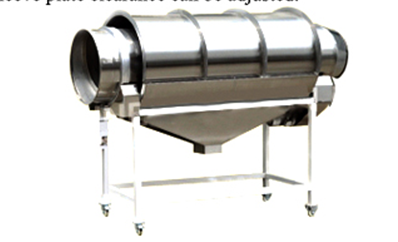

Separation Drum
Function: Separates twisted and squeezed snacks (e.g., Kurkure).
Principle: Powered by a world-famous brand motor.

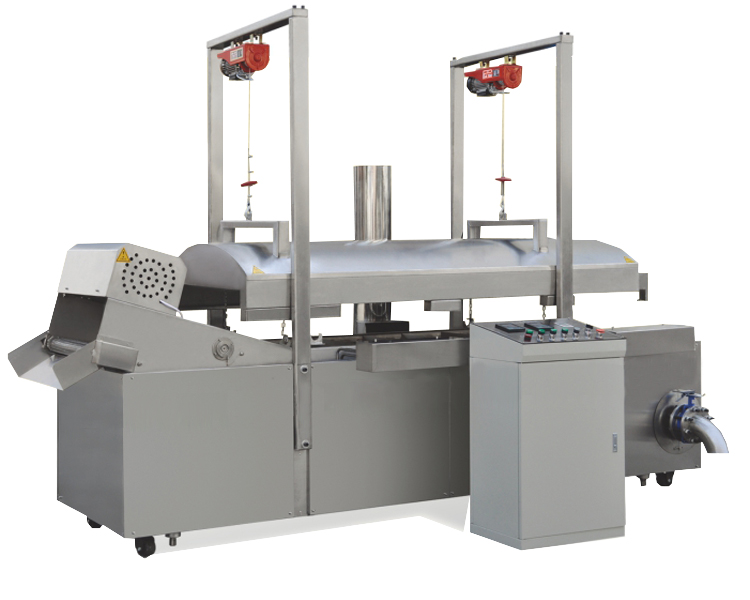

Continuous Fryer
Function: Fries snacks continuously with automatic operation.
Principle: Includes a dynamic oil filtering system that removes dregs, keeping oil fresh and preventing deterioration.

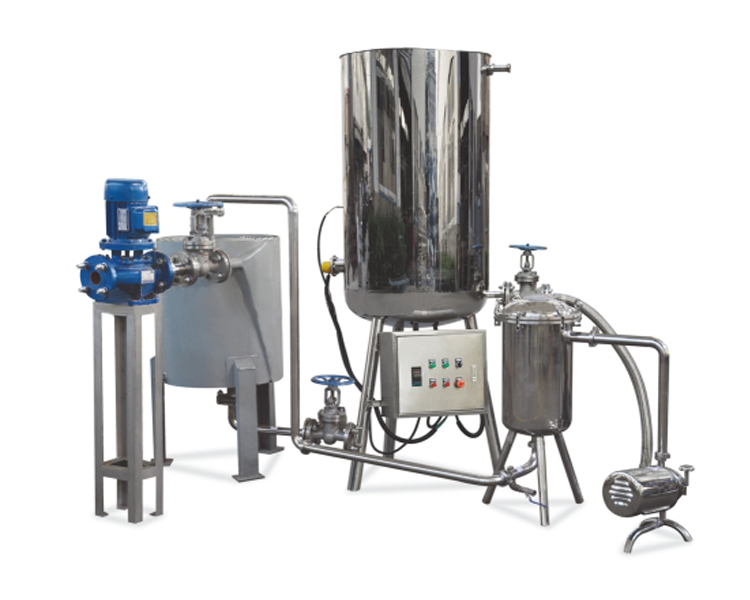

De-oil Machine
Function: Removes oil from the surface of snacks like Kurkure and Cheetos.
Principle: Uses de-oil and oil tanks for filtration to make the snacks healthier.

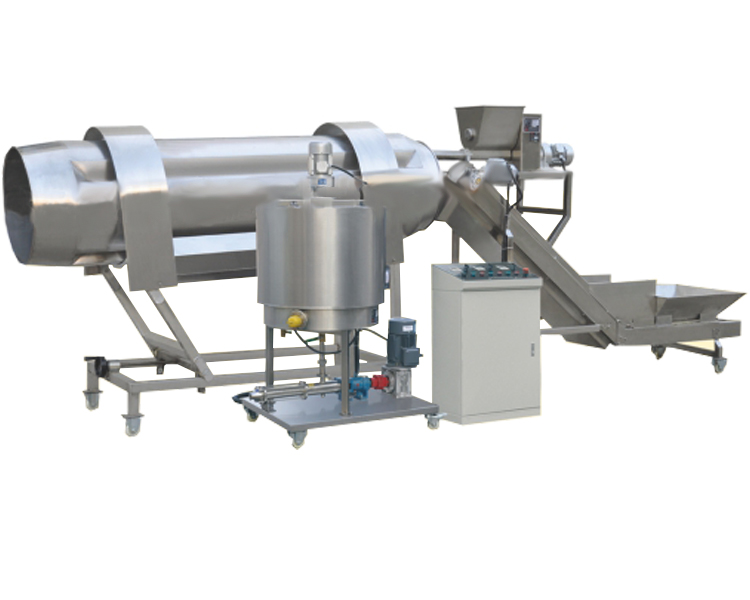

Flavoring Line
Function: Applies oils and flavors to snacks.
Principle: The device evenly sprays and coats the product surfaces with oil, malt sugar, liquid, and flour-based flavors for enhanced taste and appearance.
This fully automated production line is ideal for efficiently producing a variety of snack products, ensuring high output and quality. The line is adaptable and customizable to meet specific customer needs.
Mixer; Screw elevator; Rotary head extruder; Separate drum; Distributor; Continuous fryer or basket fryer; Vibrator; Elevator; De-oil machine; Flavoring machine
5
Final products
Triangle Chips ,Doritos , Tortilla .
6
Machine material
Stainless steel 304 or as customer’s request
Product Sample
.
Product Paramenters
Model
DZ-65
DZ-85
DZ-100
Voltage customized
380V/50Hz
380V/50Hz
380V/50Hz
Installed power
80kw
95kw
130kw
Power consumption
60kw
70kw
97kw
Capacity
200-250kg/h
300-400kg/h
700-1200Kg/h
Length
26m
33m
33.5m
Detailed Images
Name
Mixer
Capacity
150kg/batch
Parameter
power: 7.5kw
Usage
Mixing various kinds of raw material
Working Principle
The motor drives the stirring cage, automatic water adding device and pneumatic discharge valve
Name
Doule Screw Extruder
Capacity
180-250kg/h
Parameter
power: 45kw;
Usage
Raw material is curing and puffed in extruder, becoming different shapes of puffing snacks with moulds changing.
Working Principle
It consists of feeding system, extruding system, cutting system, heating system; main motor and controlling system.
Name
Shaper machine
Usage
By changing the roller, this machine can produce many shapes chips according to customer’s demand.
Name
Separation drum
Usage
Separating the twisted and squeenzed kurkure
Working principle
Under world famous brand motor
Name
Continiuous fryer
Usage
Frying snacks.
Working Principle
The entire frying procedure is controlled inconcentration with automatic operation of a high degree.
A dynamic oil filtering system with removing dregs at any time .keeping oil fresh and eliminating oil deterioration dueto residual dregs .
Name
Deoil machine
Usage
Deoiling the oil from the surface of kurkure and cheetos
Working principle
With a deoil tank and oil tank, filter the snack oil andmake it more health.
Name
Flavoring line
Usage
Flavoring Snacks.
Working Principle
The device can equally sprayand coat oil , malt sugar , liquid and flourwise flavoron product surfaces to improve the appearance and taste.
