Automatic clay brick making machine for tunnel kiln clay green red brick making machine

JKY50/50E-40

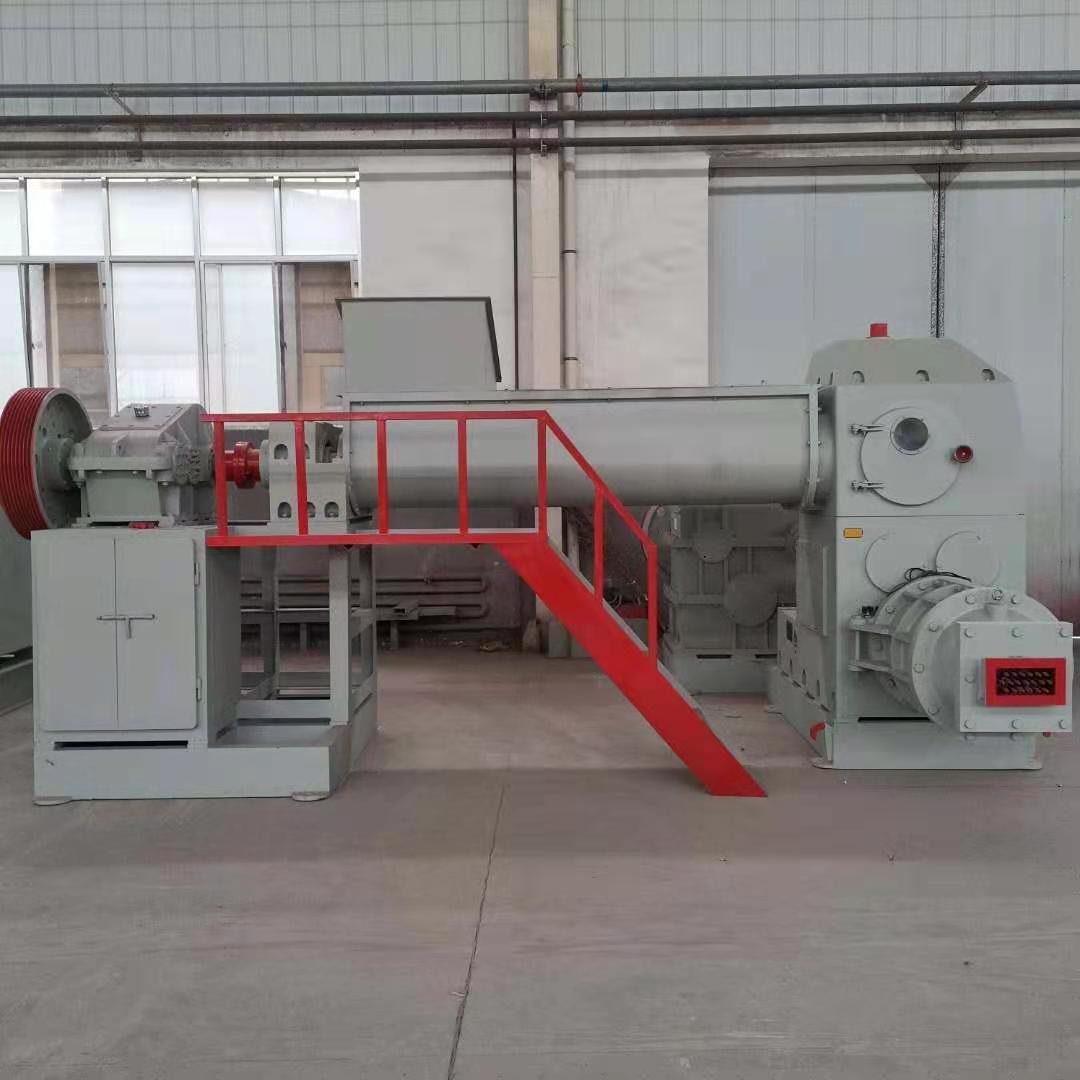

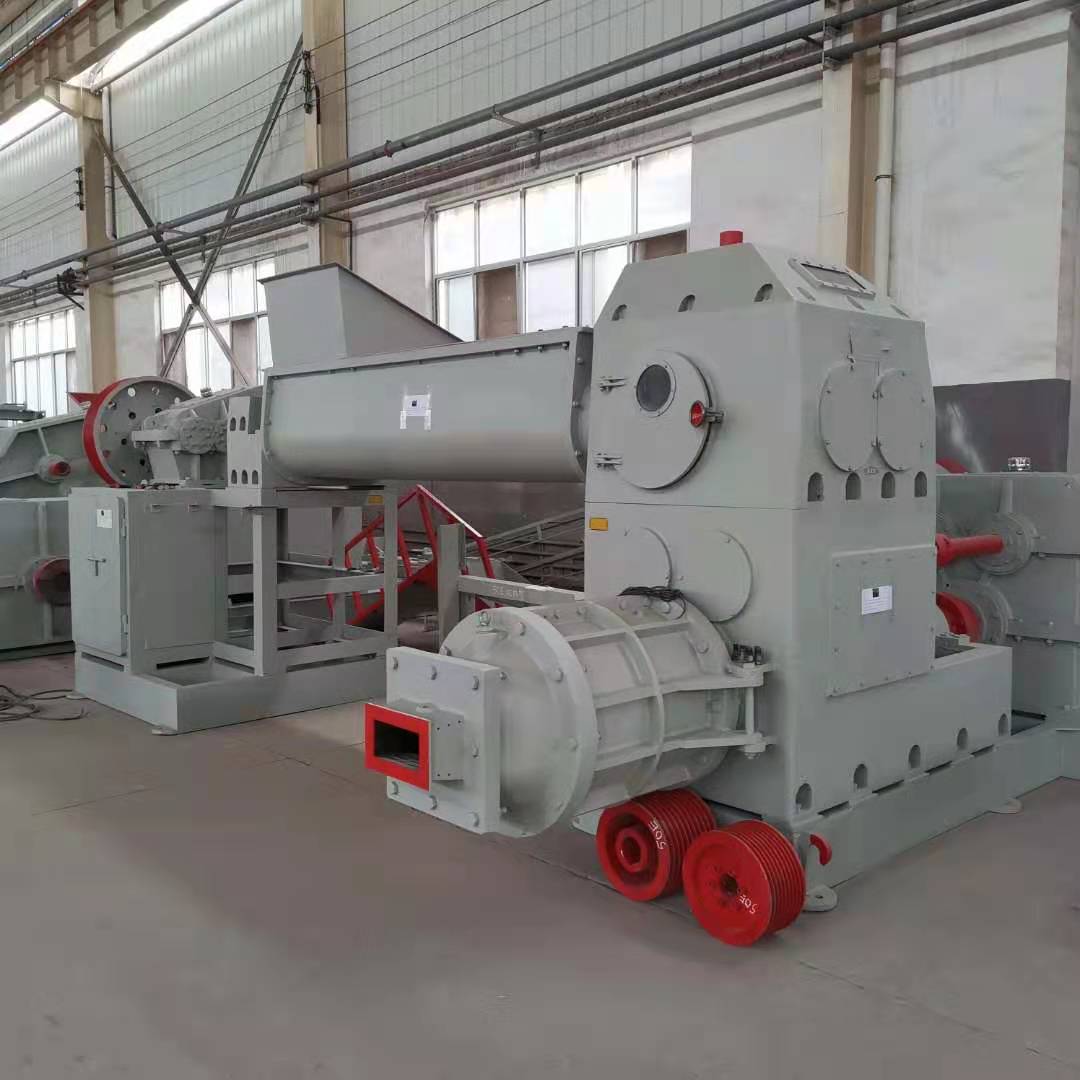

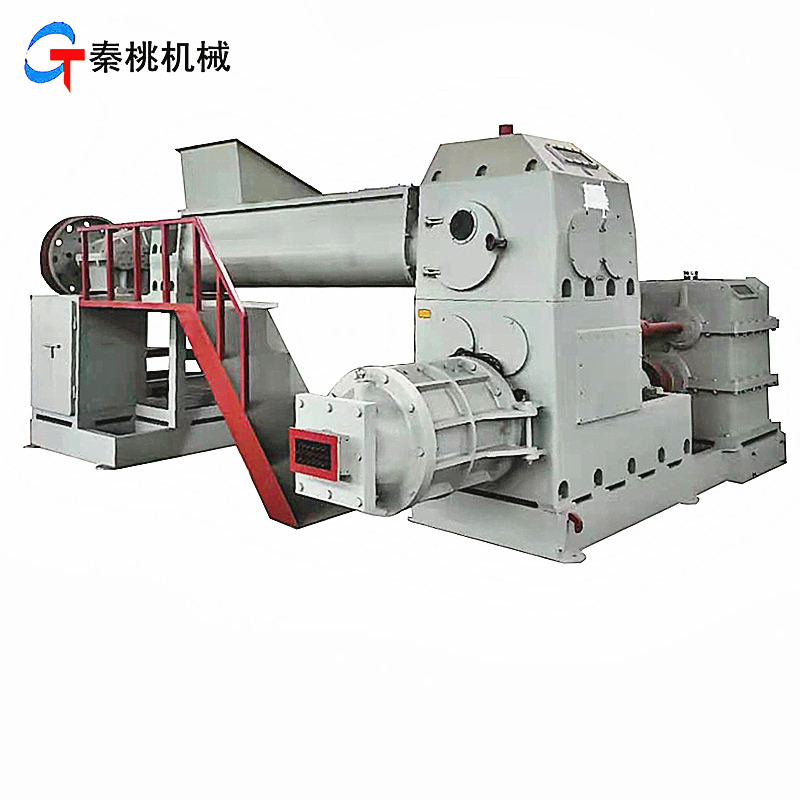

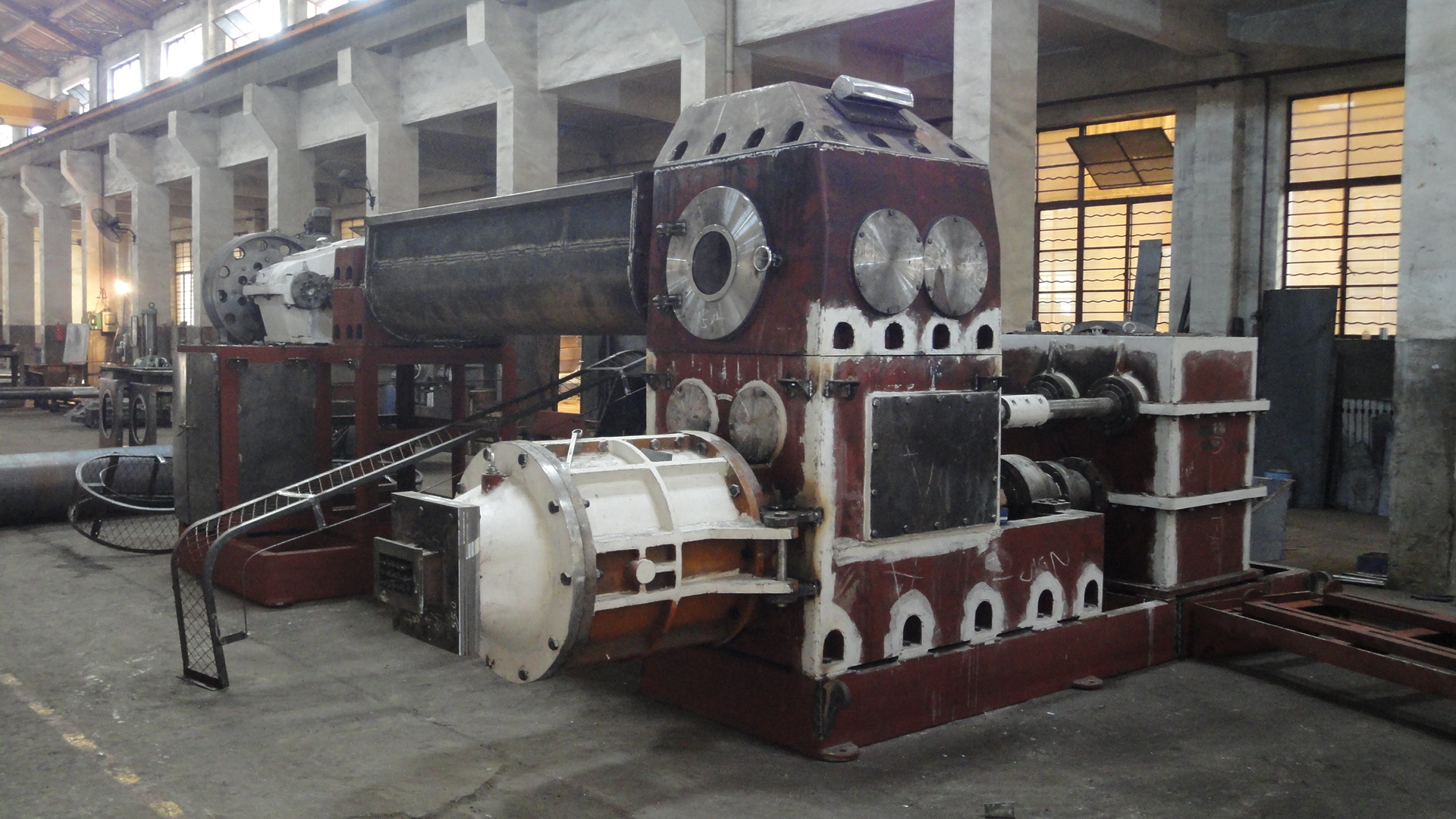

Vacuum brick making machine

JKY50/50E-40 vacuum brick machine is suitable for coal gangue, shale, fly ash, clay and other raw materials to produce a variety of high strength hollow brick and solid brick, can be matched with automatic brick coding machine.

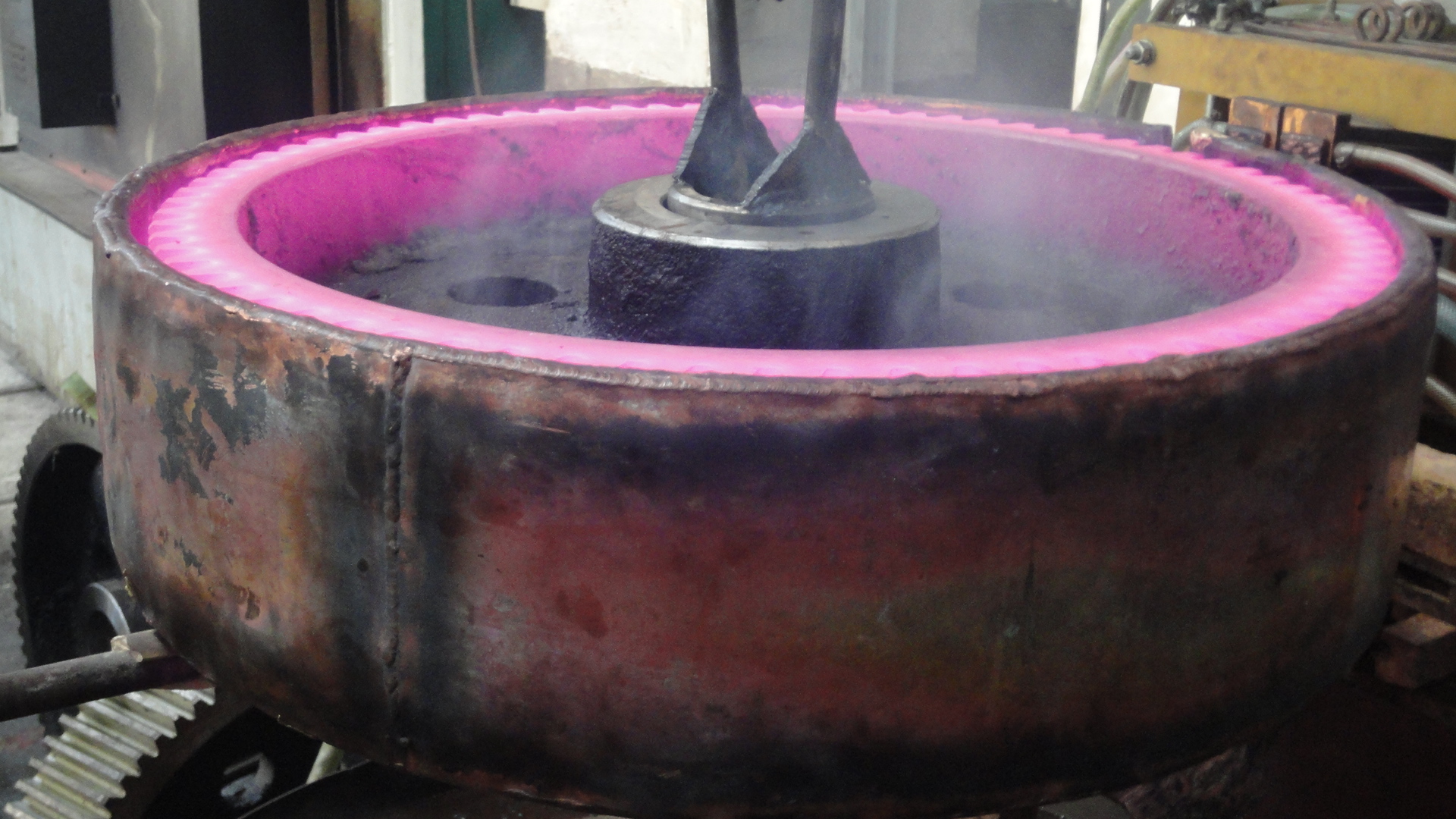

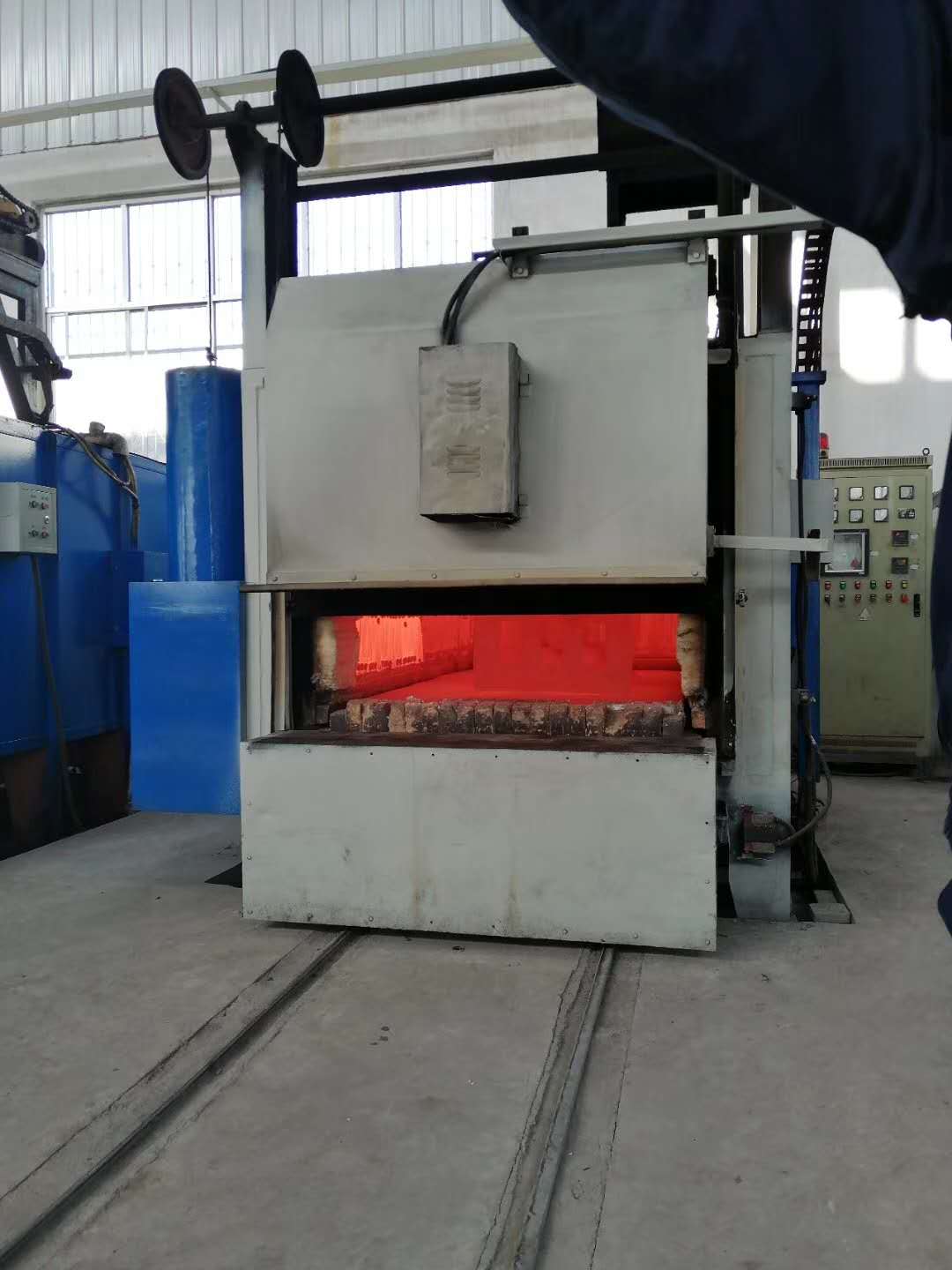

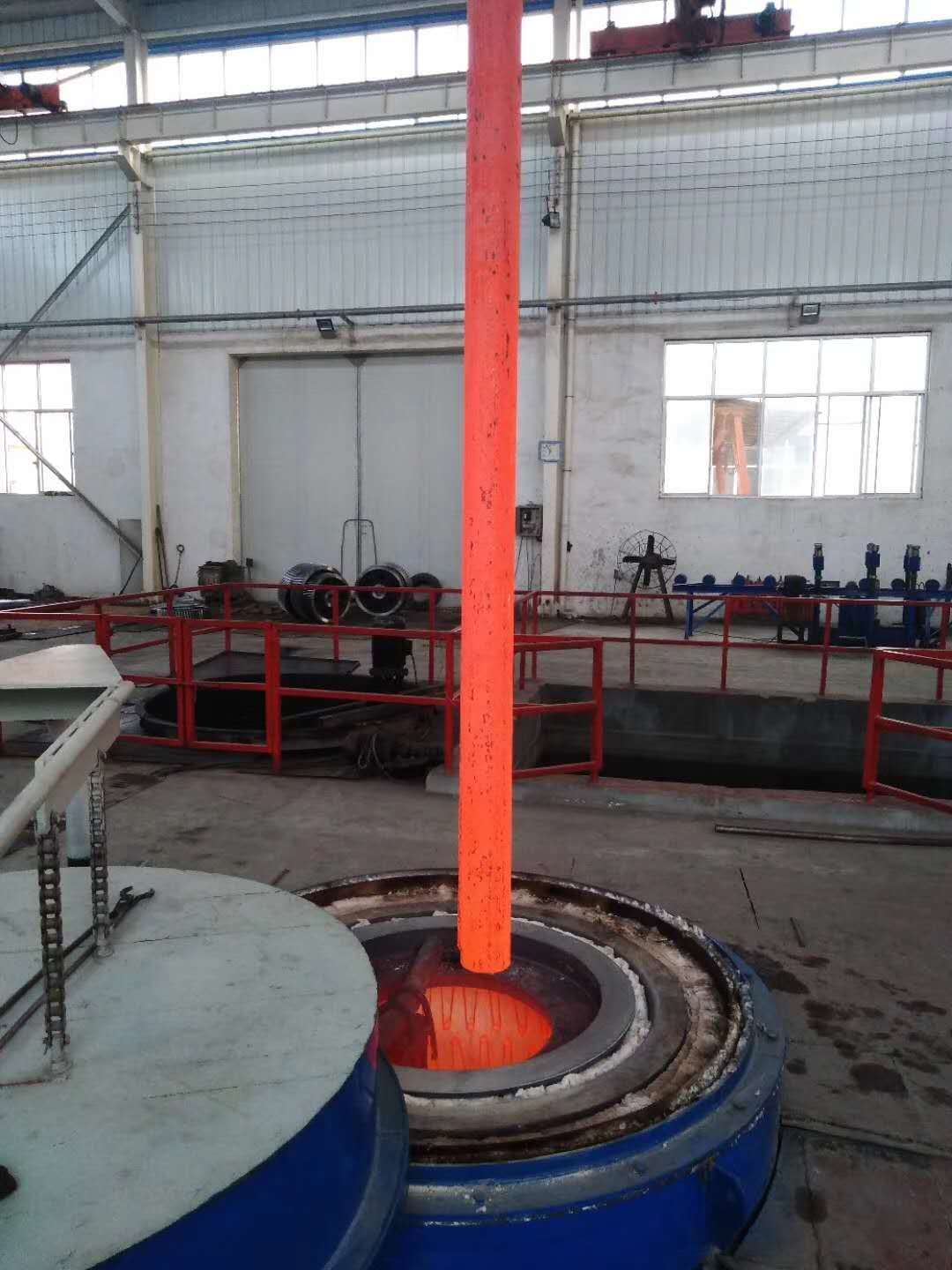

The reamer adopts wear-resistant metal spraying technology. The key parts, such as the stirring shaft, the reamer spindle and the fuselage, are treated by aging, tempering and quenching.Reducer gears are all hard tooth surfaces.

Brick raw material specifications

Aging treatment

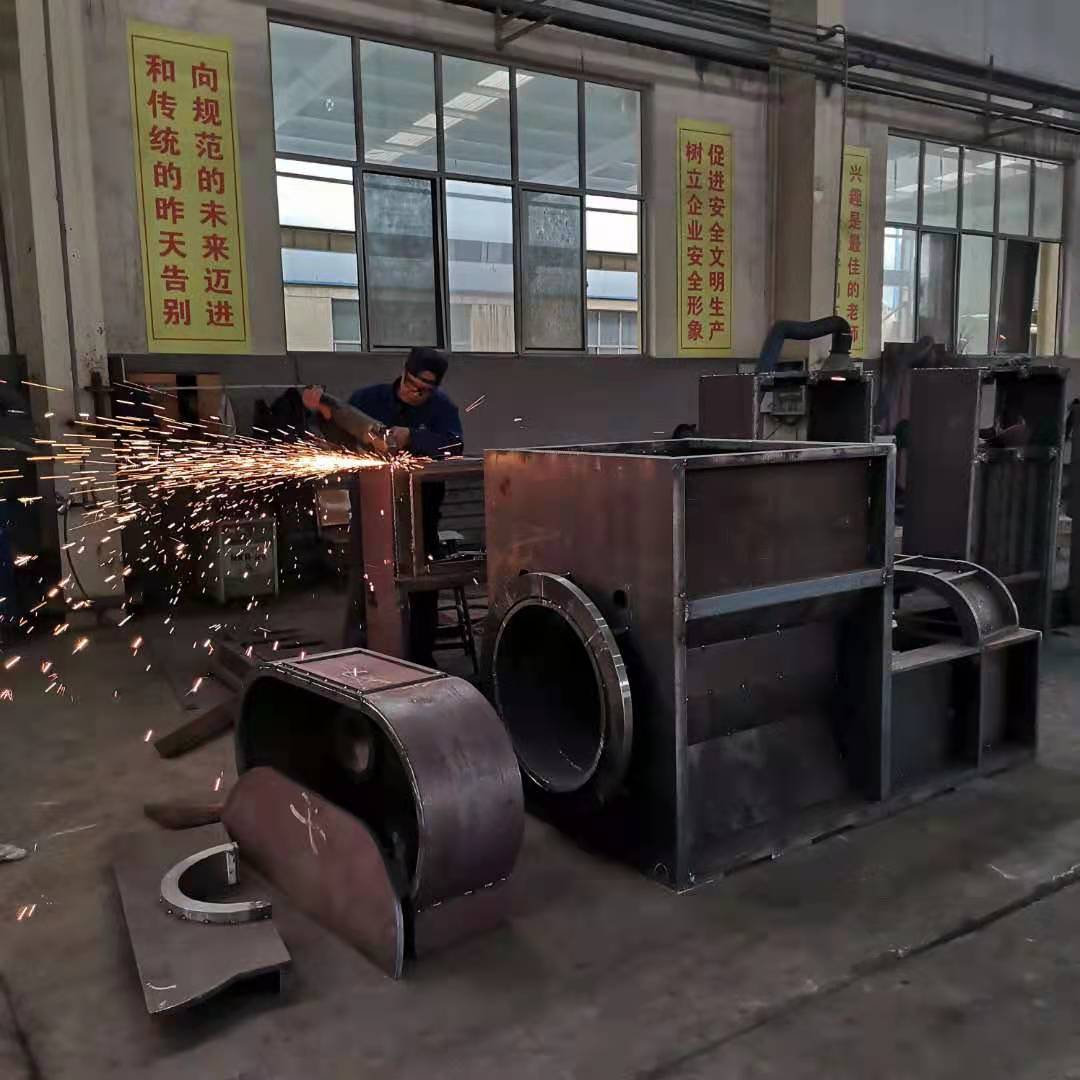

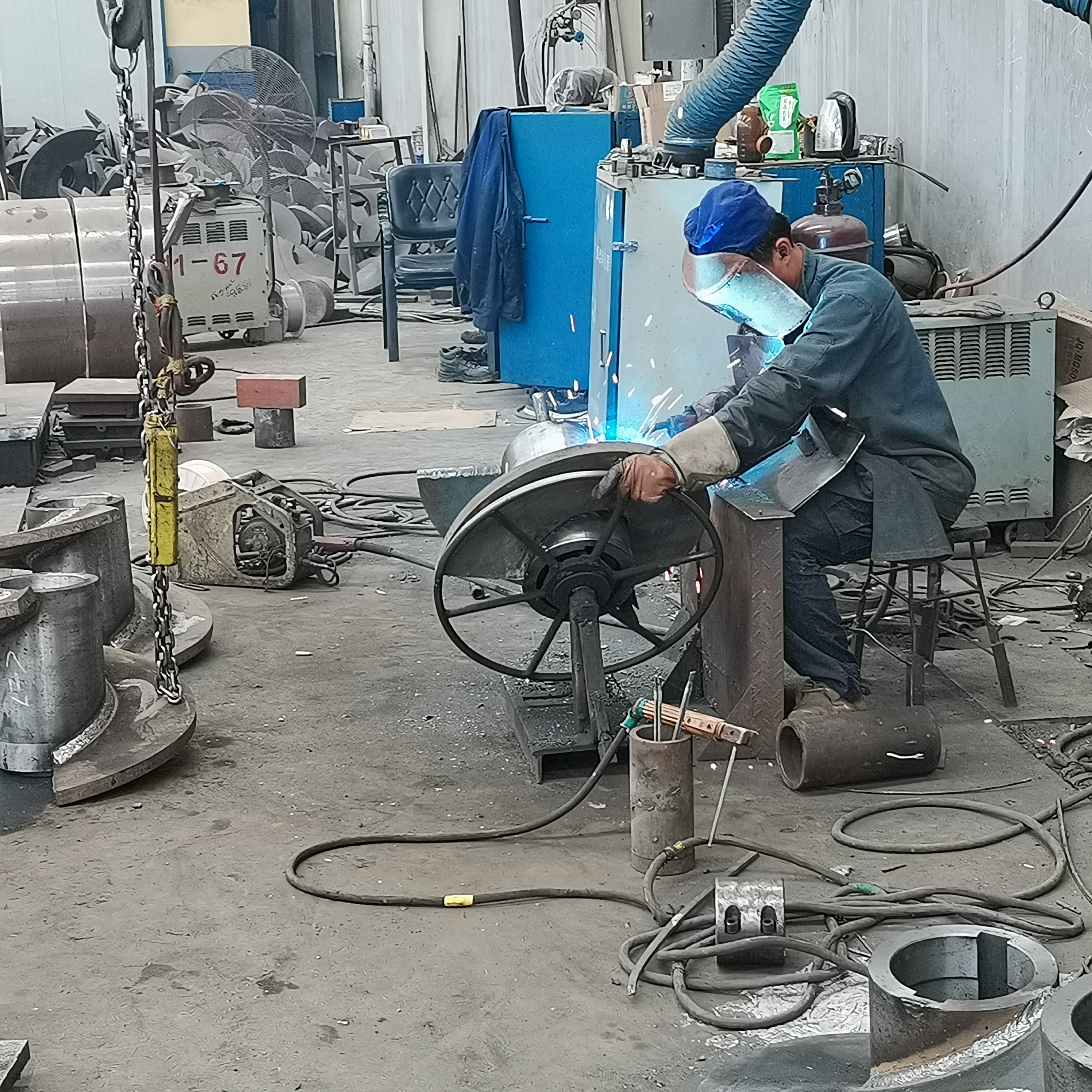

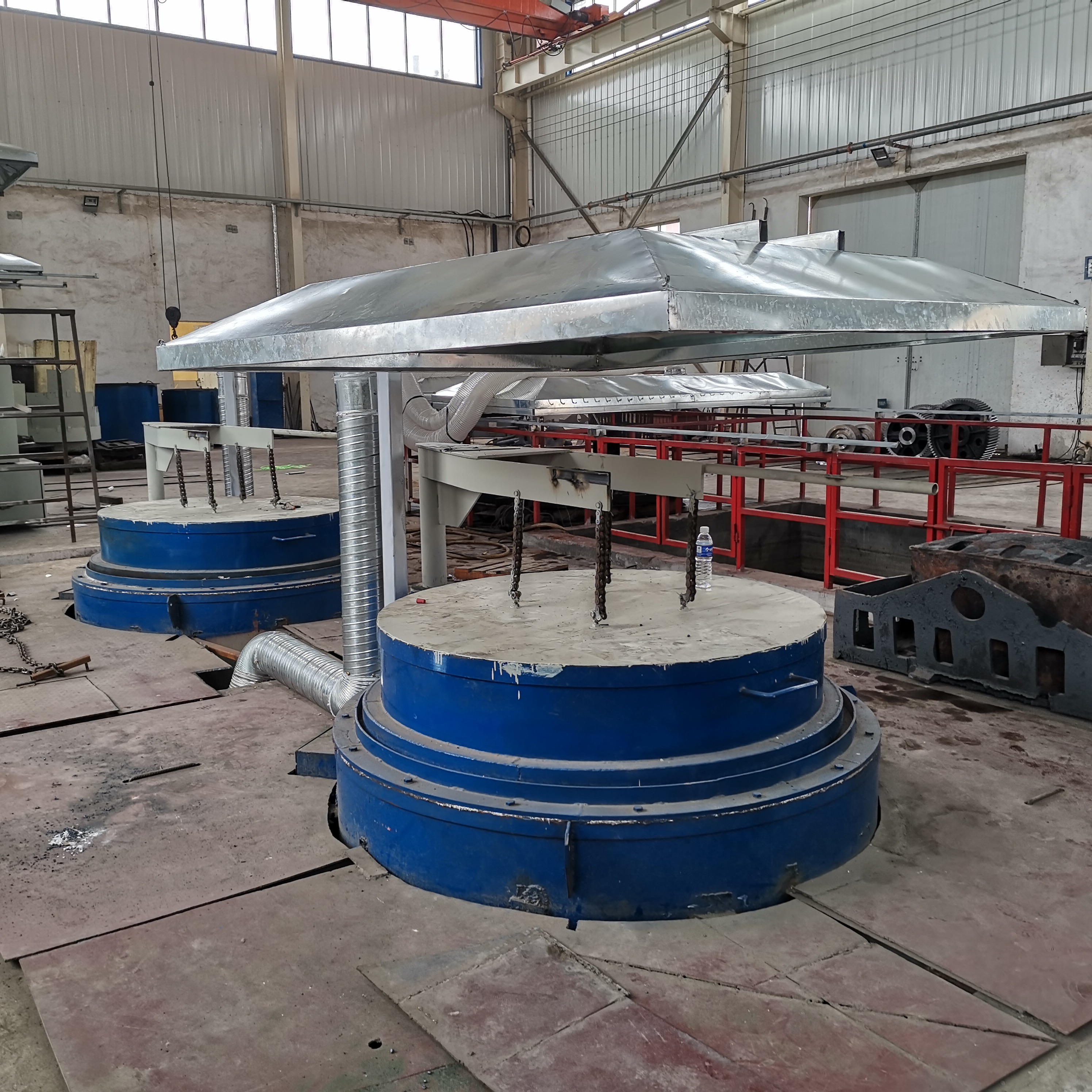

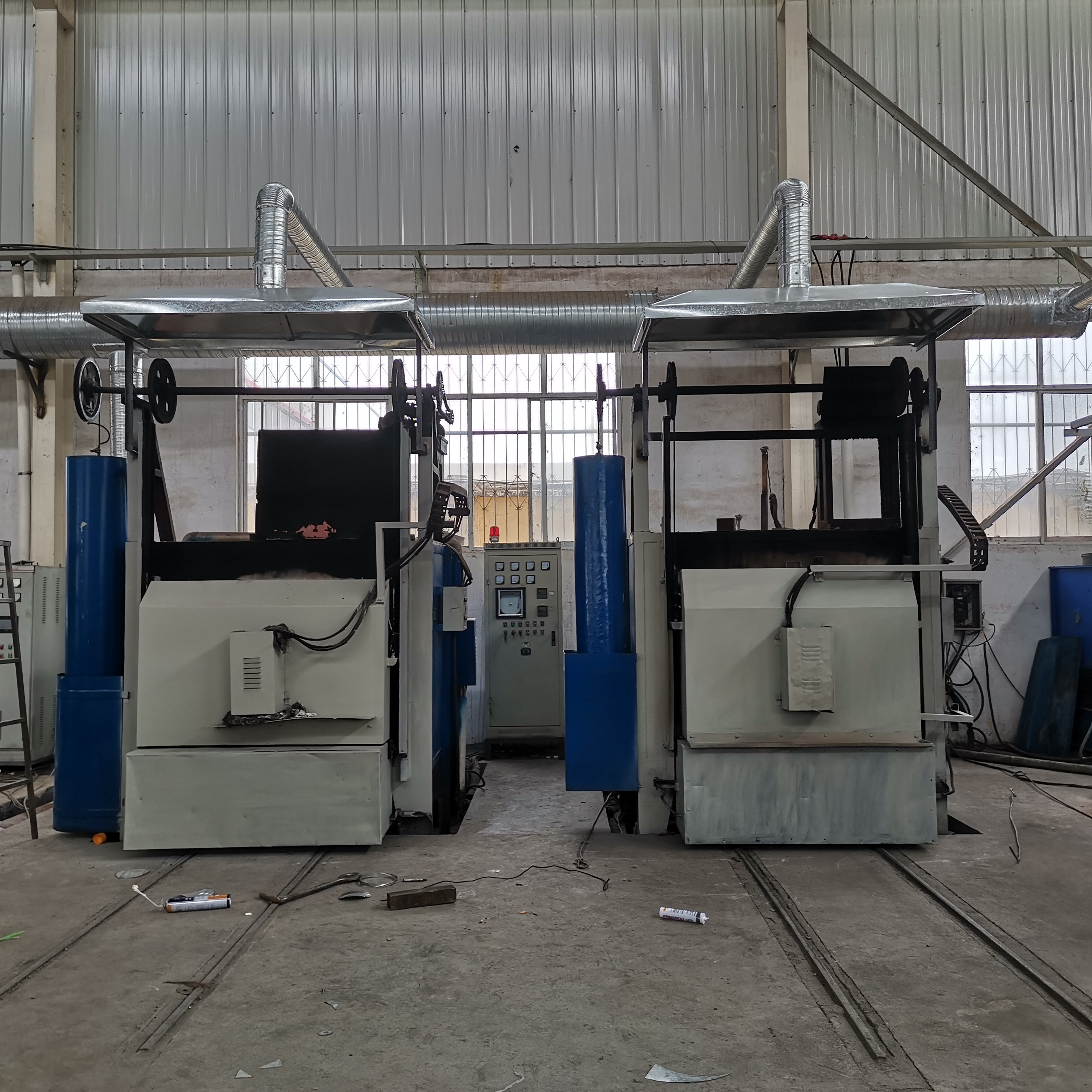

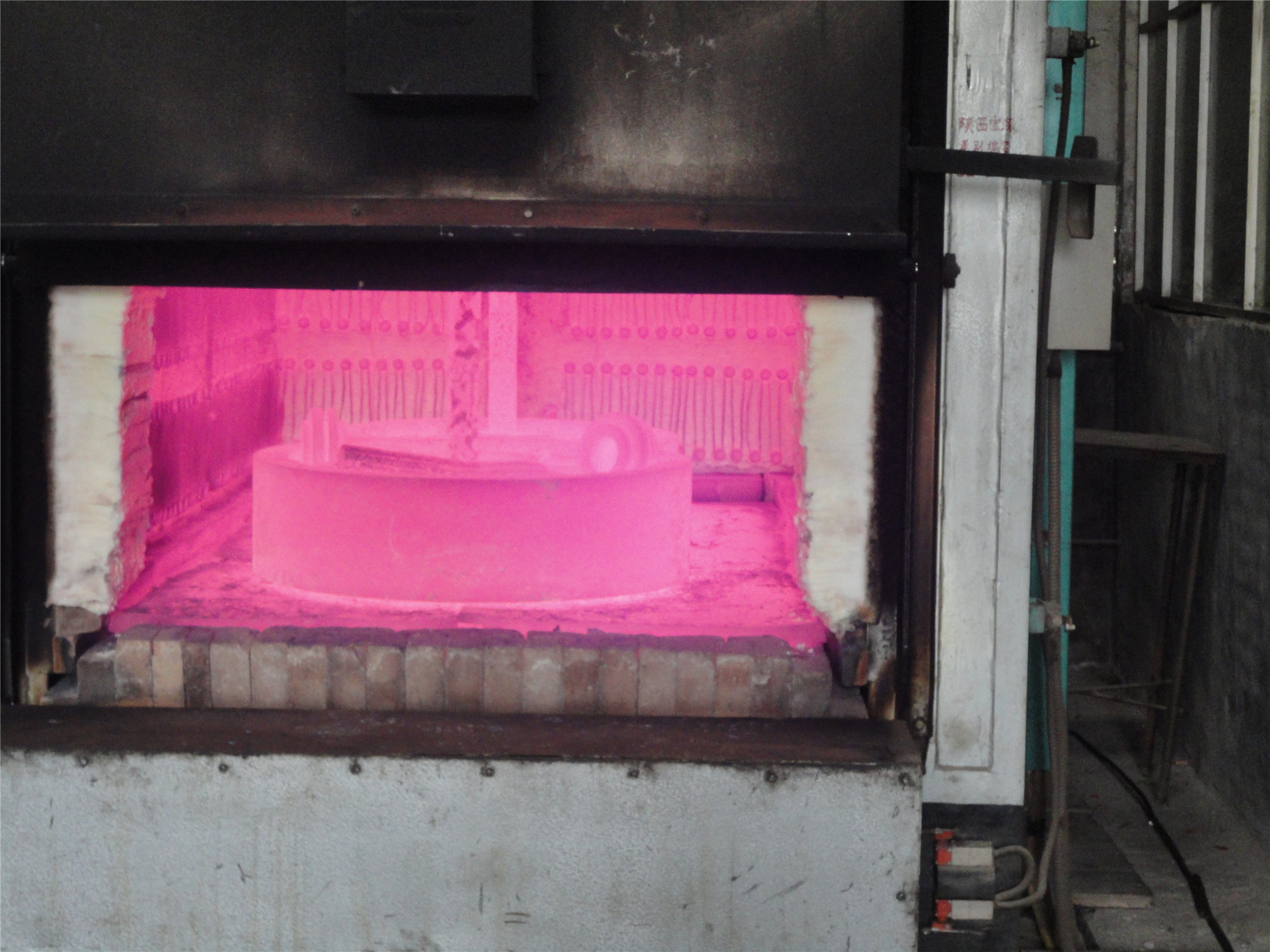

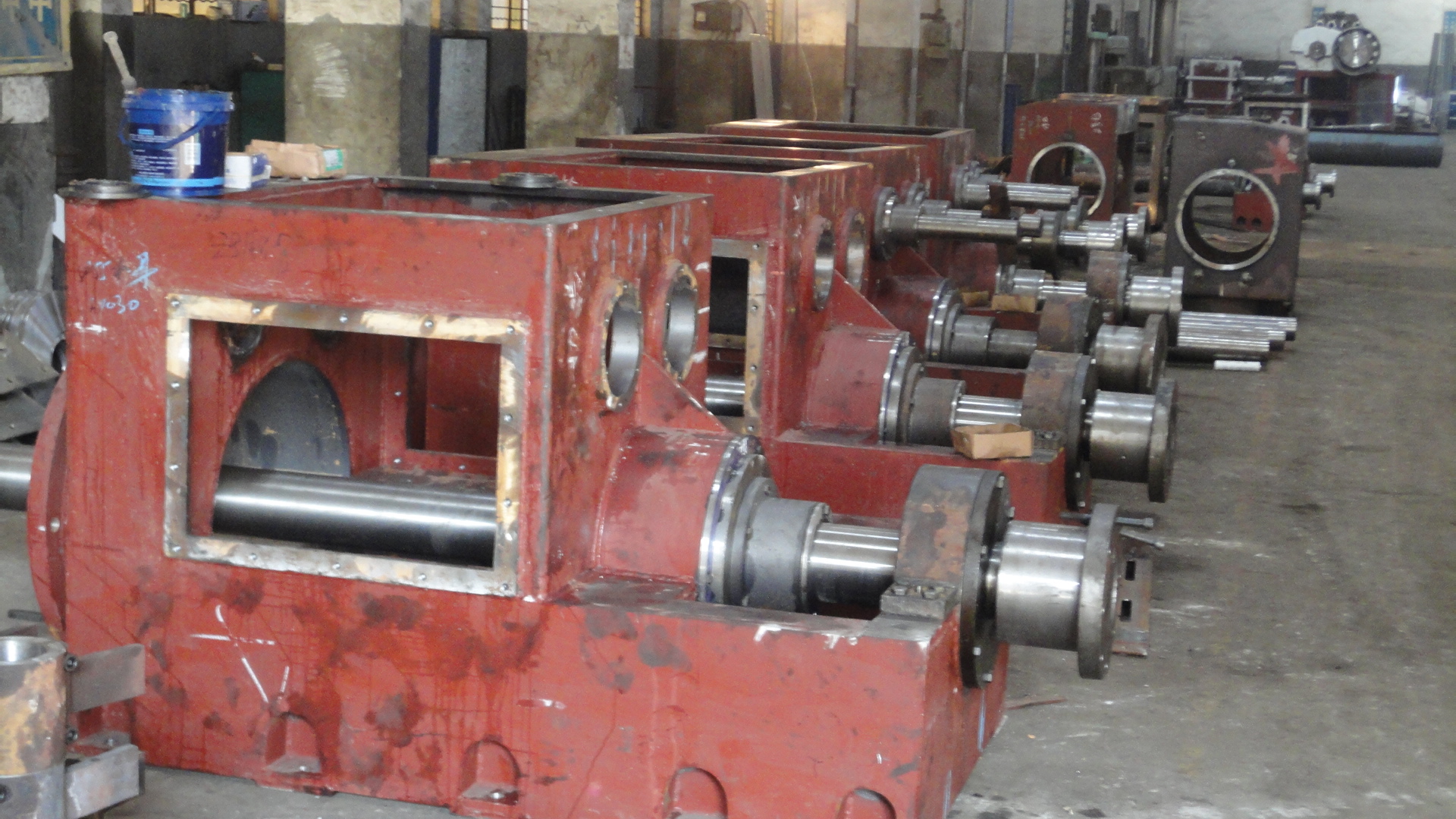

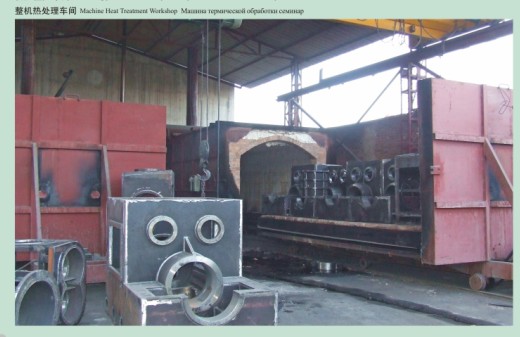

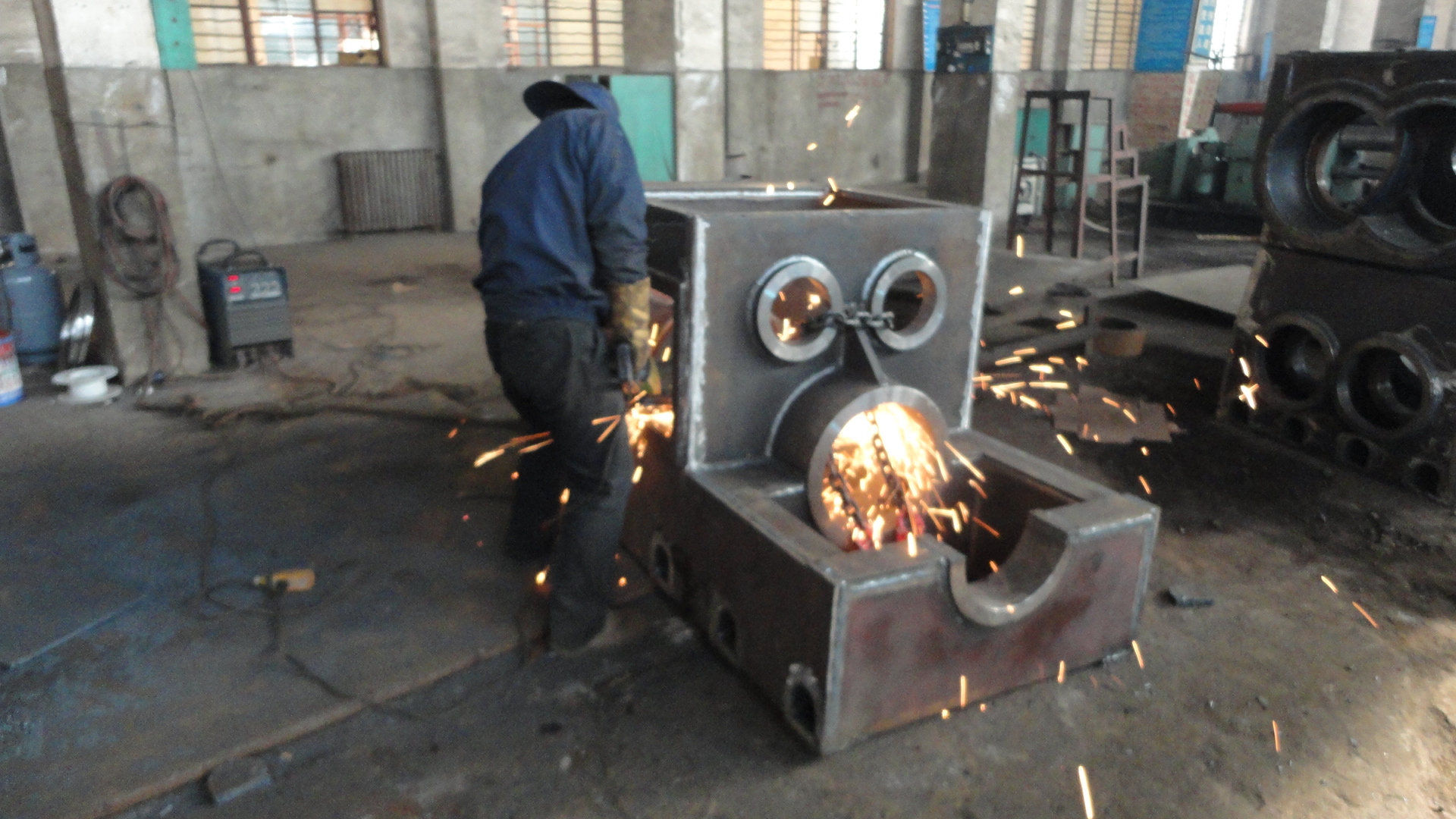

The fuselage is an important part of the brick-making machine. All the important parts of our company should be fired in the furnace after welding, so as to eliminate the internal stress of material production due to welding, so that the parts of the equipment will not appear cracks and other defects due to their own reasons in the process of use.

Product quality control

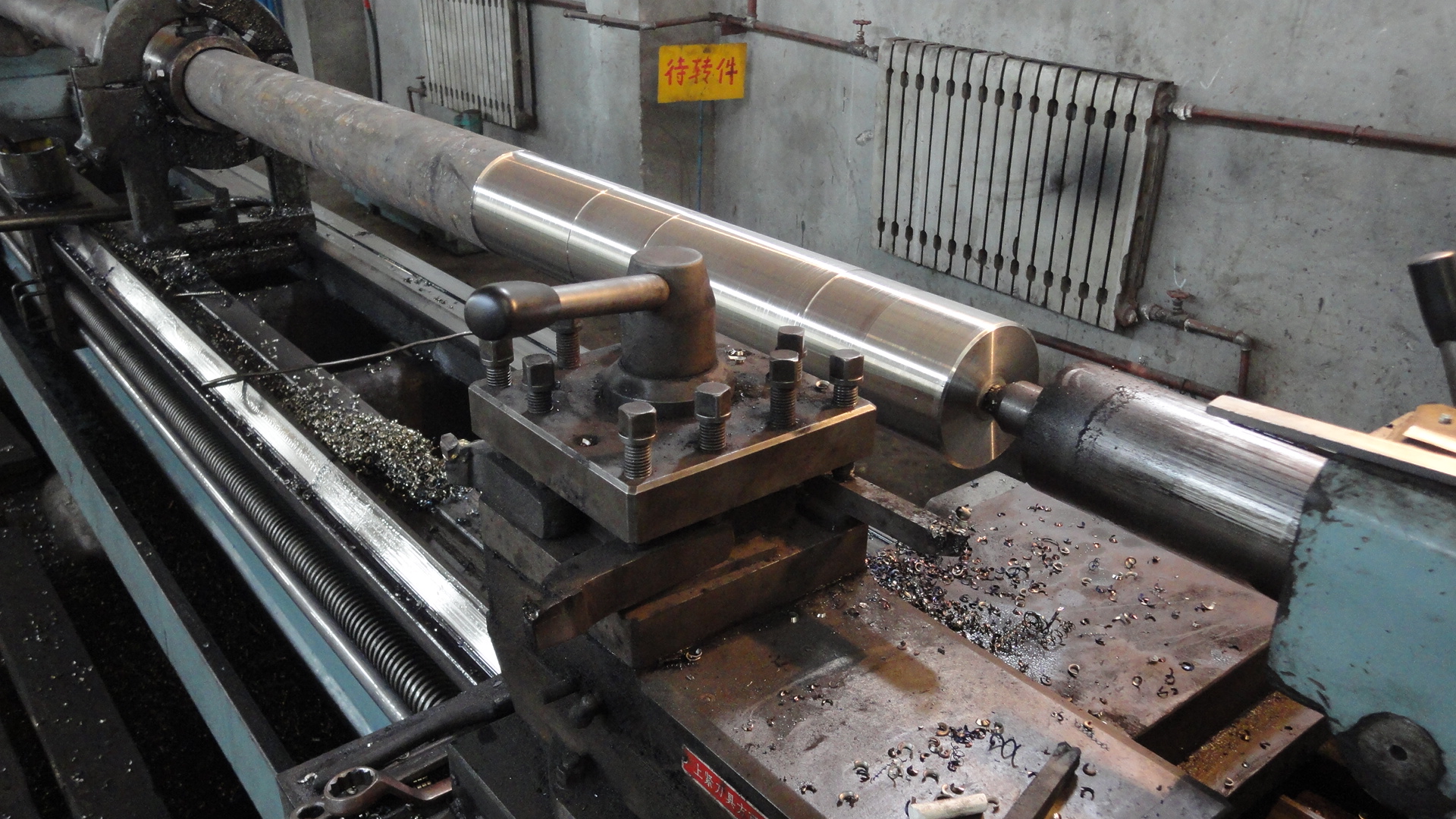

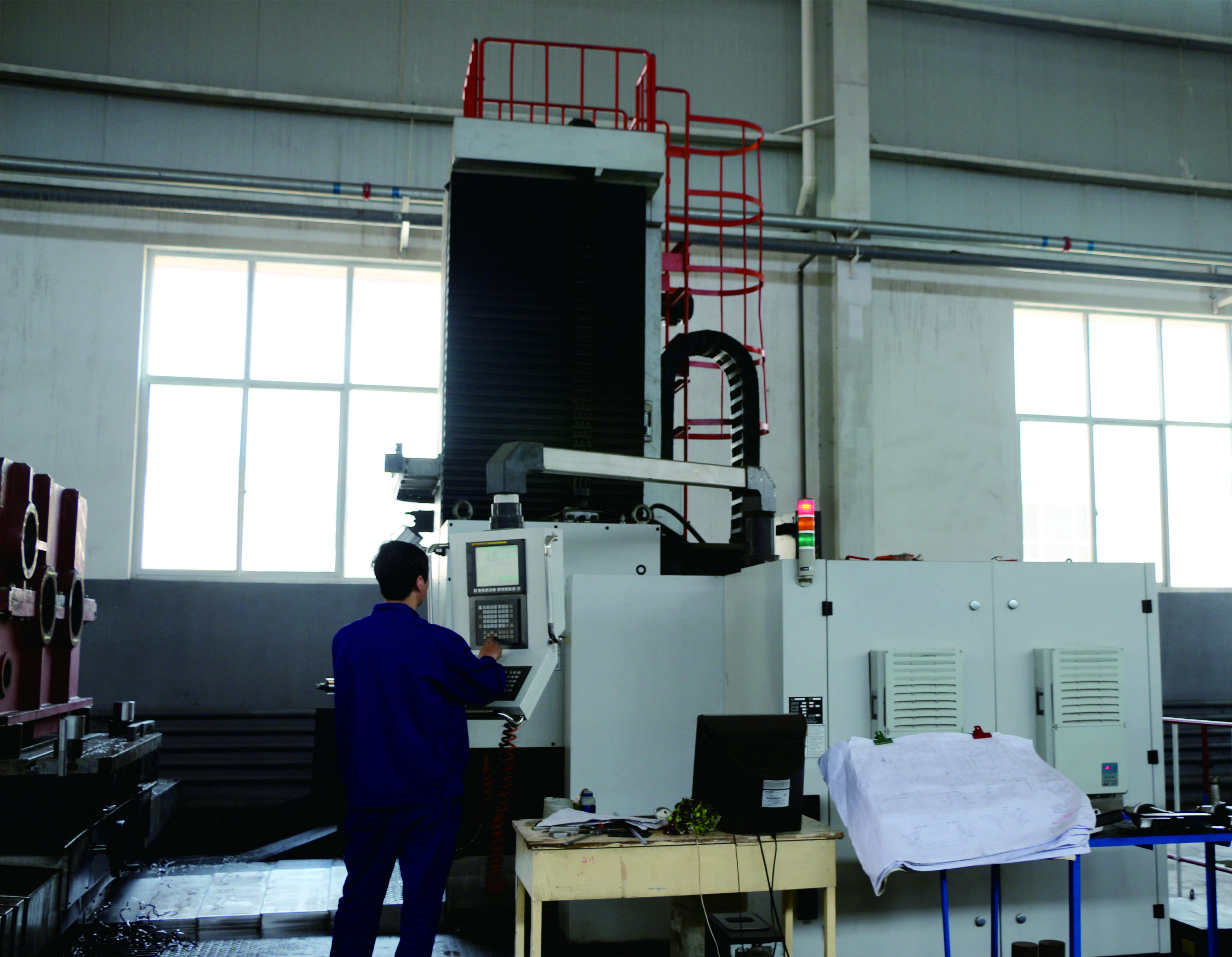

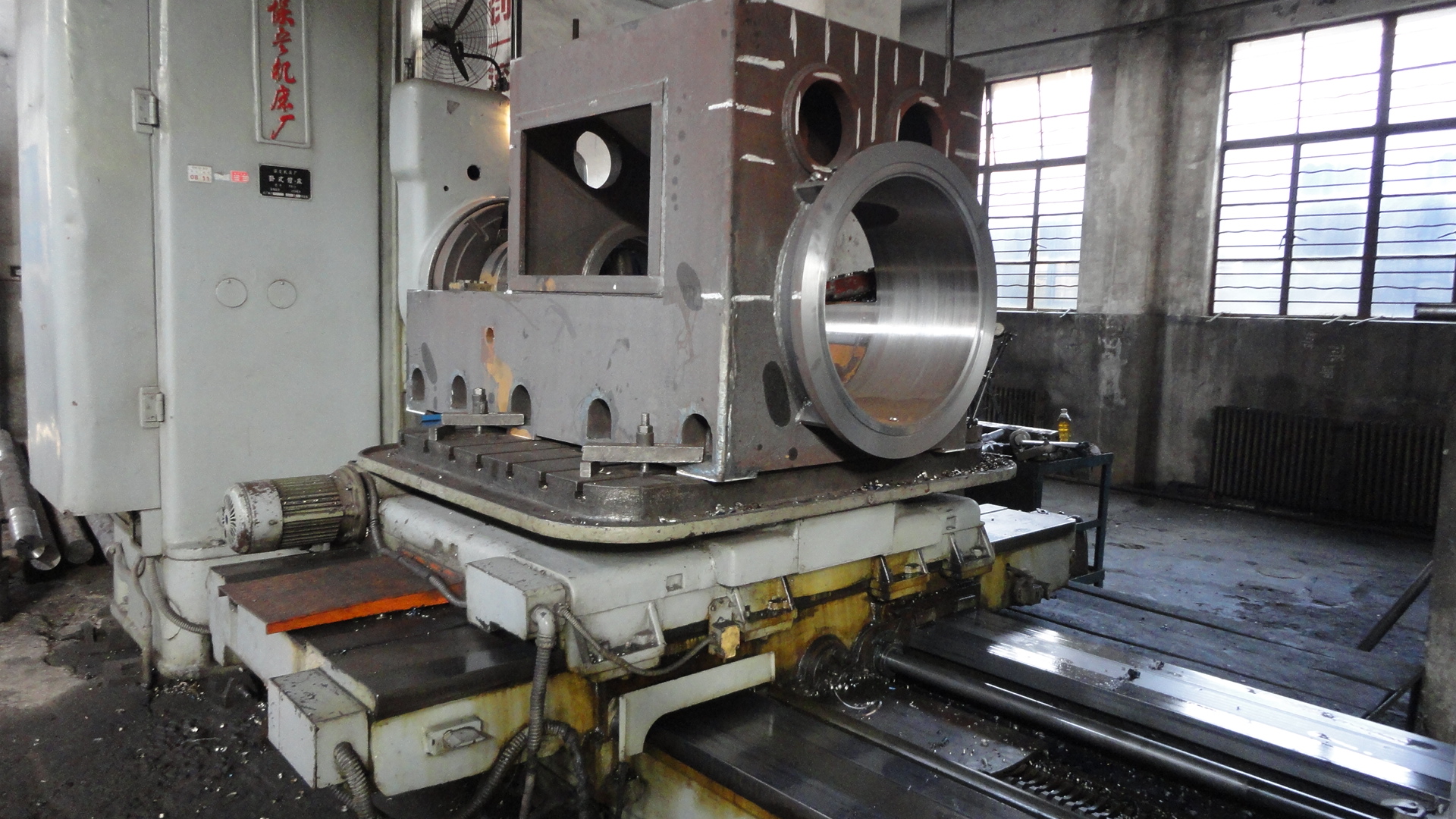

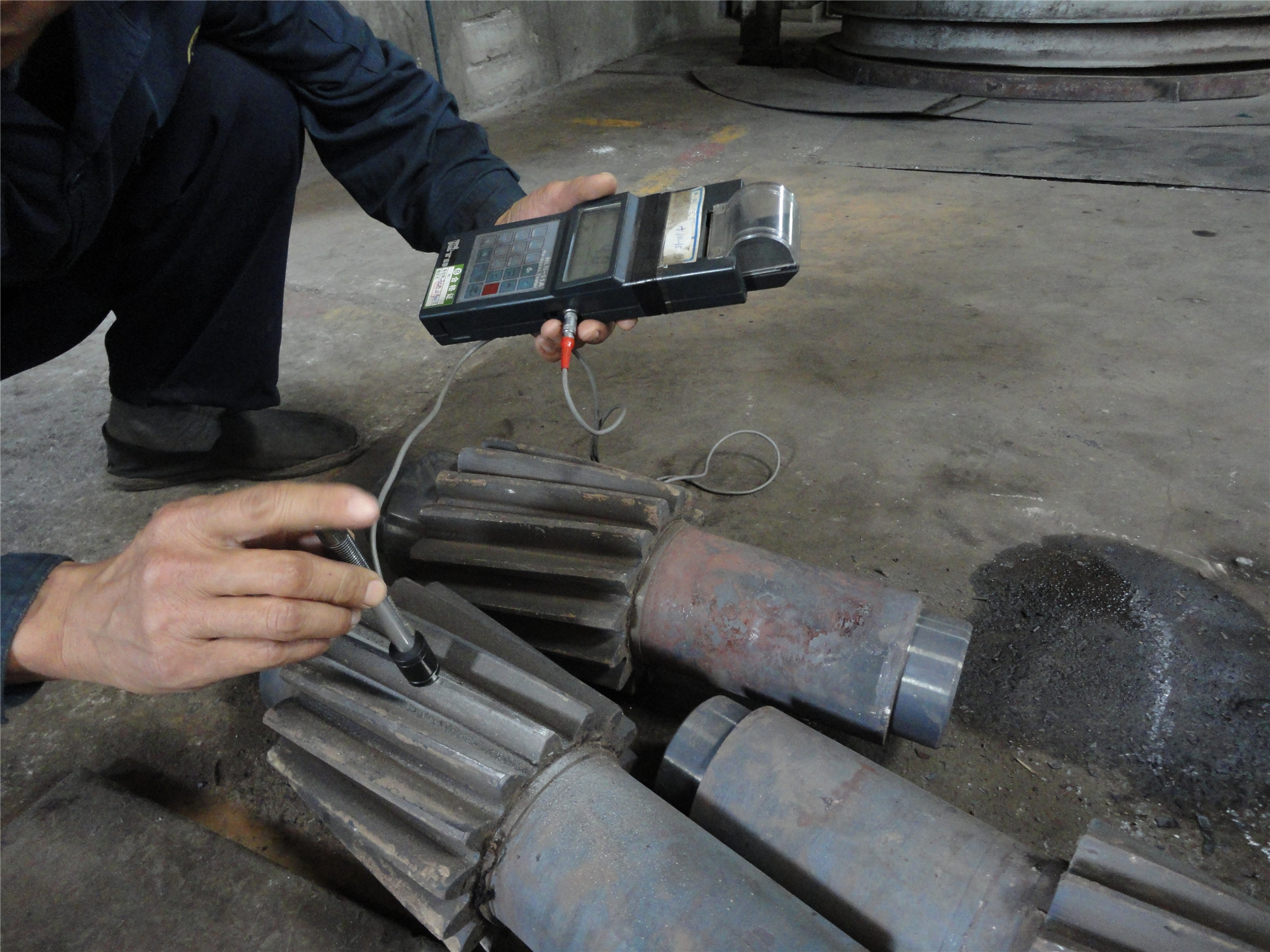

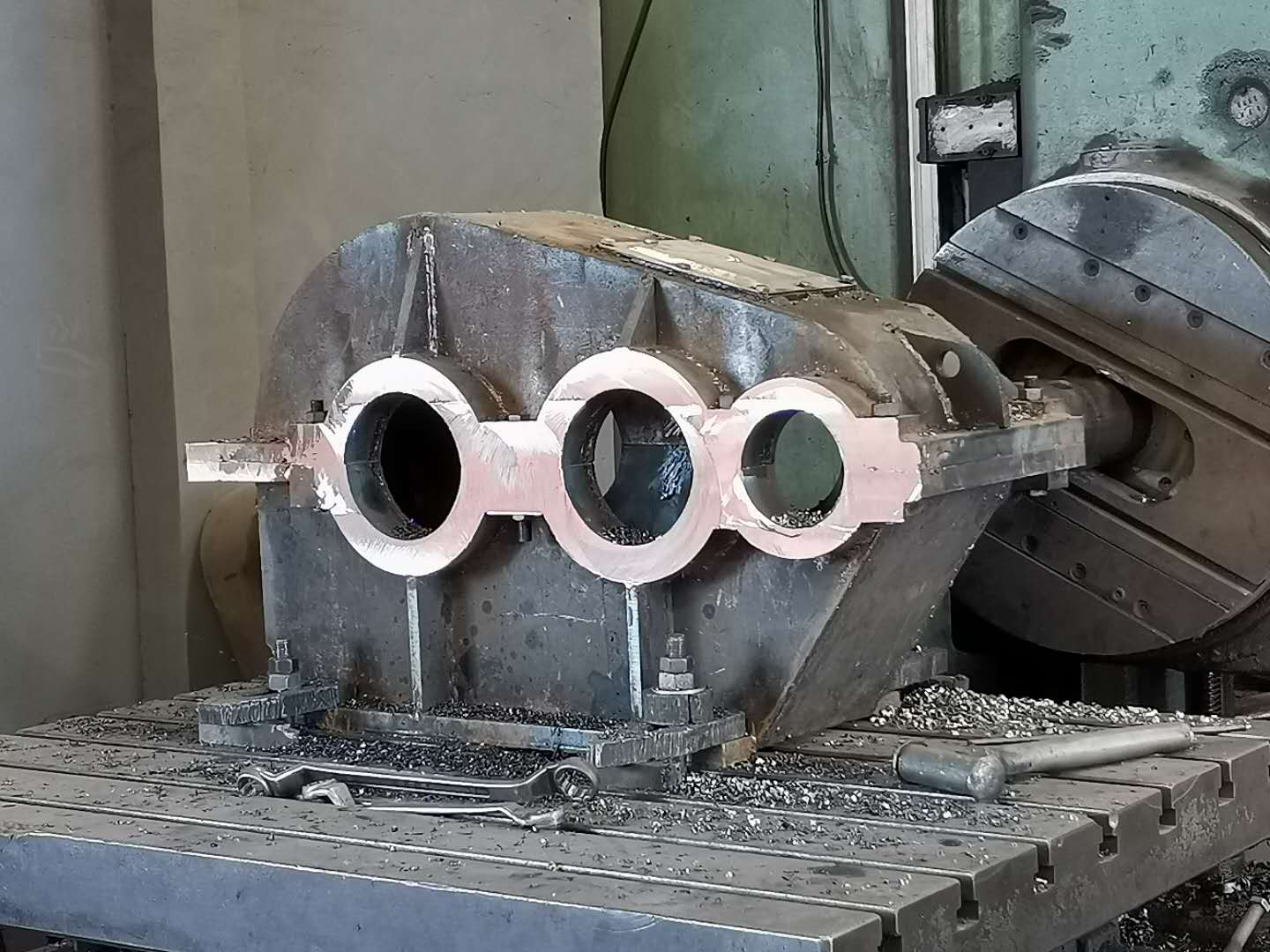

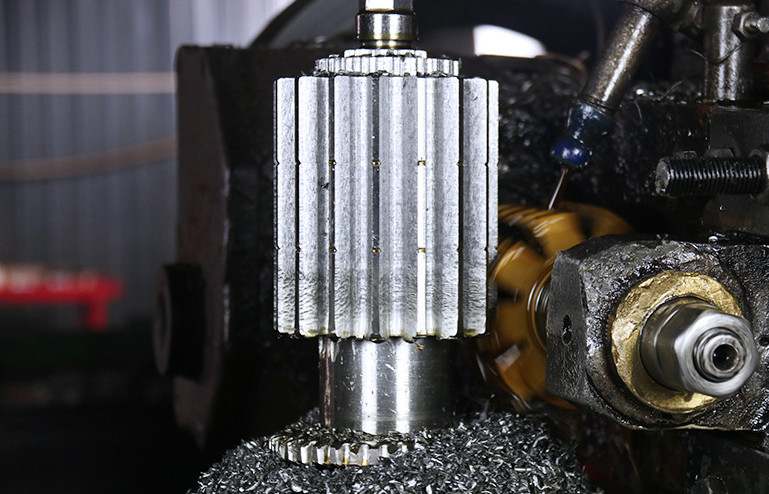

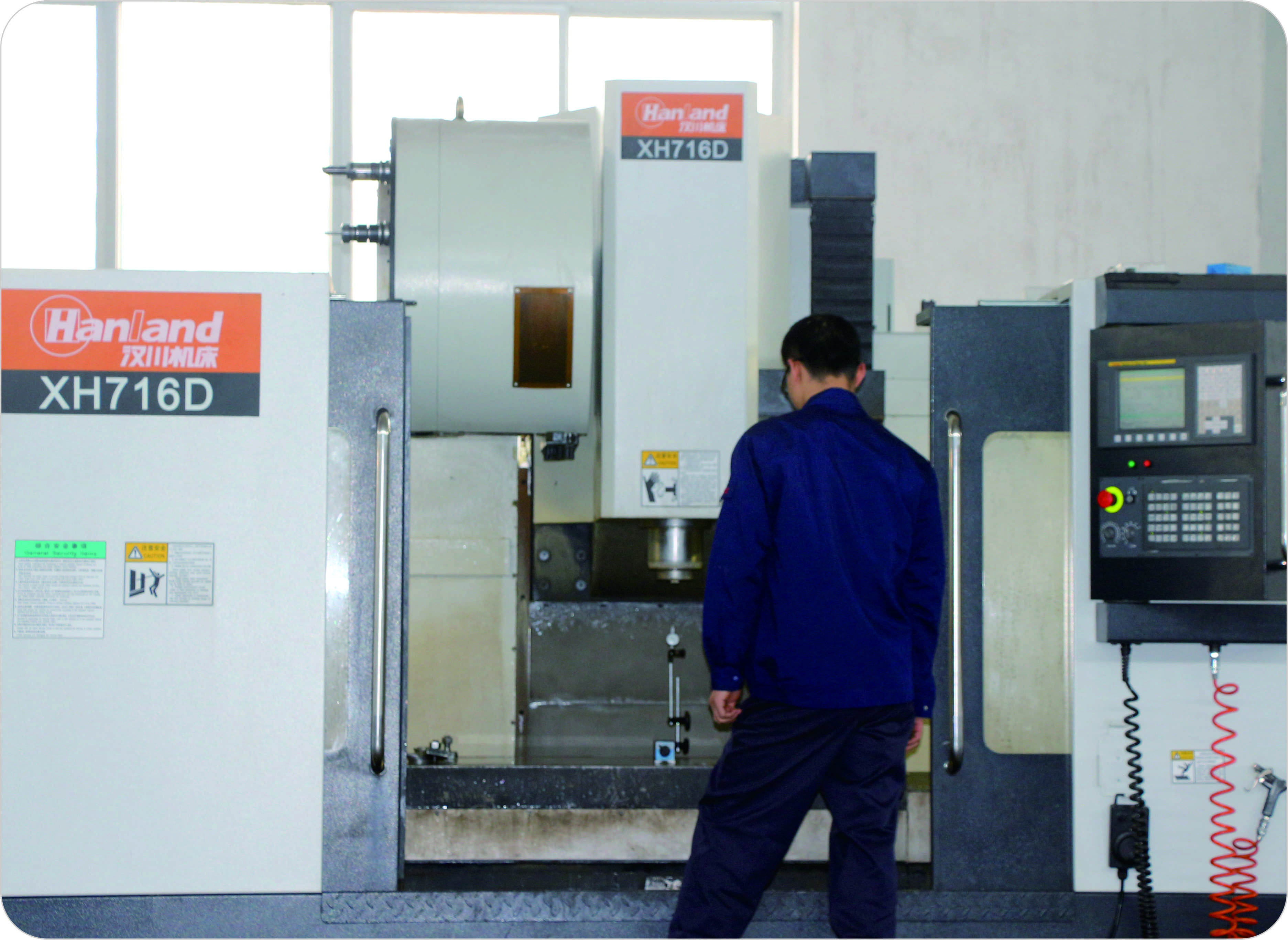

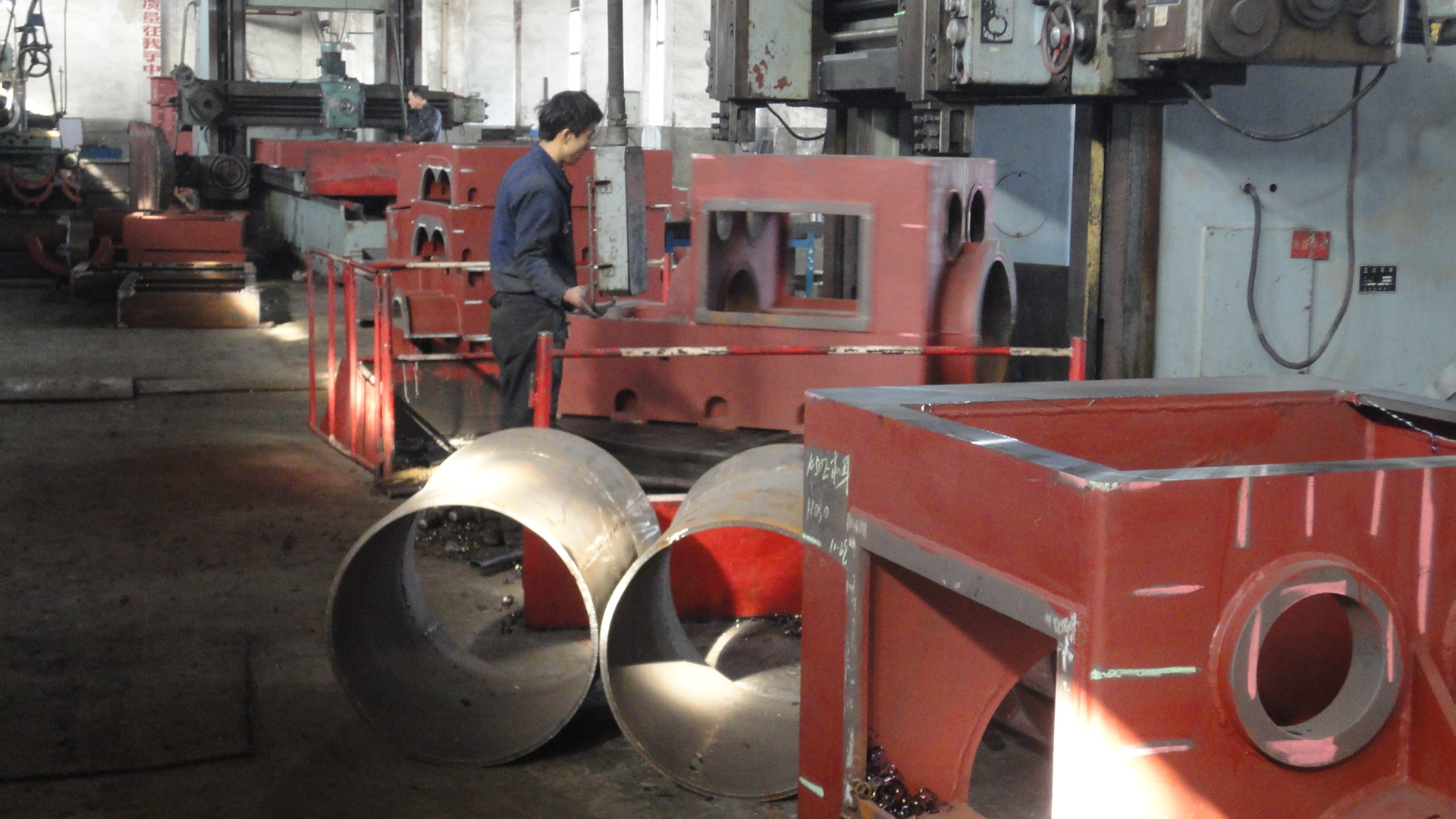

Advanced high-precision processing equipment is the premise to ensure product quality, the company has CNC boring machine, CNC drilling machine, gantry milling machine and other processing equipment; The company always puts product quality in the first place, all parts have to go through layers of inspection before entering the next process, in strict accordance with the quality management system requirements, product parts for self-inspection, mutual inspection and special inspection of the quality inspection procedures, to ensure that all parts are qualified products.

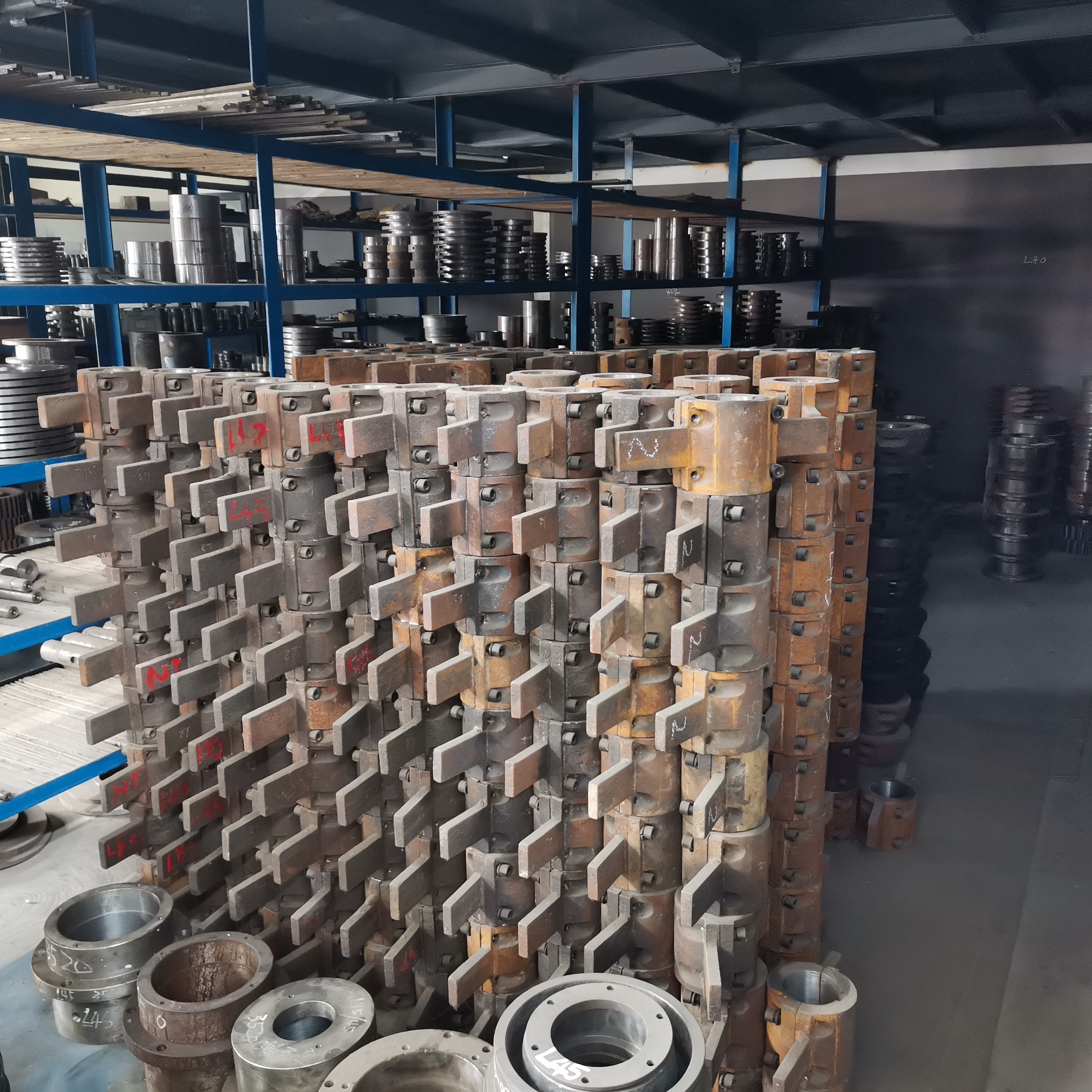

Spare parts service

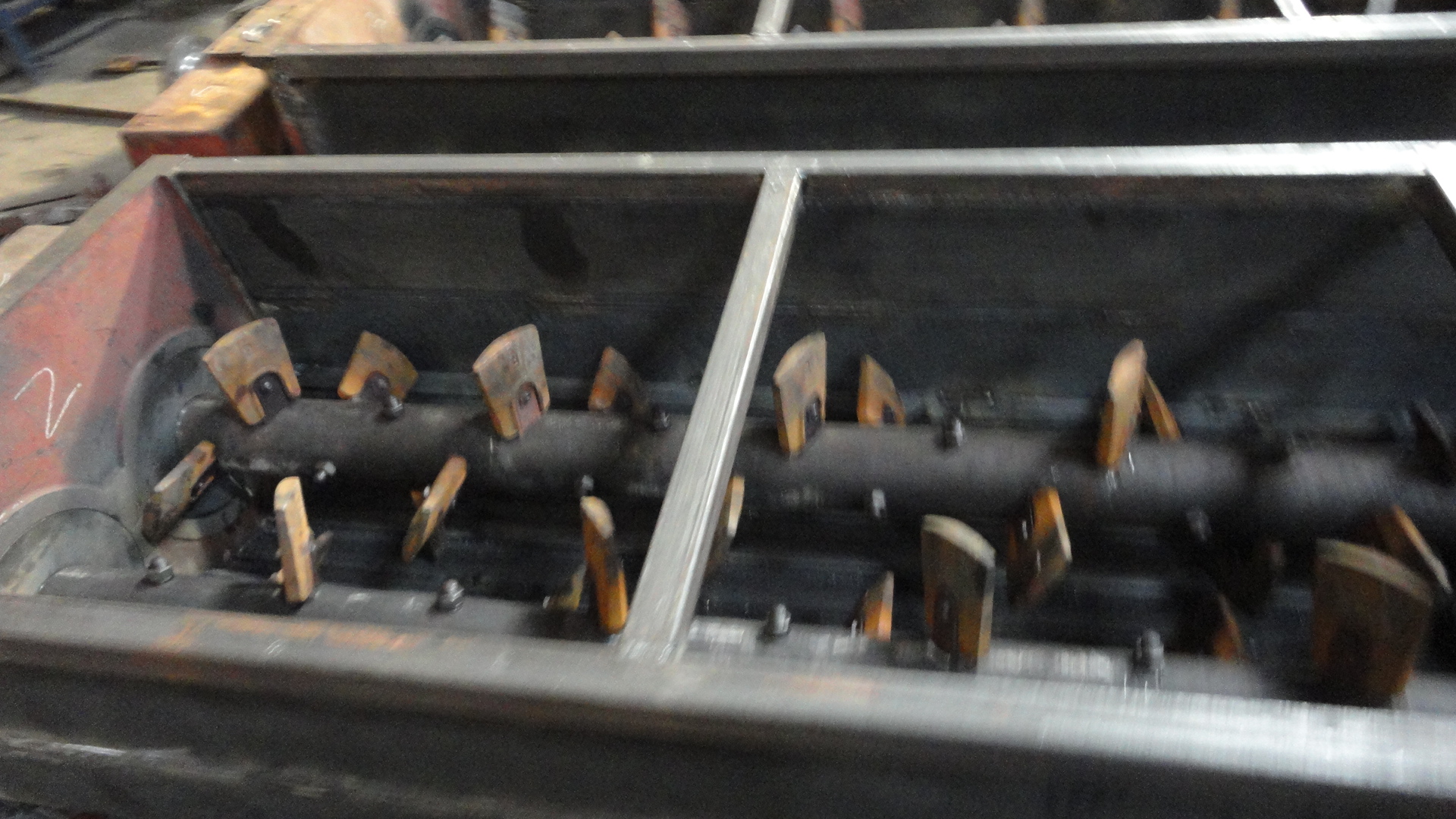

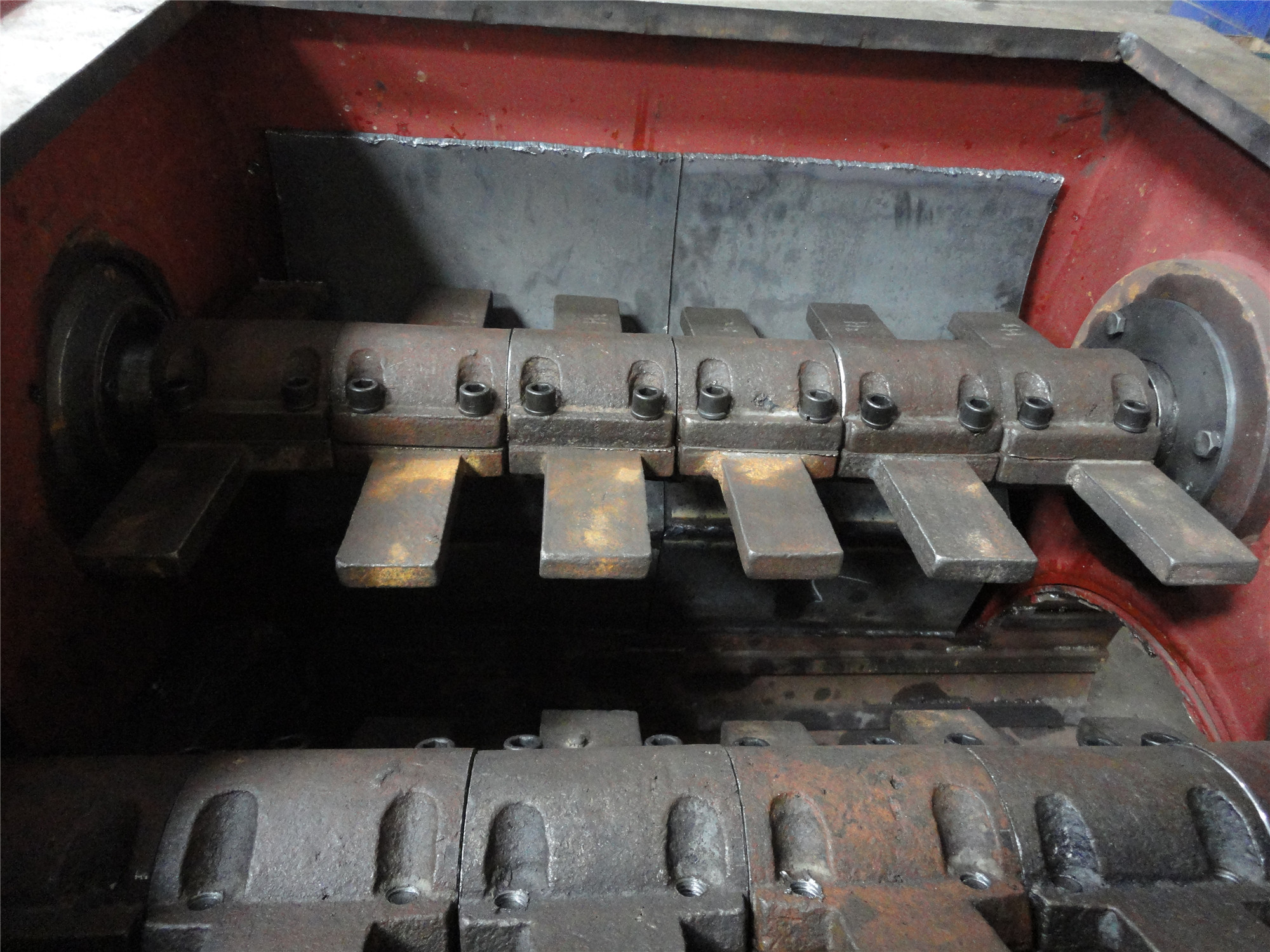

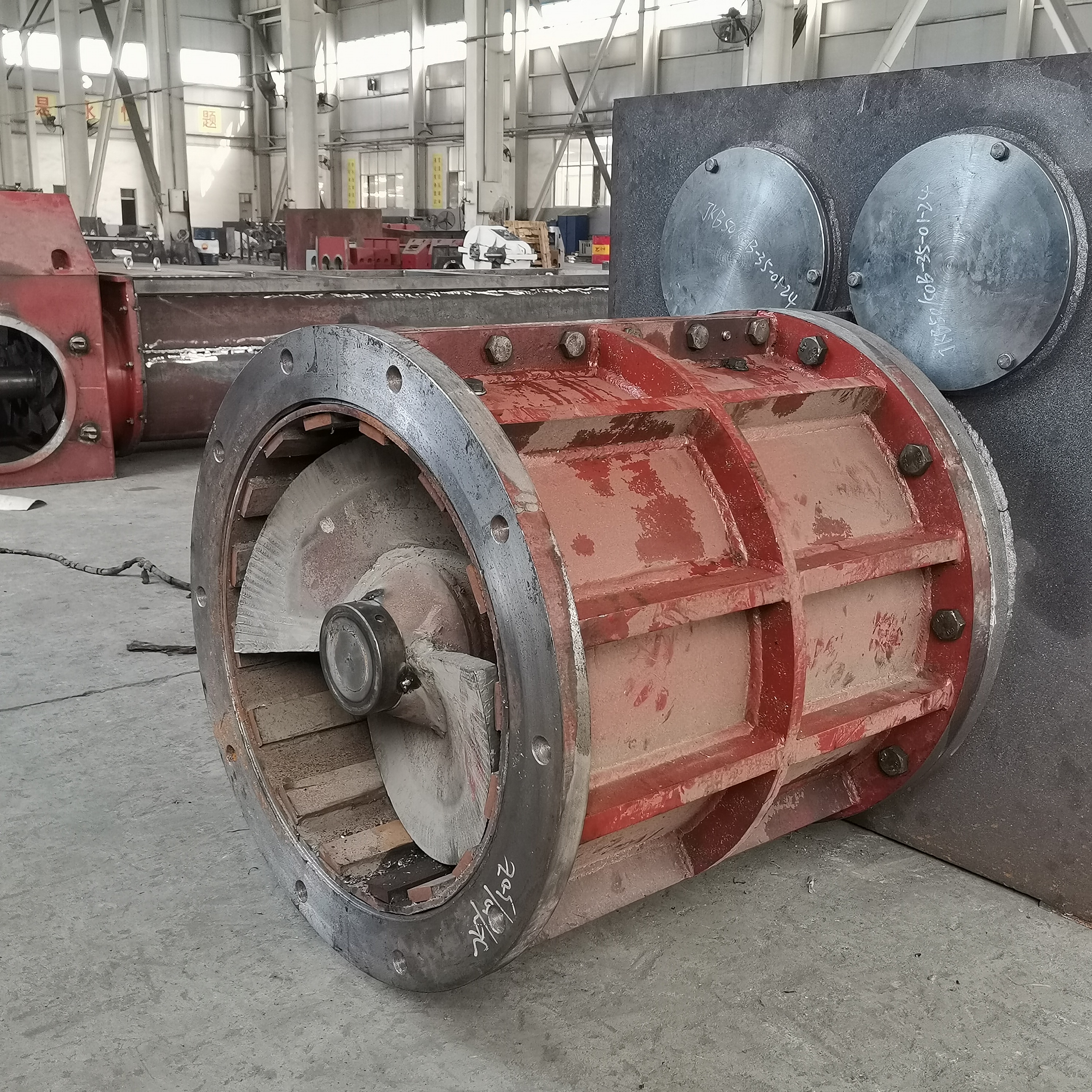

The parts of JKY series vacuum brick machine, such as clay board and mud cutter, are cast with wear-resisting material. At the same time, the screws and nuts are designed to be on the non-stress surface to reduce wear and easy to disassemble.

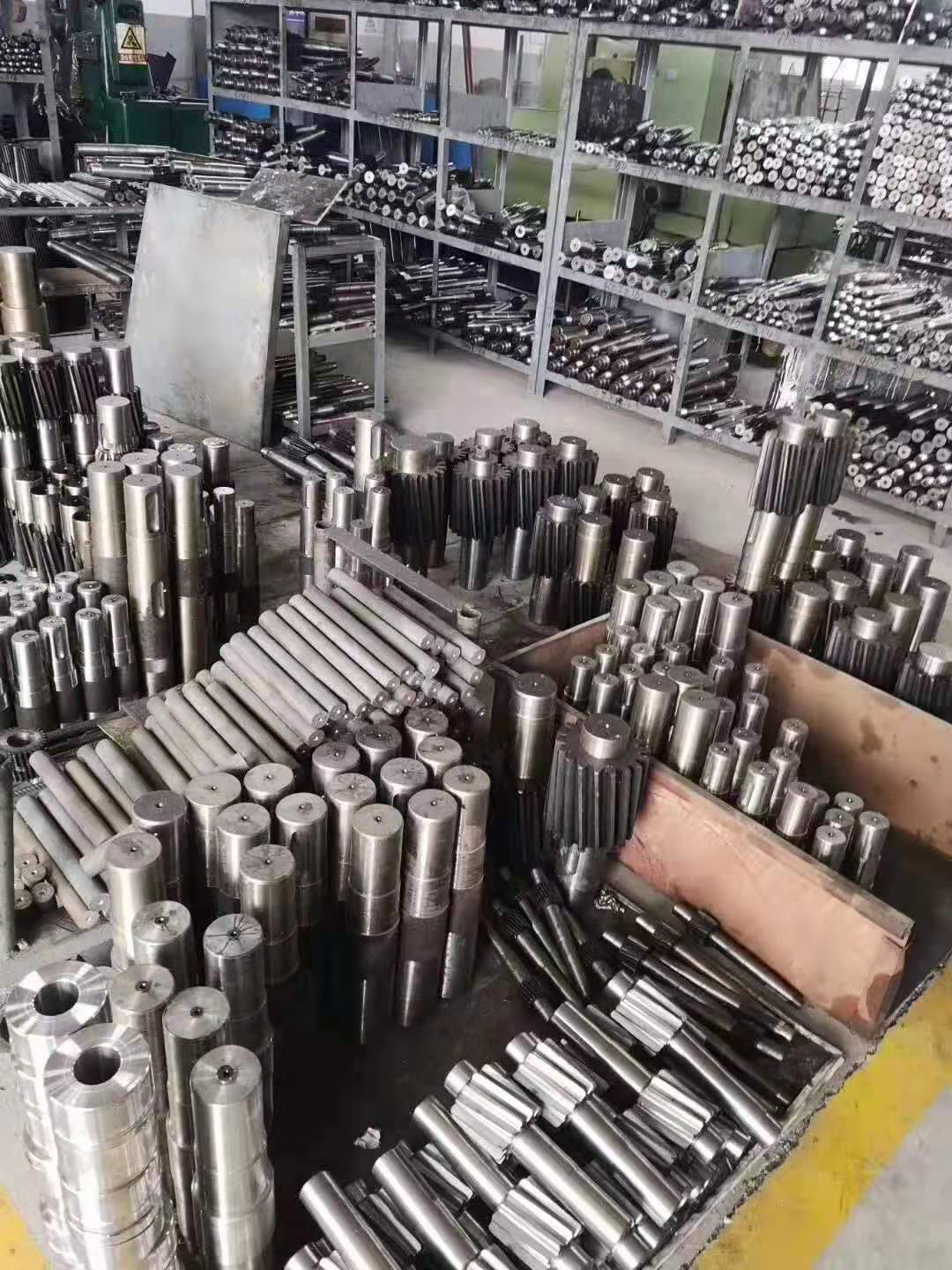

The company has a spare parts library, equipped with all conventional models of parts, can provide users with timely parts services.

Reamer features

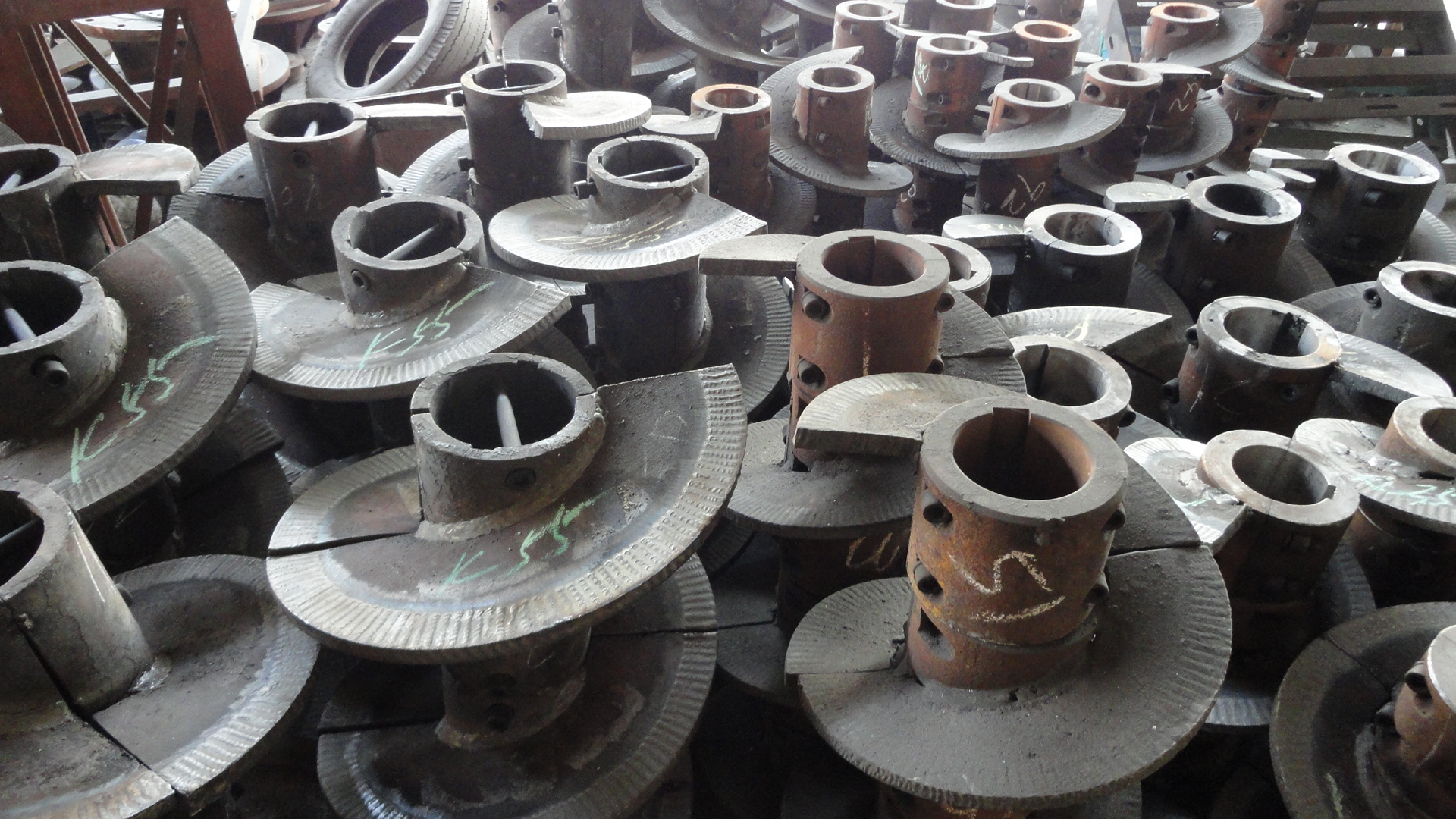

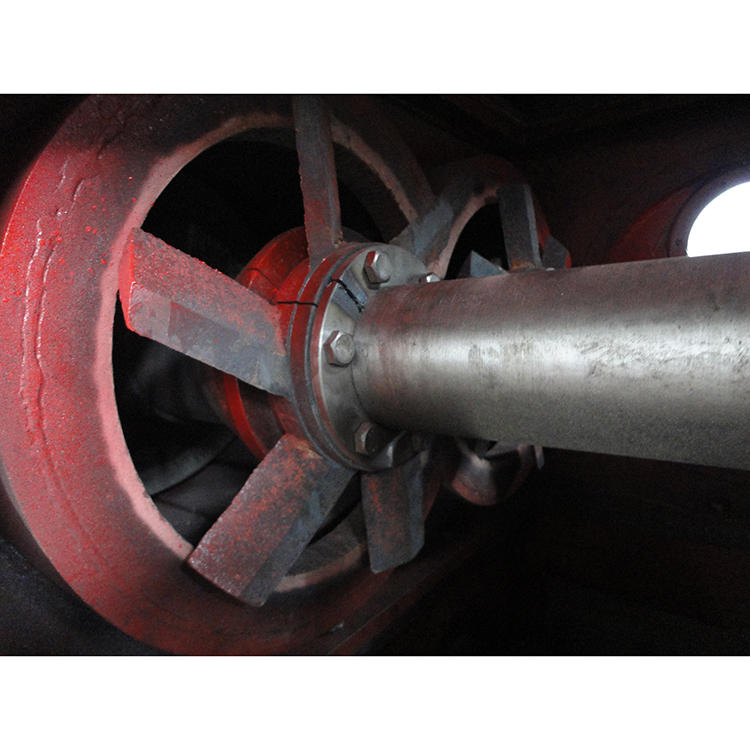

The reamer is composed of a sleeve and a spiral blade. The sleeve is a thick-walled seamless steel pipe. The blade is made of a wear-resistant steel plate in accordance with the specified size and is assembled and welded by workers. After the completion of the welding, the surface of the wear-resistant metal material should be sprayed. Compared with the casting reamer, the biggest advantage is that it can be repaired, when the wring also appears wear, remove the wearable electrode for surfacing to reach the size, can continue to use.

Size Information
