Overview
Carfitment and part number
| OEM No. | Ref. |
|---|---|
| For Toyota Corolla E140 E150 E160 E170 Matrix E140 | - |
| Car Fitment | Model | Year |
|---|---|---|
| Toyota | COROLLA | 2009-2010 |
| 2009-2013, 2014-2016, 2009-2010, 2009-2013 | ||
| 2014-2016 | ||
| MATRIX, COROLLA | 2009-2013 |
Specification
| Coilover Suspension For Toyota Corolla E140 E150 E160 E170 Matrix E140 2009-2014 | ||
| Applications | for TOYOTA COROLLA (E140) AZE141L XRS 2009-2010 for TOYOTA COROLLA (E140/E160) ZRE142L LE 2009-2013 for TOYOTA COROLLA (E150/E170) ZRE172L all 2014-2019 for TOYOTA MATRIX (E140) LE 2009-2014 | |

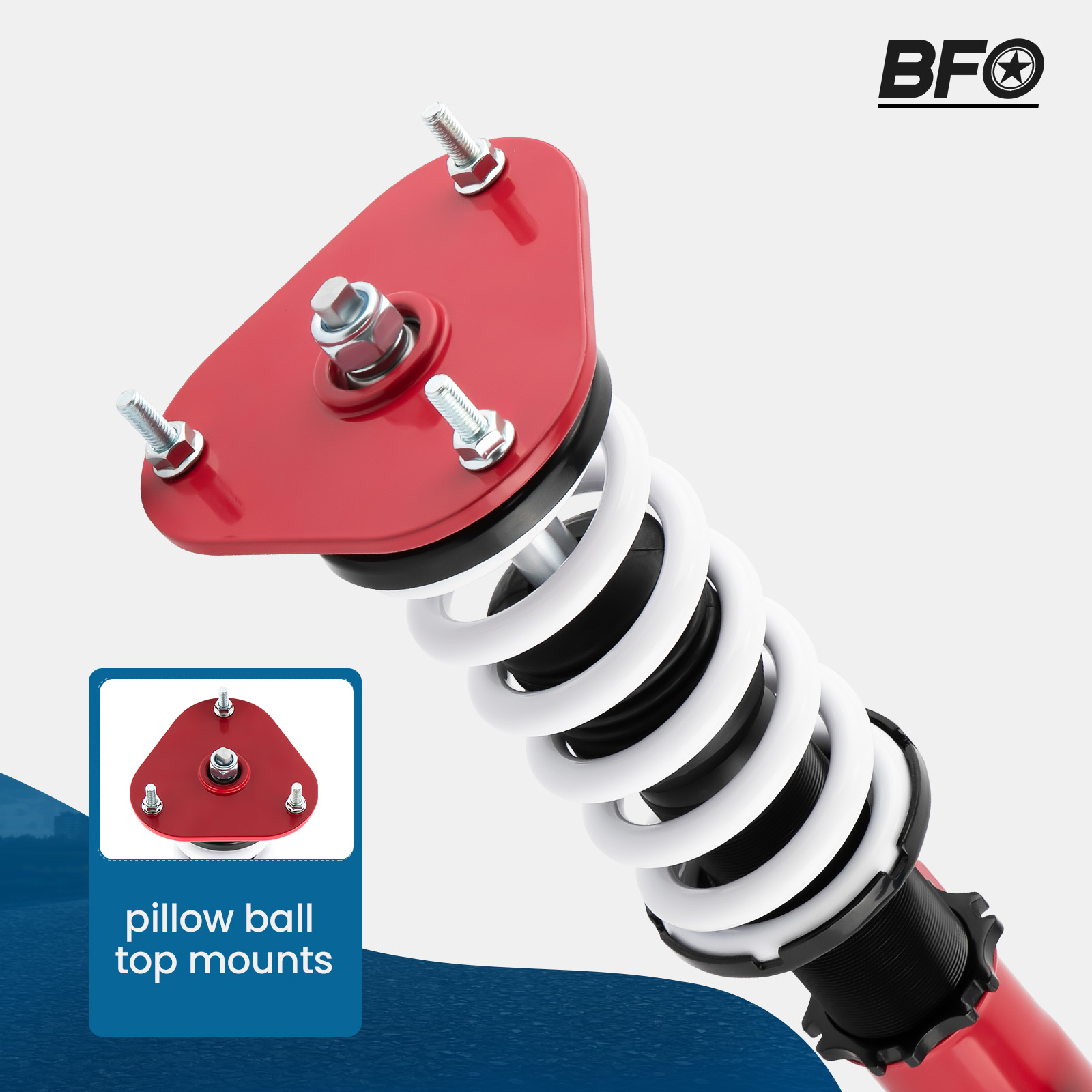

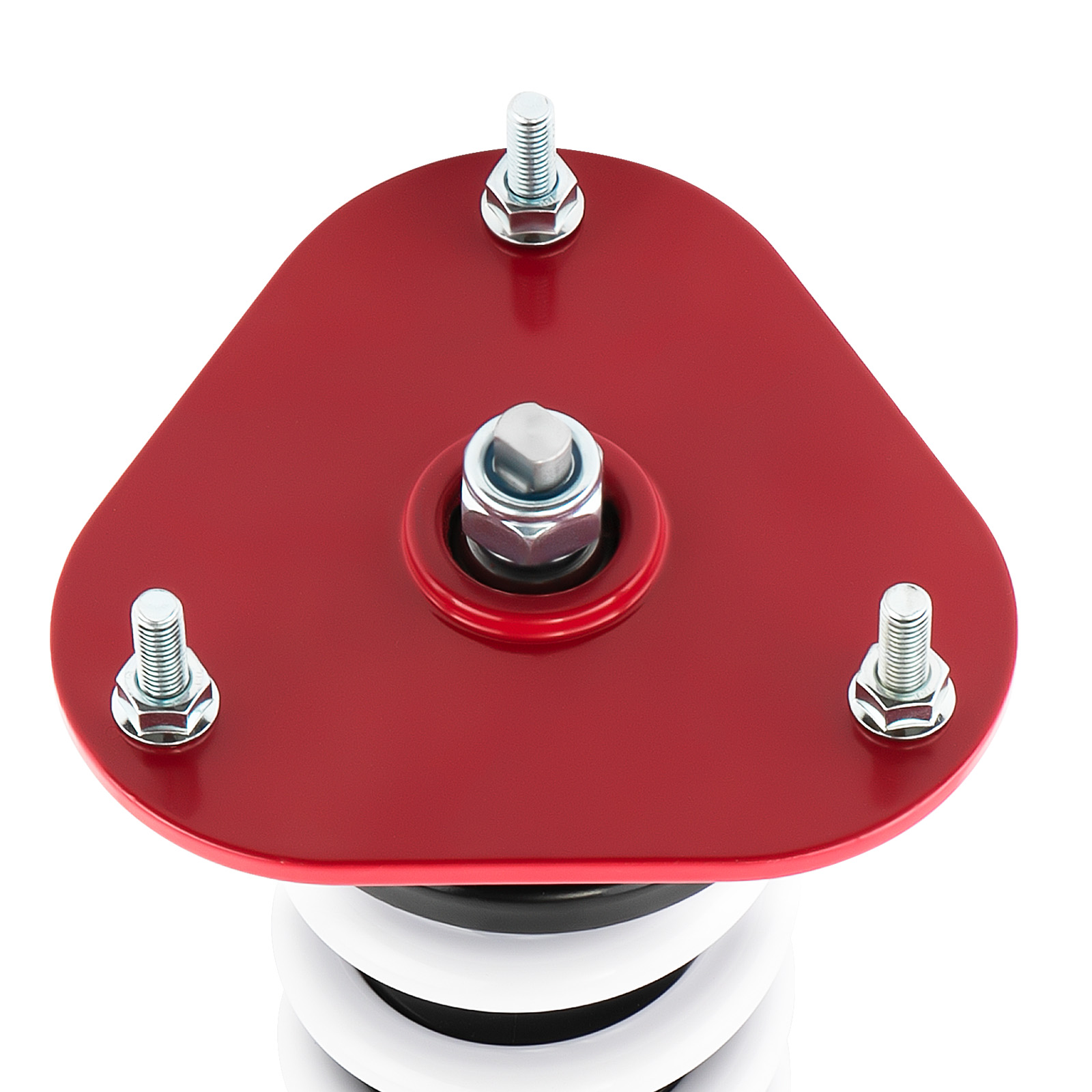

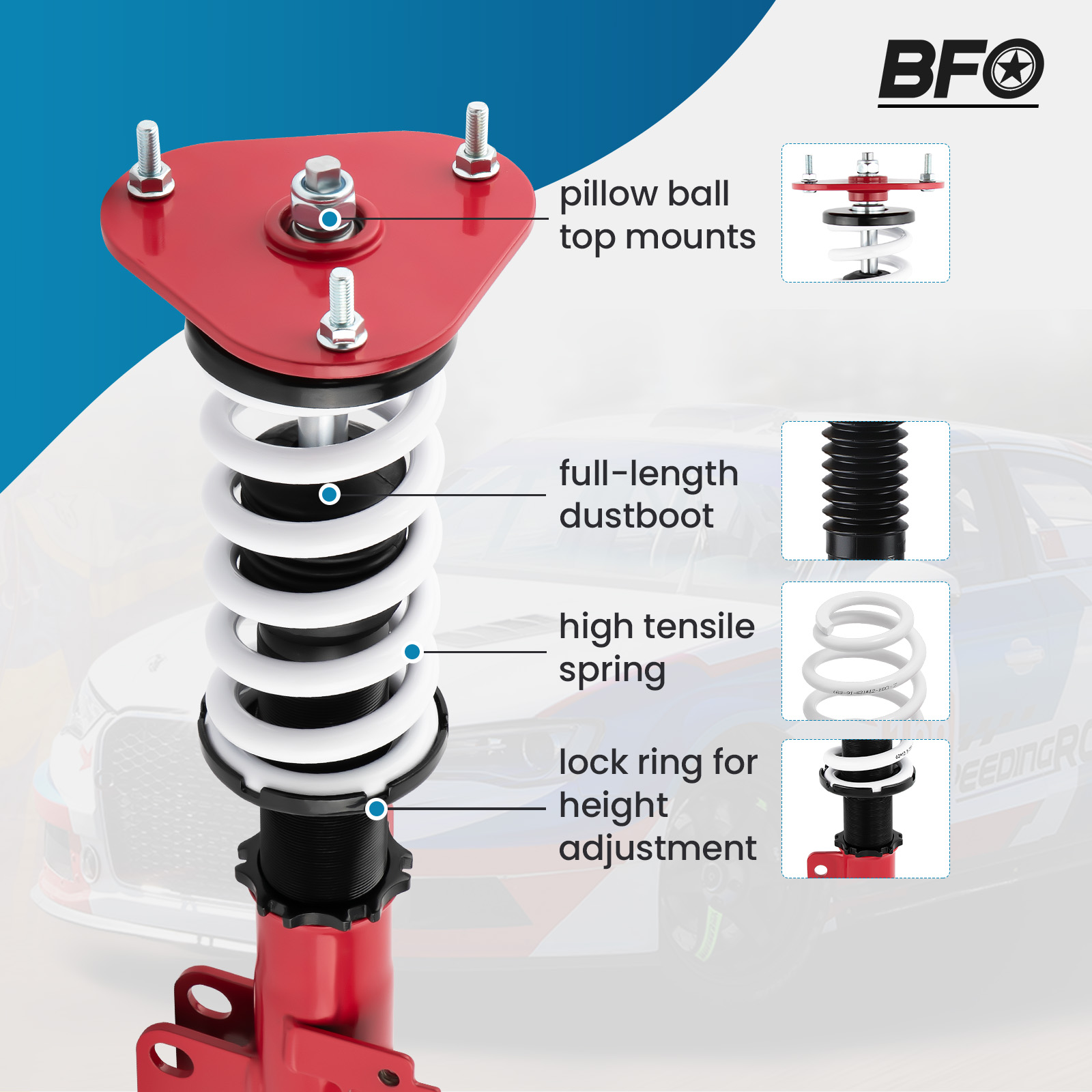

| Top mounts | Pillow ball top for front, standard rubber top mount for rear | |
| Spring rate front | 10 kg/mm (560 lbs/in) | |
| Spring rate rear | 6 kg/mm (336 lbs/in) | |

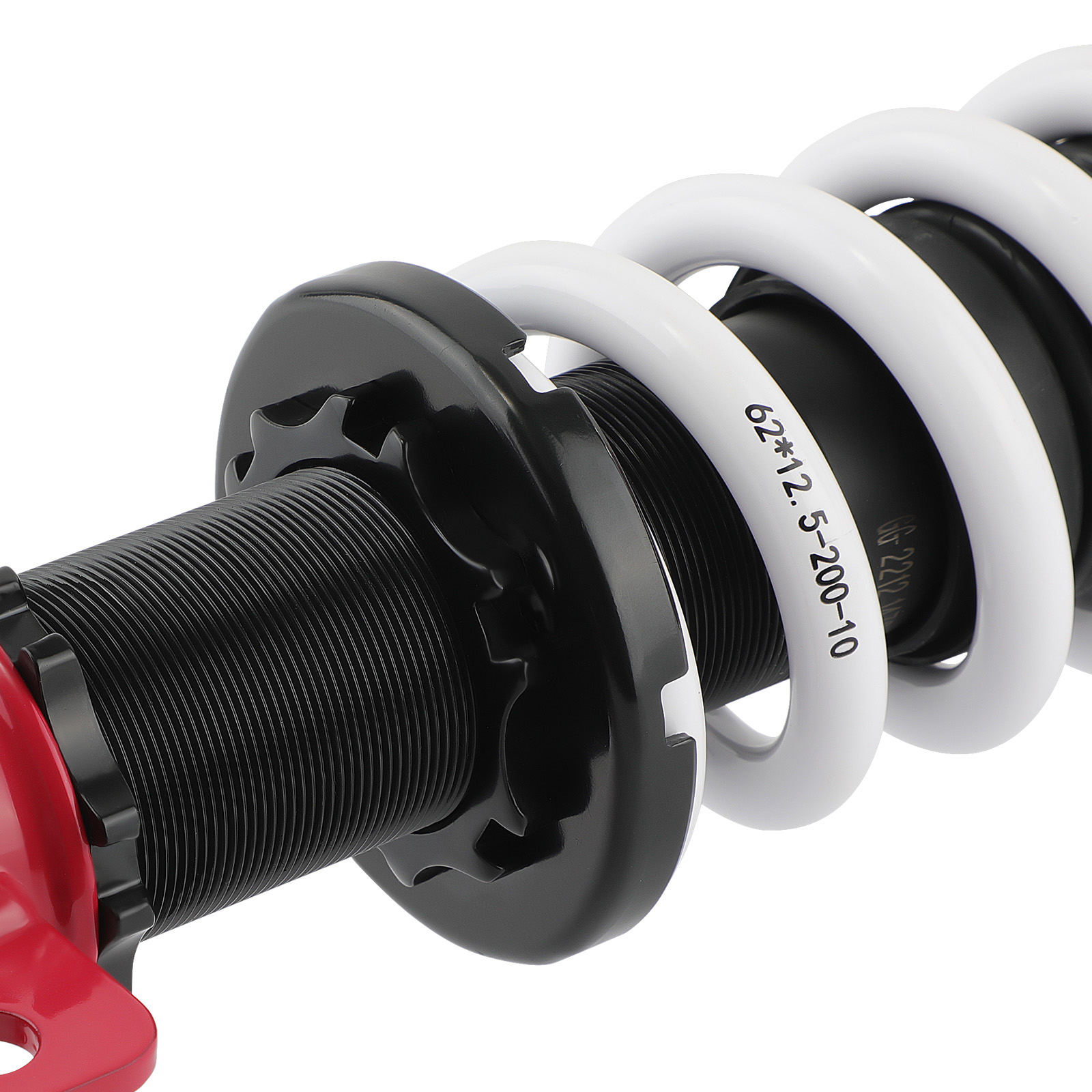

| Spring length front | 200mm | |
| Spring length rear | 160mm | |
| Coilover overall length front | 360mm-455mm | |
| Coilover overall length rear | 313mm-370mm | |
| Shock type | Twin tube | |
| Spring preload | 7-10 mm | |

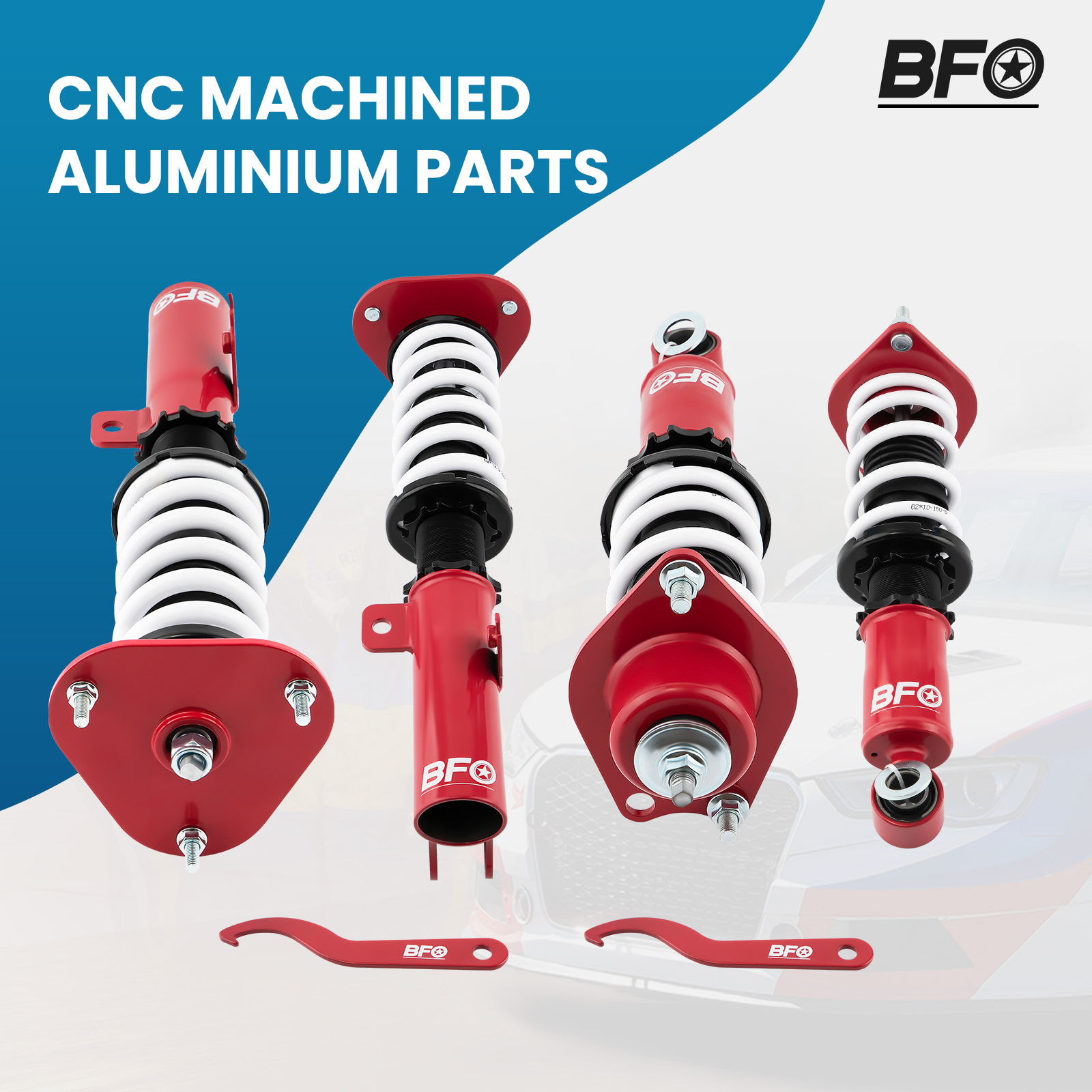

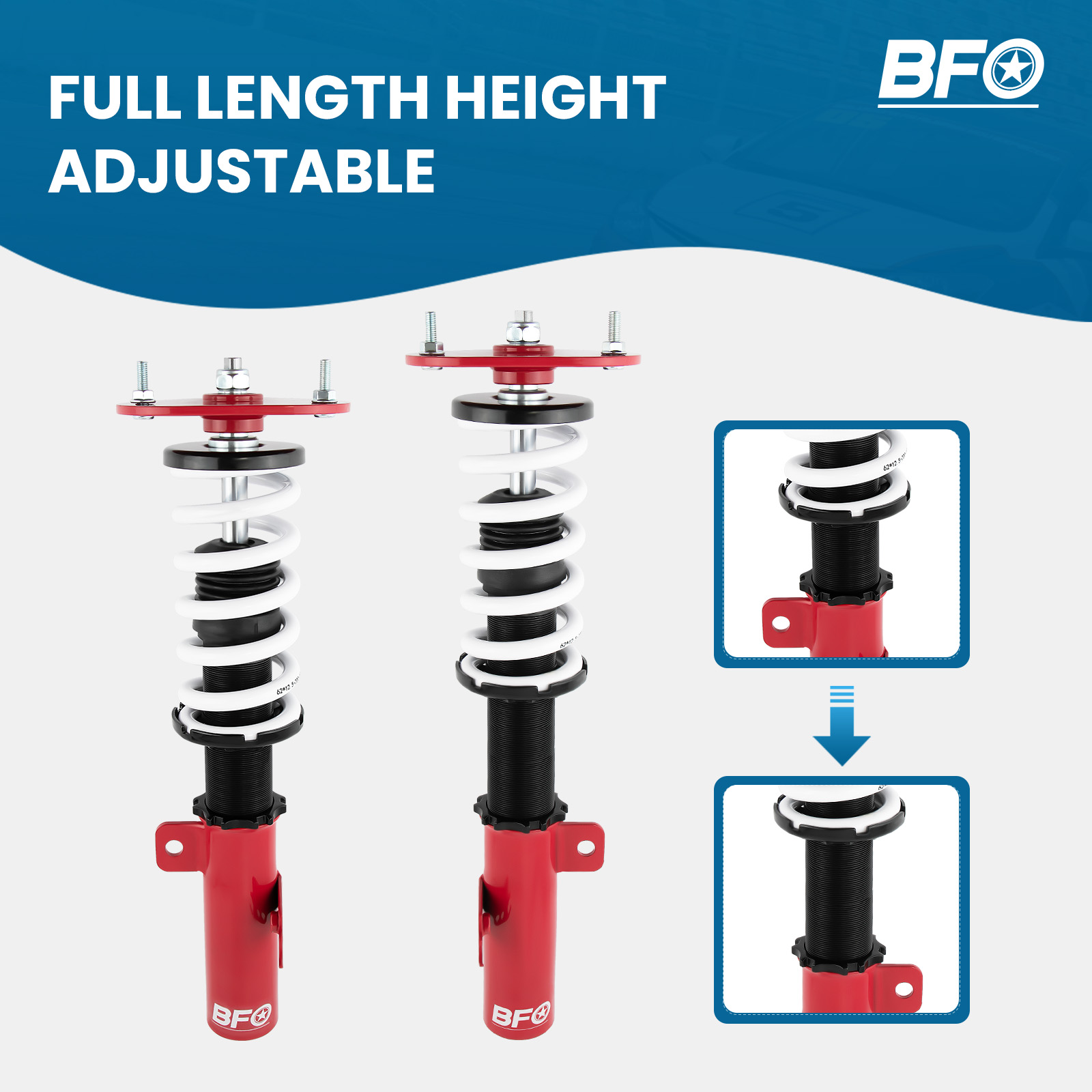

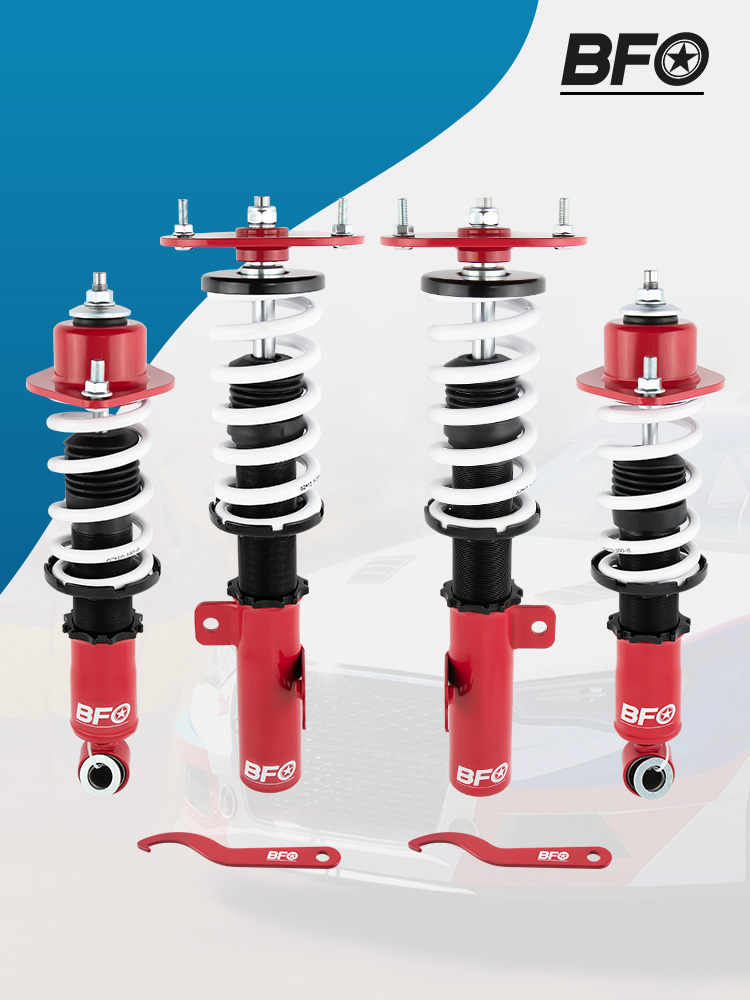

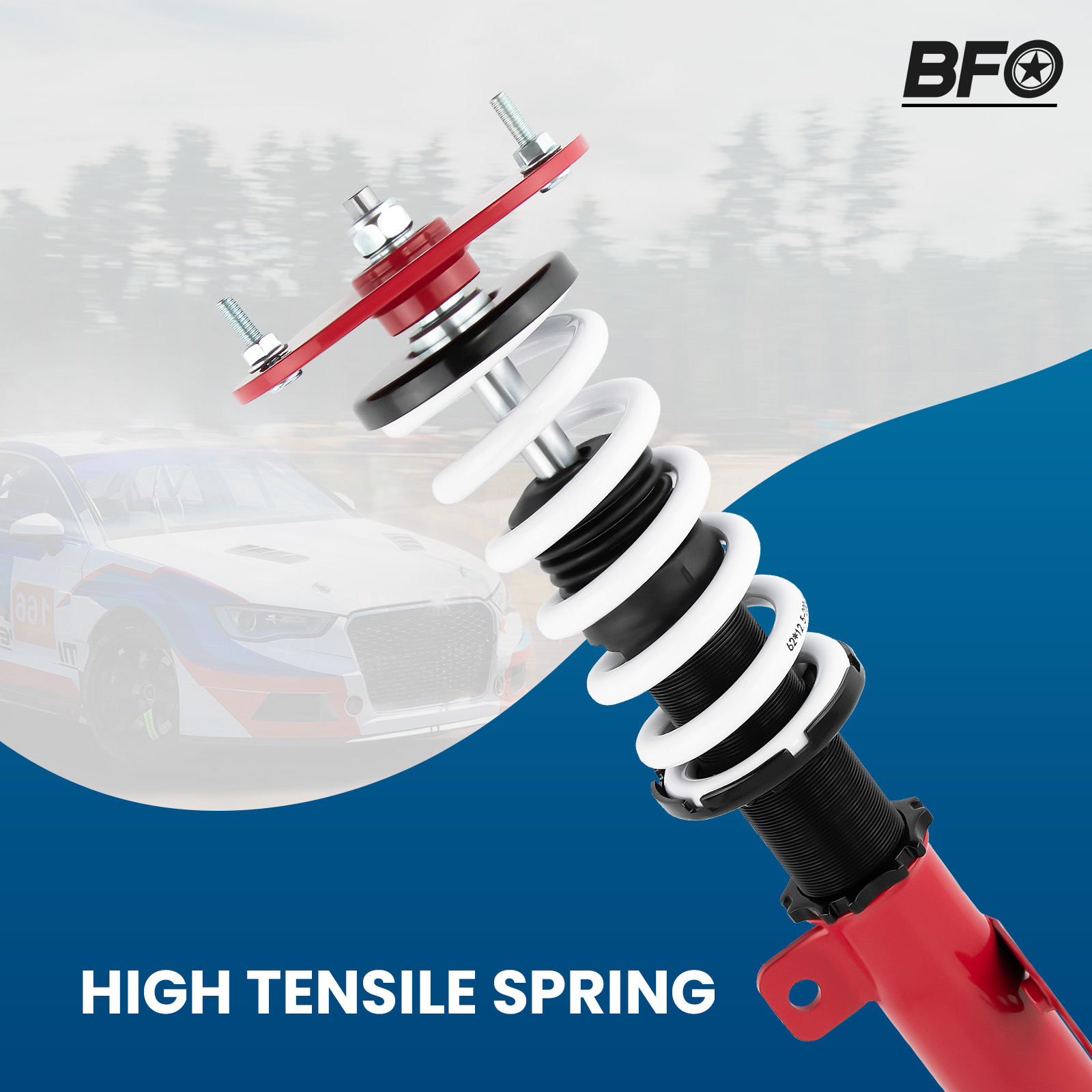

Features: 100% Brand New, Never Used or Installed | * Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance. * Adjustable ride height * Pillow ball top mount -- this design helps combat noise while tuning. It also improves the steering feel and response * Twin-Tube structure allows sufficient stroke within the shock absorber. * Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation. * Most components are made from 6061 aluminum with T6 for increased hardness -- the advantages include excellent strength, and aluminum helps keep the weight down. * Hi Tensile performance spring - Under 600,000 times continuously test, the spring distortion is less than 0.04%. Plus, the special surface treatment is to improve the durability and performance. * All inserts come with fitted rubber boots to protect the damper and keep clean. * A fast and affordable way to easily upgrade your car's appearance. * Easy installation with right tools. | |
