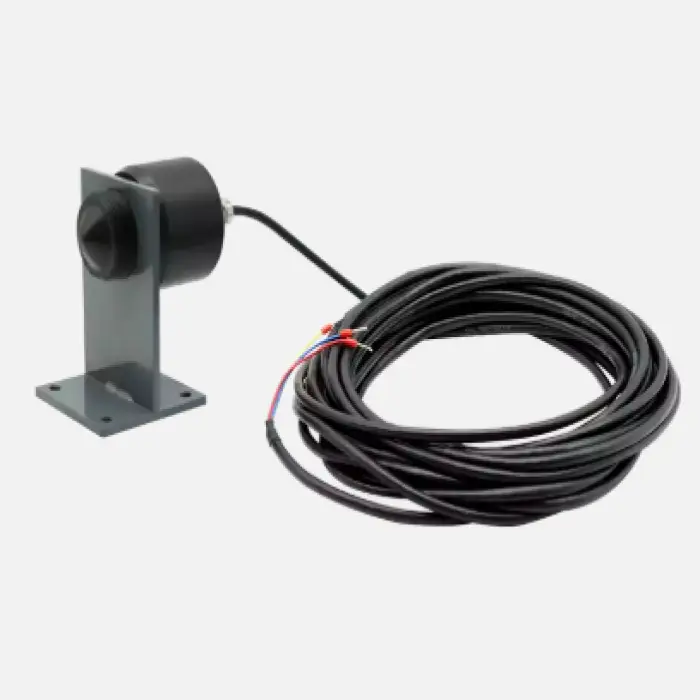

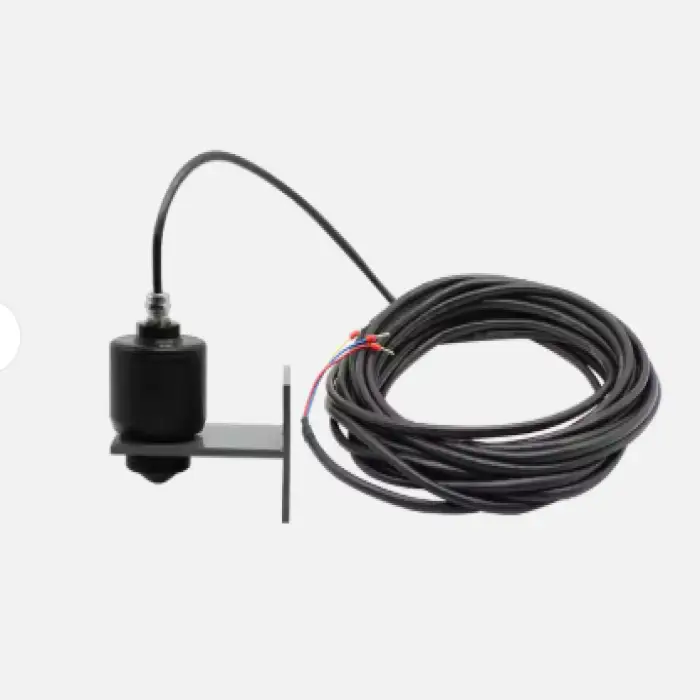

65m Range High Frequency Radar Level Transmitter Wave Radar Solid Level Sensor Guided Radar Signal Level Meter
- Section : Consumer Electronics
- Category : Measuring & Gauging Tools
- SKU : 1601077610034
QTRWL series radar water level transmitter is based on frequency modulated continuous wave (FMCW) operating at 76-81GHz. The maximum range of the product can reach 65m, and the blind zone is within 10 cm. it's non contact level measurement with high accuracy. Because of its higher operating frequency, larger bandwidth, and higher measurement accuracy. The product provides a bracket fixing method, which makes installation convenient and easy.
Millimeter wave radio frequency chip, to achieve more compact radio frequency architecture, higher signal-to-noise ratio, smaller blind area.
5GHz working bandwidth enables the product to have higher measurement resolution and measurement accuracy.
The antenna beam angle is 6°, the interference in the installation environment will have less impact on the instrument, and the installation is more convenient.
Integrated lens design, compact size.
Display controller and water level gauge adopt separate design and can be customized.
Low power consumption operation. Support Bluetooth debugging of mobile phone.
Enter the finished product warehouse and wait for transportation
| Model | Suitable for Medium | Measuring Range (meters) | Temper- ature | Connection | Process Pressure | Measure- ment Precision | Other | ||
| 901 | All kinds of corrosive liquid | 10 | -40℃ ~ 120℃ | Flange(optional)/ Thread | -0.1 ~ 0.3 MPa | ±5mm | Explosion-proof Grade: Exia IIC T6 Ga Frequency :26 GHz The signal Output:(4 ~ 20) mA/HART (Two wire/Four)RS485/Modbus The Scene Display:4- digital LCD Shell :Aluminum | ||
| 902 | Liquid | 30 | -40℃ ~ 150℃ | Flange (optional) / Thread | -0.1 ~ 4.0 MPa | ±3mm | |||
| 903 | Solid material,Strong dust | 70 | -40℃ ~ 250℃ | Universal Flange | -0.1 ~ 0.1MPa | ±15mm | |||
| 904 | Solid material,Strong dust | 70 | -40℃ ~ 250℃ | Universal Flange | -0.1 ~ 0.1MPa | ±15mm | |||
| 905 | Solid particles,Powder | 30 | -40℃ ~ 250℃ | Thread, Flange | -0.1 ~ 4.0MPa | ±10mm | |||
| 906 | Hygienic liquid storage,corrosive container | 20 | -40℃ ~ 150℃ | Flange | -0.1 ~ 0.1MPa | ±3mm | |||
