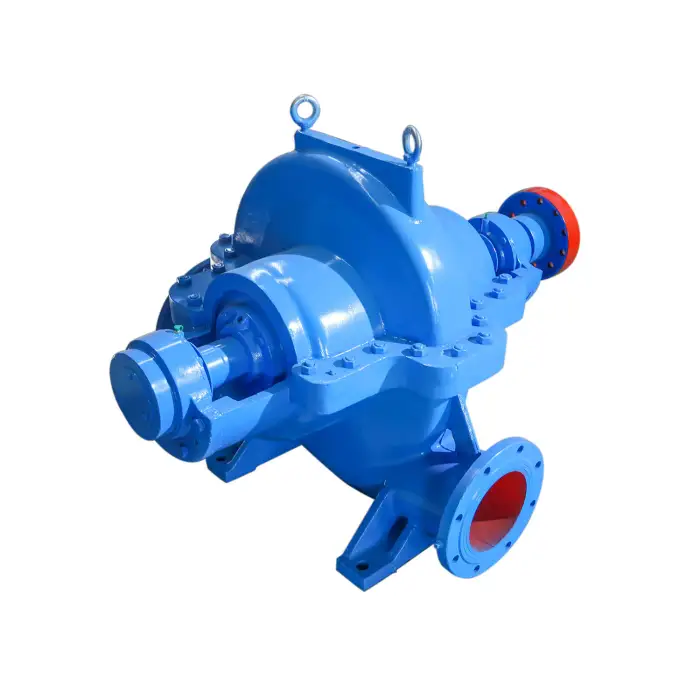

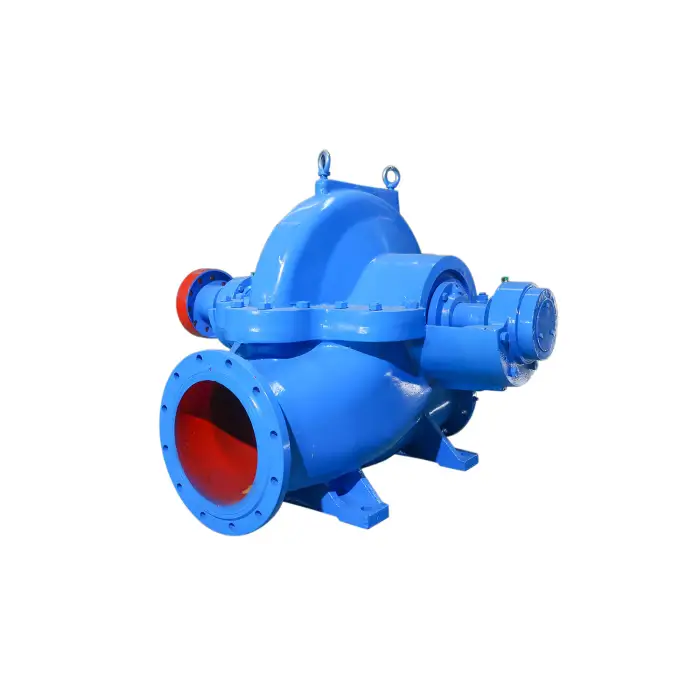

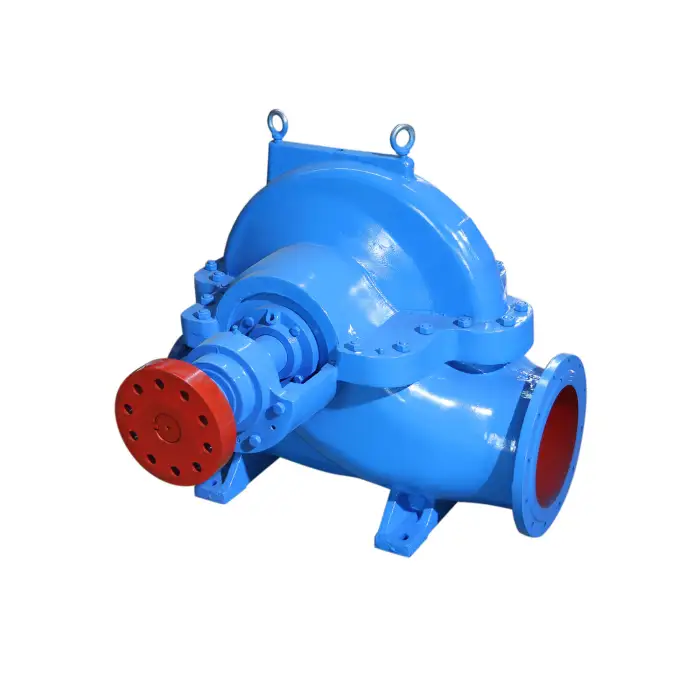

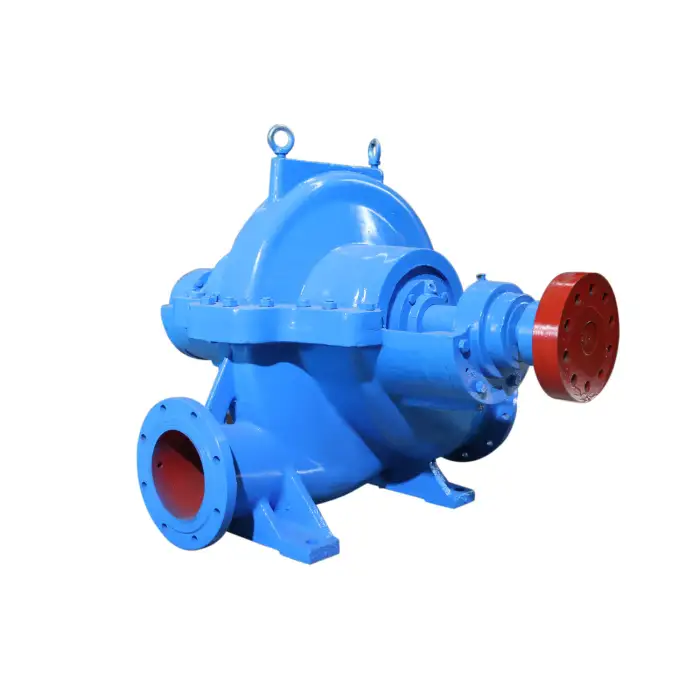

576m3/h Flow 65m Head 200kw Split case Double Suction Pump for Farmland Irrigation

Key specifications: flow 576 m3/h, head 65 m, motor power 200 kW (≈270 hp), voltage 380 V, speed 1450 r/min, efficiency ~80%, max liquid temperature 80°C, inlet 300 mm, outlet 200 mm, cast iron construction, shaft seal options: soft packing or mechanical seal.

The pump is designed for clean water, dirty water, wastewater, sewage and saltwater, and can handle hot water up to 80°C. For highly abrasive, highly corrosive or very viscous fluids, material upgrades or special coatings may be required.

Yes. With a high flow rate (576 m3/h) and 65 m head, it is suitable for large-scale farmland irrigation, greenhouse systems and other agricultural water management tasks.

This is a horizontal split case double-suction pump and is not self-priming. It performs best with flooded suction (positive inlet pressure). If suction lift is required, a foot valve and priming arrangement or auxiliary priming system must be provided.

The pump can handle dirty water and sewage, but solids handling capacity depends on impeller design and clearances. For heavy solids or high debris load, specify a solids-handling impeller or use pre-screening/strainers to protect the pump.

Standard cast iron construction is acceptable for limited saltwater exposure but will corrode over time. For continuous saltwater service, request corrosion-resistant materials (e.g., stainless steel, duplex or protective coatings) when ordering.

Two shaft seal options: soft packing and mechanical seal. Soft packing is simple and economical but requires more maintenance; mechanical seals provide better leak control and lower maintenance for higher-pressure or cleaner-service applications.

Standard motor is 200 kW at 380 V three-phase and 1450 rpm. Other voltages, motor enclosures and ratings can be supplied on request. Cable length is made to customer requirements.

Yes. A VFD is commonly used for flow control, soft starting and energy saving. Ensure the motor and pump are sized for the intended operating range and install proper protections (e.g., anti-cavitation, minimum speed limits).

Nominal efficiency is about 80% at best efficiency point. To optimize energy use, operate the pump near its BEP (best efficiency point), use VFDs for off-design conditions, minimize system head losses and ensure piping and valves are correctly sized.

Important items: solid concrete foundation, correct shaft alignment and coupling, proper piping support to avoid strain on pump flanges, provision for suction priming/flooding, adequate access for maintenance, and correct rotation during commissioning.

Routine maintenance includes checking and topping up lubrication for bearings, inspecting mechanical seals/packing, monitoring vibration and temperature, checking coupling alignment, cleaning strainers/screens and inspecting impeller clearances. Frequency depends on service conditions—typically monthly visual checks and scheduled servicing every 6–12 months.

Split case double suction pumps are generally stable and lower-vibration when correctly installed and aligned. Actual noise and vibration depend on installation, foundation and operating point. Excessive noise or vibration usually indicates misalignment, cavitation or bearing/wear issues and should be inspected.

Yes. Spare parts (impellers, seals, bearings, wear rings, gaskets) and technical support are available. It is recommended to keep critical spares on hand for fast field repairs—contact the supplier for recommended spares list.

Warranty terms and customization (materials, impeller type, motor/VFD options, cable length, accessories) vary by supplier. Contact the manufacturer or distributor to discuss warranty length, service packages and any required modifications for your application.
