Product Description



Part 1: Machine DetailsQty

Classic Design Single Girder Gantry Crane

Lift capacity: 20.0 t

Span: 10.0 m

Cantilever: 0 m

Lift height: 10.0 m

Lift speed: 3.5 m/min (single speed)

Cross traverse: 20 m/min (single speed)

Long travel: 20 m/min (single speed)

Work duty: A4 / M4

Input power: 380V/ 50HZ/ 3P

Control: wireless remote control

Condition: 100% new











01

set

Cable Drum

Model: JTD125-100-4/D

01 set

Power Cable

Model: 3* 25 mm2

Length: 20m + 10m spare= 30 m



30 m

Long Travel Rail (with enough accessories)

Model:P30 .

Length 20 m* 2 = 40 m



40

m

Part 2: Safety Device
  1. Emergency Stop in Control Panel
  2. Phase and Terminal Protection Relays
  3. Limit Switches for Lifting
  4. Limit Switch for travel
  5. Warning System with Horn and Light

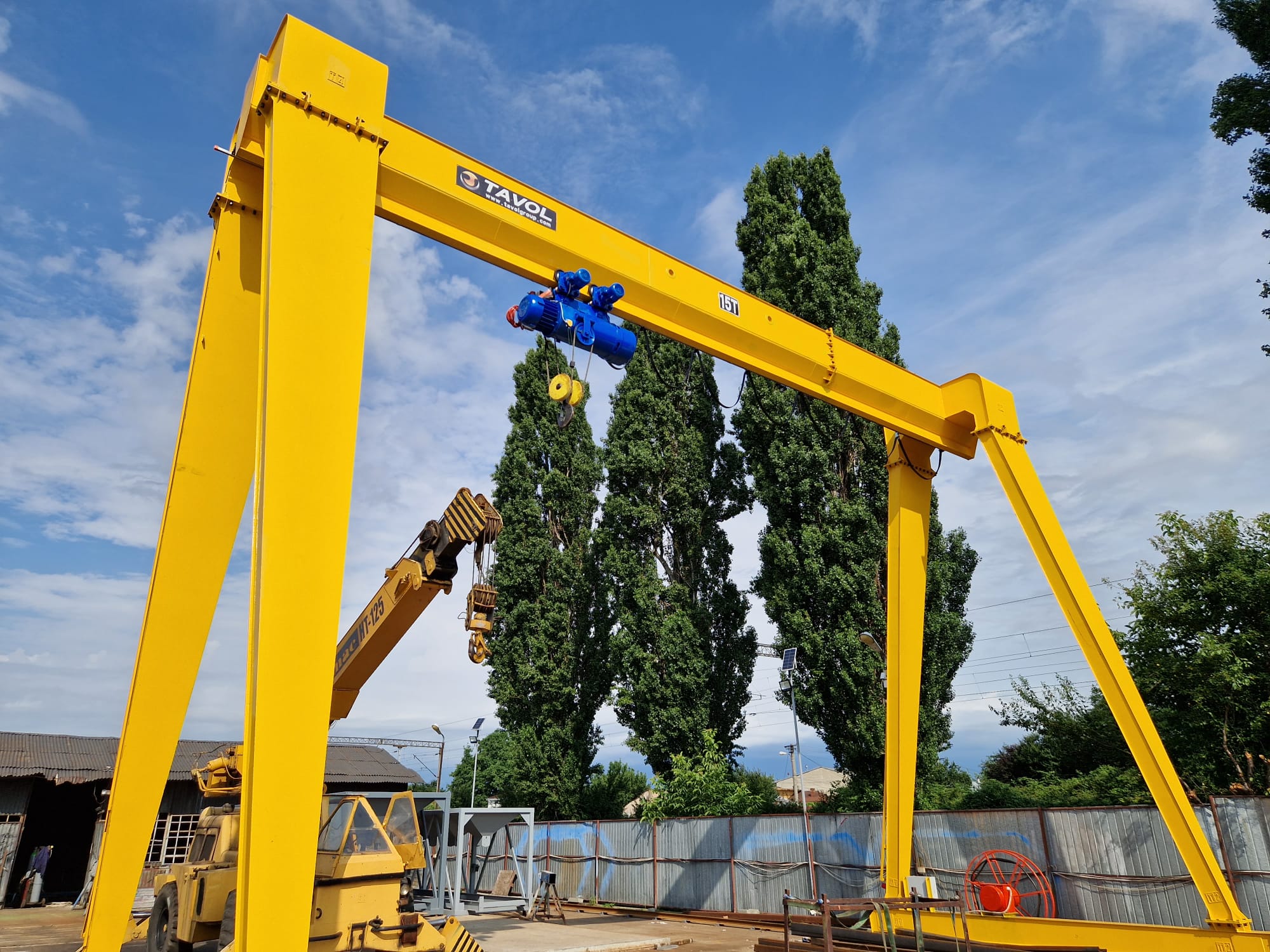

Part 3:Reference Picture

QQ图片20190823145926







Part 4 : Advantage



  1. Using the carbon dioxide arc welding+ argon welding, the welding quality is good and steady.
  2. All the steal structure raw material uses the Q345/Q235 Mn steel.
  3. The design of and maintenance are more humanized .
  4. The painting uses the sand blast technique ,it will conform the surface of the steel clean, improve the painting adhesive force .



Part 5: Steel & Mechanism Parameters



General Parameters

Crane typeUniversal Design Single Girder Gantry Crane
Lifting capacity20.0 t
Span10.0 m
Cantilever0 m
Lift height / hook height10.0 m
Work dutyISO, A4 / M4
Control typewireless remote control + pendant button
/With CE certificate
Condition100% new



Electric System

Power supply380V /50HZ /3P





Electric box

  1. It adopts Schneider brand contactors.
  2. With features such as phase defect, misplacement, overload and motor overheat protection.
  3. The internal line number is clearly and orderly for easy inspection and maintenance



Current-collector bracket

The base is welded at end beam when fabricate.

It needs to be bolted only at site, makes installation easier and saves time on-site when installation.



Hoist power cable

It adopts flat cable on C-type steel with pulley, makes the main beam more clean , hoist working smoother, convenient

for subsequent repair and replacement



Lifting System

Lift speed3.5 m/min (single speed)
 lift motorZD52-4-18.5 kw
Protection classIP44















 Hoist

Brands: Tavol, China
  1. The drum with high-precision, high-sensitivity and high-reliability convex wheel rotation limit switch.
  2. At the same time, the upper limit of the guide rope is added, achieve the lower limit single limit,

Upper limit double limit, double protection, avoid punching the top.

Rope guide: The raw material is high-strength engineering plastic particles. Through mold pressing, good toughness, high strength, good wear resistance, self-weight light, reduce the wear of wire rope



Wire rope

  1. High-end brand wire rope with high pull strength,

larger breaking pull force, higher safety factor.

  1. High lift height select the wire rope that does not rotate, to

avoid stranding wire ropes together.



Cross Traverse System

Cross traverse speed 20 m/min (single speed)
Cross traverse motorZDY21-4-0.8 kw *4
Protection classIP44
Hoist power cable

It adopts flat cable on C-type steel with pulley, makes the main beam more clean , hoist working smoother, convenient

for subsequent repair and replacement



Long Travel System

Long travel speed20 m/min (single speed)
Protection classIP54
Long travel motorYSEW100LZ-2.2Kw *2 pcs
WheelΦ400 *4

The wheels are all heat-treated.

The appearance is coated with rust-proof oil, which increases the aesthetics.



Test Load

Static - 25%Q X 1.25 kg
Dynamic - 10%Q X 1.10 kg



Surface Treatment



All the parts will be painted 3 times , one time finishing coat and two times primer.



We use modern large-scale gantry through-blast production equipment.

It removes surface rust and solder slag with iron sand, increasing the adhesion performance of the paint
