10MW 30MW 50MW Solar Panel Production Line

The 10MW 30MW 50MW Solar Panel Production Line is a high-capacity, industrial-grade system designed for large-scale solar energy production. With varying load capacities from 5MW to 60MW, this production line is perfect for businesses aiming to meet growing demands for solar energy solutions. The fully automated system is designed to produce high-quality solar panels efficiently and is backed by expert support throughout the installation process.

Key Features:

• High Production Capacity: The production line supports capacities of 5MW, 10MW, 30MW, 50MW, and 60MW, making it ideal for industrial-scale solar panel manufacturing operations.
• Free Installation Service: The package includes free installation services, ensuring that the setup process is smooth and hassle-free for the user.
• Comprehensive Design Services: Pre-sales project design support is provided, allowing customers to receive tailored solutions based on their specific production needs.
• Durable and Efficient: The line operates 24 hours a day, ensuring high output and efficiency. With a stable output voltage of 220V or 380V (50~60Hz), it offers consistent performance.
• Advanced Battery Technology: The system utilizes lead-acid batteries, known for their reliability in energy storage and extended cycle life.
• Ground Mounting System: The system is designed for ground mounting, offering flexibility in installation and space utilization.
• Space Efficiency: The line requires a minimum space of 3000 square meters, ensuring optimal space utilization for large-scale production facilities.
• Temperature Control: The production environment is optimized for temperatures of 25℃ ± 2℃, ensuring the best conditions for the manufacturing process.
• High-Quality Raw Material Processing: A raw material warehouse is needed to store materials, while purification plants (2 required) ensure high-quality output.
• Powerful Electrical System: The system operates on 400V, 3P+N+G electrical power, with compressed air requirements of 6bar-700NL/1' to maintain operational efficiency.
• Continuous Operation: Designed for continuous, high-demand production, this solar panel production line is capable of meeting large-scale industrial needs.

The 10MW 30MW 50MW Solar Panel Production Line is the ideal solution for manufacturers looking to scale their solar panel production capabilities and meet the increasing demand for solar energy systems. With comprehensive services, high-quality components, and support throughout the setup and operation phases, this production line is an essential asset for the solar energy industry.

Product Info Gallery

Turn-key Solution for The Solar Panel Production Line

Sunic Intelligent can provide solar production special equipment and solar panel production line turn-key solution.We can make different plant layout, plant design, different capacity and different automation level production line according to customer's different request.

Project planning, providing full line equipment, process technical support.

Structure of Solar Panel Production Line

The whole system structure diagram is divided into two parts: the centralized management system and the operation center of the PV production line.

The centralized management system of PV production line includes the transmission system, the control system (configuration software +PLC) and the video acquisition system, which can monitor and control the operation of the production line equipment, and provide the system operation and video data for the operation center.

The operation center is made of remote operation system and maintenance platform system, firewall, IO server, data record server, message server, HMI/WEB workstation, engineer station and hardware maintenance station, etc.Complete the collection, record and display of the data of photovoltaic production line scattered all over the country, the collection and display of video data, data analysis, alarm and event message display, storage, view, WEB release, mobile device monitoring service and so on, so as to realize the remote operation and maintenance of the PV production line.

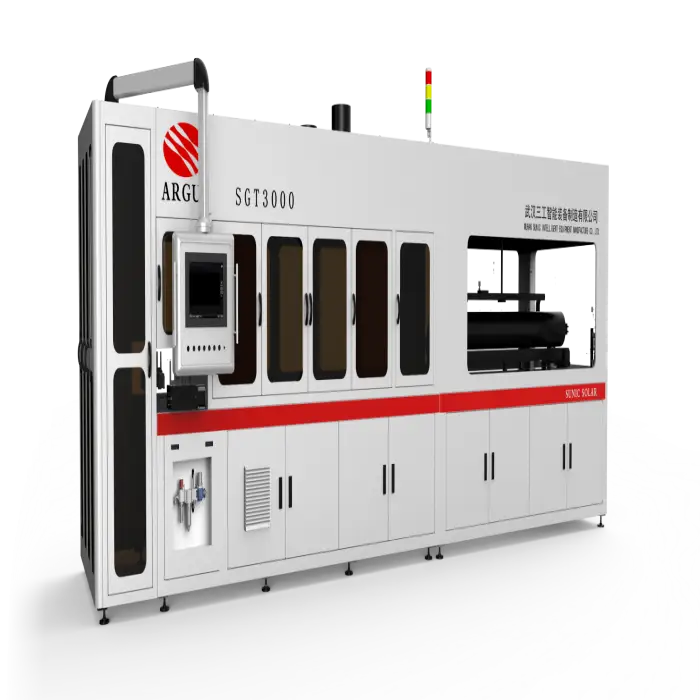

Super High Speed Cell to Plate Soldering System

1 Glass Loading
2 Bypass diode connection line cutter
3 EVA Cutting
4 Scribing Machine
5 Soldering
6 Lay&up
7 Longitudinal EL Tester
8 Front Repairing
9 Flipping
10 Bussing
11 EVA 2 Cutting
12 Back Sheet Cutting
13 Glass Loading 2
14 EL Tester
15 Repairing 2
16 Laminating
17 Edge Trimming
18 Inspection After Laminating
19 Framing
20 J-box Installation
21 Curving
22 Cleaning
23 IV,Insulation Tester
24 EL, Visual Inspection
25 Module Sorting
