1000BPH Carbonated Soda Drink Production Line

The 1000BPH Carbonated Soda Drink Production Line is an advanced solution for bottling carbonated beverages like cola and other fizzy drinks. This production line features an automatic 3-in-1 filling machine that combines cleaning, filling, and capping in one streamlined process. Built with high-quality materials and precision engineering, it offers reliability and efficiency for your beverage manufacturing needs.

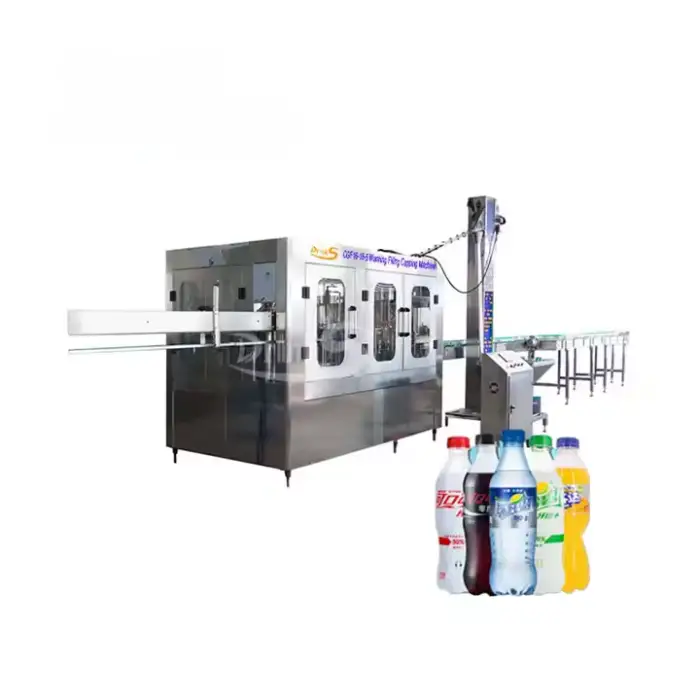

Automatic 3in 1 filling machine

This machine adopts the principle of equal pressure filling and integrates the three functions of cleaning, filling and capping. The whole process is automated. It is suitable for PET bottled cola, carbonated drinks, etc. It is made of high-quality SUS304, and the key components are precision processed with CNC tools. The whole machine adopts advanced photoelectric detection technology to detect the running status of each part, no bottle no filling, no bottle no capping, automatic operation and simple operation.

Key Features:

With bottle neck clipping transmission structure, the bottle conveyance is stable; very convenient and swift to use different bottles for filling in the same machine by adjusting the height of conveyor and several exchanging parts.

Adopt equal pressure filling principle, fast filling speed and high precision;

With spring type washing clipper, empty bottles are turned 180°along the guiding roll for inside rinsing; the washing nozzle adopts plum blossom shape multiple holes to rinse the bottle bottom, washing efficiency is high.

Capping machine is by magnet torque; the cap catching adopts twice catching to ensure the veracity. The capping force is adjustable, constant torque capping will not damage caps and the cap is good sealed and reliable.

Rotating type cap unscrambler adopts air unscrambling, with functions of cap surface damage-resistance, alarm if lack of cap, auto cap feeding etc.

The whole machine is operated by touch screen, controlled by PLC and frequency convertor etc., with functions of no bottle no cap feeding, waiting when lack of bottles, stopping if bottle is blocked or no cap in cap guiding pipe.

Specifications:

Dryer system

The dryer uses the large amount of air generated by the blower to blow off or blow dry the water bead outside the can body to achieve the effect of drying, so as to prepare for the next step of coding , labeling, labeling and other packaging. The overall structure of the air knife dryer is reasonable and simple, and the operation is simple. At the same time, the drying principle is wind, not high temperature, which is an ideal choice for small drying equipment. The air knife dryer is mainly composed of 5.5Kw scroll blowers, stainless steel and glass frames and air knives. The double-row small air knife is used, and the air knife can be adjusted freely from top to bottom and left and right, which fully guarantees the drying effect, and has strong applicability to bottles of different diameters.

Working principle:

After starting the high-pressure vortex air pump, when the can passes through the air knife blow dryer on the bottle conveying line, the high-pressure airflow blown by the vortex air pump forms a linear high-pressure hot air belt under the action of the air knife, and the high-pressure vortex air pump During operation, it generates heat itself, and the water droplets outside the can body are blown off from top to bottom.

Specifications:

Stainless shrink sleeve steam tunnel

The new steam shrinking furnace is suitable for different and irregular round bottles, square bottles, flat bottles, etc. It is easy to adjust and maintain, shrink and flat, and the steam spray method adopts seamless steel pipe design. The spray outlet is divided into three sections, each The height of the segment, the front and back and the out gas volume can be adjusted separately to achieve the perfect contraction effect. The whole casing is made of stainless steel and insulated to save energy and meet international safety standards. Condensed water in the bottom stainless steel water tray. The whole machine adopts waterproof design, which is convenient for operation and maintenance.

Specifications:

Steam generator

The electric steam generator is mainly composed of a water supply system, an automatic control system, a furnace and a heating system, and a safety protection system. Its basic working principles: through an automatic control device to ensure that the liquid controller or high, medium and low electrode probes feedback control the opening and closing of the water pump during operation, the length of water supply, and the heating time of the furnace; The maximum steam pressure is set, and the water level of the furnace is continuously decreased with the continuous output of steam. When it is in the low water level (mechanical type) and the middle water level (electronic type),the water pump automatically replenishes the water. When the water level reaches the high water level ,the water pump stops the water supply; At the same time, the electric heating tube in the furnace continues to heat, and the source continuously generates steam. The pointer pressure gauge on the panel or the top immediately displays the steam pressure value, and the whole process can be automatically displayed by the indicator light.

Laser coding machine

This machine have marking accuracy is high, the speed is fast, and the engraving depth can be controlled. With high laser power, it is suitable for engraving and cutting a variety of non-metal products. No consumables, low processing cost-the laser operating life can reach 20000-30000hours.Clear marking, not easy to wear, high efficiency of engraving and cutting.

Specifications:

Semi-automatic PE film packing machine

The shrink packaging machine is suitable for large-volume automatic shrink packaging of cans, glass bottles, bottles of wine, mineral water, etc. The large shrink packaging can also be completely shrunk in a short time. After packaging, the shape is neat, compact, easy to palletize, guarantee the quality of the product and the need for long-distance transportation. It is suitable for various shrink packaging such as PE, PVC and POF. material. The upper and lower side seals are equipped with stainless steel electric heating tubes, which have fast heating speed and long service life. The upper and lower air transport system and the super large air volume cooling system are designed to quickly cool and shape the product after heat shrinkage, ensuring a perfect packaging.

Manually fold the tray and place the bottle in the tray

Specifications:
