The 1000KG/Hr Frozen French Fry Production Line is a fully automatic system that turns fresh potatoes into ready-to-cook frozen French fries. It is designed for large food factories that need continuous output, with a verified input capacity of 1,500 kg/hour, finished product capacity of 1,000 kg/hour, and electricity as the heating resource.
At a glance
Best suited to: Large food processing factories producing frozen French fries at industrial scale
Input material: Fresh potatoes at 1,500 kg/hour
Final product: Ready-to-cook frozen French fries at 1,000 kg/hour
Heating resource: Electricity
Primary material: Stainless Steel 304
Total installed power: 1101.22 kW
What is 1000KG/Hr Frozen French Fry Production Line?
The 1000KG/Hr Frozen French Fry Production Line is an automatic food processing line that receives fresh potatoes and carries them through cleaning, peeling, cutting, washing, blanching, drying, frying, freezing and packing. Its purpose is to produce frozen French fries for commercial distribution and cold-chain sale.
It does not grow, grade or store raw potatoes before processing. It also does not form fries from potato powder or flakes; this line is specifically described for processing fresh potatoes into cut fries.
The published line description shows a complete automatic system with impurity removal, cutting, thermal processing, freezing and packing stages. Verified construction details include Stainless Steel 304 as the primary material, Japanese 440C steel for the cutting blade material, and PVC for the picking line belt material. The product information describes the line as working automatically from start to finish, but it does not name a PLC, HMI or other controller model, so buyers should confirm the control architecture and operator interface before ordering.
How does 1000KG/Hr Frozen French Fry Production Line work?
This line works as a continuous sequence of linked machines, moving potatoes from raw intake to packed frozen product.
Cleaning and peeling: Fresh potatoes first pass through the Sinking Stone Elevator, sized at 3500 × 800 × 1600 mm with 2.25 kW power, to remove stones, soil and heavy impurities. They then enter the Screw Peeling and Washing Machine, sized at 3400 × 950 × 1450 mm with 4.37 kW power and 9 peeling rollers, where peeling and washing take place automatically.
Inspection and cutting: After peeling, product passes over the Picking Line, sized at 5000 × 800 × 900 mm with 0.75 kW power, for sorting before transfer by the Water Bucket Elevator, sized at 2500 × 800 × 1600 mm with 1.5 kW power. The French Fries Cutting Machine, sized at 1100 × 800 × 1250 mm with 4 kW power and Japanese 440C steel blades, cuts potatoes into uniform fry strips.
Washing and piece removal: The Sliver Removing Machine, sized at 2400 × 1400 × 1300 mm with 2.2 kW power, removes unwanted extra potato pieces. The Bubble Washing Machine, sized at 6000 × 1200 × 1600 mm with 6 kW power, washes the cut fries and helps remove surface starch before heat treatment.
Blanching, cooling and drying: The fries then enter the Blanching Machine, sized at 7000 × 1800 × 1600 mm with 260 kW power, before moving into the Water Cooling Machine, sized at 5000 × 1200 × 1600 mm with 6 kW power. Moisture reduction follows through the Air Drying Machine at 6000 × 1400 × 1600 mm and 13.5 kW, and the Hot Air Dryer Machine at 6000 × 1400 × 1600 mm and 160 kW.
Frying, freezing and packing: The Continuous Frying Machine, sized at 8000 × 1800 × 2200 mm with 400 kW power, performs continuous frying. Product then enters the Individual Quick Freezing (IQF) Machine, sized at 14800 × 4000 × 4000 mm with 175 kW power, where each fry is frozen separately. The final stage uses the Automatic Weighting Packing Machine, sized at 4800 × 3200 × 4500 mm with 6 kW power, to weigh and pack the frozen fries.
The product description also mentions oil filtration, extra-oil removal with a vibration machine, metal detection, final sorting and box sealing. It separately lists a metal detector size of 2300 × 1200 × 1300 mm and a box sealing machine size of 1770 × 850 × 1500 mm. However, the component-by-component power list does not fully detail all auxiliary machines, so buyers should confirm the complete supplied line configuration, including oil filtration, de-oiling, pre-cooling, metal detection and carton end-of-line equipment, before ordering.
Where is 1000KG/Hr Frozen French Fry Production Line used?
Industrial frozen food plants: This line is designed for large food processing factories that need continuous, high-volume frozen French fry output. The verified 1,000 kg/hour finished capacity supports factories supplying supermarket, distributor and foodservice channels.
Potato value-addition facilities: In potato-growing regions, processors can use the line to convert fresh potatoes into a higher-value frozen product. That matters where buyers want to move beyond raw produce trading into branded or contract-manufactured foods.
Quick-service restaurant supply chains: Businesses supplying restaurant chains, hotels and institutional kitchens need consistent fry dimensions and stable frozen product handling. The line’s integrated cutting, frying and IQF freezing stages are intended to support repeatable downstream preparation.
Contract food manufacturing: Third-party processors often need a complete line rather than separate single machines because throughput planning, labour control and product flow are easier on an integrated system. A line with automatic cleaning, cutting, frying, freezing and packing can fit contract production where volumes justify dedicated potato processing.
Cold-chain ready packaged food operations: Because the system includes automatic weighing and packing after IQF freezing, it suits businesses shipping frozen fries through regional cold chains. This is relevant where frozen convenience foods are expanding in urban retail and hospitality markets.
Agro-processing investment projects: Investors developing agro-processing plants can use this type of line as the core of a potato-processing project. Its staged process makes it suitable for projects that need defined utility planning, production flow design and downstream packaging integration.
Technical specifications
The table below summarises the verified published information for the 1000KG/Hr Frozen French Fry Production Line, Afrimart SKU 1601695479811.
| Specification | Verified value | Buyer note |
|---|---|---|
| Product name | 1000KG/Hr Frozen French Fry Production Line | Use the exact product name when requesting a quotation. |
| Afrimart SKU | 1601695479811 | Useful as a reference for written enquiries and specification matching. |
| Product type | Frozen french fries automatic processing line | Indicates a complete automatic line rather than a single fryer or cutter. |
| Input material | Fresh potatoes | Buyers should confirm suitable potato varieties and incoming quality for the intended fry specification. |
| Input capacity | 1500 kg/hr | This is the raw material feed figure, not the packed frozen output. |
| Output capacity | 1000 kg/h | Treat this as the finished product capacity under the stated line configuration. |
| Heating resource | Electricity | Utility planning should include power availability and tariff impact. |
| Total installed power | 1101.22 kW | Request a load schedule and running-demand profile, as installed power is not the same as simultaneous operating load. |
| Voltage | 380 V | Confirm compatibility with the site electrical system before ordering. |
| Frequency | 50 Hz | Relevant for African markets using 50 Hz supply; confirm if local supply differs. |
| Phase | 3 ph | Three-phase power is required for this published configuration. |
| Primary material | Stainless Steel 304 | Important for food-contact durability and cleaning in wet processing areas. |
| Cutting blade material | Japanese 440C steel | Blade material affects wear resistance and cutting performance. |
| Picking line belt material | PVC | Buyers should confirm food-contact suitability for their internal quality requirements. |
| Sinking Stone Elevator dimensions | 3500 × 800 × 1600 mm | Check receiving-area layout and transfer clearances. |
| Sinking Stone Elevator power | 2.25 kW | Include in upstream utility and cable planning. |
| Screw Peeling and Washing Machine dimensions | 3400 × 950 × 1450 mm | Verify service access around the machine, not just footprint. |
| Screw Peeling and Washing Machine power | 4.37 kW | Electrical demand is modest compared with thermal stages, but still part of line integration. |
| Screw peeling roller quantity | 9 pcs | Roller count helps buyers understand the peeling assembly configuration. |
| Picking Line dimensions | 5000 × 800 × 900 mm | Ensure operator access and inspection space along the line. |
| Picking Line power | 0.75 kW | Low drive power; labour planning remains important at this stage. |
| Water Bucket Elevator dimensions | 2500 × 800 × 1600 mm | Confirm transfer heights against adjacent machines. |
| Water Bucket Elevator power | 1.5 kW | Include in motor control and protection planning. |
| French Fries Cutting Machine dimensions | 1100 × 800 × 1250 mm | Compact machine, but upstream and downstream access still needs planning. |
| French Fries Cutting Machine power | 4 kW | Request blade size options if different fry cuts are required. |
| Sliver Removing Machine dimensions | 2400 × 1400 × 1300 mm | This stage supports product quality by removing extra pieces. |
| Sliver Removing Machine power | 2.2 kW | Include in overall MCC and distribution design. |
| Bubble Washing Machine dimensions | 6000 × 1200 × 1600 mm | Significant wash section length affects process layout and drainage design. |
| Bubble Washing Machine power | 6 kW | Water supply and drain design are also critical, though published flow figures are not stated. |
| Blanching Machine dimensions | 7000 × 1800 × 1600 mm | Thermal process section requires sufficient installation space and access. |
| Blanching Machine power | 260 kW | One of the largest electrical loads in the line; utility sizing is critical. |
| Water Cooling Machine dimensions | 5000 × 1200 × 1600 mm | Cooling-stage placement should account for drainage and product flow. |
| Water Cooling Machine power | 6 kW | Confirm water temperature control arrangement in the quoted configuration. |
| Air Drying Machine dimensions | 6000 × 1400 × 1600 mm | Allow straight-line product flow and cleaning access. |
| Air Drying Machine power | 13.5 kW | Drying performance depends on airflow and line conditions. |
| Hot Air Dryer Machine dimensions | 6000 × 1400 × 1600 mm | This stage adds to line length and thermal zoning. |
| Hot Air Dryer Machine power | 160 kW | Another major electrical load that must be included in utility planning. |
| Continuous Frying Machine dimensions | 8000 × 1800 × 2200 mm | The fryer is central to production and usually drives oil-handling decisions. |
| Continuous Frying Machine power | 400 kW | The product page mentions oil filtration, but buyers should confirm the supplied filtration package. |
| Individual Quick Freezing Machine dimensions | 14800 × 4000 × 4000 mm | The IQF freezer is the largest single section and heavily influences building layout. |
| Individual Quick Freezing Machine power | 175 kW | IQF means Individual Quick Freezing; confirm refrigeration system details in the quotation. |

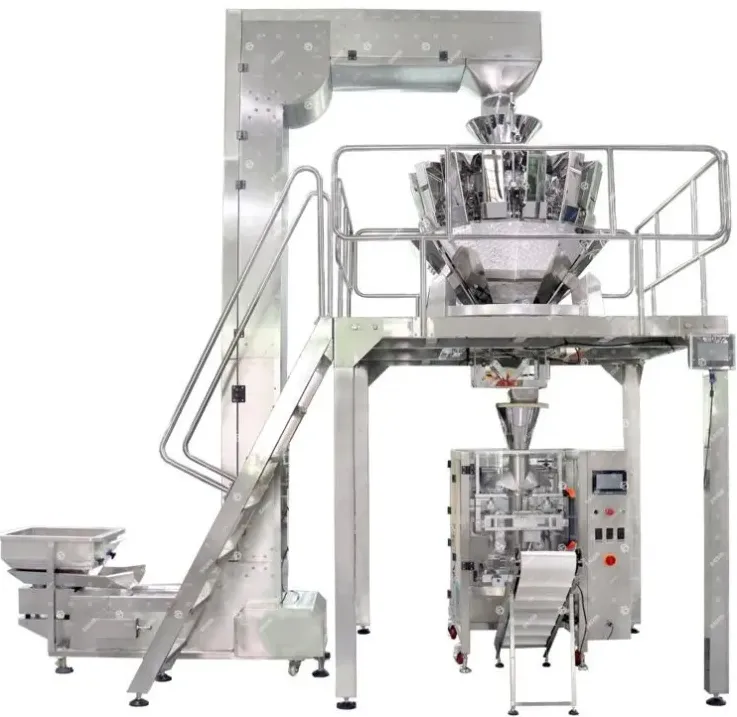

| Automatic weighting packing machine dimensions | 4800 × 3200 × 4500 mm | Verify ceiling height and service clearances before site approval. |
| Automatic weighting packing machine power | 6 kW | Confirm bag sizes, pack formats and film compatibility if relevant to the project. |
Specifications may vary according to configuration and should be confirmed in Afrimart’s current written quotation, especially for auxiliary equipment and the final line scope.
What are the main operational benefits?
High-throughput processing: The verified input capacity of 1,500 kg/hour and finished output of 1,000 kg/hour position this line for industrial production rather than small-batch processing. That matters for factories that need a continuous supply of frozen fries.
Integrated process flow: The published machine list covers cleaning, peeling, cutting, washing, blanching, cooling, drying, frying, freezing and packing. This reduces the need for buyers to assemble separate standalone machines from multiple packages.
Food-processing construction materials: Stainless Steel 304 as the primary material supports hygiene-focused food plant use, while Japanese 440C steel blades indicate a specified cutting material rather than an unspecified blade grade. For buyers, that gives a clearer basis for discussing wear parts and sanitation.
Automatic handling between stages: The use of a Sinking Stone Elevator and Water Bucket Elevator shows that product movement is integrated into the line. In practice, this can help reduce manual handling between wet-process stages and keep production flow more orderly.
Thermal preparation before frying and freezing: The combination of blanching, water cooling, air drying and hot air drying means the fries are treated in sequence before the continuous fryer and IQF freezer. That process structure is important for operators seeking a controlled pre-fry and freeze-ready line layout.
Large-scale freezing capability: The IQF freezer dimensions of 14800 × 4000 × 4000 mm and power of 175 kW indicate a substantial freezing section built for industrial throughput. Individual quick freezing helps keep fries separated rather than frozen into large clumps.
End-of-line packing readiness: The inclusion of an automatic weighting packing machine means the line extends beyond processing into primary packing. That can simplify line balancing for plants that want packed frozen fries rather than unpacked bulk discharge alone.
Why does this equipment matter for African industry?
Frozen potato processing matters in Africa because value addition often determines whether agricultural output becomes a low-margin commodity or a higher-value food product. A line that converts fresh potatoes into frozen fries supports local agro-processing capacity rather than relying only on imported finished frozen foods.
This is relevant across different African markets for different reasons. In potato-producing regions, processors may want to use local crop supply more productively. In major cities and logistics corridors, demand may come from supermarkets, restaurants, hotels and institutional caterers that need frozen convenience foods with predictable handling.
The line’s electric heating and large installed power of 1101.22 kW also make it a serious infrastructure decision. In some African locations, buyers will have access to strong grid connections in industrial parks. In others, they may need to assess transformer capacity, backup generation strategy and operating-cost implications before installation.
There is also a broader industrial development angle. A complete frozen fries line creates demand for operators, maintenance technicians, packers, cold-chain logistics and quality control personnel. That supports food manufacturing capability around a relatively familiar agricultural input: fresh potatoes.
For import substitution strategies, the line can support local production where there is demand for frozen fries but an interest in reducing dependence on imported packed product. Outcomes will depend on raw potato quality, utilities, cold storage and market access, but the line itself is aligned with industrial food processing rather than primary agriculture alone.
What should buyers confirm before ordering?
- Required finished output per hour
- Expected raw potato feed rate
- Potato variety and size consistency
- Incoming potato cleanliness and stone content
- Required fry strip size
- Final product specification and pack format
- Full line scope of supply
- Inclusion of oil filtration system
- Inclusion of vibration de-oiling equipment
- Inclusion of metal detector
- Inclusion of box sealing machine
- Electrical supply availability at 380 V, 50 Hz, 3 phase
- Transformer and distribution capacity for 1101.22 kW installed power
- Water supply quality and availability
- Drainage and effluent handling for washing and cooling stages
- Cold-room and frozen storage integration
- Building layout for long in-line machine arrangement
- Ceiling height for the 4800 × 3200 × 4500 mm packing machine
- Access route for the 14800 × 4000 × 4000 mm IQF section
- Operator staffing for sorting and line monitoring
- Spare blades, rollers and wear parts package
- Installation, commissioning and training scope
- Local food safety and workplace safety requirements
- Written warranty and after-sales support terms
The most consequential unstated figure is the actual running utility profile of the line, especially how the 1101.22 kW installed power translates into operating demand by section. Buyers should request a formal equipment list with electrical load schedule, layout drawing and utility consumption details before final approval.
How to source 1000KG/Hr Frozen French Fry Production Line through Afrimart
Afrimart can help buyers confirm whether this frozen fries line matches the intended production target, site utilities and plant layout. For industrial food projects, that matters because the published line is substantial and buyers usually need a project-specific quotation rather than a generic equipment summary.
When requesting a quotation, provide:
- Required capacity
- Intended application
- Input materials
- Project location and country
- Available utilities
- Required accessories
- Installation and training requirements
- Target project date
For a faster and more accurate quotation, it is also useful to share any preferred fry size, packaging format and available floor space for the processing hall and freezing section.
Request a quotation for 1000KG/Hr Frozen French Fry Production Line through Afrimart. If needed, buyers can also email [email protected] with their project brief.
Frequently asked questions
What does the 1000KG/Hr Frozen French Fry Production Line do?
It processes fresh potatoes into ready-to-cook frozen French fries. The published line includes cleaning, peeling, cutting, starch and small-piece removal, blanching, cooling, drying, continuous frying, IQF freezing and automatic packing, making it suitable for large-scale frozen food production.
What capacity does this frozen French fry line have?
The verified raw material input capacity is 1,500 kg/hour, and the finished product capacity is 1,000 kg/hour. Buyers should use both figures when planning a project, because raw potato intake and packed frozen output are not the same measure.
What raw material can this line process?
The verified input material is fresh potatoes. The public product information does not state potato variety, size range, dry matter target or grade tolerance, so buyers should confirm those points if they have a strict final fry specification or a variable seasonal potato supply.
What electrical supply does the line require?
The published electrical details are 380 V, 50 Hz, 3 phase, with total installed power of 1101.22 kW. That makes this an industrial installation, so buyers should verify site transformer capacity, distribution design and whether backup power strategy is needed for their location.
Is this a fully automatic French fry processing line?
Yes, the product description presents it as a fully automatic production line working from start to finish. It is described as cleaning, peeling, cutting, frying, freezing and packing automatically, although buyers should still confirm the exact control arrangement and any points where manual inspection or sorting is expected.
What major machines are included in the published configuration?
The verified machine list includes a Sinking Stone Elevator, Screw Peeling and Washing Machine, Picking Line, Water Bucket Elevator, French Fries Cutting Machine, Sliver Removing Machine, Bubble Washing Machine, Blanching Machine, Water Cooling Machine, Air Drying Machine, Hot Air Dryer Machine, Continuous Frying Machine, IQF freezer and Automatic Weighting Packing Machine. The product description also mentions metal detection and box sealing.
What should I check before installing this line?
Start with utilities, layout and access. The line includes large sections such as the 8000 × 1800 × 2200 mm continuous fryer and the 14800 × 4000 × 4000 mm IQF freezer, so buyers should confirm floor space, ceiling height, service access, drainage, electrical infrastructure and frozen product handling before purchase.
How do I request a quotation for this frozen fries line?
Send Afrimart your required capacity, input material, intended application, project country, available utilities, accessory requirements, installation scope and target project date. Using the exact product reference and SKU helps Afrimart prepare a quotation that matches the published 1000KG/Hr Frozen French Fry Production Line configuration.
