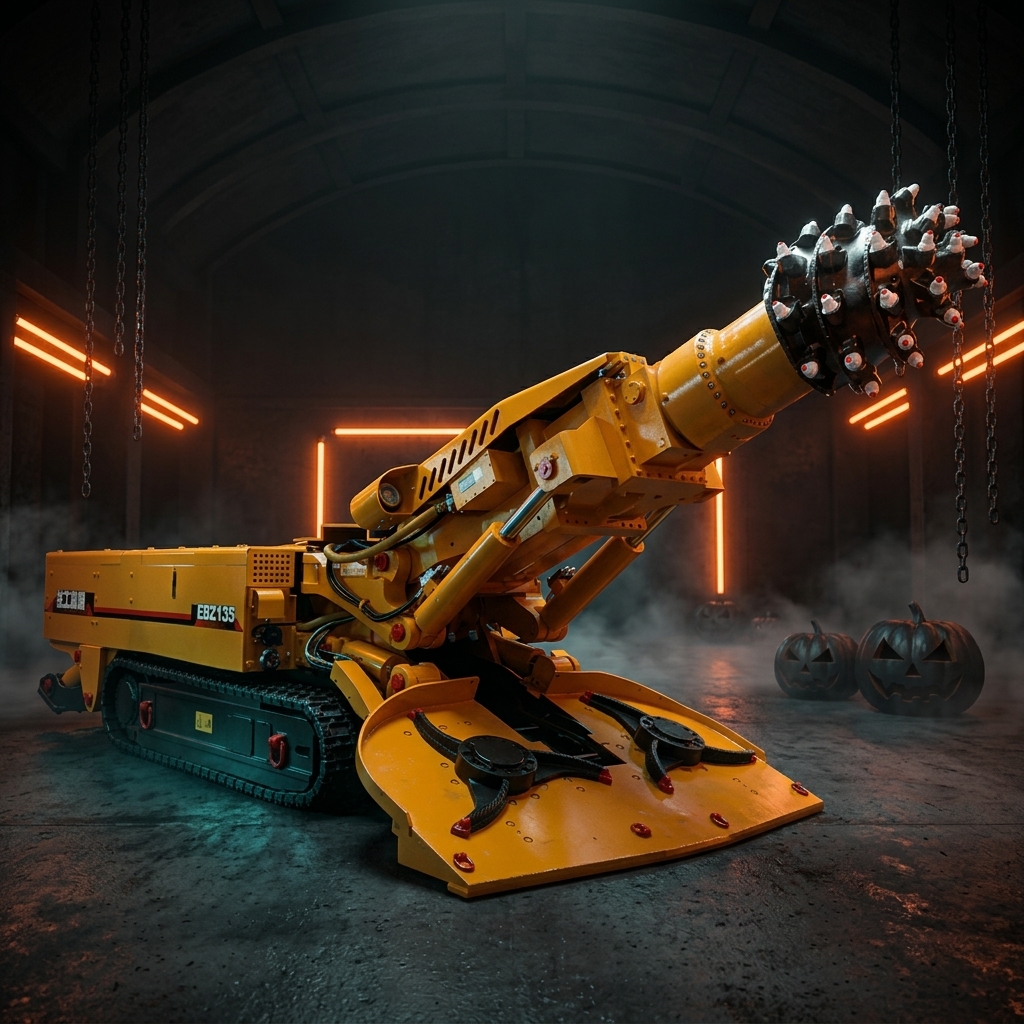

XCMG EBZ135 Coal Mining Roadheader
Heavy-duty roadheader for underground coal cutting
The XCMG EBZ135 is a coal mining roadheader designed for underground cutting applications, with a 135 kW cutting motor, 75 kW oil pump power, and a cutting range of up to 4.74 m high by 4.84 m wide.
XCMG Brand
Mining Flameproof Motors
Imported Hydraulic Components
Imported Electrical Components
Imported Wear Plate
Guide Price
R 18 619 627.20
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
135 kW
Cutting Motor Power
75 kW
Oil Pump Power
4.74 m × 4.84 m
Cutting Range
40 t
Operating Weight
3.4 m³/min
Load Capacity
44 r/min
Cutting Head Speed
Business Solution Overview
Built for Demanding Coal Cutting: The EBZ135 is specified for coal petrography compressive strength up to 70/60 MPa, making it suitable for challenging underground coal cutting applications where dependable performance is essential.
High-Power Mining Configuration: A 135 kW cutting motor paired with a 75 kW pumping station motor provides the power needed for continuous underground operation. This supports productive cutting and material loading in coal mine development work.
Durability-Focused Component Selection: Imported hydraulic and electrical components, together with imported wear plate, indicate a configuration aimed at durability and service performance in abrasive mining environments.
Suitable for Large Cutting Profiles: With a cutting range of 4.74 m high and 4.84 m wide, the machine can support larger underground headings, helping operators match equipment capability to mine development requirements.
Transport and Installation Consideration: The stated maximum non-removable size and weight provide practical planning information for transport, shaft access, and underground assembly logistics.
Complete End-to-End Process
Cut Coal Face
Rotate Cutting Head
Load Mined Material
Transfer Through Hauler Bed
Why Choose XCMG EBZ135 Coal Mining Roadheader?
High-Power Cutting System
The 135 kW cutting motor is designed to deliver the power required for underground coal cutting in demanding mine conditions.
Mining Flameproof Motors
Both the cutting motor and pumping station motor are specified as mining flameproof three-phase asynchronous motors for mining-duty application.
Wide Cutting Envelope
The machine offers a cutting range of up to 4.74 m in height and 4.84 m in width, supporting substantial underground heading dimensions.
Imported Core Components
Imported hydraulic and electrical components are used in the machine, supporting dependable operation and component quality.
Wear-Resistant Construction
Imported wear plate is included to help the machine withstand abrasive underground mining conditions.
Integrated Material Handling
A 2.8 m wide hauler bed and stated load capacity of 3.4 m³/min support continuous loading during cutting operations.
Technical Specifications
Model
EBZ135
Cutting Motor Power
135 kW
Oil Pump Power
75 kW
Cutting Hardness
≤70 MPa
Cutting Range Height
4.74 m
Cutting Range Width
4.84 m
Operating Weight
40 t
Dimensions (L × W × H)
8.9 × 2.8 × 1.5 m
Hauler Bed Width
2.8 m
Maximum Non-removable Size (L × W × H)
3.53 × 1.54 × 1.38 m
Maximum Non-removable Weight
7625 kg
Cutting Head Speed
44 r/min
Star Wheel Speed
33 r/min
Load Capacity
3.4 m³/min
Cutting Arm
Standard scale
Industries Served
Coal Mining
Underground Mine Development
Coal Extraction Operations
What's Included
XCMG EBZ135 roadheader host
Cutting arm
Hauler bed
135 kW cutting motor
75 kW pumping station motor
