Gold & Precious Metal Processing
SBM Gold Processing Plant Wet and Dry Magnetic Separator
Magnetic separation solution for gold and mineral processing
SBM's gold processing plant integrates dry and wet magnetic separation for gold, tantalite and other mineral applications. Designed for demanding mining conditions, it supports efficient contaminant removal and improved product purity.
Wet & Dry Operation
High-Intensity Magnetic Separation
Easy Maintenance Design
Custom Chute Flange Options
Guide Price
R 285 499
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
Up to 170 mT
Magnetic Intensity
Up to 30 T/h
Processing Ability
1.1-3.0 kW
Drive Power
600-1,500 kg
Machine Weight
400×600 to 750×1200 mm
Roller Size Range
Business Solution Overview
Improved Product Purity: The plant uses magnetic separation to remove unwanted iron and magnetic materials from ore streams. This supports cleaner downstream material and helps improve the purity of recovered gold and other minerals.
Flexible Processing Application: Suitable for both dry and wet operations, the system can be applied across different mineral processing conditions. This flexibility makes it useful for sites handling varying ore characteristics and process requirements.
Built for Demanding Mining Conditions: The solution is described for tough materials and challenging working environments, including deployment in high-demand locations. This makes it relevant for mining businesses that need stable operation under harsh site conditions.
Maintenance-Friendly Design: Direct access to magnets in chutes and an easy-cleaning design help simplify routine maintenance. Reduced maintenance complexity can support uptime and more efficient plant operation.
Custom Installation Options: Available flange options for square and round chutes allow the separator arrangement to suit different plant layouts. This helps operations integrate the equipment into diverse installation requirements.

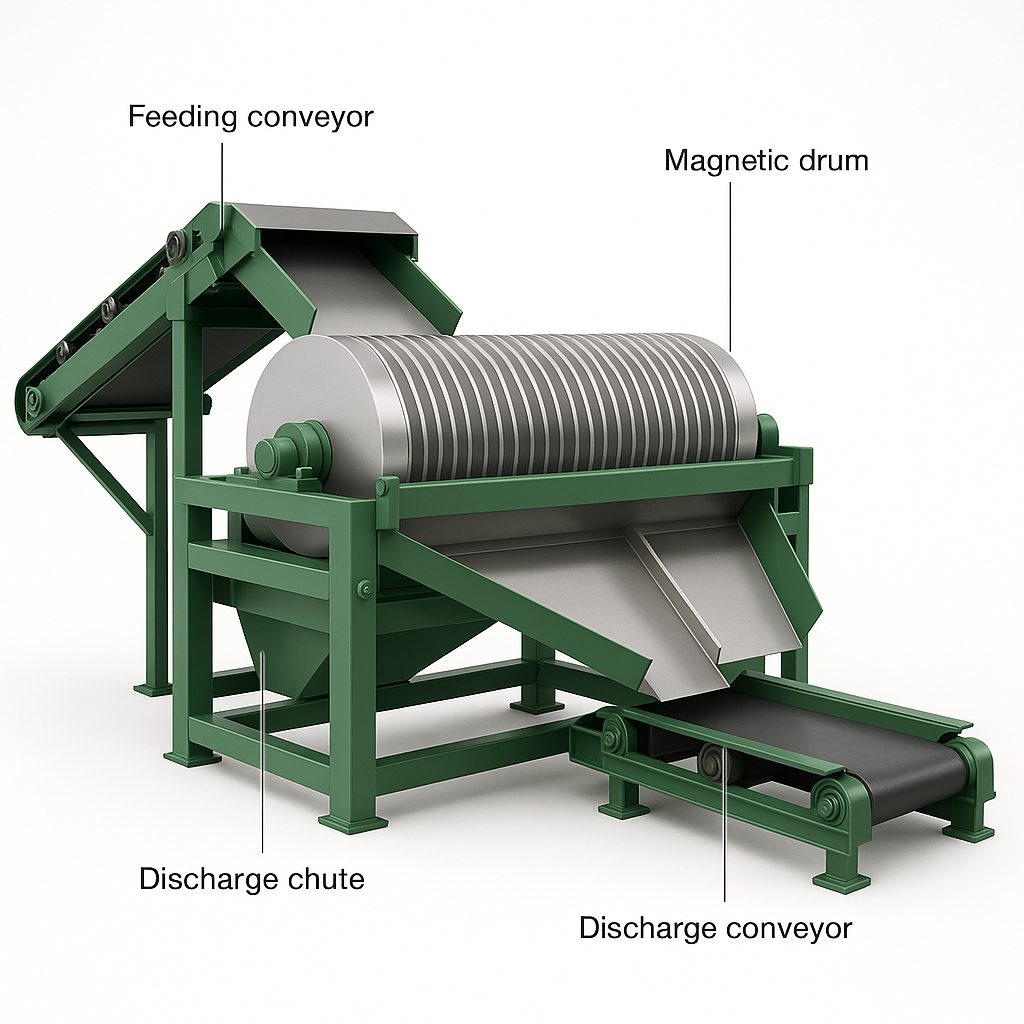

3D Sketch
AI-generated labelled 3D render — illustrative, not a manufacturing drawing.
Complete End-to-End Process
Crushing & Screening
Grinding
Magnetic Separation
Drying
Why Choose SBM Gold Processing Plant Wet and Dry Ma?
High-Intensity Magnetic Separation
Uses high-power rare earth magnets for efficient separation of magnetic materials from ore streams. This supports cleaner mineral output in gold and tantalite processing.
Wet and Dry Processing Capability
Suitable for both wet and dry operating conditions. This allows the plant to fit different process flows and ore treatment methods.
Easy Cleaning and Maintenance
Designed for straightforward cleaning and maintenance with direct access to magnets in chutes. This helps simplify service tasks in continuous mining operations.
Contamination Management
Equipped with angle deflectors for improved handling of heavy contamination. This supports more effective removal of unwanted ferrous material.
Custom Installation Flexibility
Available with flanges for both square and round chutes to suit different installation requirements. This helps adapt the separator to varied plant layouts.
Designed for Harsh Mining Environments
The production process example highlights use in challenging climates and demanding operating conditions. It is intended for stable operation in hard-working mining applications.
Technical Specifications
Model
CTS(N,B)-46
CTS(N,B)-46 Roller Size
400×600 mm
CTS(N,B)-46 Magnetic Intensity
130 mT (average), 160 mT (highest)
CTS(N,B)-46 Processing Ability
1-3 T/h
CTS(N,B)-46 Drive Power
1.1 kW
CTS(N,B)-46 Weight
600 kg
CTS(N,B)-66 Roller Size
600×600 mm
CTS(N,B)-66 Magnetic Intensity
145 mT (average), 170 mT (highest)
CTS(N,B)-66 Processing Ability
5-10 T/h
CTS(N,B)-66 Drive Power
1.1 kW
CTS(N,B)-66 Weight
750 kg
CTS(N,B)-69 Roller Size
600×900 mm
CTS(N,B)-69 Magnetic Intensity
145 mT (average), 170 mT (highest)
CTS(N,B)-69 Processing Ability
8-15 T/h
CTS(N,B)-69 Drive Power
1.1 kW
CTS(N,B)-69 Weight
830 kg
CTS(N,B)-612 Roller Size
600×1200 mm
CTS(N,B)-612 Processing Ability
10-20 T/h
CTS(N,B)-618 Processing Ability
15-30 T/h
CTS(N,B)-712 Roller Size
750×1200 mm
CTS(N,B)-712 Magnetic Intensity
120 mT (average), 155 mT (highest)
CTS(N,B)-712 Drive Power
3.0 kW
CTS(N,B)-712 Weight
1500 kg
Optional Modules
Conveyor Belt Magnetic Separator
Square Chute Flanges
Round Chute Flanges
Industries Served
Gold Mining
Mineral Processing
Magnetic Separation Operations
Tantalite Processing
What's Included
Dry electric wet tantalite magnetic separator
Conveyor belt magnetic separator
Gold processing plant magnetic separation solution
