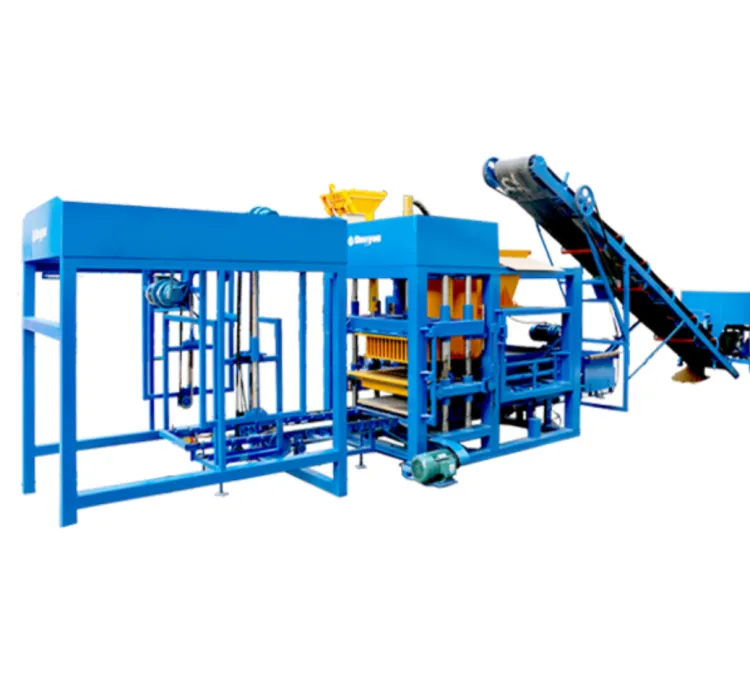

QT4-15 Automatic Concrete Block and Paver Machine
Automated production of hollow blocks, interlocks, pavers and curbstones
A fully automatic concrete block machine for producing hollow blocks, interlock blocks, pavers and curbstones. It combines PLC control with hydraulic and vibration forming for industrial, small-scale, home-based or remote production applications.
Warranty Provided
Fully Automatic Operation
Adaptable Local Voltage
Hydraulic and Vibration Forming
Guide Price
R 443 175.64
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
220/380V
Power Supply
24 kW
Power
2700 x 1600 x 2500 mm
Dimensions
200 x 100 x 60 mm to 400 x 200 x 200 mm
Block Size Range
4,500 kg
Single-Item Weight
Fly Ash, Cement, Sand, Concrete
Raw Materials
Business Solution Overview
Versatile Product Range: The machine supports hollow blocks, interlock blocks, pavers and curbstones, enabling one production setup to serve multiple construction and paving product requirements.
Automation Advantage: PLC control with automated hydraulic and vibration forming supports easier operation, efficient production management and consistent block shaping.
Durable Construction: Steel construction and Q235B high-grade steel core components support the machine's suitability for ongoing block-production operations.
Flexible Production Setup: The 220/380V power supply can be adapted to local voltage, while the machine is intended for both industrial and small-scale operating environments.
Warranty Provided: A warranty is provided with the machine, adding support for buyers investing in concrete block and paving-product production equipment.
Complete End-to-End Process
Raw Material Preparation
PLC-Controlled Operation
Hydraulic and Vibration Forming
Finished Block Output
Why Choose QT4-15 Automatic Concrete Block and Pave?
PLC Control
PLC control supports easier operation and efficient production management.
Hydraulic Vibration Forming
The automated forming system is designed to support precise block shaping and consistent output.
Durable Steel Construction
Built with steel construction and Q235B high-grade steel core components.
Voltage Adaptability
The 220/380V supply can be adapted to local voltage for different operating environments.
Multiple Block Types
Suitable for hollow blocks, interlock blocks, pavers and curbstones.
Production Flexibility
Supports fly ash, cement, sand and concrete across a range of listed block-size options.
Technical Specifications
Product Name
QT4-15 Full Automatic Hollow Concrete Interlock Cement Block Machine
Power Supply
220/380V or adaptable to local voltage
Power
24 kW
Dimensions (L x W x H)
2700 x 1600 x 2500 mm
Block Size Options
200 x 100 x 60 mm; 400 x 100 x 200 mm; 400 x 120 x 200 mm; 400 x 150 x 200 mm; 240 x 115 x 90 mm; 200 x 200 x 60 mm; 150 x 150 x 100 mm; 400 x 200 x 200 mm; 230 x 220 x 115 mm
Raw Materials
Fly Ash, Cement, Sand, Concrete
Weight (Single Item)
4500 kg
Core Components
Q235B High-Grade Steel
Warranty
Provided
Industries Served
Construction Materials Production
Road and Paving Projects
Building Construction
Precast Block Manufacturing
What's Included
QT4-15 Full Automatic Hollow Concrete Interlock Cement Block Machine
Warranty provided
