Gold & Precious Metal Processing
Precious Metal Refining and Purification Vacuum Distillation Machine
Automatic precious metal purification for gold, silver and copper
Automatic vacuum distillation equipment for refining and purifying gold, silver and copper. Designed for efficient metal recovery with 20 kg capacity, fast melting cycles and high-temperature operation.
Automatic Operation
Vacuum Distillation
20KG Batch Capacity
1600°C Max Temperature
Gold, Silver & Copper Compatible
Guide Price
R 1 864 000
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
20KG
Capacity
25KW
Melting Furnace Power
1600°C
Maximum Temperature
8-10 min/furnace
Melting Time
380V/50Hz/Three-phase five-wire
Power Supply
1539 kg
Machine Weight
Business Solution Overview
Higher Throughput per Refining Cycle: The 20 kg batch capacity, 8–10 minute melting time per furnace and automatic operation help streamline each refining run. For businesses processing gold, silver or copper regularly, this can support more consistent output and better use of labour across structured production cycles.
Supports Profitable Metal Recovery: By combining high-temperature melting up to 1600°C with vacuum distillation purification, the machine is designed for efficient recovery and refining of valuable metals. This makes it well suited to operations where improved purity and repeatable processing can strengthen margins on jewellery scrap, industrial metal recovery and refining work.
Versatile Across Multiple Revenue Streams: The system is suitable for jewellery refining, scrap metal recycling, industrial metal processing and laboratory-based purification. That flexibility allows a business to serve different customer segments or internal production needs with one machine, helping broaden earning potential from a single equipment investment.
Built for Repeatable Production Planning: Defined process stages of 8–10 minutes melting, 1–2 hours distillation and 1.5–2.5 hours cooling make the workflow easier to schedule and manage. For production environments that depend on predictable turnaround times, this supports better planning of batches, staffing and downstream handling.
Industrial-Grade Specification for Demanding Use: With a 25 kW melting furnace, graphite crucible, 380V/50Hz three-phase five-wire power supply and machine weight of 1539 kg, the equipment is positioned for serious refining applications rather than light-duty use. This gives buyers a solution aligned with continuous, high-temperature precious metal purification requirements.

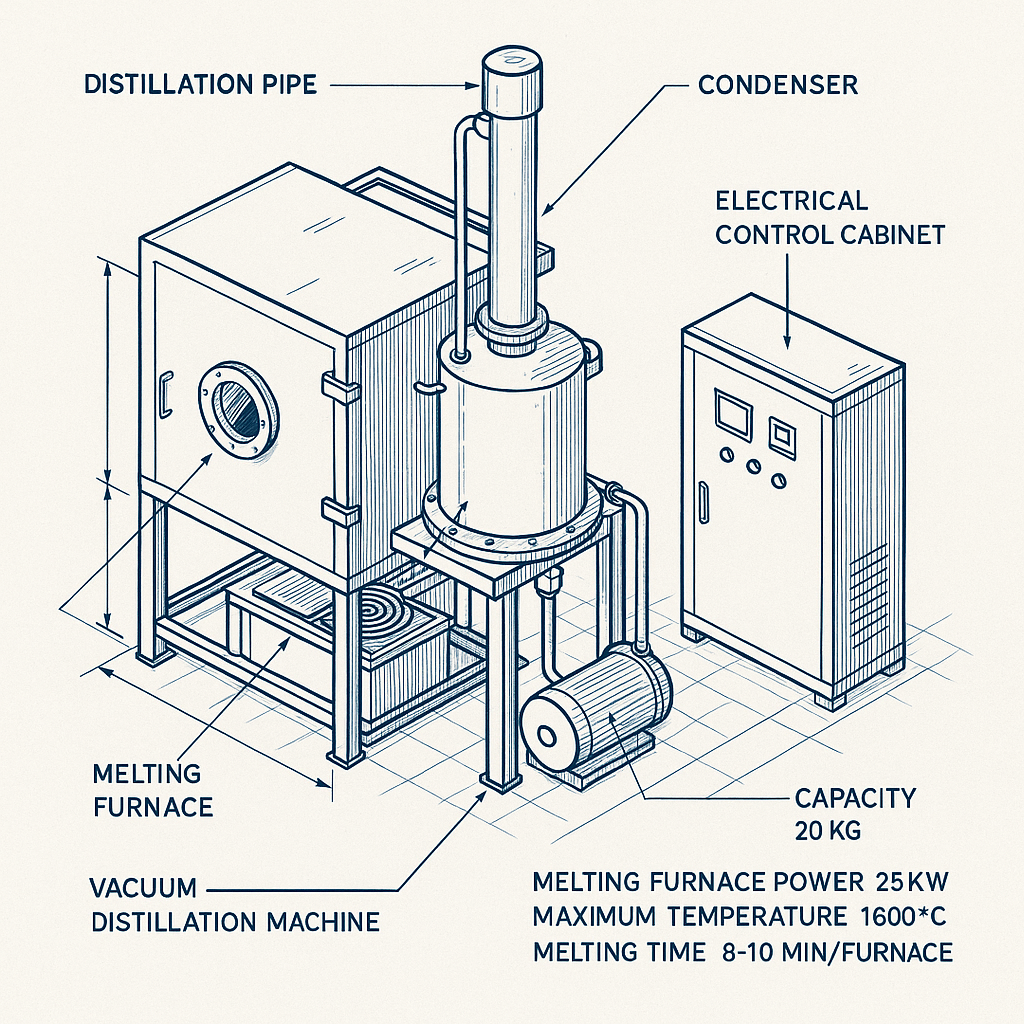

3D Sketch
AI-generated labelled 3D blueprint sketch — illustrative, not a manufacturing drawing.
Complete End-to-End Process
Metal Melting
Automatic Operation
Vacuum Distillation
Cooling Cycle
Why Choose Precious Metal Refining and Purification?
Automatic Operation
Designed for easy use, the machine automates the refining process to support efficient and repeatable operation.
20KG Batch Capacity
A 20 kg melting capacity makes the system suitable for both smaller refining jobs and larger metal recovery batches.
Fast Melting Cycle
Melting time of 8-10 minutes per furnace helps reduce waiting time at the front end of the refining process.
Vacuum Distillation Purification
Vacuum distillation supports effective purification of precious and non-ferrous metals during the refining cycle.
High-Temperature Performance
With a maximum temperature of 1600°C, the machine is built for demanding melting and purification applications.
Graphite Crucible Construction
The graphite crucible is suited to high-temperature metal melting and supports processing of gold, silver and copper.
Technical Specifications
Machine Type
Distillation Machine
Brand Name
Jindingfeng
Weight
1539 kg
Core Components
Engine
Power Supply
380V/50Hz/Three-phase five-wire
Melting Furnace Power
25KW
Metal Melted
Gold, Silver, Copper, etc.
Capacity
20KG
Maximum Temperature
1600°C
Crucible Material
Graphite
Melting Time
8-10 minutes/furnace
Distillation Time
1-2 hours
Cooling Time
1.5-2.5 hours
Cooling Water Source
Circulating water/ice water
Key Selling Points
Automatic
Industries Served
Jewellery Refining
Scrap Metal Recycling
Industrial Metal Processing
Laboratory Purification
Metal Recovery Operations
What's Included
Installation & Commissioning
Operator Training
Technical Documentation
1 Year Warranty
Lifetime Support
