Gold & Precious Metal Processing

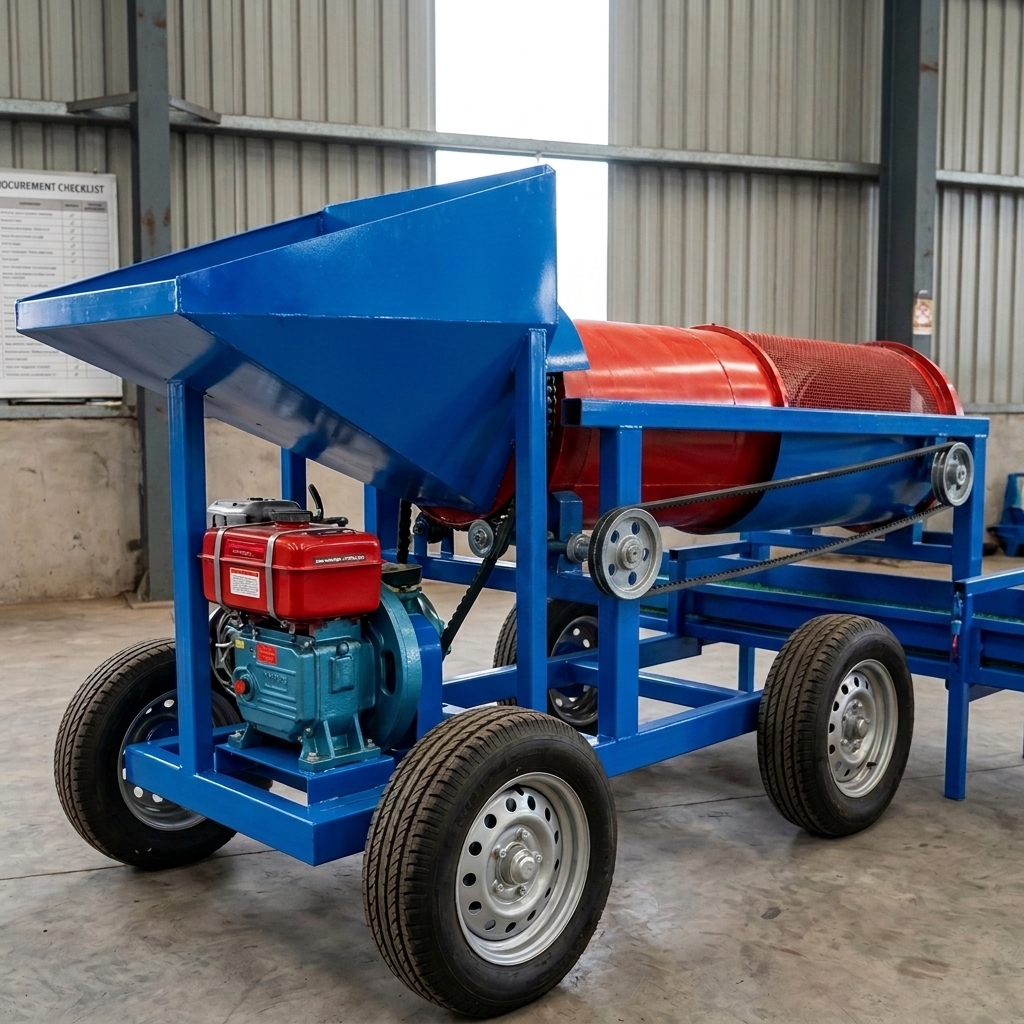

Portable Gold Wash Trommel
Compact mobile gold screening for small-scale recovery
Portable gold mining equipment with trommel screen, gold chute and wheeled frame for wet material screening. Designed for easy movement, simple maintenance and improved screening reliability in small gold recovery operations.
Portable Design
Wet Material Screening
Self-Cleaning Screen
Adjustable Discharge
Low Power Consumption
Guide Price
R 151 799
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
5-10 tons/hour
Capacity
500 mm
Drum Diameter
1900 mm
Drum Length
5.5 HP
Engine Power
0.5 m³
Input Hopper
2-8°
Gold Chute Angle
Business Solution Overview
Portable Site Flexibility: The wheeled design, towing hook and compact trommel configuration make this unit easier to move between work areas. This supports flexible deployment for small-scale and mobile gold recovery operations.
Improved Wet Screening Reliability: The machine is specifically described as overcoming screen blocking problems common with vibrating screens when handling wet materials. This can help reduce interruptions and support more consistent throughput.
Lower Operating Complexity: Its simple structure, convenient installation and easy maintenance make the equipment practical for operators who need a straightforward screening solution without unnecessary complexity.
Controlled Product Separation: The unit can effectively control screening size and offers an adjustable outlet, helping operators manage discharge and separation performance for different material conditions.
Built for Service Life: The cylinder is described as being made of thick stainless steel for long service life, while the machine is also noted for reliable operation and low power consumption.

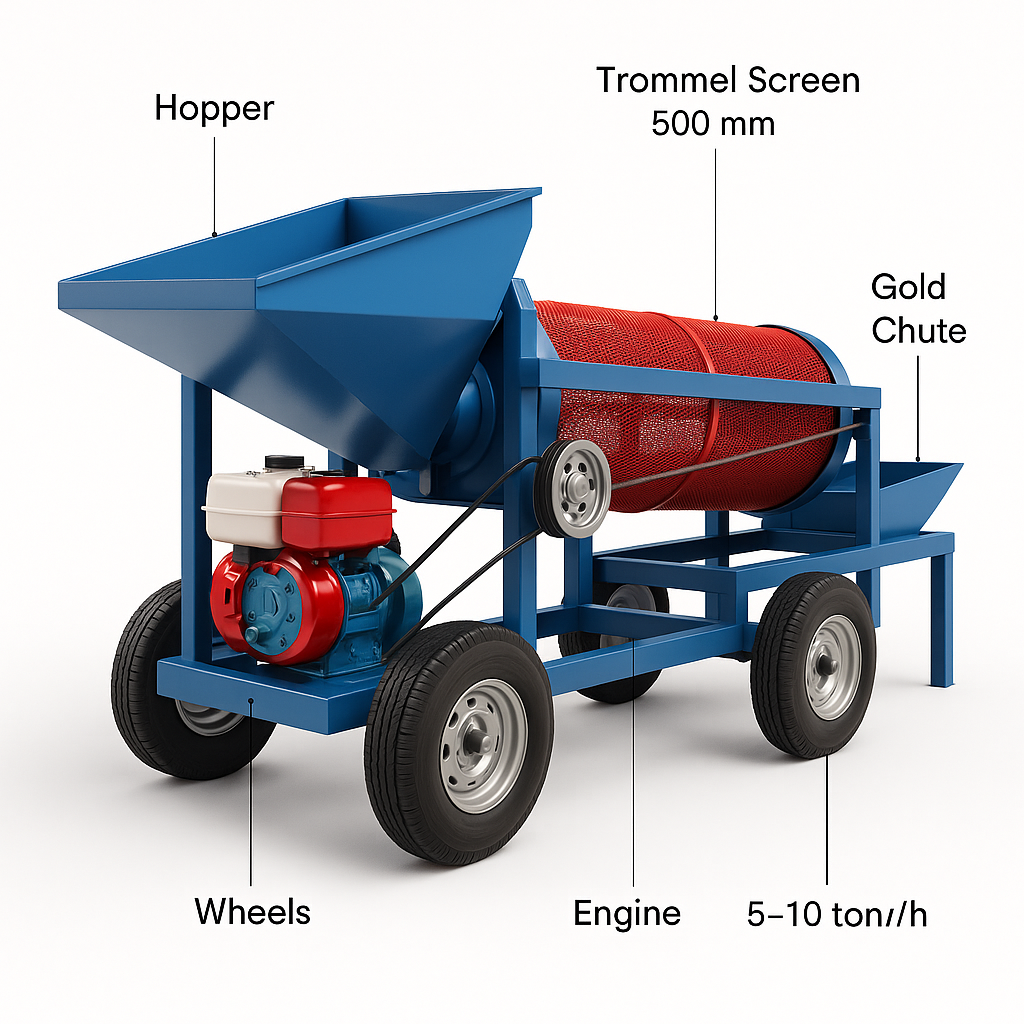

3D Sketch
AI-generated labelled 3D render — illustrative, not a manufacturing drawing.
Complete End-to-End Process
Feed Material
Trommel Screening
Spray Washing
Material Discharge
Gold Recovery
Why Choose Portable Gold Wash Trommel?
Self-Cleaning Screening Action
The machine includes a complete screen self-cleaning function to help maintain screening performance during operation.
Designed for Wet Materials
It is intended to overcome screen blocking problems that occur with various vibrating screens when screening wet materials.
Adjustable Screening and Discharge
The machine can effectively control screening size, and the outlet can be adjusted to suit operating requirements.
Simple Installation and Maintenance
Its simple structure, light weight and easy maintenance support practical day-to-day use in mobile mining applications.
Sealed Structure
The fully sealed structure is described as preventing flying powder and leakage while supporting environmental protection.
Durable Drum Construction
The cylinder is made of thick stainless steel for long service life, supporting reliable operation over time.
Technical Specifications
Model
GTS-500x1900
Drum Diameter
500 mm
Drum Length
1900 mm
Gearbox
WPS-100-20
Towing Hook
Included
Tyre Size
165/70RB
Rubber Tyres Quantity
4 pieces
Spray Pipe Diameter
42 mm
Spray Pipe Material
Galvanized seamless pipe
Capacity
5-10 tons/hour
Engine
HONDA gasoline engine
Main Power
5.5 HP
Start Method
Manual pull
Gasoline Load
0.58 L
Gold Chute
350 x 1500 mm
Gold Chute Angle
Adjustable 2-8°
Grizzly
Steel bar diameter 20 mm
Bar Spacing
50 mm
Input Hopper
0.5 m³
Industries Served
Small-Scale Gold Mining
Gold Recovery Operations
Precious Metal Processing
What's Included
Feeding hopper
Screen drum
Gold chute
Gold panning grass
Wheels
Towing hook
HONDA gasoline engine
Gearbox
Reducer
Chain
Leg
Roller
