Gold & Precious Metal Processing

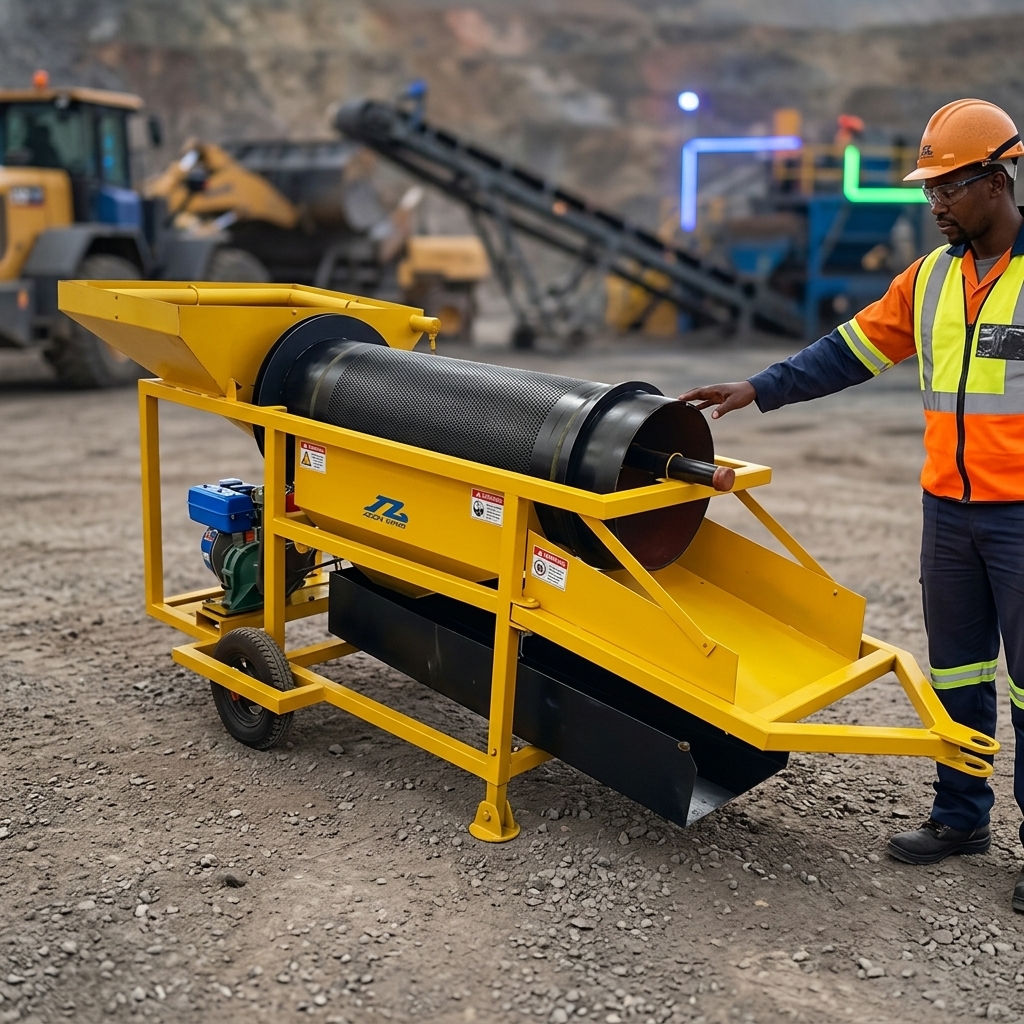

Portable Gold Trommel Wash Plant
Compact mobile gold recovery for small-scale placer mining
Portable trommel screening equipment for small-scale gold mining, designed for easy transport, single-person operation and efficient recovery. Includes a grizzly-equipped feed system, sluice and portable diesel engine.
Portable Design
Single-Person Operation
CE-Certified Diesel Engine
Stainless Steel Sluice
Forklift or Crane Movable Packaging
Guide Price
R 141 299
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
1-10 t/h
Capacity Range
2.5-3.6 kW
Power
400×1400 mm to 530×1800 mm
Screen Size
8 mm
Mesh Size
Portable Diesel Engine
Drive Power
4-5 m3/h
Volume Capacity
Business Solution Overview
Low-Investment Entry for Small Mining Operations: The machine is presented as suitable for small-scale mining with low investment, while still offering high efficiency and quick results. This makes it a practical option for operators looking to start or expand placer gold recovery without committing to a larger fixed plant.
Improved Operating Efficiency: The grizzly removes large stones before they enter the plant, reducing working pressure on the system. This helps improve throughput stability and supports more efficient day-to-day operation.
Reduced Handling and Setup Burden: Its lightweight, wheeled design supports easy movement, while single-person operation, disassembly and installation can simplify deployment in remote or changing mining locations.
Durable Recovery Components: The stainless steel sluice is described as anti-rust, anti-corrosion and anti-abrasion, while the sluice carpet is durable and double-layered. These material choices are intended to support longer service life in abrasive wet-processing conditions.
Certified Engine Option Stated: The specification lists a portable diesel engine with CE certificate. For buyers who prioritise documented equipment components, this adds a useful compliance-related reference within the stated configuration.
Complete End-to-End Process
Feed Material
Remove Oversize with Grizzly
Screen and Wash Material
Recover Gold via Sluice
Optional Final Smelting
Why Choose Portable Gold Trommel Wash Plant?
Portable Mobile Design
Small, lightweight and fitted with wheels, this trommel plant is designed for easy movement between sites. The description states it can be dragged and operated by one person.
Simple Setup and Operation
The unit is described as easy to operate, disassemble and install. This supports fast deployment for small mining teams working in changing field conditions.
Grizzly for Oversize Removal
A grizzly can be equipped according to mine conditions to separate larger stones. This reduces plant working pressure, improves efficiency and helps extend service life.
Sluice-Based Gold Recovery
The trommel screen end is equipped with a sluice to change tailing direction and help prevent mixing with fine material. The sluice is made of stainless steel for corrosion and abrasion resistance.
Durable Screen and Recovery Materials
The double-layer trommel screen uses high manganese steel wire, while the support frame is made of 20CrMo. The sluice carpet is described as durable, double-layer, anti-skid and anti-abrasion.
Protected Transport Packaging
Packaging is described as an angle iron frame with plywood, including a lifting ring. It can be moved by forklift or crane and is intended to reduce damage and spare loss during handling.
Technical Specifications
Model Options
JZM-5 Gold Trommel; JZM-10 Gold Trommel
Machine Size
2800×1100×1400 mm (JZM-5); 2900×1200×1500 mm (JZM-10)
Capacity
1-5 t/h (JZM-5); 5-10 t/h (JZM-10)
Screen Size
400 mm dia. × 1400 mm length (JZM-5); 530 mm dia. × 1800 mm length (JZM-10)
Mesh Size
8 mm
Driven Type
By belt
Diesel Engine
Portable diesel engine with CE certificate
Power
2.5 kW (JZM-5); 3.6 kW (JZM-10)
Feeder Hopper
1066×568 mm (JZM-5); 1200×810 mm (JZM-10)
Gold Felt
1500×400 mm, 1 pc (JZM-5); 2000×600 mm, 1 pc (JZM-10)
Water Pump
2 inch with water pipe
Volume Capacity
4 m3/h (JZM-5); 5 m3/h (JZM-10)
Port
Qingdao Port, Shandong
Optional Modules
Clay Scrubber
Shaking Table
Mercury Amalgamator
Gold Smelting Furnace
Industries Served
Small-Scale Gold Mining
Placer Gold Recovery
Mobile Field Processing
What's Included
Portable trommel screen machine
Feed hopper
Grizzly
Sluice
Gold felt
Portable diesel engine
2 inch water pump with water pipe
Angle iron frame and plywood packaging with lifting ring
