B21, China Town Mall, Midrand
Gold & Precious Metal Processing

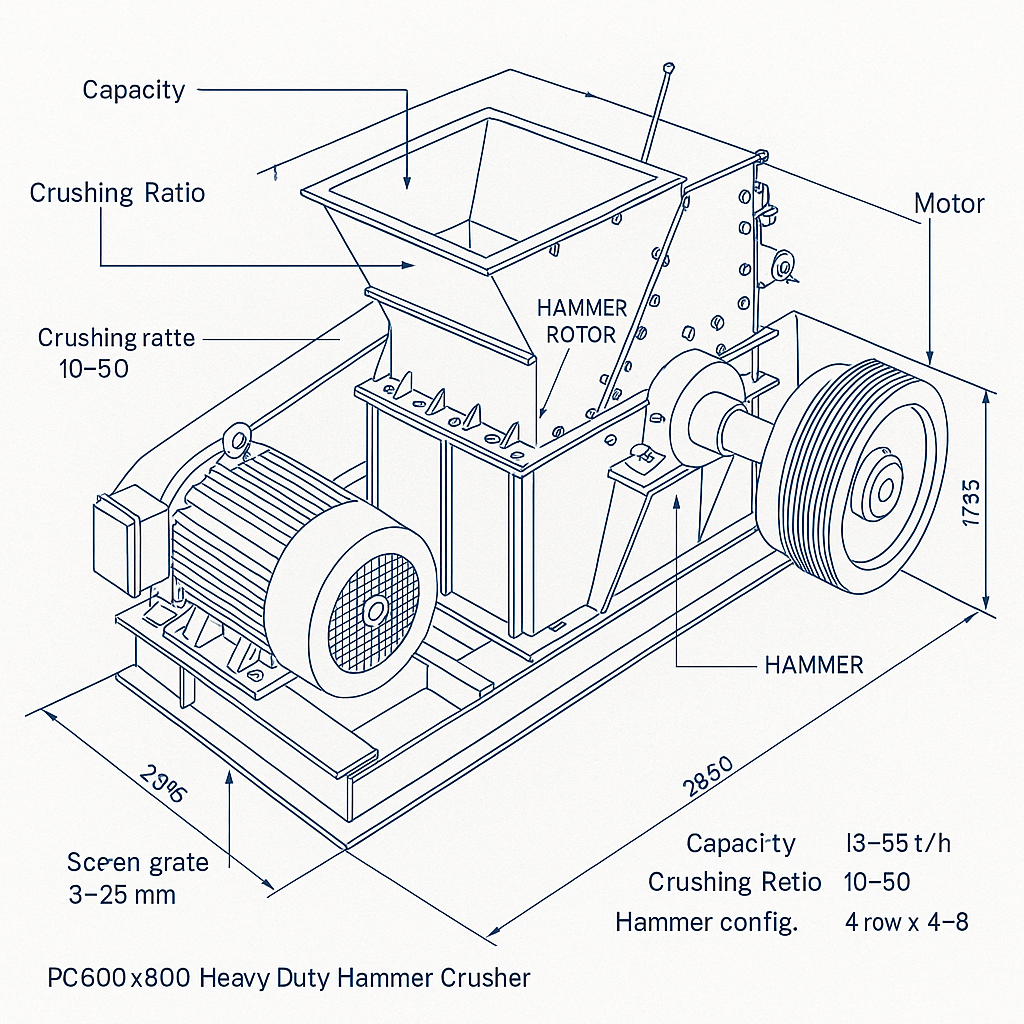

PC600x800 Heavy Duty Hammer Crusher for Gold Mining & Mineral Processing
High-ratio one-stage crushing for rock, ore, coal and clay
The PC600x800 Hammer Crusher delivers 18–55 t/h one-stage size reduction with a 10–50 crushing ratio. Built on a welded Q345B steel body with replaceable Mn13 liners and a balanced 4-row hammer rotor.
1-Year Core Parts Warranty
Outgoing Video Inspection
Mn13 Replaceable Liners
Q345B Welded Steel Body
Custom Colours Available
Guide Price
R 495 750.60
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
18–55 t/h
Capacity
10–50
Crushing Ratio
4 rows × 4–8 hammers
Hammer Configuration
3–25 mm
Screen Grate Gap
4,800 kg
Weight
1 Year
Warranty
Business Solution Overview
One-Stage Crushing Cuts Operating Costs: A crushing ratio of 10–50 allows large rock to be reduced to fine product in a single pass, reducing the number of crushers, conveyors and transfer points required in the circuit — and with them, energy consumption and maintenance load.
Throughput That Scales With Demand: An 18–55 t/h capacity range lets operators match output to current contracts while retaining headroom for growth, making the PC600x800 a practical workhorse for small to mid-scale mining and quarry operations.
Wear Parts Engineered for Uptime: Replaceable Mn13 liner plates and a balanced four-row hammer rotor protect the core structure and keep the machine running between service intervals, lowering cost per tonne over the life of the unit.
Adjustable Output Without Re-Tooling: The semi-circular screen grate with a 3–25 mm adjustable gap lets producers change product gradation to suit different buyers or contracts without replacing major components.
Backed by Warranty and Pre-Shipment Inspection: A 1-year warranty on core components and outgoing video inspection give buyers verifiable assurance of build quality before the machine leaves the factory.
Why Choose PC600x800 Heavy Duty Hammer Crusher for?
High Crushing Ratio of 10–50
Large feed material is reduced to fine product in a single pass, simplifying the crushing circuit and cutting energy use per tonne.
Balanced Four-Row Hammer Rotor
Four rows of four to eight hammers on a balanced rotor assembly deliver consistent impact energy and smooth, low-vibration operation.
Welded Q345B Steel Chamber
A strong welded Q345B steel body with replaceable Mn13 liner plates resists abrasion and extends service life in demanding rock and ore duty.
Adjustable 180° Screen Grate
The semi-circular screen grate wraps 180 degrees around the rotor, and its 3–25 mm adjustable gap lets operators tune final product size.
One-Stage Crushing Design
By combining coarse and fine reduction in one machine, the PC600x800 saves time, floor space and the cost of additional crushing stages.
Warranty and Inspection Support
Core components are covered by a 1-year warranty, and outgoing video inspection is provided so buyers can verify the machine before shipment.
Technical Specifications
Type
Heavy Duty Hammer Crusher (Hammer Mill)
Capacity
18–55 t/h
Motor Type
Stepper Motor
Core Components
Hammer Head, Rotor, Sieve Plate, Bearing, Motor
Key Selling Points
High Crushing Ratio (10–50), One-Stage Crushing
Color
Yellow / Red / Customized
Weight
4800 KG
Application
Limestone, Coal, Gypsum, Brick, Clay
Brand Name
jx
Dimension (L*W*H)
1310*1180*1310
Crushing Chamber
Welded Q345B steel body with replaceable Mn13 liner plates
Hammer Configuration
4 rows x 4-8 hammers per row, balanced rotor assembly
Screen Grate
Semi-circular, 180-degree wrap, adjustable gap 3-25mm
Warranty
1 Year
Video Outgoing-Inspection
Provided
Industries Served
Gold & Precious Metal Processing
Coal Processing & Beneficiation
Aggregate & Quarry Production
Brick & Clay Recycling
Construction Materials Manufacturing
What's Included
PC600x800 Hammer Crusher unit
Hammer head, rotor, sieve plate, bearing and motor as core components
1-year warranty on core parts
Outgoing video inspection before shipment
