Gold & Precious Metal Processing
Mobile Gold Trommel Washing Plant
Integrated mobile washing and recovery solution for alluvial gold operations
Mobile trommel washing plant for alluvial gold recovery, combining washing, separation and classification in one system. Designed to reduce labour requirements and support easy movement in field conditions.
Mobile Plant Design
Integrated Washing, Separation & Classif
Wheel-Type or Fixed-Type Options
Stainless Steel Sluice Box
High Manganese Steel Screen
Guide Price
R 824 299
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
50-450 tph
Capacity Range
24-200 kW
Power
7.5-150 kW
Water Power
98%
Recovery Rate
7×2×3 m to 15×3.5×5 m
Plant Size
Business Solution Overview
Labour-Saving Integrated Design: By combining washing, separating and classifying in one plant, the system reduces manual handling between process stages. The supplier states that one to two-person operation is possible, helping lower labour costs.
Flexible Site Deployment: Wheel-type and fixed-type versions allow the plant to be matched to site conditions. The wheel-type supports easier relocation, while the sled chassis option is intended for beach areas where wheels may struggle.
High Recovery Focus: The plant is presented with a stated recovery rate of 98%, with additional recovery options such as hydraulic vibrating sluices and centrifugal concentrators described for improved fine gold capture.
Durability in Wet Processing: Key recovery components are described with wear- and corrosion-resistant materials, including stainless steel sluice boxes and high manganese steel wire screens. This supports longer service life in abrasive washing applications.
Scalable Plant Options: Three model sizes are listed, from 50-100 tph up to 400-450 tph, allowing operations to select a plant aligned with production targets and mine conditions.

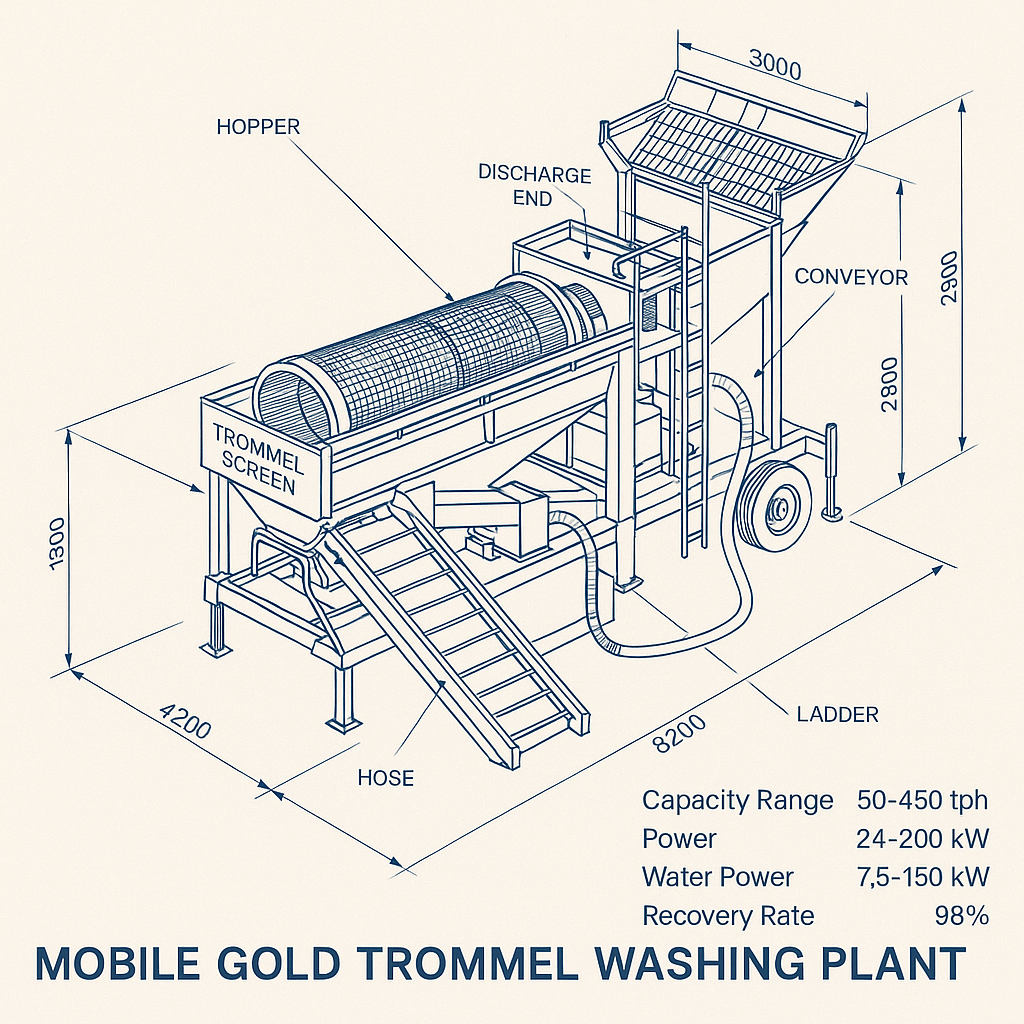

3D Sketch
AI-generated labelled 3D blueprint sketch — illustrative, not a manufacturing drawing.
Complete End-to-End Process
Feed Material
Remove Oversize with Grizzly
Clay Scrubbing
Trommel Screening
Sluice Recovery
Concentrate & Final Recovery
Why Choose Mobile Gold Trommel Washing Plant?
Integrated Processing Plant
The machine combines washing, separating and classifying in one unit. This simplifies plant layout and reduces labour intensity on site.
Mobile or Fixed Configuration
Users can choose a wheel-type unit with steering for easier movement or a fixed-type sled chassis for beach areas where wheels may get trapped.
Streamlined Feeding System
The feed hopper is designed to help material flow smoothly into the plant. A grizzly removes larger stones to reduce working pressure on downstream components.
Clay Scrubber and Double-Layer Trommel
The clay scrubber helps break hard clay to improve recovery, while the double-layer trommel screen supports material classification during washing.
Wear-Resistant Recovery Components
The trommel screen uses high manganese steel wire, and the sluice box is made of stainless steel for resistance to rust, corrosion and abrasion.
Flexible Powering Arrangement
The power system is equipped with a trailer for mobility and may use Weichai, Cummins or other client-required brands. It can also be replaced by a diesel engine.
Technical Specifications
Model Options
JZM50 / JZM150 / JZM400
Plant Size
7*2*3m / 9.8*3*4m / 15*3.5*5m
Capacity
50-100 tph / 150-250 tph / 400-450 tph
Power
24kw / 75kw / 200kw
Feeder Hopper
2*2.2m / 3.8*3m / 6*4m
Sluice Box
1*2m (2pcs) / 1*6m (3pcs) / 1*6m (7pcs)
Water Power
7.5kw / 45kw / 150kw
Clay Scrubber
1*2m / 1.3*2.5m / 2*2.5m
Trommel Screen
1.2*3m / 2*4m / 2*7m
Recovery Rate
98%
Oversize Separation
Grizzly removes stones bigger than 80 to 150mm
Screen Material
High manganese steel wire
Screen Support Frame
20CrMo
Sluice Box Material
Stainless steel
Optional Modules
Centrifugal Concentrator
Shaking Table
Mercury Amalgamator
Gold Smelting Furnace
Industries Served
Alluvial Gold Mining
Gold Recovery Operations
Mineral Washing Plants
Mobile Mining Projects
What's Included
Feed hopper
Grizzly
Clay scrubber
Double-layer trommel screen
Sluice box
Power system with trailer
