Gold & Precious Metal Processing
Mobile Gold Trommel Washing Plant
Integrated alluvial gold washing, screening and recovery solution
Mobile alluvial gold trommel wash plant combining washing, separation and classification in one system. The JZM50 model is designed for efficient gravity recovery with simplified operation and reduced labour requirements.
98% Recovery Rate
Integrated Wash & Separation
Mobile Configuration Available
One- to Two-Person Operation
Guide Price
R 1 497 000
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
50-100 tph
Capacity
24 kW
Power
98%
Recovery Rate
7 × 2 × 3 m
Plant Size
1.2 × 3 m
Trommel Screen
Business Solution Overview
Labour-Saving Integrated Design: By combining washing, separating and classifying in one plant, the system simplifies site operations. The product description states that one- to two-person operation is possible, helping reduce labour requirements and associated operating costs.
Built for Alluvial Gold Recovery: This plant is specifically positioned for mobile alluvial gold recovery. Its trommel screen, clay scrubber and sluice box configuration supports gravity-based processing for gold-bearing alluvial material.
High Recovery Performance: The stated recovery rate for the JZM50 model is 98%. This makes it a strong option for operators focused on improving gold capture from alluvial feed material.
Flexible Site Mobility Options: The equipment is available in wheel-type and fixed-type versions to suit different site conditions. The wheel-type includes a steering system for easier relocation, while the sled chassis option is intended for areas such as beaches where wheels may get trapped.
Scalable Product Range: The JZM series includes JZM50, JZM150 and JZM400 models, allowing buyers to select a plant size aligned with production requirements. This supports future expansion from smaller to higher-throughput operations within the same equipment family.

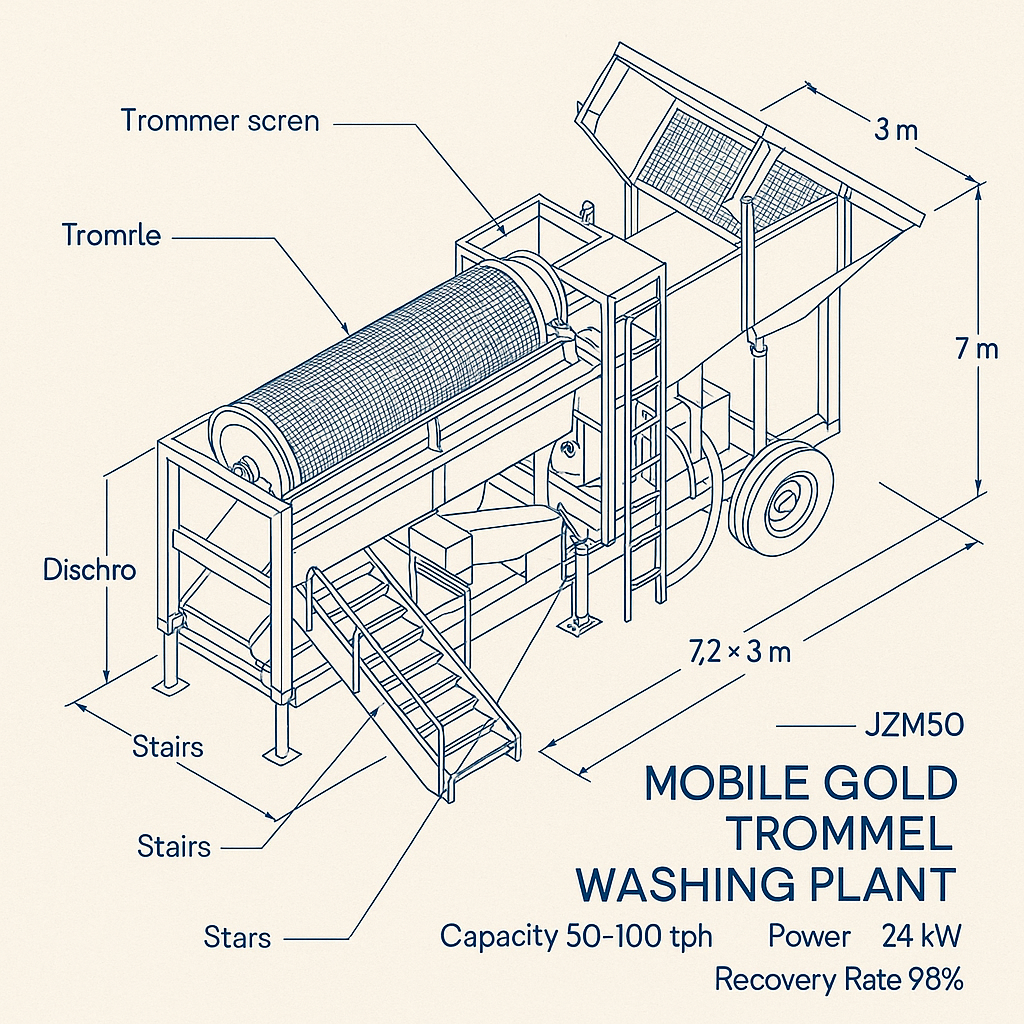

3D Sketch
AI-generated labelled 3D blueprint sketch — illustrative, not a manufacturing drawing.
Complete End-to-End Process
Feed Material Loading
Washing & Scrubbing
Trommel Screening
Gravity Separation
Why Choose Mobile Gold Trommel Washing Plant?
Integrated Processing Plant
Combines washing, separating and classifying in one machine. This integrated arrangement streamlines alluvial gold processing on site.
Reduced Labour Requirement
The product description states that one- to two-person operation is possible. This can help lower labour intensity and day-to-day operating costs.
Mobile or Fixed Configuration
Available in wheel-type and fixed-type versions according to client requirements. This gives operators flexibility for different terrain and site layouts.
Wheel-Type Steering System
The wheel-type version includes a steering system to make the equipment easier to move. This supports repositioning across changing work areas.
Sled Chassis for Beach Areas
The fixed-type version is supplied with a sled chassis. It is intended for beach areas where wheels may become trapped.
High Recovery Rate
The JZM50 model is listed with a 98% recovery rate. This supports efficient gold recovery from alluvial material.
Technical Specifications
Model
JZM50
Capacity
50-100 tph
Size
7*2*3m
Power
24kw
Feeder Hopper
2*2.2m
Sluice Box
1*2m (2pcs)
Water Power
7.5kw
Clay Scrubber
1*2m
Trommel Screen
1.2*3m
Recovery Rate
98%
Optional Modules
Wheel-Type Configuration
Fixed-Type Sled Chassis
Industries Served
Alluvial Gold Mining
Gold Gravity Separation
Mineral Washing Plants
What's Included
Feeder hopper
Clay scrubber
Trommel screen
Sluice boxes
