Mineral Processing & Metallurgy
Mineral Separation Flotation Cell Ore Processing Plant
Turnkey ore dressing solution for crushing, grinding and beneficiation
Industrial ore processing solution for crushing, screening, grinding, classification and beneficiation of mineral ores. Suitable for gold, copper, iron, zinc and coltan processing with downstream concentrate dewatering.
Turnkey Ore Dressing Solution
Customised Packaged Plant
Multi-Mineral Processing
Closed-Circuit Crushing
Closed-Circuit Grinding
Guide Price
R 1 873 299
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
≤25 mm
Screened Feed Size
About 200 Mesh
Grinding Fineness
Closed Circuit
Crushing Process
Closed Circuit
Grinding Process
Flotation / Magnetic / Gravity
Separation Methods
Business Solution Overview
Turnkey Plant Integration: This solution covers the core stages of ore dressing in one integrated process flow, from crushing and grinding through to beneficiation and concentrate dehydration. That helps simplify plant planning and supports more coordinated project execution.
Supports Multiple Ore Types: The plant is described for processing gold, copper, iron, zinc and coltan ores. This broad application can help operators align the equipment with different beneficiation requirements across hard rock mineral projects.
Closed-Circuit Processing: Both the crushing and grinding sections are configured as closed circuits, with oversize and coarse material returned for further reduction. This supports more controlled particle sizing before beneficiation.
Customised Project Supply: The supplier states that it works closely with customers to fulfil specific needs through customised packaged solutions. This is valuable for operations that require a plant layout matched to ore characteristics and site conditions.
Established Fabrication Experience: The manufacturer states that it has specialised in fabricating ore dressing machines for a decade. This indicates focused experience in mineral processing equipment supply.

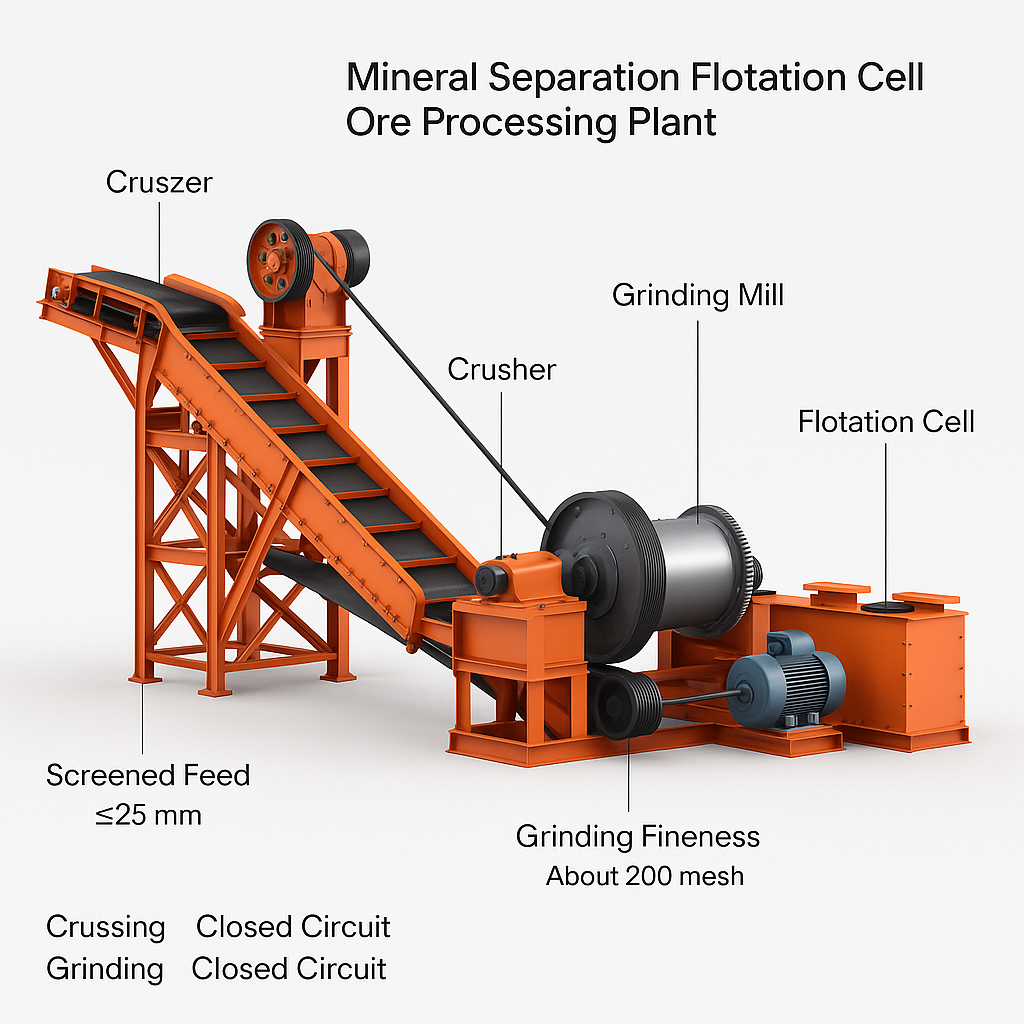

3D Sketch
AI-generated labelled 3D render — illustrative, not a manufacturing drawing.
Complete End-to-End Process
Primary Crushing
Secondary Crushing
Screening
Grinding
Classification
Beneficiation & Dewatering
Why Choose Mineral Separation Flotation Cell Ore Pr?
Two-Stage Crushing with Screening
Large raw ore from the mine is reduced through primary and secondary crushing before screening. Oversize material is returned for further crushing to maintain the required feed size.
Closed Crushing Circuit
Material above 25 mm is sent back to the secondary crusher, forming a closed crushing circuit. This helps prepare a more suitable feed for downstream grinding.
Fine Grinding for Beneficiation
The process grinds material to about 200 mesh before classification. This particle size preparation supports subsequent ore separation stages.
Closed Grinding Circuit
After grinding, the classifier separates suitable material while coarse material returns to the ball mill. This closed-loop arrangement supports controlled grinding performance.
Multiple Separation Routes
Beneficiation can be carried out using flotation, magnetic separation or gravity concentration. This allows the plant concept to suit different ore characteristics and recovery methods.
Concentrate Dewatering Stage
After beneficiation, residual water in the ore concentrate is removed through dehydration. This helps meet transportation and smelting requirements.
Technical Specifications
Product Type
Mineral separation machine / ore dressing plant
Primary Process
Flotation cell ore processing plant
Applicable Materials
Gold, copper, iron, zinc, coltan ore
Feed Material Condition
Raw material ores exploited from mountain are big size
Crushing Stages
Primary crusher and secondary crusher
Screened Suitable Size
≤25 mm
Oversize Return Size
>25 mm
Crushing Circuit
Closed crush circuit
Grinding Fineness
About 200 mesh
Classification Stage
Classifier
Grinding Return
Coarse material returns to ball mill
Grinding Circuit
Closed grind circuit
Separation Methods
Flotation, magnetic separator or gravity concentrating machine
Post-Beneficiation Stage
Concentrate dehydration
Supplier Offering
Turnkey solutions for ore dressing plant
Customisation
Customized packaged solution
Optional Modules
Magnetic Separator
Gravity Concentrating Machine
Concentrate Dehydration Section
Industries Served
Gold Processing
Copper Processing
Iron Ore Processing
Zinc Ore Processing
Coltan Processing
What's Included
Turnkey ore dressing plant solution
Crushing and screening process section
Grinding and classification process section
Beneficiation process section
Concentrate dehydration stage
Customised packaged solution support
