Mineral Ore Gold Spiral Chute for Gold Processing Plants
Efficient gravity separation for gold and mineral recovery
High-efficiency spiral chute for gravity-based mineral separation in gold processing plants. Built for reliable operation, durable performance, and effective recovery across a range of ore types.
1-Year Warranty
Video Outgoing Inspection
High Separation Efficiency
Low Operating Cost
Minimal Maintenance
Guide Price
R 94 366
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
580 kg
Machine Weight
0.2-40 t/h
Capacity Range
0.02-0.04 mm
Feed Size Range
30-50%
Feed Density
1 Year
Warranty
Business Solution Overview
Cost-Effective Mineral Recovery: The spiral chute uses gravity as the primary separation force, supporting a cost-effective beneficiation process without relying on complex separation systems. This makes it a practical option for operations focused on efficient gold and mineral recovery.
Built for Long Service Life: High rigidity, anti-corrosion properties, and resistance to rust and wear support reliable long-term use in harsh mining environments. The design is intended for durable performance with low operating cost.
Low Maintenance Operation: The equipment is described as simple to install and requiring minimal maintenance. Reliable running with minimal operator attention can help reduce routine service demands in day-to-day plant operation.
Stable Process Performance: A stable sorting process, easy control, and strong adaptability to fluctuations in feed amount, density, size, and grade help support consistent plant performance. This is valuable for operations handling variable ore conditions.
Warranty and Pre-Shipment Inspection: A 1-year warranty is provided, and video outgoing inspection is included before shipment. These support confidence in equipment condition and quality verification prior to delivery.

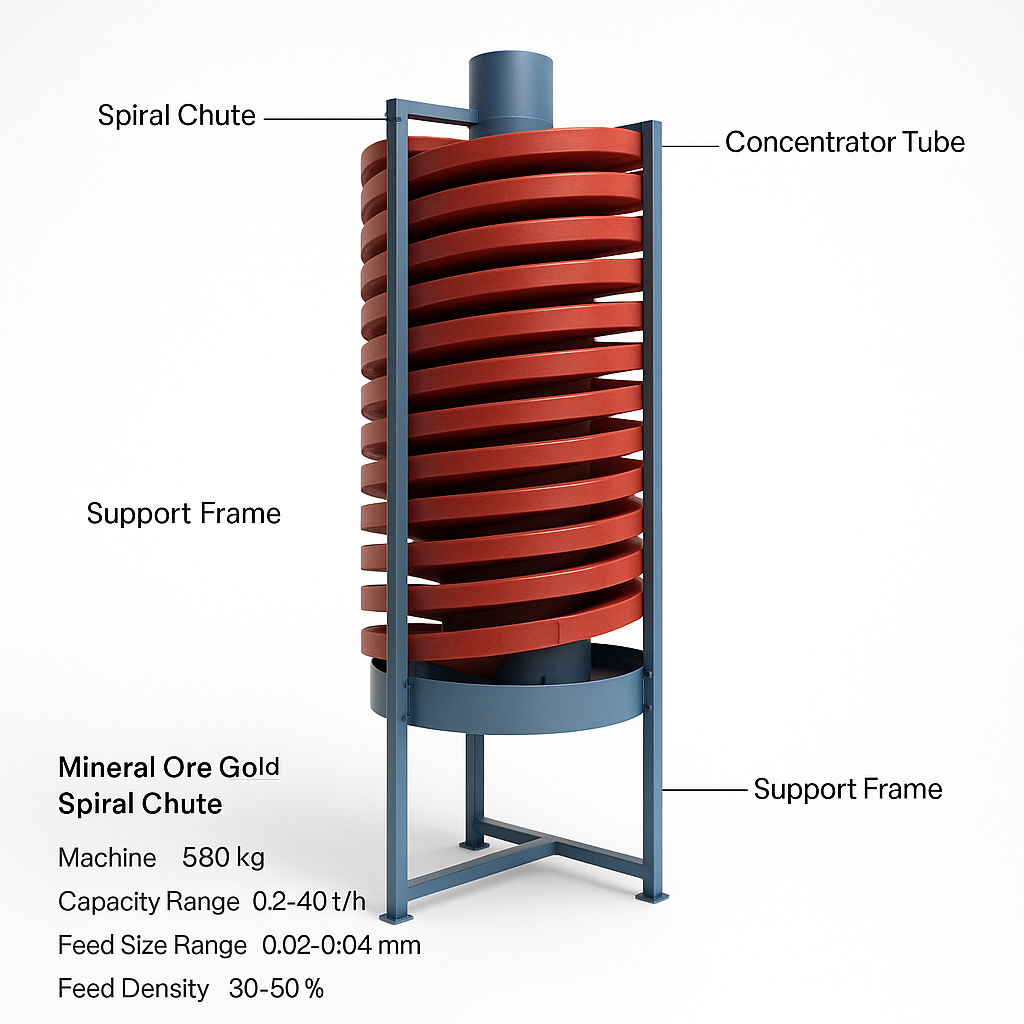

3D Sketch
AI-generated labelled 3D render — illustrative, not a manufacturing drawing.
Complete End-to-End Process
Feed ore slurry into the top ports
Add supplementary water and adjust pulp concentration
Generate swirling flow down the spiral chute
Separate minerals by gravity and centrifugal force
Collect concentrate and discharge tailings
Why Choose Mineral Ore Gold Spiral Chute for Gold P?
High Separation Efficiency
Designed to effectively separate gold particles and other valuable minerals from ore during processing. The system supports precise gravity-based beneficiation.
Durable, High-Rigidity Construction
Built to withstand harsh mining conditions, the spiral chute is intended for reliable long-term use in demanding plant environments.
Stable and Easy to Control
The sorting process is described as stable and easy to manage, helping operators maintain consistent separation performance.
Simple Installation and Low Maintenance
Light weight, straightforward setup, and minimal maintenance requirements help reduce operational complexity and downtime.
Gravity-Based Separation Process
Uses gravity as the primary separation force, providing an environmentally friendly and cost-effective method for mineral concentration.
Adaptable to Variable Feed Conditions
Strong adaptability to fluctuations in feeding amount, density, particle size, and grade makes it suitable for changing ore characteristics.
Technical Specifications
Product Type
Spiral chute
Application
Mining separation; gold processing plants
Separation Method
Gravity separation
Machine Weight
580 kg
Warranty
1 year
Inspection
Video outgoing inspection provided
Suitable Particle Size
0.3-0.02 mm
Model 5LL400 Capacity
0.2-0.5 t/h
Model 5LL400 Feed Size
0.02-2 mm
Model 5LL400 Feed Density
30-50%
Model 5LL400 Area
0.25 m2
Model 5LL400 Height
1.55 m
Model 5LL600 Capacity
0.8-1.2 t/h
Model 5LL600 Feed Size
0.02-2 mm
Model 5LL600 Height
2.6 m
Model 5LL900 Capacity
2-3 t/h
Model 5LL1200 Capacity
4-6 t/h
Model 5LL2000 Capacity
15-40 t/h
Model 5LL2000 Feed Size
0.04-4 mm
Model 5LL2000 Height
6.6 m
Industries Served
Gold Processing Plants
Placer Mining
Mineral Beneficiation Plants
Riverside and Beach Sand Mining
Non-Ferrous Metal Processing
What's Included
Mineral ore gold spiral chute
Core components
Video outgoing inspection
1-year warranty
