Concrete & Batching Plants

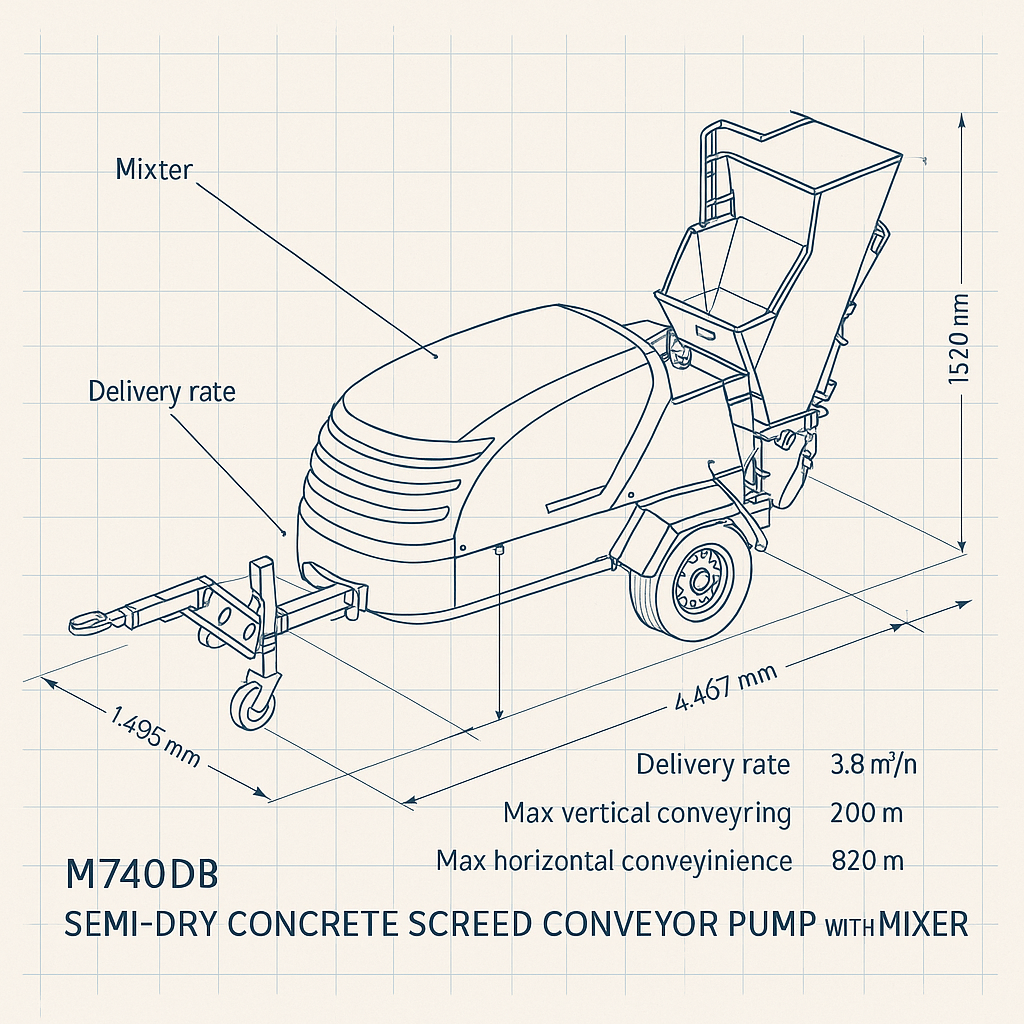

M740DB Semi-Dry Concrete Screed Conveyor Pump With Mixer
Integrated diesel mixing and conveying for semi-dry screed placement
A diesel-powered semi-dry concrete screed conveyor pump with an integrated mixer for handling mortar and screed. Suitable for interior and exterior floor screeding, mortar application and finishing work.
Diesel Powered
Integrated Mixer
Semi-Dry Screed Handling
Interior And Exterior Use
Guide Price
R 604 187.22
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
3.8 m³/h
Delivery Rate
200 m
Max Vertical Conveying Distance
820 m
Max Horizontal Conveying Distance
4,407 × 1,495 × 1,520 mm
Dimensions (L × W × H)
1,446 kg
Weight
Business Solution Overview
Integrated Material Handling: Mixing and conveying are combined in one machine, reducing the number of material-handling stages required for screed and mortar work.
Productive Screed Delivery: The stated 3.8 m³/h delivery rate supports the continuous handling of semi-dry screed and mortar during construction activities.
Extended Site Reach: With specified conveying distances of up to 200 m vertically and 820 m horizontally, the unit can transfer material across demanding site layouts.
Versatile Construction Application: The machine is suitable for interior and exterior use, including floor screeding, mortar application and finishing work on residential and commercial projects.
Diesel-Powered Site Operation: Diesel power and an integrated mixer-conveyor configuration provide a self-contained equipment solution for semi-dry screed handling on site.
Complete End-to-End Process
Mix
Pump
Convey
Place
Why Choose M740DB Semi-Dry Concrete Screed Conveyor?
Integrated Mixing And Conveying
The machine combines material mixing and pumping in a single unit to support a simplified screed handling workflow.
3.8 m³/h Delivery Rate
The stated delivery rate supports the handling of semi-dry screed and mortar for construction work.
Long-Distance Conveying
Specified conveying capability reaches up to 200 m vertically and 820 m horizontally for practical material transfer around the site.
Maintenance-Focused Design
The product description identifies ease of maintenance as a feature, supporting routine equipment upkeep.
Interior And Exterior Applications
Suitable applications include residential and commercial floor screeding, mortar application and finishing work.
Technical Specifications
Product Name
3.8 m³/h M740DB Series Semi-Dry Concrete Screed Conveyor Pump With Mixer
SKU
1601705794448
Delivery Rate
3.8 m³/h
Maximum Vertical Conveying Distance
200 m
Maximum Horizontal Conveying Distance
820 m
Conveyor Pipe Diameter
90 mm
Listed Delivery Pressure
35 kW
Engine Power
180 kW
Dimensions (L × W × H)
4,407 × 1,495 × 1,520 mm
Weight
1,446 kg
Mixer Drum Capacity
4 m³/h
Maximum Grain Size
7 mm
Colour Options
Black, Yellow, White, Green, Blue
Power Type
Diesel
Industries Served
Residential Construction
Commercial Construction
Floor Screeding
Mortar Finishing
Interior Fit-Out Works
What's Included
M740DB Semi-Dry Concrete Screed Conveyor Pump With Mixer
