Hard Rock Mining
Kaishan KM311 Full Hydraulic Tunnel Bolting Rig
Full hydraulic tunnel bolting rig for underground anchor drilling
Heavy-duty Kaishan underground bolting rig designed for tunnel anchor drilling applications, with full hydraulic top-drive rotary drilling, diesel power and integrated air compressor and water pump support.
1-Year Warranty
Machinery Test Report Provided
Video Outgoing-Inspection Provided
FOPS & ROPS Stated
Guide Price
R 5 015 523.63
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
Max. 40 m
Drilling Depth
100 mm
Drilling Diameter
325 Nm
Torque
45 kW
Electric Motor
8 kW
Impact Power
10 km/h
Travelling Speed
Business Solution Overview
Purpose-Built for Underground Support: The product is specifically listed for mining bolting rig usage, making it well aligned to tunnel anchoring and rock support duties rather than being a general-purpose drill adapted for the role.
Strong Drilling Capability: With a stated maximum drilling depth of 40 m, 100 mm drilling diameter and 325 Nm torque, the KM311 offers a capable specification for demanding underground anchor drilling applications.
Integrated Utility Package: The listed configuration includes an air compressor and water pump, helping reduce the need for separate support equipment and improving deployment efficiency on underground jobs.
Safety-Focused Machine Design: The page states that the safety canopy/lift arrangement meets FOPS and ROPS requirements, an important consideration for underground operations where operator protection matters.
Supplier Inspection Support: The listing states that a machinery test report and video outgoing-inspection are provided, which helps buyers evaluate equipment condition and supply readiness before purchase.

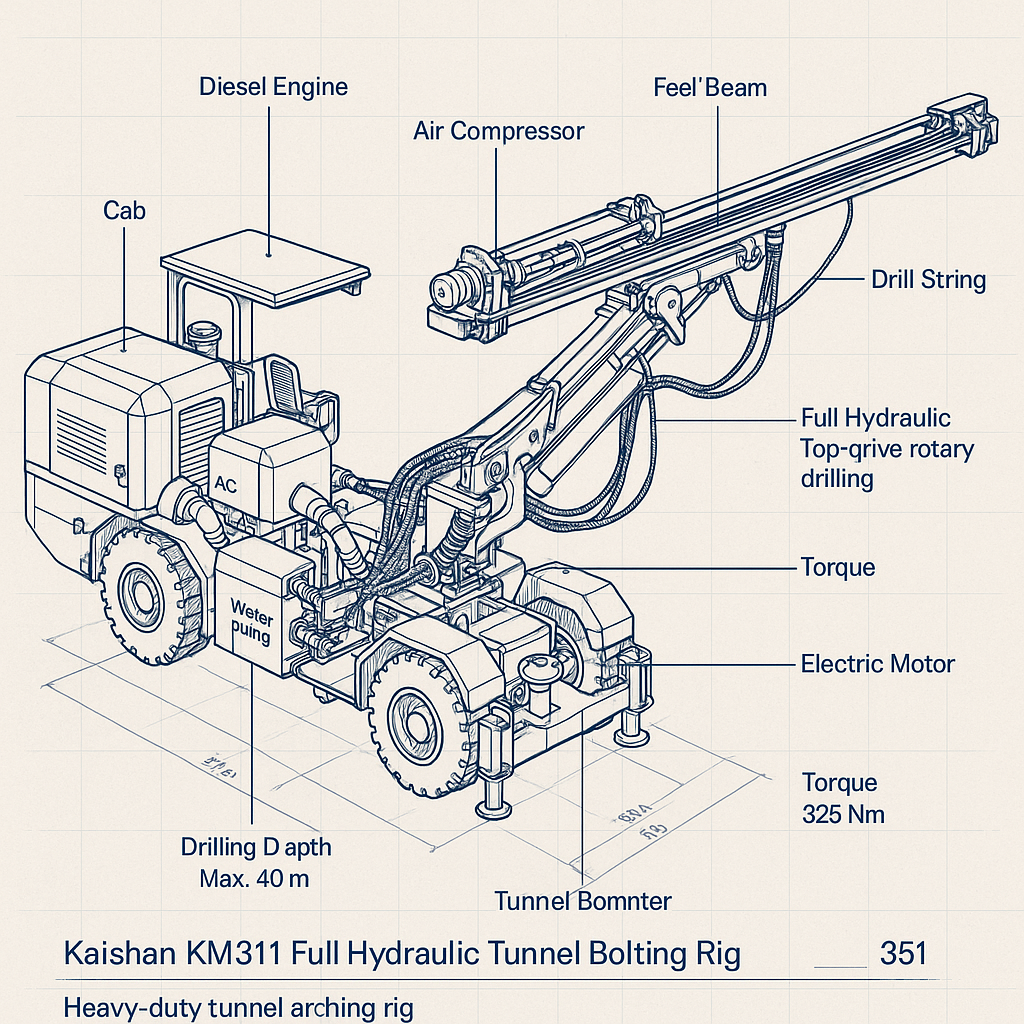

3D Sketch
AI-generated labelled 3D blueprint sketch — illustrative, not a manufacturing drawing.
Complete End-to-End Process
Position Rig Underground
Rotary Hydraulic Drilling
Drill Anchor Holes
Support Tunnel Reinforcement
Why Choose Kaishan KM311 Full Hydraulic Tunnel Bolt?
Full Hydraulic Drilling System
The KM311 uses a full hydraulic top-drive rotary drilling method for controlled anchor drilling in underground tunnel applications.
Built for Bolting and Anchoring
The machine is described for mining bolting rig usage, supporting rock bolting and tunnel reinforcement work.
High Torque Output
The listed 325 Nm torque supports drilling performance in hard underground ground conditions where anchor installation demands consistent power.
Mobile Underground Operation
A stated travelling speed of 10 km/h helps the rig move between working areas more efficiently inside tunnels and underground headings.
Integrated Compressor and Water Pump
The inclusion of a 1 × JN5 air compressor and CR3 water pump supports drilling operations with a more complete on-board equipment package.
Operator Protection Design
The listing states that the safety canopy/lift arrangement meets FOPS and ROPS requirements, supporting safer underground equipment operation.
Technical Specifications
Product Name
Mining Bolting Rig
Brand
Kaishan
Model
KM311
Usage
Mining Bolting Rig
Type
Rotary Drilling Rig
Drilling Depth
Max. 40 m
Drilling Diameter
100 mm
Power Type
Diesel
Voltage
0
Core Components
Motor
Warranty
1 Year
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Key Selling Points
Flexible Manufacturing
Place of Origin
Zhejiang, China
Weight
13,500 kg
Dimensions (L × W × H)
11,110 × 2,716 × 3,600 mm
Impact Power
8 kW
Application
Construction Exploration
Drilling Method
Top-Drive Hydraulic Rotary Drilling
Travelling Speed
10 km/h
Electric Motor
45 kW
Torque
325 Nm
Air Compressor
1 × JN5
Water Pump
CR3
Safety Canopy/Lift
Meets FOPS and ROPS requirements
Industries Served
Underground Mining
Tunnel Construction
Rock Reinforcement
Anchor Installation
What's Included
KM311 drilling rig
1 × JN5 air compressor
CR3 water pump
Machinery test report
Video outgoing-inspection
